K2 HangerBolt M10-200 Set

For fastening the K2 SolidRail and SingleRail mounting rails on roofs with corrugated fiber cement or sheet metal on timber substructures. The K2 hanger bolts are equipped with an extra-long metric thread for installation height adjustment. Hanger bolts are outfitted with a pre-mounted adapter plate.

The set consists of:

• 1 hangerscrew
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

K2 ALUMINIUM Adapter plate M10

Adapter plate for Hanger Bolt and Solar Fastener M10; screws M10.

• Dimensions: 40 x 90 mm
• Material: Aluminium

Also available in a box of 300 units.

K2 Adapter plate M10Hanger Bolt Climber

Aluminium adapter plate for M10 hanger bolts Climber Set or as an accessory for the Dome FixPro item.

• Dimensions (W x H x D): 50 x 5 x 90 mm
• Material: Aluminium

K2 Adapter plate M12

Aluminium adapter plate for M12 hanger bolts Climber Set or as an accessory for the Dome FixPro item.

• Dimensions (W x H x D): 50 x 90 mm
• Material: Aluminium

K2 Add On

K2 Add On is a ‘rail-share’ method, so the underlying rail structure is aligned to the long sides of the module frames, with one rail supporting the modules above and below. Modules are clamped using our Add-ons.

The K2 AddOn mounting adapter enables grid or shared-rail installation without additional rails or clamps. Fits all K2 SolidRails, CrossRails, SingleRails and SpeedRails.

Material: glass fibre reinforced polyamide. For module frame height 35-50 mm.

Also available in a box of 250 units.

K2 Anchor Bolt/ Hanger Bolt for Steel M8 x115/M10x50 Length 165mm

Solar panel anchor bolt for steel Ø 8,0(bottom part) with M10x50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

Specification:

• Systems: InsertionRail and SolidRail
• Clamping Area (mm): 44-85
• Screw Length (mm): 115
• Total Length (mm): 165
• Screw Thread: M10x50

The set consists of:

• 1 M10 lock nut, Stainless steel
• 1 Washer, Stainless steel
• 1 M10 hexagon nut, Stainless steel
• 1 sealing washer, Stainless steel
• 1 FZD sealing washer, Stainless steel

Also available in a box of 25 units.

K2 Anchor Bolt for Steel M8x155/50 Length 205mm

Solar panel anchor bolt for steel Ø 8,0(bottom part) with M10x50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

Article is procured on the basis of order - return excluded

Specification:

• Systems: InsertionRail and SolidRail
• Clamping Area (mm): 84-125
• Screw Length (mm): 155
• Total Length (mm): 205
• Screw Thread: M10x50

The set consists of:

• 1 M10 lock nut, Stainless steel
• 1 Washer, Stainless steel
• 1 M10 hexagon nut, Stainless steel
• 1 sealing washer, Stainless steel
• 1 FZD sealing washer, Stainless steel

Also available in a box of 25 units.

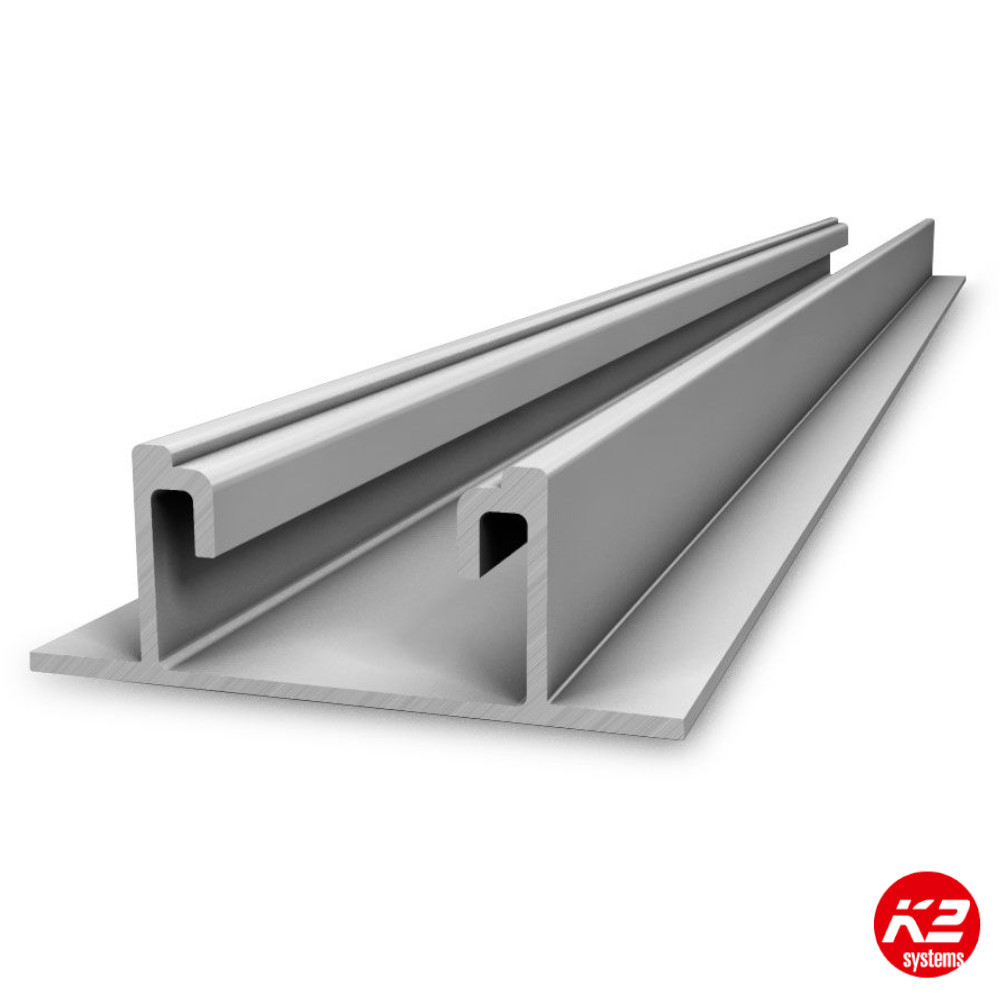

K2 BasicRail 22 2.50m

Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System.

FEATURES:

• Length: 2.50m, Height: 22.5mm
• Suitable for K2 BasicRail System, Dome 6 System,  Dome Zero System, and MultiAngle System
• Material: Aluminium EN AW-6063

K2 BasicRail 22 3.65m

Quick mounting rail with static confirmation in K2 Base. For mounting with BasicClip on a trapezoidal sheet metal roof or as base rail for the K2 Dome System.

FEATURES:

• Length: 3.65m, Height: 22.5mm
• Suitable for K2 BasicRail System, Dome 6 System,  Dome Zero System, and MultiAngle System
• Material: Aluminium EN AW-6063

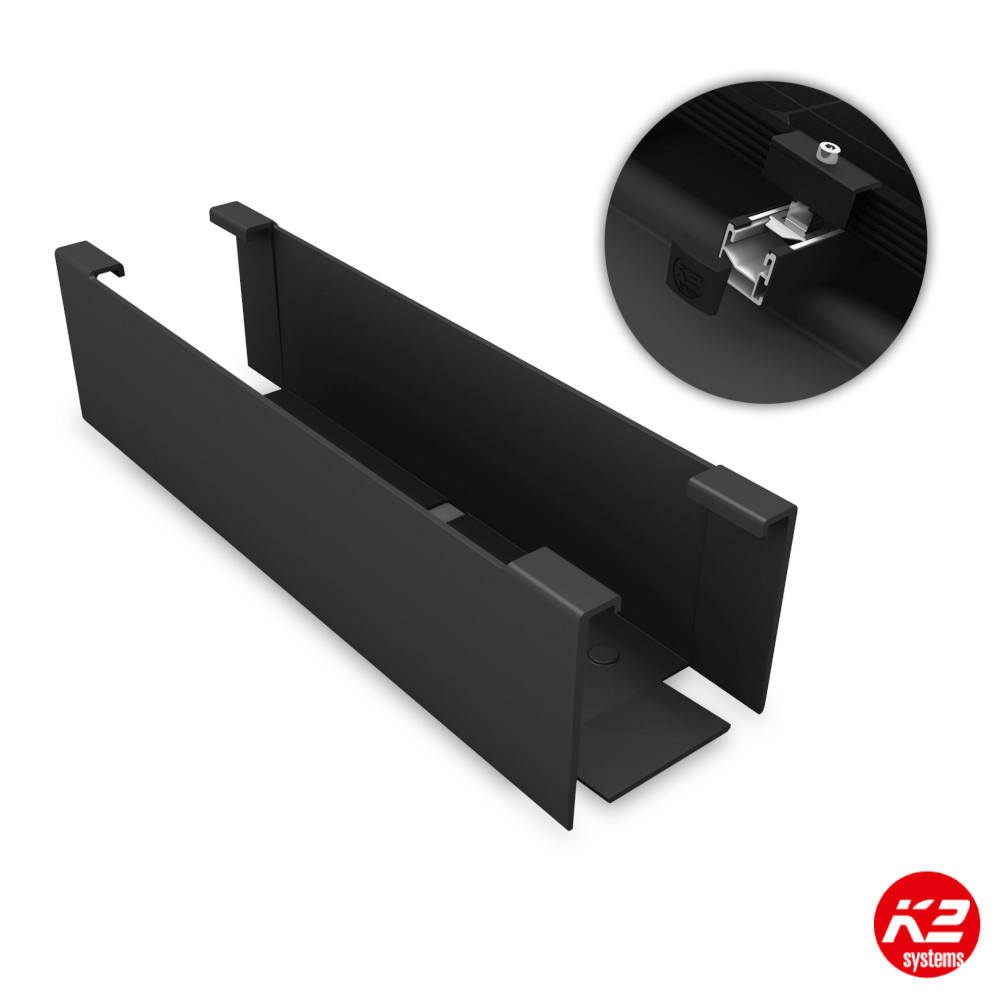

K2 BlackCover SingleRail 36

K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.

FEATURES:

• Colour: Black
• Material: Plastic PA6 GK30

Also available in:

• Box of 112 units
• Bag of 16 units
• Pallet of 2,688 units

K2 Body Washer for M10 bolt connections

FEATURES:

• Stainless steel A2
• Dimensions: 10.5 x 30 x 1.5 mm
• Weight: 0,01 kg
• Warranty: 12 years (if installed correctly)
• Certificates: EN, CE

Also available in a box of 200 units.

K2 Body Washer for M8 bolt connections

FEATURES:

• Stainless steel A2
• Dimensions: 8.4 x 30 x 1.5 mm
• Weight: 0,01 kg
• Warranty: 12 years (if installed correctly)
• Certificates: EN, CE

Also available in a box of 200 units.

K2 Body Washer, stainless steel (Pack of 200)

FEATURES:

• Pack of 200 units
• Dimensions: 8.4 x 25 x 1.5 mm
• Stainless steel A2
• Warranty: 12 years
• Certificates: EN, CE

K2 Cable Manager

FEATURES:

• Solar Cable Manager with connecting possibility for outdoor-installation
• L x W: 200 x 4.6 mm

Also available in a box of 100 units.

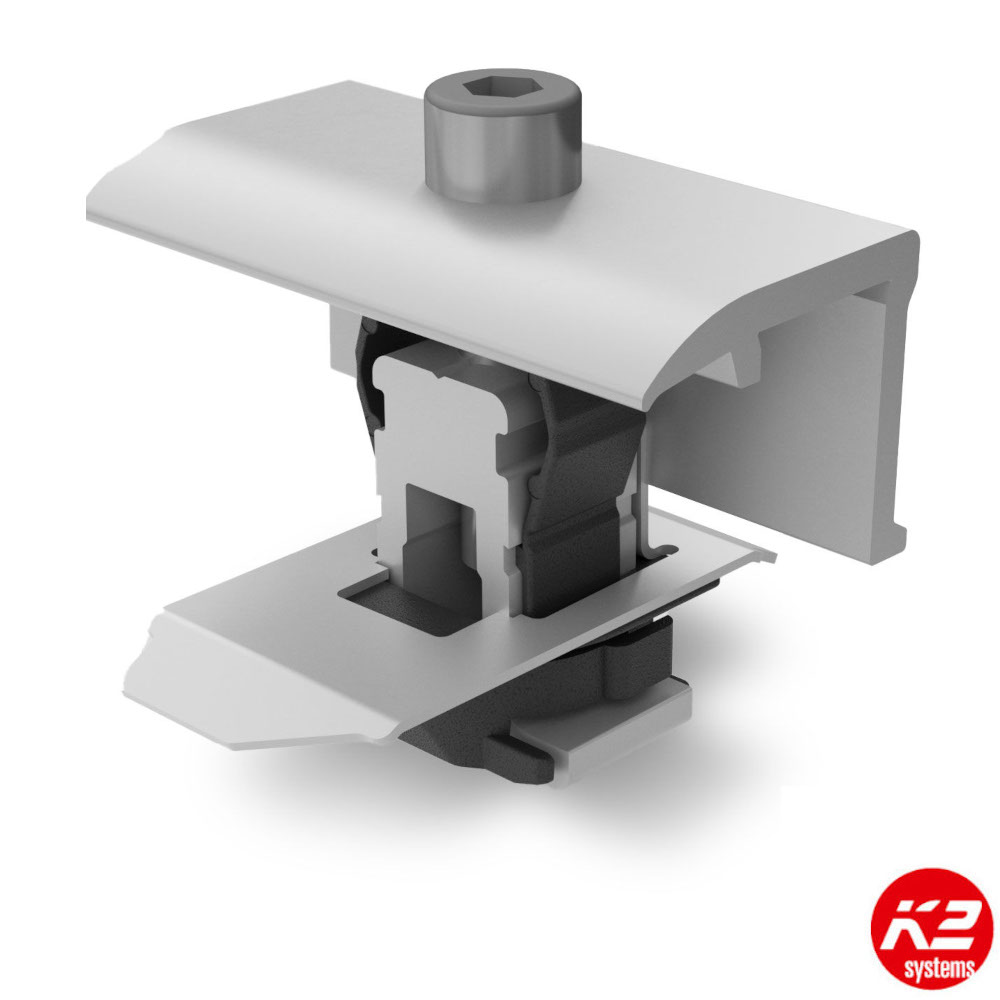

K2 Clamp EC 25-40

Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

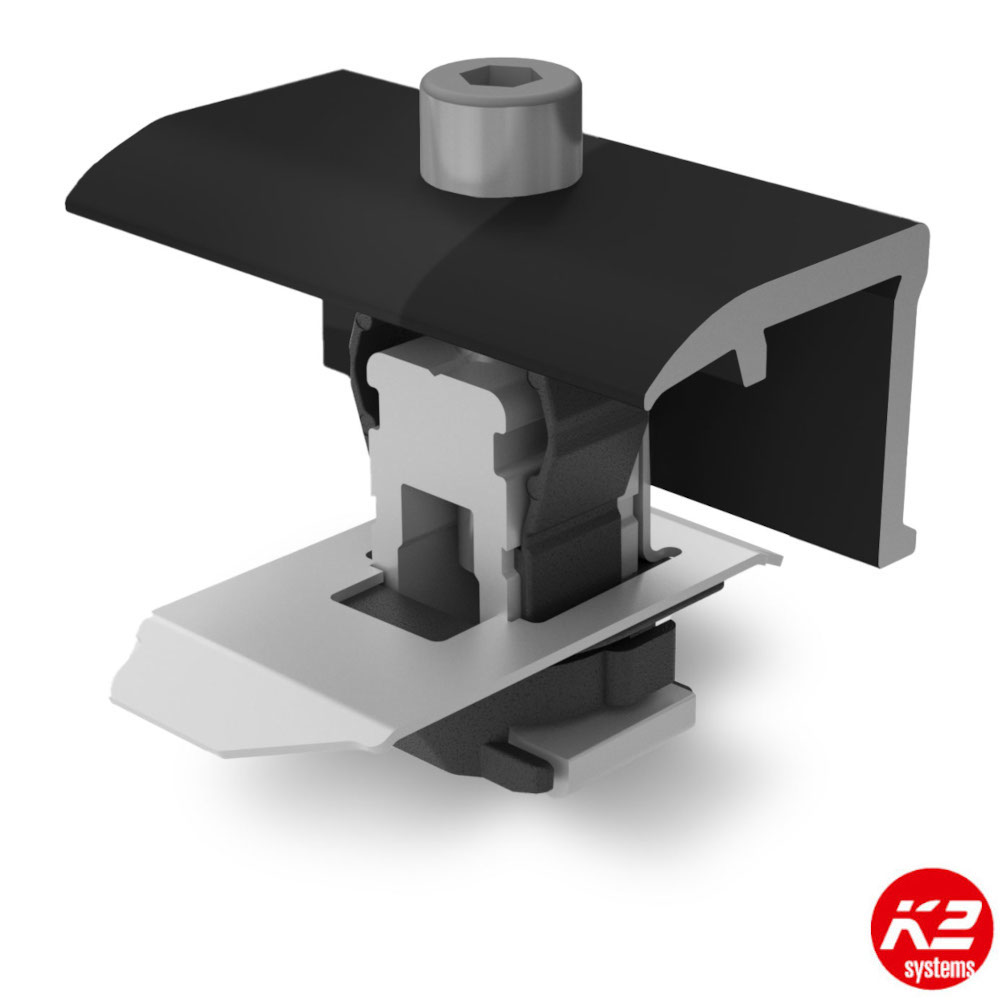

K2 Clamp EC 25-40 Black

Black anodised universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Black anodised
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

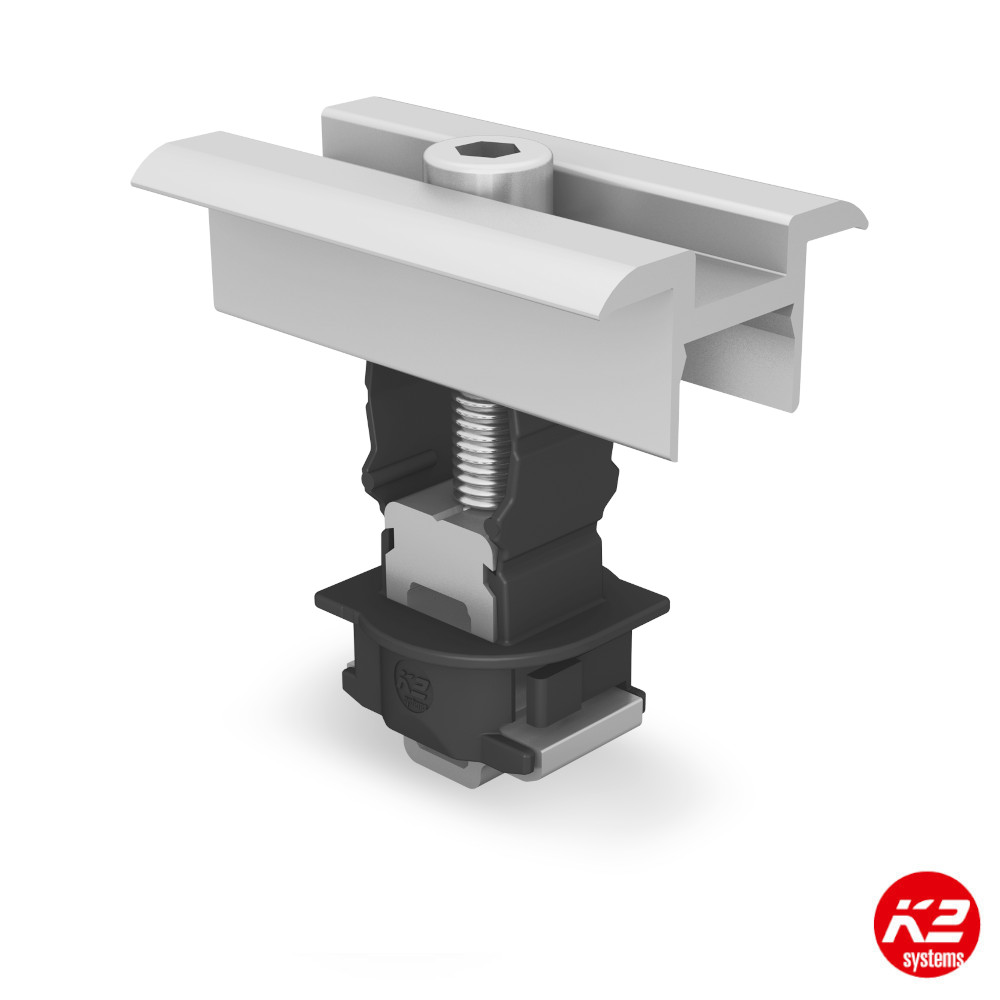

K2 Clamp MC 25-40

Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

K2 Clamp MC 25-40 Black

Black anodized Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• Black anodised
• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

K2 Climber 36/50 M12

K2 Climber 36/50 Hanger Bolt M12, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M12.

Material: Aluminium EN AW-6063 T66

K2 Climber M8 36/50 Set

A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included.

The set consists of:

• 1 Climber 36/50 Aluminium EN AW-6063 T66
• 1 Bolt with serrated under head M8x20, stainless steel A2
• 1 MK2 insert nut M8 (1001643), stainless steel

Also available in a box of 200 units.

K2 Climber for SingleRail 36/50 M10

K2 Climber 36/50 Hanger Bolt M10, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M10. For fixing the mounting rail SingleRail or CrossRail to the hanger bolt M10.

Material: Aluminium EN AW-6063 T66

Also available in a box of 250 units.

K2 Collar Nut M10

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M10

Also available in a box of 100 units.

K2 Collar Nut M8

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M8

Also available in a box of 100 units.

K2 Connector Set - CrossRail Angle Bracket

Stainless steel angle bracket for rail cross connection to a 90°angle. Constructions suitable for K2 SolidRails Light, Medium and Alpin.

The set consists of:

• 1 angle bracket, stainless steel
• 1 T-bolt M10, stainless steel
• 1 locking nut M10,stainless steel
• 1 Allen bolt M8, stainless steel
• 1 M K2 slot nut M8, stainless steel
• 1 Lock Washer S8, stainless steel

Also available in a small box of 10 units and larger box of 120 units.

K2 Connector Set - SpeedRail

Rail connector for connecting 2 K2 SpeedRails. With 3 drill holes for flexible mounting.

The set consists of:

• 1 SpeedConnector, Aluminium
• 2 countersunk drilling screws, stainless steel with TX 25 bit

Also available in a small box of 10 units and larger box of 400 units.

K2 Countersunk Head Screw M6 x 70 - 200 Units

Head timber screws, drilling-point and Countersunk head 6x70/42. Drive size: TX25.

• Box of 200 Units
• Diameter [mm]: 6
• Length [mm]: 70
• Head diameter [mm]: 12
• Drive: Hexalobular socket - 25
• Head shape: Countersunk head
• Mounting systems: K2 InsertionRail System, K2 SolidRail System
• Material: stainless steel A2

K2 CrossHook 2 FLA Set

Roof Hook for fastening of K2 system components to tile roofs with flat roof tiles, in accordance with BS EN 490. With pre-assembled K2 Climber 36/48 and Allen bolt for K2 SingleRail mounting.

Material: Stainless steel (1.4301)

Dimensions:

• Base plate width: 150mm
• Height under arms: 44mm
• Arm height: 46mm
• Total height: 100mm
• Depth: 116mm

Included:

• CrossHook 2
• Climber 36/48
• Allen bolt

CrossHook 3S Set

Aluminium-roof fastener with 3 height adjustments in the base plate (40, 47, 54 mm) for narrow rafters from 36 mm.

For fastening the K2 SingleRail and CrossRail mounting rails.

Dimensions:

• Base plate width: 100mm
• Bracket depth: 83mm
• Total height: 123/130/137 mm
• Bracket height: 56mm

Includes:

• Pre-assembled Climber 36/50
• Allen bolt

Material: Aluminium EN AW-6063 T66

Also available in a box of 20 units.

Note: This part replaces item 2001672.

K2 D-Dome 6.10 Base Set

Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 960-1170 mm.

Details:

• Height(mm): 77.5
• Length(m): 2.48
• Width(mm): 75
• Module width(mm): 960-1170
• Mounting Systems: K2 Dome 6 System
• Material: Aluminium mill

INCLUDES:

• BasicRail 2.48 m
• 2 x Dome 6.10 SD
• 2 x Dome 6 EndPlate
• 3 x Dome Mat S

K2 D-Dome 6.10 Base Set (Earlier Model)

Pre-assembled basic rail set for the D-Dome 6.10 system. Includes SpeedRail 2.25 m, Dome SD, MidPlate and Mat S.

Material: Aluminium, EPDM, stainless steel

K2 Dome 6 Connector Set

Rail connector set as connecting element between two K2 Dome 6.10 Base Set. Length: 495 mm. Including accessories and equipotential bonding.

Material: Aluminium, stainless steel

K2 Dome 6 Connector Set with Bonding

Rail connector set as connecting element between two K2 Dome 6 Base Set. Including accessories and equipotential bonding.

Length (mm): 195
Material: Aluminium, stainless steel

Sales Unit: 1

Box Units: 20

K2 Dome 6.10 Peak with hole

Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the SpeedRail with a socket head bolt and MK2.

Material: Aluminium EN AW-6063 T66.

Note: This product replaces item2003248.

K2 Dome 6.10 SD

Front module support element for the Dome 6.10 system.
Only suitable for flat roof fastening.

Material: aluminium

K2 Dome 6.10 Peak with hole

Component for the module elevation of the Dome 6.15 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the BasicRail with a socket head bolt and MK2

Material: Aluminium EN AW-6063 T66.

K2 Dome FixPro L

Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately.

Suitable module length [mm]: 1617 - 2392
Mounting systems: Dome 6 System; flat roof
Material: Aluminium, stainless steel, PA

K2 Dome FixPro S

Fixing accessories for attaching the K2 Dome 6 (Classic LS system and Dome Zero) to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately.

Suitable for module lengths: Classic LS system: 1562 - 2390 mm; Dome Zero: 1640 - 2390 mm
Mounting systems: K2 Dome 6 System, K2 Dome Zero System
Material: Aluminium, stainless steel, PA

K2 Dome Mat S 380

Mat S Support Pad. Flexible function to absorb tolerances and protect the roof cover. Suitable for K2 SpeedRail 22.

Mounting systems: Dome 6 System, Dome Zero System.

Material: EPDM

Also available in a box of 50 units.

K2 Dome Porter Extra Long

The Porter is suitable for a fast and universal bearing of different ballasts for the K2 Dome 6.10 (S-Dome and D-Dome) systems.

For module dimensions 1998-2405 mm in combination with MiniClamp.

Dimensions:

• Width: 2450 m
• Height: 60 mm
• Depth: 40 mm

Material: Aluminium

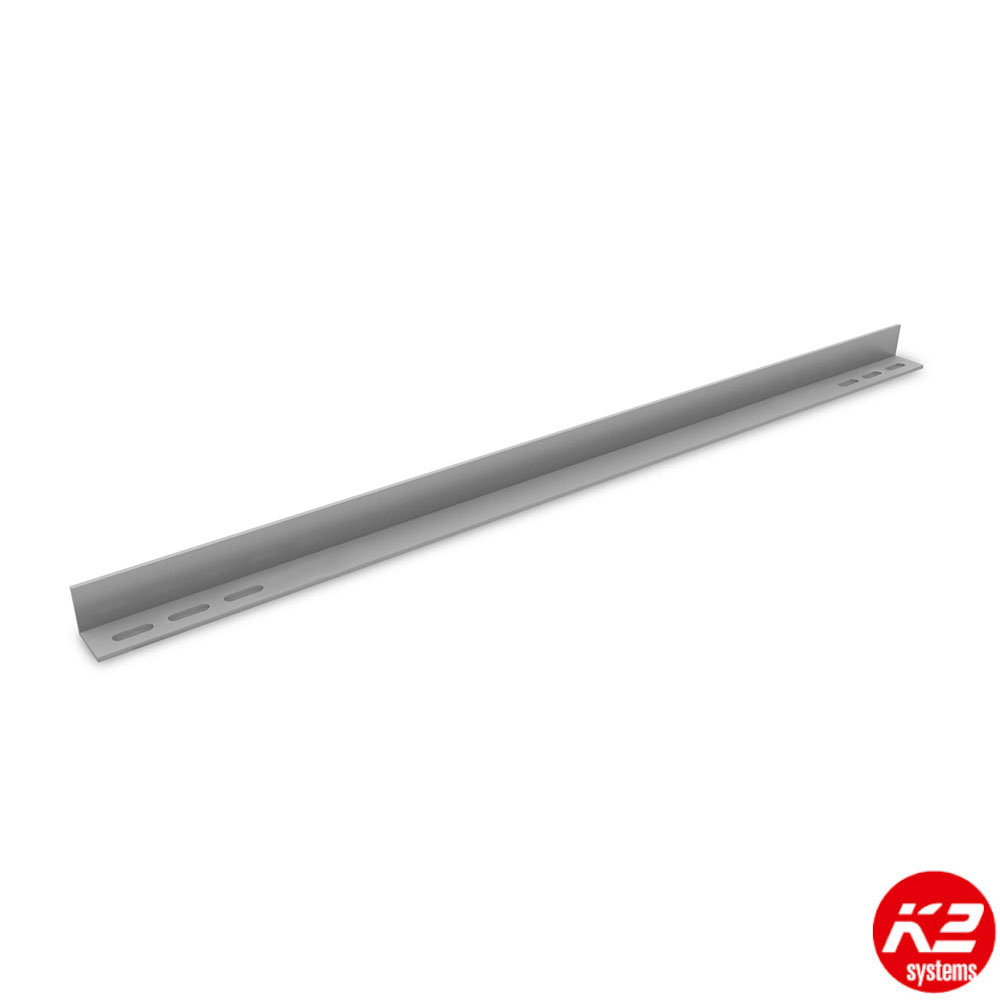

K2 Dome Porter Flex

The K2 Porter is suitable for a fast and universal bearing of different ballasts for the K2 Dome Zero System and K2 Dome 6 Classic LS System.

The Porter can be used for module widths up to 1320 mm for the Dome Zero System and for module lengths from 1562 to 2390 mm for the Dome 6 Classic LS System

Total length Porter: 1365 mm; Maximum permissible ballast: 178 kg.

Material: aluminum EN AW 6063 T66

K2 Dome Porter Long

The K2 Porter is suitable for a fast and universal bearing of different ballasts for the Dome 6 systems. Material: Aluminium

For module dimensions 1743 - 2150 mm in combination with MiniClamp

Note that Porter rails are sold as individual rails, not in pairs.

Also available in a box of 350 units.

K2 DomePorter Short

The K2 Porter is suitable for a fast and universal bearing of different ballasts for the Domesystems.

For module dimensions 1392 - 1799 mm in combination with MiniClamp

Material: Aluminium

Note that Porter rails are sold as individual rails, not in pairs.

Also available in a box of 350 units.

K2 Dome Speed Porter

Accessory for ballast of K2 Dome flat roof systems.

• Dimensions: 200x80x15 mm
• Material: aluminium (EN AW-5754 H111)

Also available in a small box of 10 units; full box of 250 units.

K2 Dome Speed Spacer

Distance tool for the Dome system; Dome 6.0 System, Dome 6.10 System, Dome Classic System, Dome V System.

• Length: 2.50m
• Material: Aluminium, Acromide

Also available in a 150/box.

K2 Dome Zero Peak

Component for the roof-parallel module elevation of the Dome Zero system. The peak is fixed to the SpeedRail with a socket head screw and MK2.

• Dome Zero System
• Elevation angle: 0°

Material: Aluminium EN AW-6063 T66.

K2 DomeClamp End Clamp 30-50 mm (former K2 Mini End Clamp)

Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Suitable for modules with 30-50 mm frames.

Material: aluminium, stainless steel

Also available in a box of 20 units.

K2 DomeClamp End Clamp 30-50 mm BLACK (former K2 Mini End Clamp)

Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Suitable for modules with 30-50 mm frames.

Material: aluminium, stainless steel

Also available in a box of 20 units.

K2 DomeClamp Middle Clamp 30-50 mm (former K2 Mini Mid Clamp)

Universal middle clamp set for fastening solar modules on the K2 Dome 6 System and K2 MiniRail System.

• Module frame height [mm]: 30-50
• Material: Aluminium, EPDM

Also available in a box of 20 units.

K2 DomeClamp Middle Clamp 30-50 mm, black anodized (former K2 Mini Mid Clamp)

Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System and K2 MiniRail System.

• Module frame height [mm]: 30-50
• Material: Aluminium Black, anodized, EPDM

Also available in a box of 20 units.

K2 EPDM Sealing Strip 10m roll Black

EPDM-Sealing strip, one-sided self-adhesive 10m roll, Black.

Dimensions: 30 x 3 mm.

Also available in a box of 8 units.

K2 End Cap for SingleRail 36

The high quality plastic mouldings fit accurately, are easily fixed and give the mounting system a shapely finish. Material: glass fibre reinforced polyamide.

Also available in a box of 100 units.

K2 End Clamp 34-36mm (not a set)

K2 single end clamp for panel frame size 34-36mm. End clamp in new, modern design, made from plate finished aluminium for safe fastening of solar modules to K2 rails.

K2 End Clamp Set 30-31mm

K2 Set Module End Clamp Standard.

The set is preassembled and can be easily mounted with every K2 rail. M K2 insert nuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

End clamp set standard, consisting of:

• 1 x aluminium end clamp (cold pressed)
• 1 x stainless steel socket screw
• 1 x M K2 insert nut M8 (M8x30 stainless steel)
• 1 x S8 lock washer
• 1 x spring (stainless steel)

Also available in a box of 200 units.

K2 End Clamp Set 32-33mm

K2 Set Module End Clamp Standard.

The set is preassembled and can be easily mounted with every K2 rail. M K2 insert nuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

End clamp set standard, consisting of:

• 1 x aluminium end clamp (cold pressed)
• 1 x stainless steel socket screw
• 1 x M K2 insert nut M8 (M8x30 stainless steel)
• 1 x S8 lock washer
• 1 x spring (stainless steel)

Also available in a box of 200 units.

K2 End Clamp Set Black 32-33mm

The set is preassembled and can be easily mounted with every K2 rail. M K2 insert nuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

Black End clamp set standard, consisting of:

• 1 x aluminium end clamp (cold pressed)
• 1 x stainless steel socket screw
• 1 x M K2 insert nut M8 (M8x30 stainless steel)
• 1 x S8 lock washer
• 1 x spring (stainless steel)

Also available in a box of 200 units.

K2 End Clamp Set Black 34-36mm

The set is preassembled and can be easily mounted with every K2 rail. M K2 insert nuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

Black End clamp set standard, consisting of:

• 1 x aluminium end clamp (cold pressed)
• 1 x stainless steel socket screw
• 1 x M K2 insert nut M8 (M8x30 stainless steel)
• 1 x S8 lock washer
• 1 x spring (stainless steel)

Also available in a box of 200 units.
