K2 TiltUp Vento System

K2 BlackCover SingleRail 36

K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.

FEATURES:

• Colour: Black
• Material: Plastic PA6 GK30

Also available in:

• Box of 112 units
• Bag of 16 units
• Pallet of 2,688 units

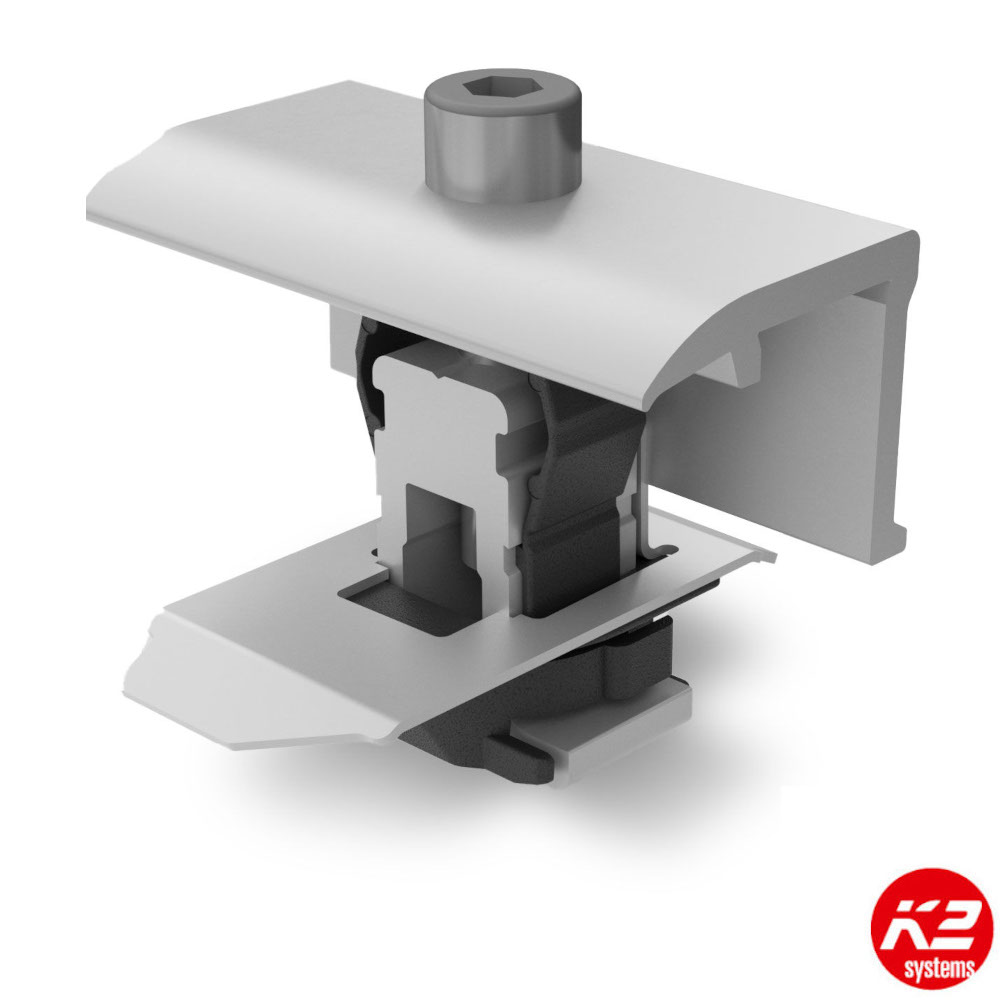

K2 Clamp EC 25-40

Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

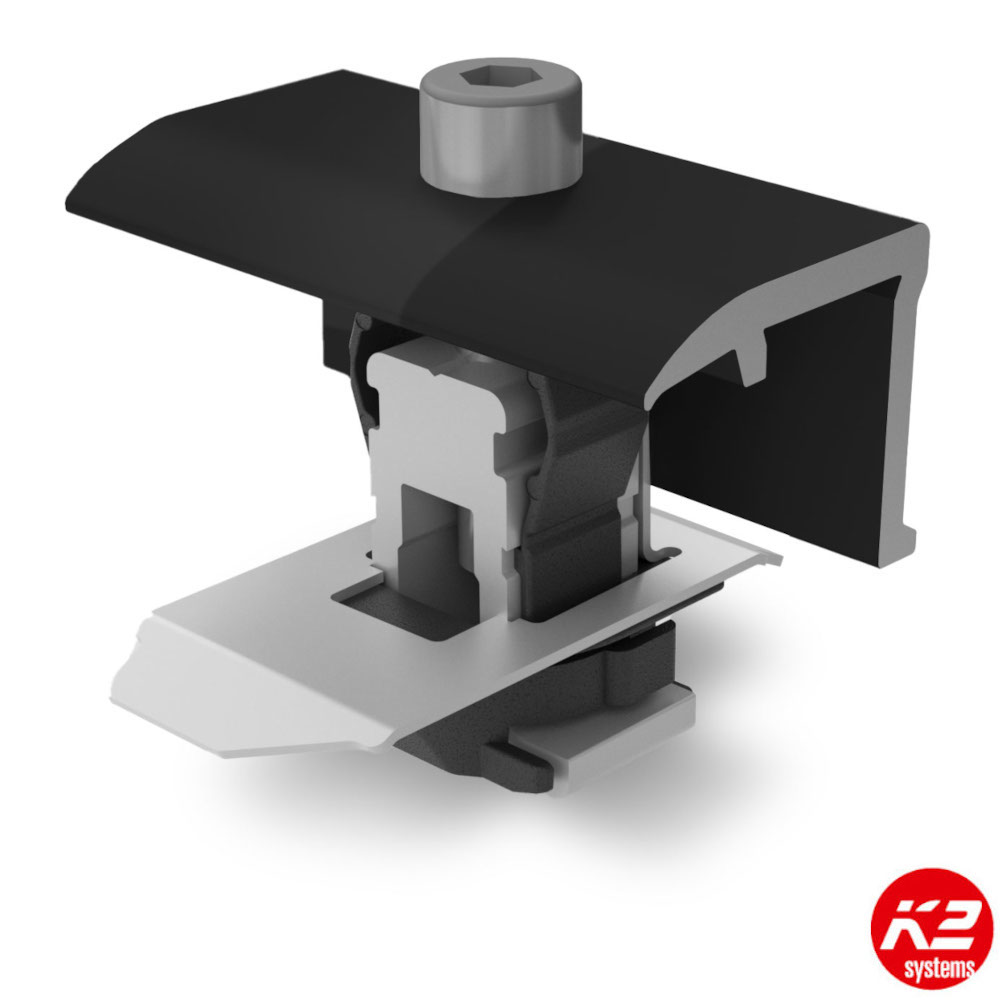

K2 Clamp EC 25-40 Black

Black anodised universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Black anodised
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

K2 Clamp MC 25-40

Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

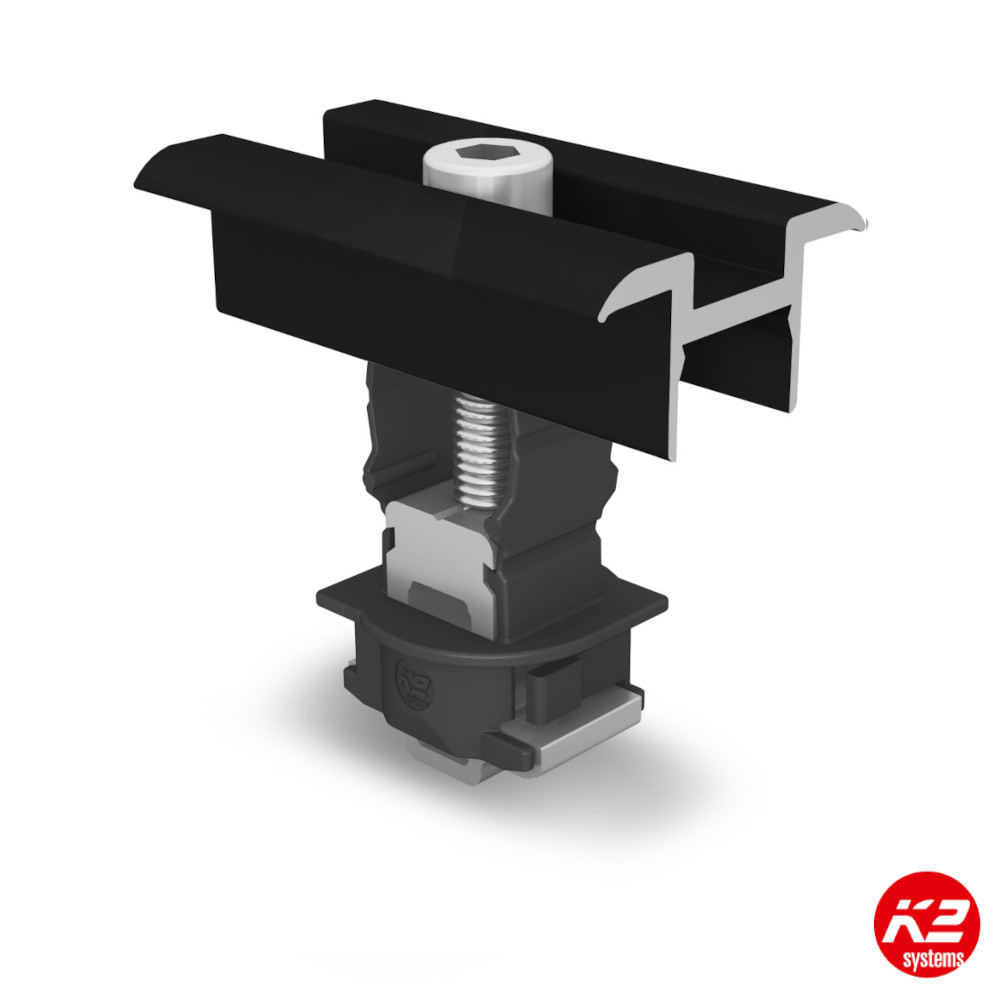

K2 Clamp MC 25-40 Black

Black anodized Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• Black anodised
• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

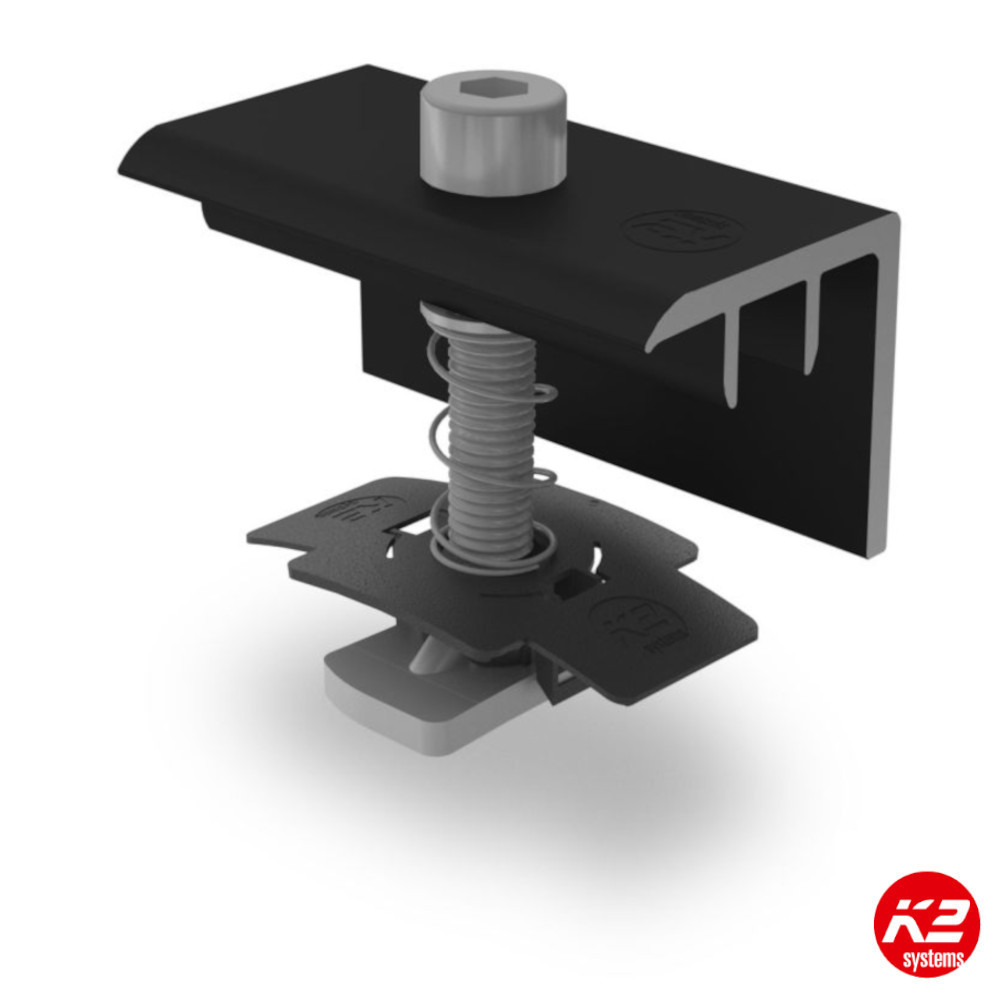

K2 End Clamp XS Set Black 30mm

Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 58mm
• Depth: 65mm

K2 End Clamp XS Set Black 35mm

Black anodised module end clamp set for fixing solar modules with frame heights of 35 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 63mm
• Depth: 65mm

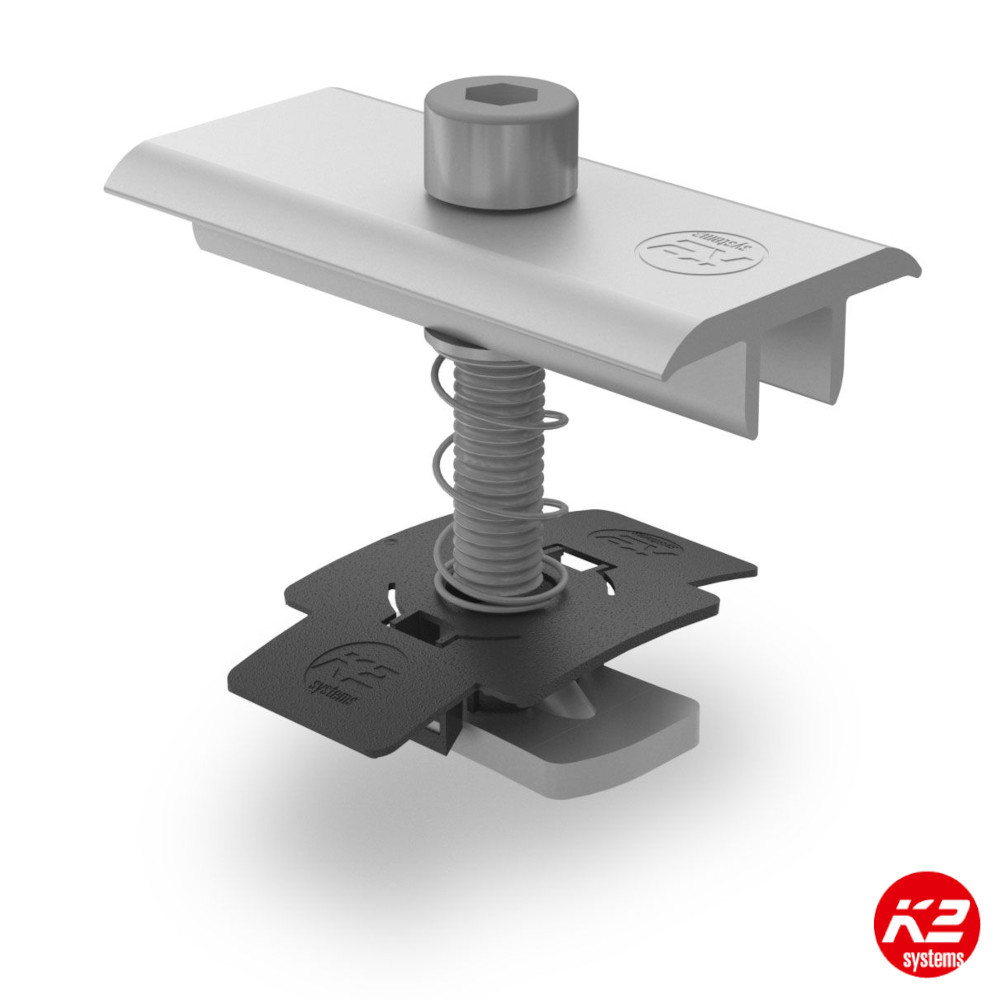

K2 Mid Clamp XS Set 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

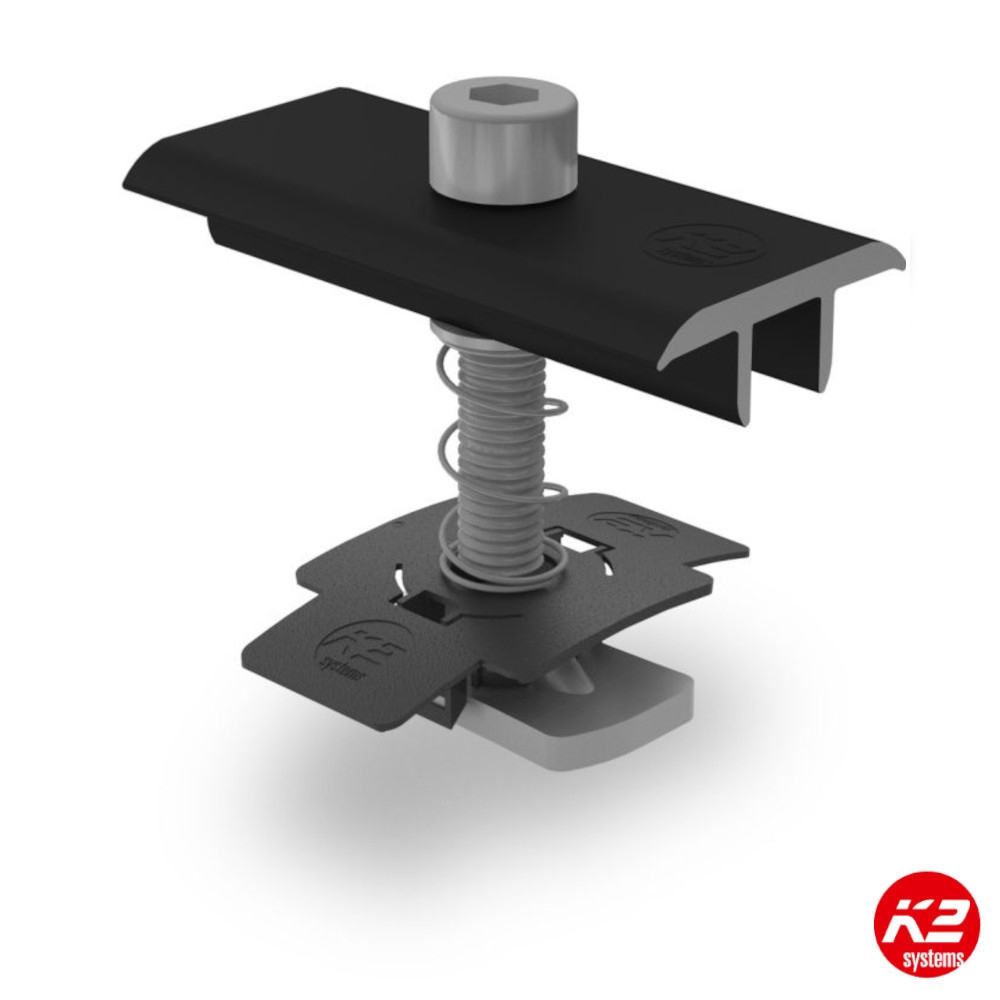

K2 Mid Clamp XS Set Black 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black Anodised
• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

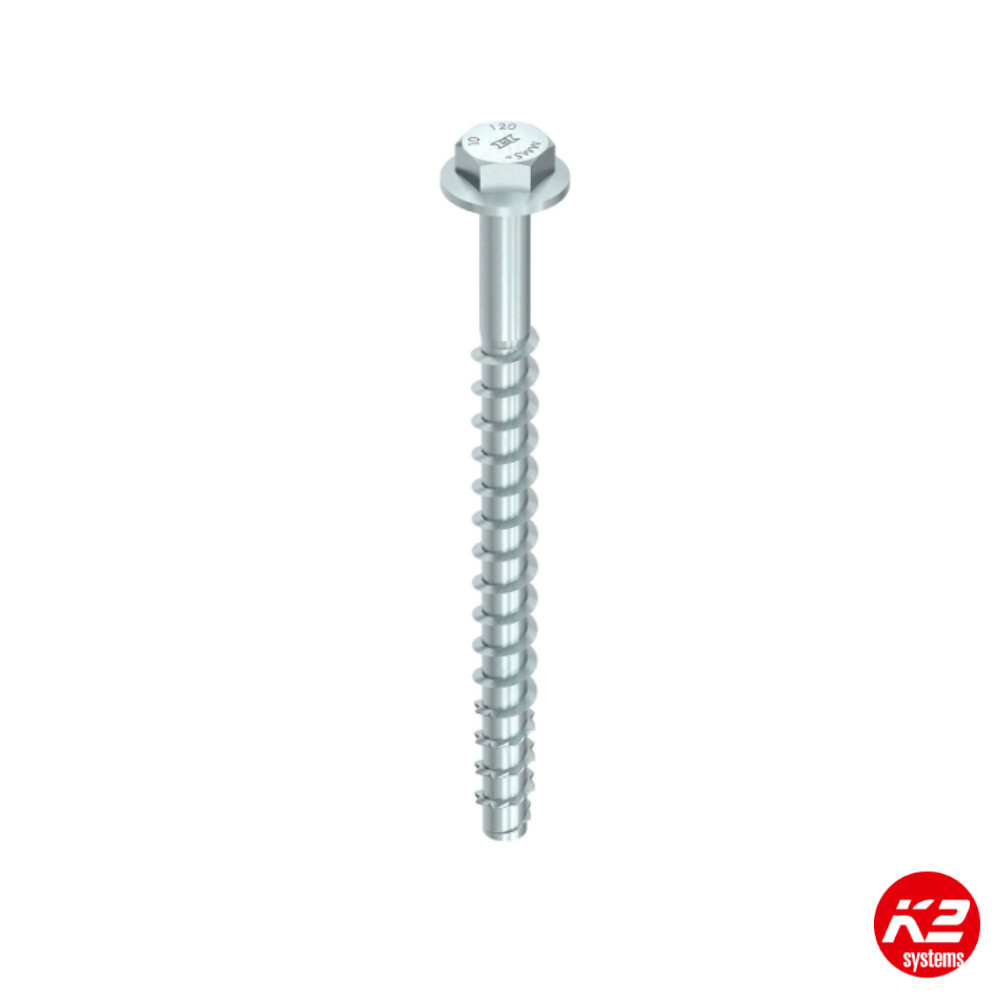

K2 Multi Monti fastener for concrete 7,5 x 60

Screw anchor, Multi MontiMulti Monti screw anchor (Heco) for fastening to concrete with combined washer.

The certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable.

Material: carbon steel bright zinc plated, A2K

• Packing unit: 1 piece
• Head shape: Hexagonal
• Length (mm): 60
• Screw system: External hexagon

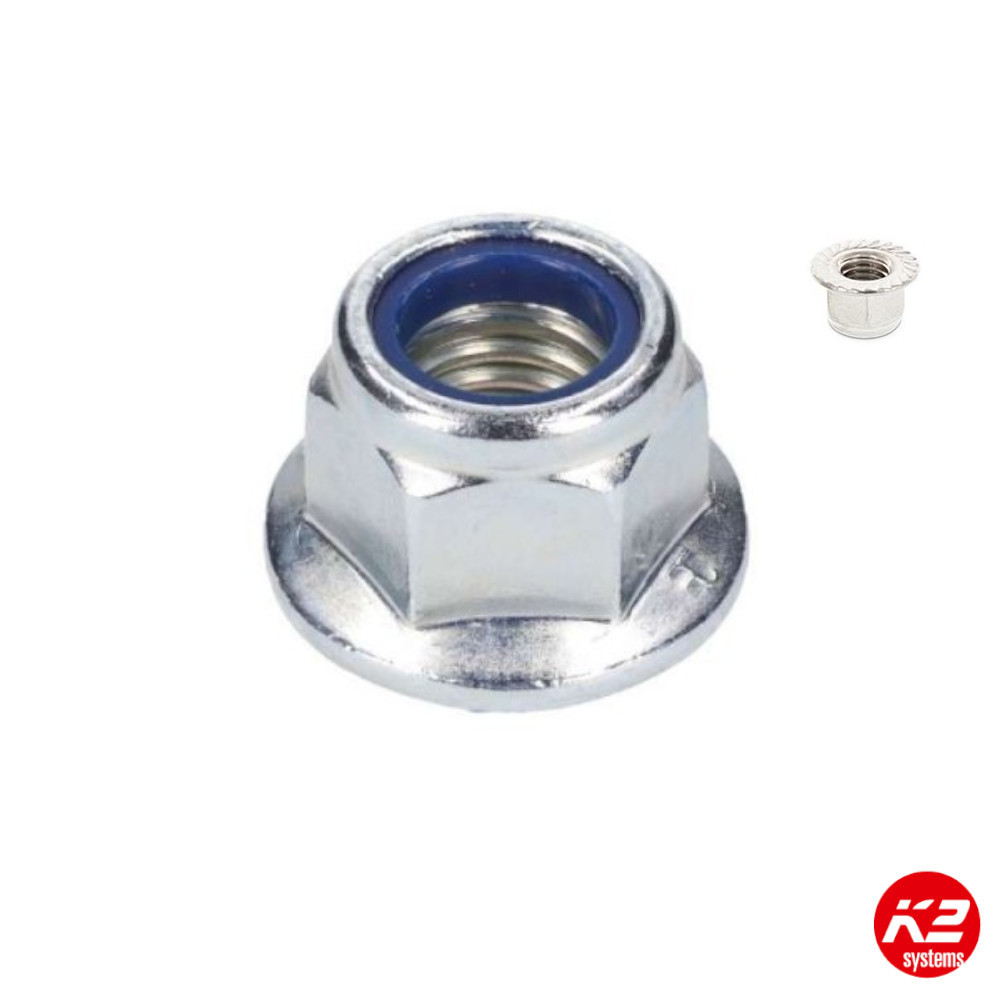

K2 Self-locking hexagon flange nut serration M8

Self-locking flange nuts with locking teeth M8, DIN 6926.

• Material: stainless steel A2

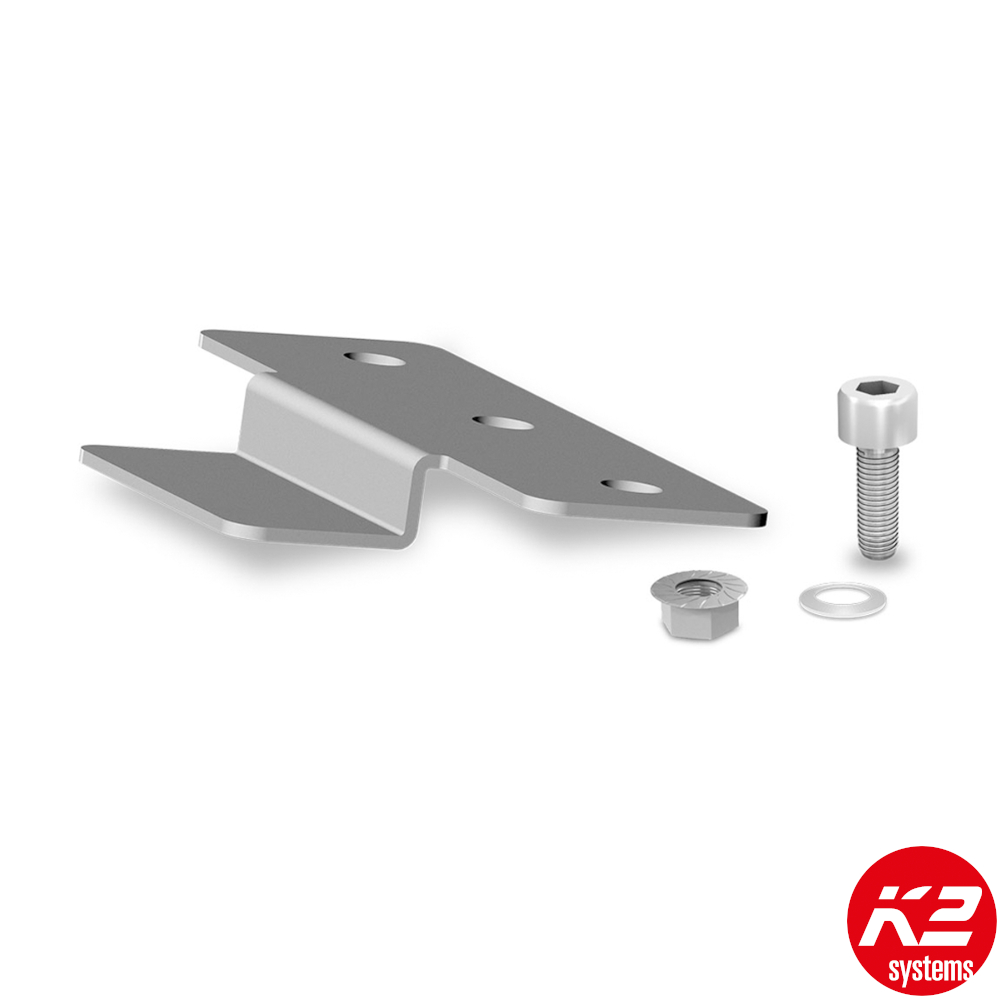

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

K2 TiltUp Vento Beam 1.30m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.30m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

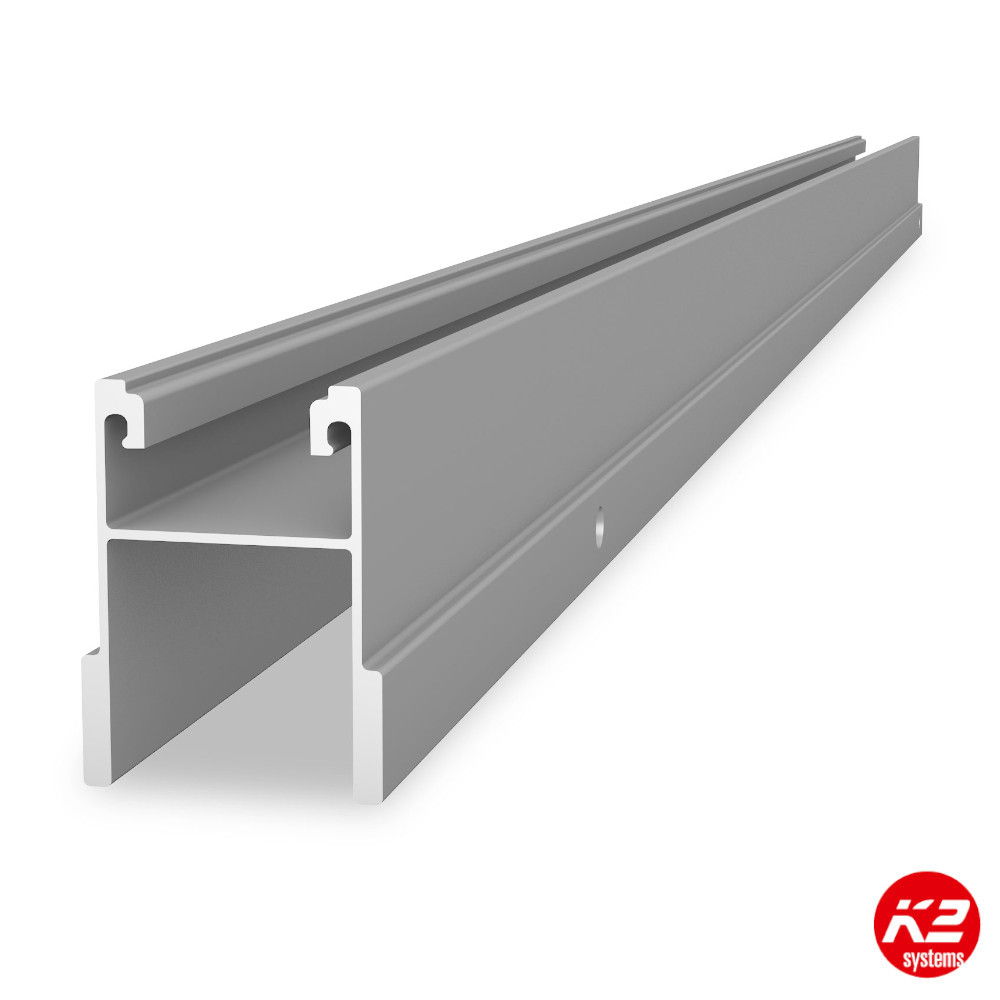

K2 TiltUp Vento Beam 1.60m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.60m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Beam 2.36m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 2.36m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

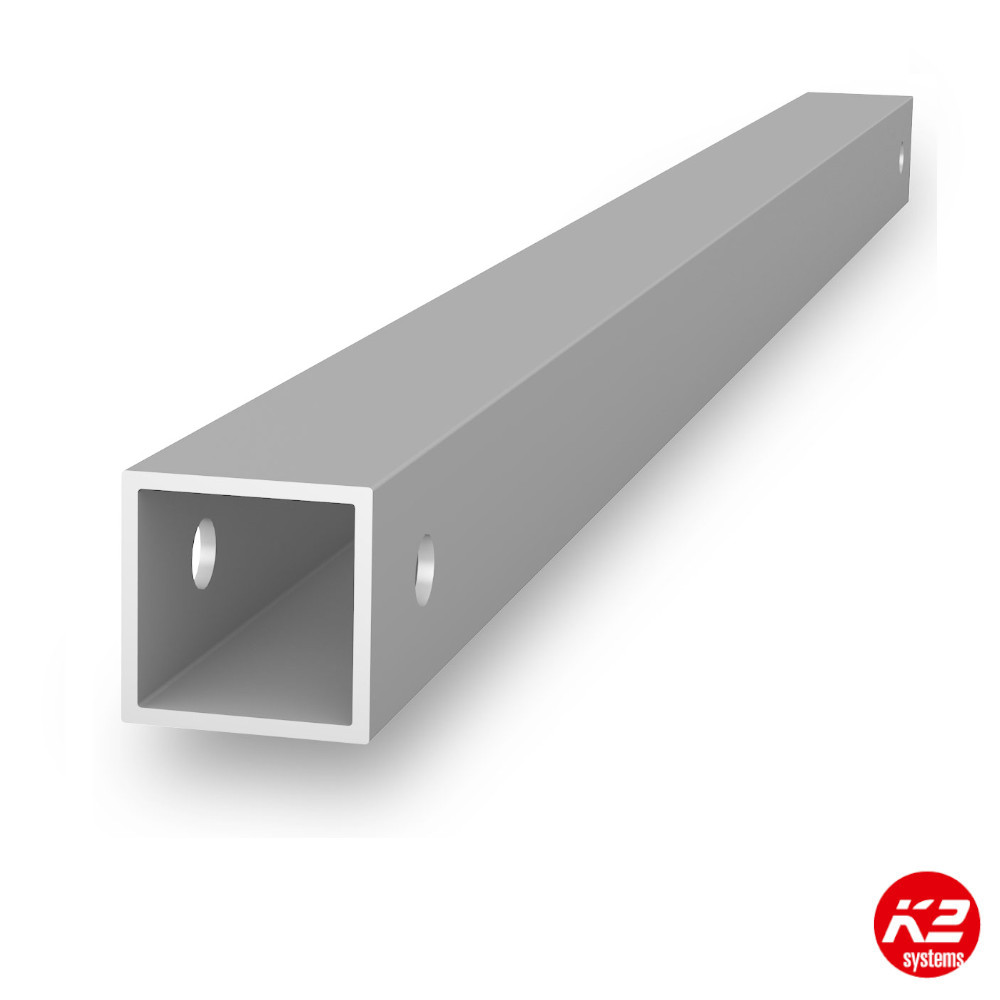

K2 TiltUp Vento Brace 679mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 679mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 856mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 856mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,320/Pallet.

K2 TiltUp Vento Brace 1,047mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1,047mm
• Material: aluminium EN AW 6060 T6

Also available in a 858/Pallet.

K2 TiltUp Vento Brace 446mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 446mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 558mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 558mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

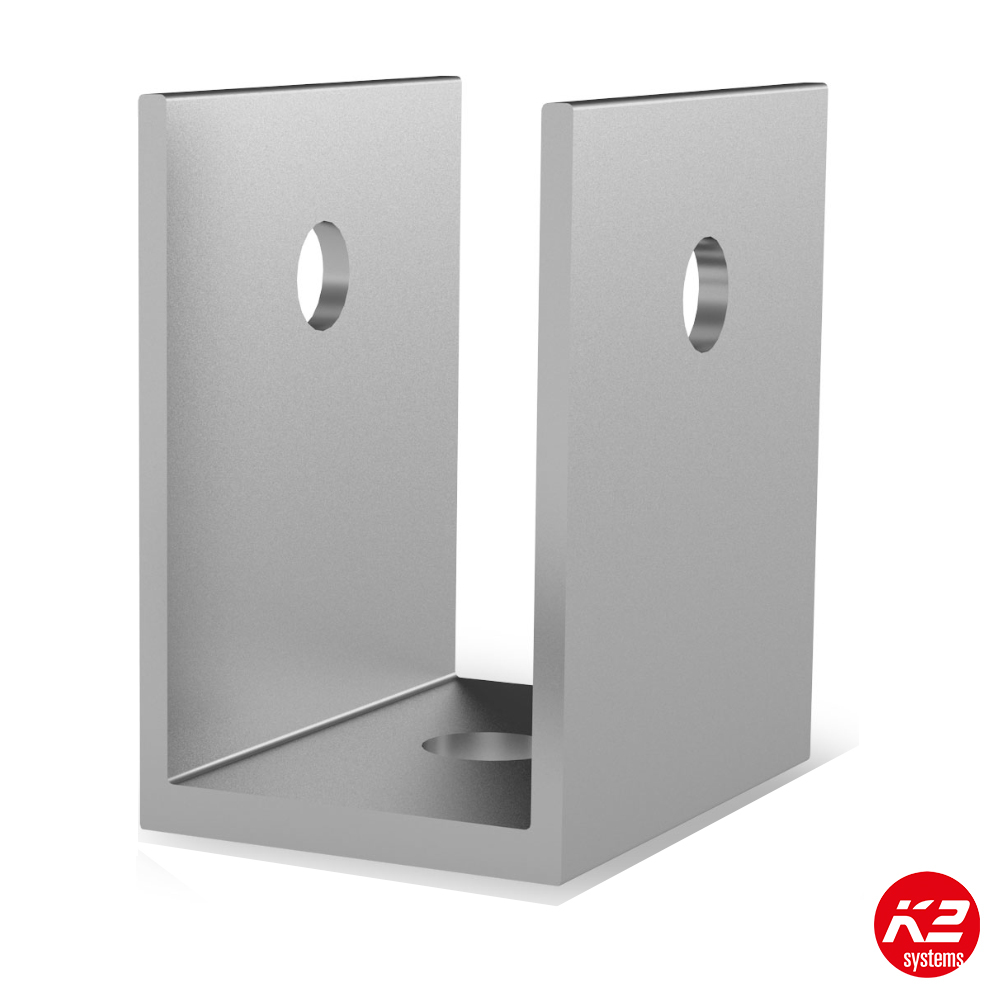

K2 TiltUp Vento Foot

For the connection between the concrete foundation and the TiliUp Vento Brace.

• Scope of application: flat roof
• Material: Aluminium EN AW 6063 T66

Also available in a 9600/Pallet and 400/Box.

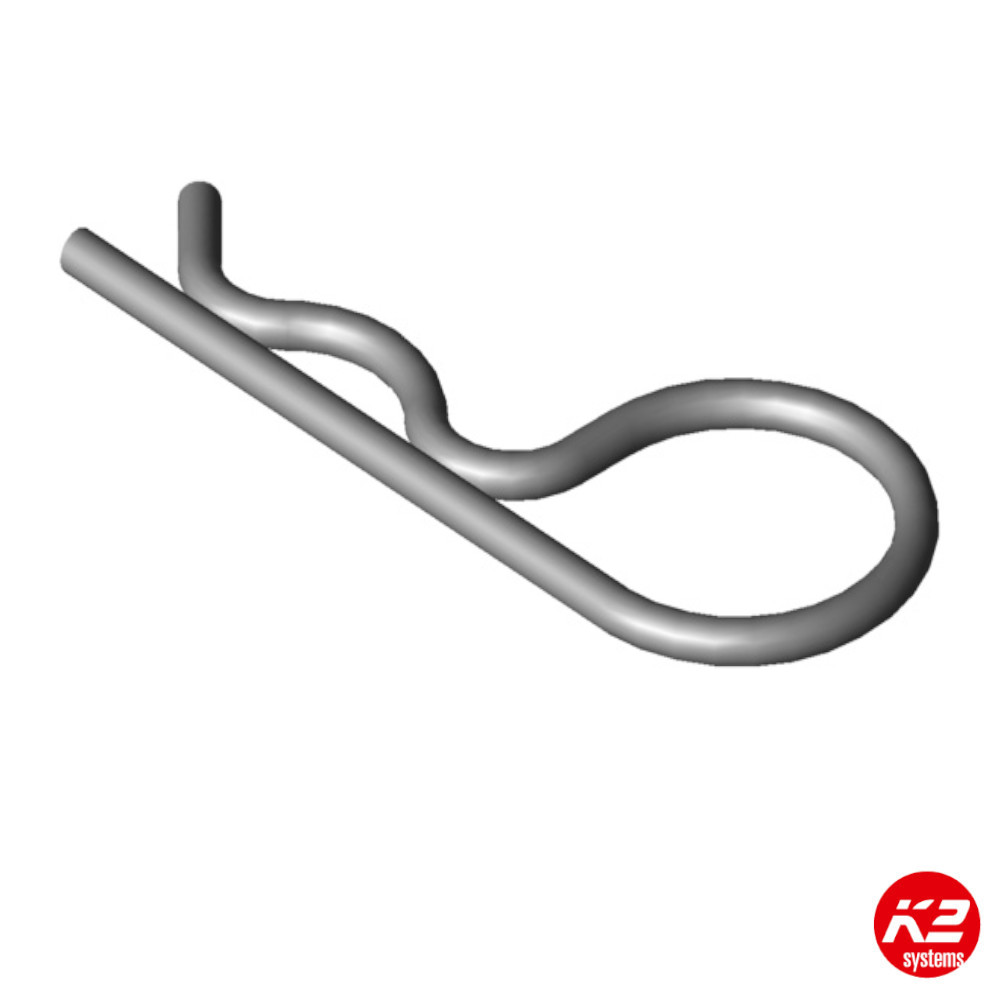

K2 TiltUp Vento Spring Plug

Spring plug DIN 11024.

• Scope of application: flat roof
• Material: Stainless steel A2-AISI304

Also available in a 100/small box, 1,500/box, 6,000/Pallet.

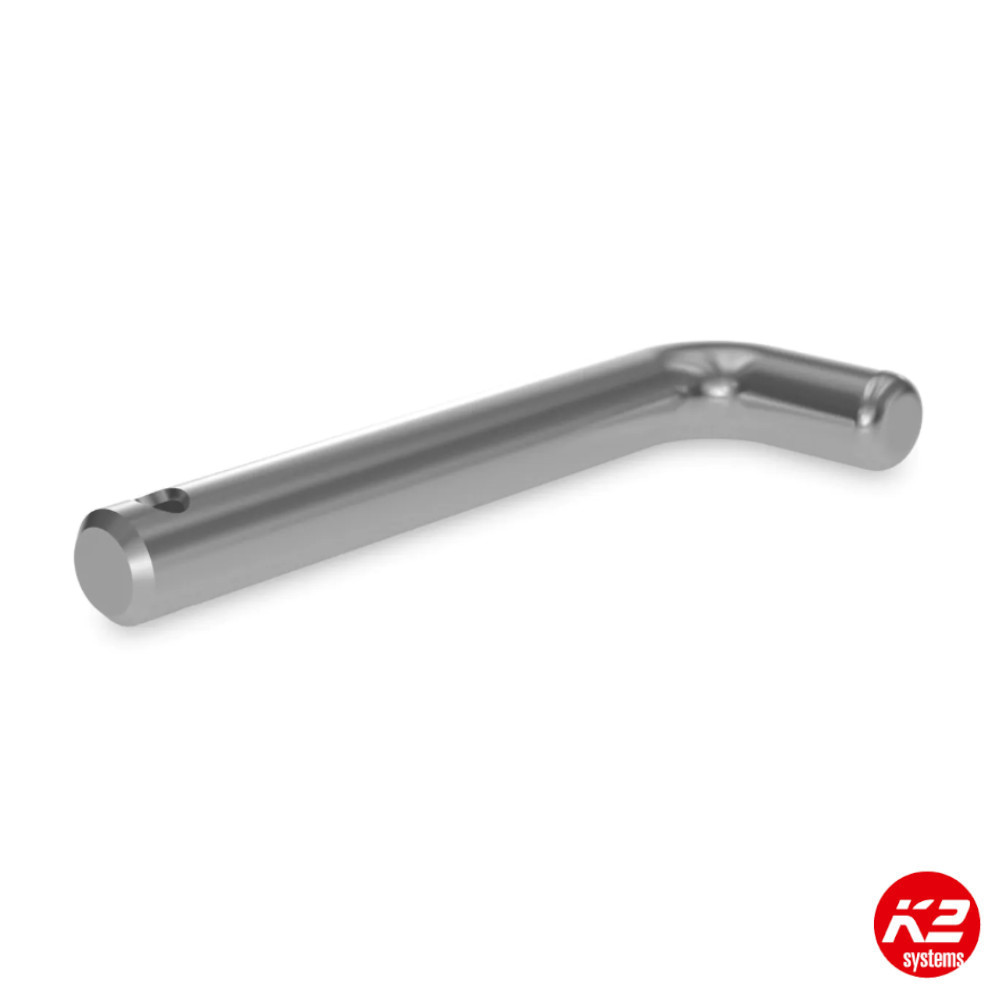

K2 TiltUp Vento Pin

Pin for connecting the TiltUp Vento profiles.

• Scope of application: flat roof
• Length: 65mm
• Diameter: 8mm
• Material: Stainless steel, 1.4301 (X5CrNi18-10) TS520
