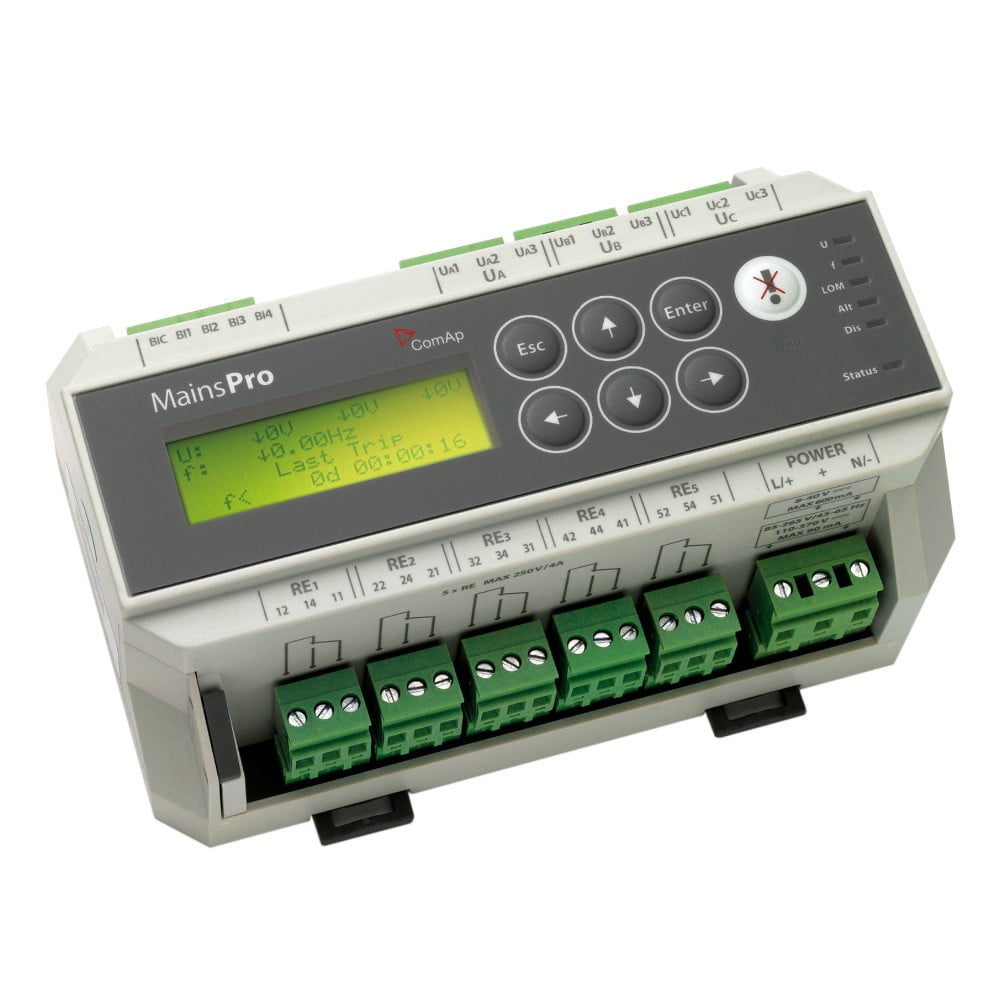

ComAp MainsPro G99 Mains Protection Relay

MainsPro is a G99 protection relay for mains-to-parallel applications, including renewable energy sources such as photovoltaic plants.

It provides adjustable voltage, frequency and loss of mains protections to safeguard both the distribution network and the generators.

If you are generating power in parallel to the mains, you will need ‘loss of mains’ protection. This is essential to avoid supplying your electricity into an islanded grid, which may lead to possible equipment damage or safety issues.

KEY FEATURES:

• Unrivalled safety for installers and service engineers
• Compatibility with DNO testing procedures
• True RMS measurement for increased accuracy, reliable evaluation of failures
• Vector Shift and Rate of change of frequency (ROCOF) protections available in one unit to choose the best fit to secure your site
• Symmetrical components for better detection of voltage asymmetry failures
• Two stage settings of voltage and frequency protections to cover short term as well as long term disturbances with appropriate priority
• Free assignment of 5 relay outputs allows wide range of signaling and trip methods
• Free assignment of 4 binary switches to remotely change operation of the unit
• Adjustable time delay of Automatic fault reset which avoids necessity of on-site personnelUniversal power supply 8-40 VDC, 85-265 VAC, 110-370 VDC
• Selectable voltage range 120/230/400 VAC with over-range to 156/290/520 VAC makes the unit independent on application
• Supports 3-phase and 1-phase applications
• Last 5 trips record providing evidence of cause of trip

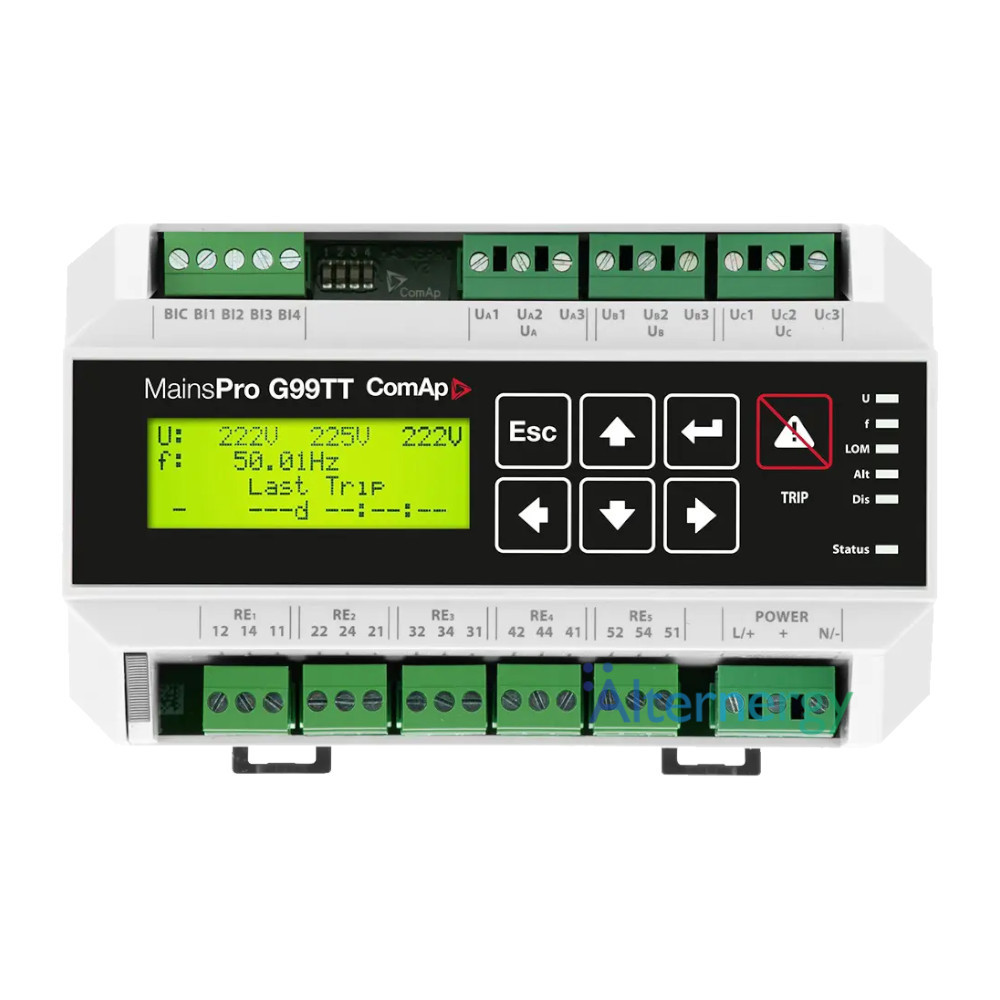

ComAp MainsPro G99TT (with seal)

MainsPro G99TT is a G99 compliant type tested mains protection relay for on-grid parallel-to-mains photovoltaic applications. It provides adjustable voltage, frequency and loss of mains protections to safeguard both the distribution network and the generators.

The G99 functions were added as a result of UK adopting EU Commission Regulation on harmonising network standards known as Requirements for Generators (RfG) into GB Distribution and Grid Codes.

The main change is moving from Vector to ROCOF (Rate of Change of Frequency) protection to detect how quickly the system frequency is changing by continuously sampling the frequency of mains voltage. Now ROCOF is the only approved method for Loss of Mains.

The unit has protection settings set during the manufacturing process. Some of the settings cannot be changed and some are locked in a way that only authorized personnel can change them.

KEY FEATURES:

• Easy set-up via a user-friendly interface
• Full ENA EREC G99 Type Tested compliance
• True RMS measurement
• Required for all new installations in the UK from 27 April 2019
• Wide power supply and measurement range
• Simple wiring with detachable connectors
• Remote binary communication
• Suitable for standard DIN rail installation
• Advanced frequency, voltage and loss of mains protections
• History track (last 5 events)
• Integrated mechanical lock to secure your setting
• Breaker failure protection and watchdog
• Resistance to frequency jumps
• Two stage settings of voltage and frequency protections
• Support of 3-phase and 1-phase applications
• Voltage protection settings can be adjusted only by authorised personnel
• IP20 Protection
• 2-year warranty

Dunext EMS Data management

EMS box is used for data information display, storage and operation control of energy storage system. It is a lightweight on-site control and energy management system, which is mainly used for the application scenarios of battery energy storage equipment. Through the application of the system, it can achieve the role of on-site multi-storage equipment power distribution, multi-energy (loads, photovoltaic, wind power, generators, etc.) complementary monitoring and energy management.

Technical Specifications :

• Controlling function: Peak shaving, Backup mode, Smooth PV output
• Communication Protocol Ethernet: Modbus-TCP
• Dimensions (WxHxD): 320×500×60 mm
• Installation Method: Indoor, hanging

Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover

Emlite Bi-Directional meter provides three different readings that scroll across the screen automatically; these readings are Import, Export and NET values. NET Values should be used as Feed-In Tariff readings when used with DC-coupled storage or Hybrid (PV and Battery) inverters. Please check the Installation Manual file for details on how to install this BiDirectional meter correctly!

This meter meets the “Bi-directional meter” criteria as listed in ‘Guidance for generators: Co-location of electricity storage facilities with renewable generation supported under the Renewables Obligation or Feed-in Tariff scheme's (Version 2)’ document released by OFGEM.

Emlite 3-Phase generation meter EMP 100A (1000 pulse/kWh)

The Emlite EMP1 three phase metering range offers high quality accurate meters that are suitable for direct connected domestic, commercial, Solar PV and light industrial applications.

The EMP1.AV is an entry model of the metering range but it’s of solid high quality construction and benefits from features normally found in more expensive metering brands.

This is a one pulsed output model; it can provide data for collection by an energy management system or AMR data logger. These pulses are output via the meter ’s auxiliary terminals. The output conforms to IEC 62053 -31.

KEY FEATURES:

• Three Phase 100A Rated
• Nominal Voltage: 3 x 230V
• Compact modern design
• Clear easy to read 8 digit LCD with specific symbols for different quantities
• 4 quadrant power measurement (Import and Export, Active and Reactive Energy)
• Optional Power Quality Information – Volts, Current, Power etc.
• Optical communications port
• Accuracy Class A or B (MID) [active energy] and Cl 2 [reactive energy]
• Fully MID approved
• Includes extended terminal cover
• Solid brass terminals
• Pulsed output
• IP54 Protection

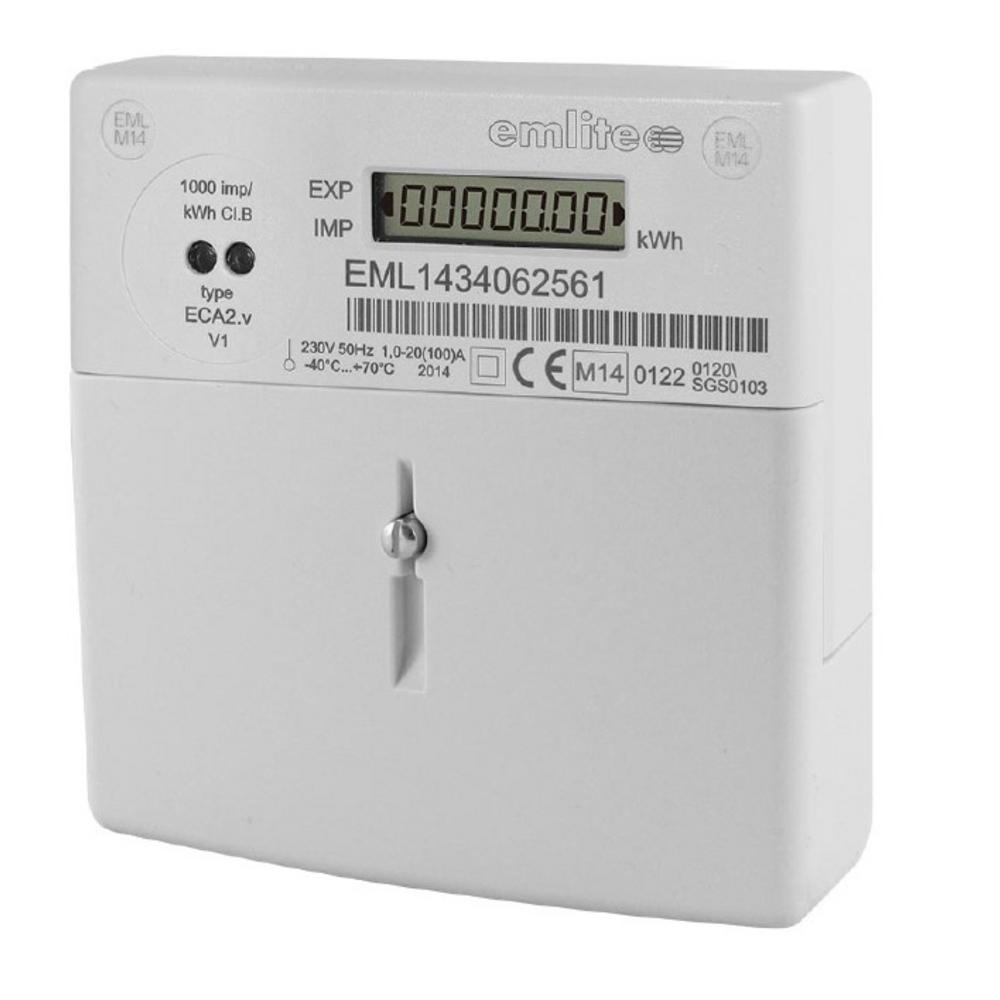

Emlite ECA2 1 Phase Meter 100A

The Emlite ECA2 single phase meter provides a compact solution for many metering applications. Fully approved in accordance with the Measuring Instruments Directive (MID), this highly accurate meter may be used for utility billing or micro-generation metering.

KEY FEATURES:

• Fully MID approved
• Measures Import and Export Active Energy
• Easy-to-read LCD Display
• Optical port for configuration or meter reading
• Pulsed Output version available

GoodWe GM330 3-Phase Smart Energy Meter

Compact and DIN-rail mountable, the GM330 weighs approximately 0.2 kg and is suitable for residential and commercial installations. It provides precise energy data to optimise system performance and enhance energy management.

KEY FEATURES:

• Three-phase smart energy meter for accurate grid monitoring
• Measures both energy import and export
• Supports export limitation with compatible GoodWe inverters
• Real-time energy data monitoring
• High accuracy metering (0.5% class)
• Compact DIN-rail mount design
• Suitable for residential and commercial installations
• Lightweight construction (approx. 0.2 kg)
• Reliable and durable build quality
• IP20 rating (indoor)
• Dimension (W/D/H): 72/72/85mm

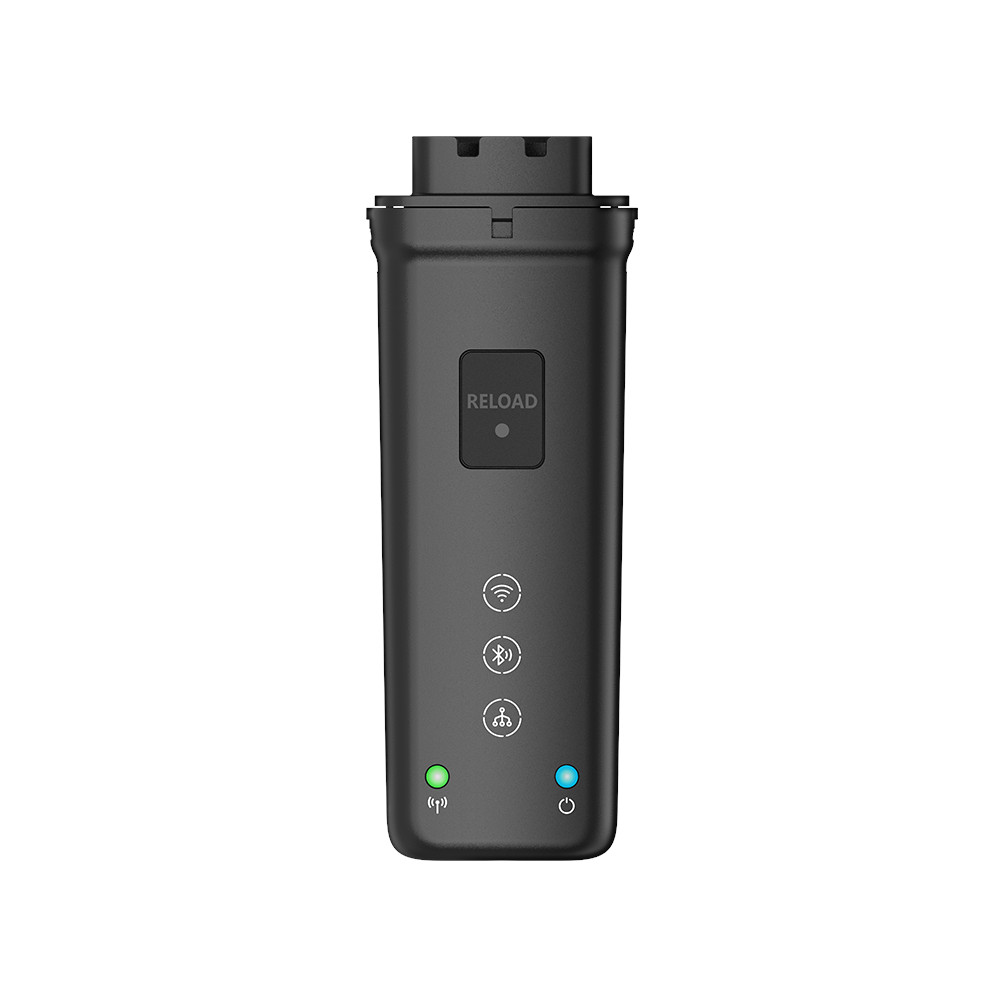

GoodWe Smart Dongle EZLink 3000

Ezlink3000 is a compact, lightweight communication device that connects compatible inverters to GoodWe’s Smart Energy Management System (SEMS) for reliable data monitoring. With flexible installation options and support for both WiFi and LAN, it’s designed for easy deployment, indoors or outdoors, even in demanding environmental conditions.

Key features:

• Compact size and lightweight design
• Flexible installation for a variety of sites and layouts
• WiFi and LAN connectivity options
• Connects inverters to GoodWe SEMS for monitoring and data logging
• Supports inverter paralleling function (for compatible models)
• Outdoor-capable design for harsh conditions
• Wide operating tolerance for temperature and humidity
• Bluetooth Communication: Bluetooth 5.1
• Dimensions (WxHxD): 48 x 153 x 32 mm
• IP65

Haier 4G Communication Module

The Haier HC-U4G Communication Module, designed for Smart Cube Energy Controllers. This USB module enables reliable 4G communication for remote monitoring and system control. IP66-rated for safe indoor and outdoor use.

KEY FEATURES:

• Support 4G communication
• IP66 protection rating
• Plug & play, easy to use
• Support 4G: FDD-LTE / TDD-LTE
• USB Connection Interface
• Dimensions(W / H / D):  52 / 112 / 33 mm

Huawei WLAN-FE Dongle, WLAN or Ethernet or Hotspot

The Huawei Smart Dongle A-05 (AP+STA) is a communication accessory designed for Huawei solar inverters. With plug-and-play installation via USB, it can connect to up to 10 inverters, ensuring efficient system monitoring. It supports both WLAN and Fast Ethernet connections.

KEY FEATURES:

• Plug & Play - Support max. 10 devices
• Supports WLAN & Fast Ethernet (FE) and 3rd-party monitoring system communication
• Support data encryption for transmission, ensuring data safety
• Operating temperature range :–30°C to +65°C
• Dimensions (W x H x D) : 146 mm x 48 mm x 33 mm
• IP rating: IP65
• 2 years warranty



Note: This item is also compatible with SUN2000-30/36/40KTL-M3 inverters.

Kipp & Zonen SMP10-A Smart Pyranometer with 4-20mA output

The SMP10 is a spectrally flat Class A pyranometer that combines the sensor technology from the CMP 11, the Smart interface from SMP11 and the low maintainance from the CMP10.

The SMP10 has an internal drying cartridge that will last for at least 10 years if the housing is not opened. This minimises maintainance significantly. The interval for dome cleaning can be extended, and the quality of measurements maximised, by fitting SMP10 with the CVF4 ventilation.

The SMP10 has Modbus® interface, amplified analogue output, improved response time and temperature corrected measurement data. The wide and low power supply range from 5 to 30 VCD makes intergration in meteorological and solar energy stations easy. The SMP10 is protected against over voltage, reversed polarity and short circuiting.

Thanks to the standardized output and connections of every SMP10, exchanging instruments for recalibration is easy.

SmartExplorer Windows™ software for data logging, display of data and Modbus® address setting is provided as standard.

Note: First image shows the product with the mount sun screen.

KEY FEATURES:

• ISO 9060 spectrally flat Class A
• No change of desiccant for 10 years
• RS-485 Modbus® communication
• 5-year warranty
• 4-20mA output

Kipp & Zonen SMP10-V Smart Pyranometer with 0.1vDC output

The SMP10 is a spectrally flat Class A pyranometer that combines the sensor technology from the CMP 11, the Smart interface from SMP11 and the low maintainance from the CMP10.

The SMP10 has an internal drying cartridge that will last for at least 10 years if the housing is not opened. This minimises maintainance significantly.

The interval for dome cleaning can be extended, and the quality of measurements maximised, by fitting SMP10 with the CVF4 ventilation.

The SMP10 has Modbus® interface, amplified analogue output, improved response time and temperature corrected measurement data. The wide and low power supply range from 5 to 30 VCD makes intergration in meteorological and solar energy stations easy. The SMP10 is protected against over voltage, reversed polarity and short circuiting.

Thanks to the standardised output and connections of every SMP10, exchanging instruments for recalibration is easy.

SmartExplorer Windows™ software for data logging, display of data and Modbus® address setting is provided as standard.

KEY FEATURES:

• ISO 9060 spectrally flat Class A
• No change of desiccant for 10 years
• RS-485 Modbus® communication
• 5-year warranty
• Supplied with a 10m cable

Rayleigh 1-ph meter extended cover

Rayleigh RI-D140-G-C (MID) Multi-function Power Meter

The RI-D140 is a MID-approved DIN rail mounted multifunction energy meter, suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.

These meters may be used in single or three phase four wire systems, depending on what mode it’s set as when first installed. It cannot be changed after installation and setup.

Its MID status means the RI-D140 has been tested for the build quality and accuracy of the meter and is certified for billing purposes.

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.


FEATURES:

• Four module DIN rail mounted
• Single Phase or Three Phase Network, Four Wire
• High definition white backlit LCD display
• -/1A or -/5A current transformer input (MID certification only on 5A)
• Conforms & Certified to MID B and D approval (SGS Cert. No. : 0120/SGS0276)
• RS485 Modbus Communication
• Simple programming and operation
• 12 month Warranty

Rayleigh RI-D150-G-C (MID) Multi-function Power Meter - Three Phase

The RI-D150-G-C is a MID-approved DIN rail mounted multifunction energy meter, suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.

These meters may be used in single or three phase four wire systems, depending on what mode it’s set as when first installed.

Its MID status means the RI-D140 has been tested for the build quality and accuracy of the meter and is certified for billing purposes.

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.

FEATURES:

• Four module DIN rail mounted
• Single phase and three phase network compatible
• High definition white backlit LCD display
• 100A direct connected
• Generator tariff mode
• 2 x pulse output
• RS485 Modbus Communication

Rayleigh RI-D35-100-C - MID Energy Meter - Single Phase

The RI-D35-100-C - MID is  a high-performance single phase multifunction energy meter. It features a clear, high-definition LCD display with white backlight, offering reliable readings in all lighting conditions.

The meter supports RS485 Modbus or Mbus communication and includes two pulse outputs. Compact and DIN rail mounted, it provides accurate measurement of energy import/export, voltage, current, power, and more.

FEATURES:

• Two module width DIN rail mounte
• 100A direct connected
• High definition LCD display with white backlight
• MID B+D Certified (SGS Cert. No. : 0120/SGS0361)
• RS485 Modbus Communication
• Two module width DIN rail mounted
• Simple programming and operation

SMA Communication Gateway

Communication Gateway for integration of RS485-wired PV systems into plant control and monitoring solutions with SMA Speedwire.

SMA Sunny Home Manager 2.0

Maximum of 4 Inverters can be connected with the HM 2.0. For larger systems, please use the SMA Data Manager.

The control centre for smart energy management The Sunny Home Manager 2.0 is SMA’s intelligent energy manager and enables the most efficient use of solar energy in the home. It optimises PV self-consumption and significantly reduces electricity costs. To do this, it measures the power of PV generation, purchased electricity as well as grid feed-in, and gives an overview of all relevant energy flows in the household. By means of local PV generation forecasts and the measured household consumption profile, the self-learning device prompts the user with energy-related action recommendations. Operation of the controlled appliances is coordinated in a way to optimise the use of self-generated solar energy.

The path to intelligent energy management is easy. Simply install the Sunny Home Manager 2.0 at the grid connection point, connect it to the internet router using an Ethernet cable, then register the PV system in Sunny Portal or Sunny Places free of charge and benefit from greater energy efficiency.

The dimensions for the product: 70 mm x 88 mm x 65 mm.

KEY FEATURES:

• Records the consumption profile of individual devices
• Maximises the use of solar energy from photovoltaic systems and optimises self-consumption
• Energy balance and consumption data can be viewed through the Sunny Portal and Sunny Places
• Fast and easy plug & play installation at the grid connection point
• Compatibility with cost-effective standard radio-controlled sockets facilitates control of simple loads
• Optimized battery charging in SMA storage systems
• Energy balance and load data shown in interactive diagrams
• Integrated weather and PV forecast data

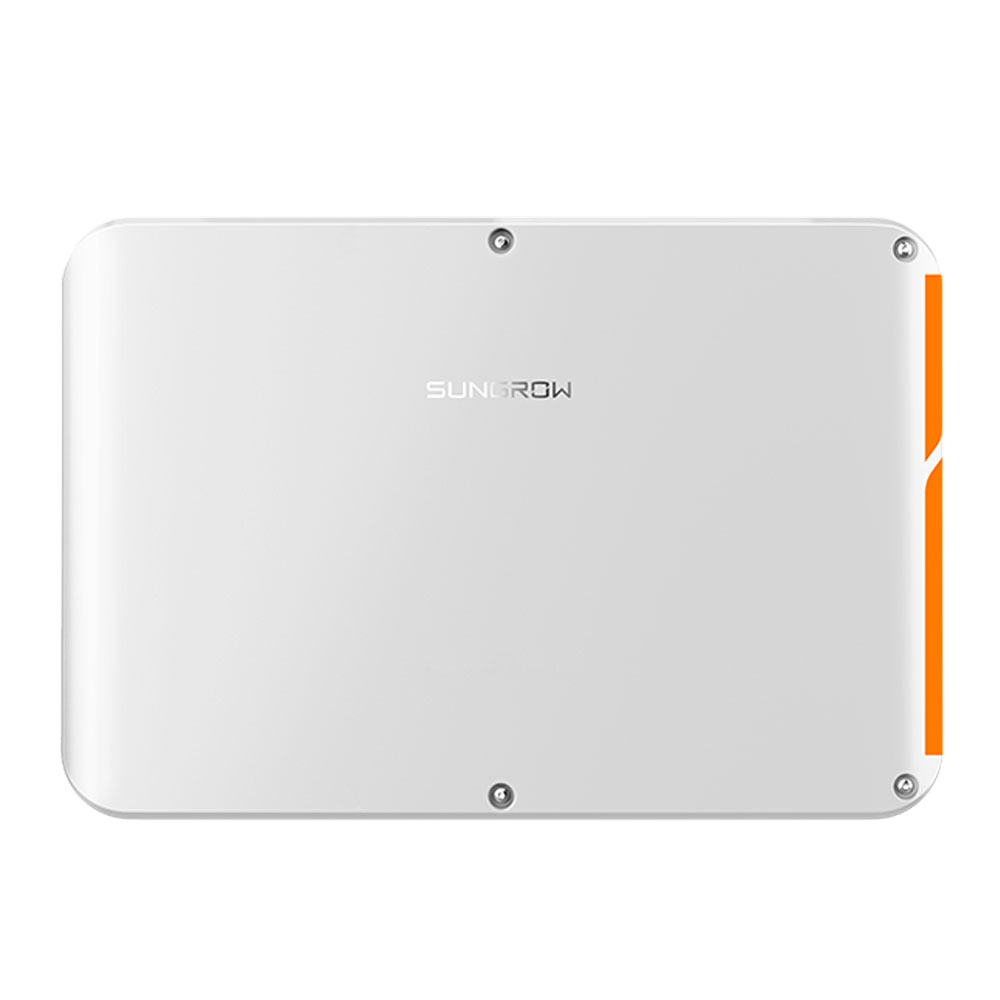

Sungrow COM100D, Version V31 Smart Communication Box

The Sungrow com100d is an advanced communication device that ensures reliable data transmissions and efficient monitoring of PV systems.

KEY FEATURES:

• Support of RS485, Ethernet and WLAN communication
• Max. number of devices : 30
• Supports energy meter, environmental sensors and
  multiple inverters
• Inverter batch parameter settings and firmware updates
• PV Plant maintenance via remote Web access for optimized OPEX
• Active and reactive power control
• IP66 protection
• Dimension (W/H/D): 460/315/126 mm
• Weight: 4.9kg

Sungrow COM100E, Version V312 Smart Communication Box

The Sungrow com100e is an advanced communication device that ensures reliable data transmissions and efficient monitoring of PV systems.

KEY FEATURES:

• Support of RS485, Ethernet and WLAN communication
• Max. number of devices : 30
• Support of energy meter, meteo station, sensors and other equipment
• Inverter batch parameter settings and firmware updates
• PV Plant maintenance via remote Web access for optimized OPEX
• Active and reactive power control
• IP66 protection
• Dimension (W/H/D): 460/315/126 mm
• Weight: 6kg

Sungrow DataLogger 4000 (up to 300 devices)

The Sungrow Logger4000 is a high-capacity data logger designed for commercial, industrial, and utility-scale PV systems, as well as larger residential setups with multiple inverters. It supports up to 300 devices, including inverters, meters, and sensors, and connects via RS485 or Ethernet. With built-in digital and analogue I/Os, it can integrate external control signals and sensors, enabling remote monitoring, parameter adjustments, and local maintenance via WLAN or iSolarCloud.

The Logger4000 is ideal for systems needing export limitation, grid support, or battery integration. It makes a strong choice for UK installers working on complex PV or hybrid projects that demand robust monitoring and DNO-ready control.

Sungrow EMU200A, Energy Management Unit

The Sungrow EMU200A is a smart and reliable energy management solution designed for commercial and large-scale solar PV plants. It seamlessly integrates with inverters and other equipment via RS485, Ethernet and MPLC interfaces.

KEY FEATURES:

• Support of RS485, Ethernet and MPLC communication
• Support of tracker, meteo station, sensors and other equipment
• Electrical isolation and SPD for every port
• PV-Plant maintenance via remote Web access for optimized OPEX
• Inverter batch parameter settings and firmware updates
• IP66 protection
• Dimension (W/H/D): 860/680/275 mm
• Weight: 51kg

Sungrow Eye S4 Communication 4G Dongle

The Sungrow EyeS4-EU is a smart 4G communication dongle designed to connect Sungrow inverters to the remote monitoring platform iSolarCloud. The EyeS4-EU enables accurate and reliable data transfer with real-time monitoring capability. It uses 4G signals across EU regions and supports remote operation and maintenance functions, including remote firmware upgrades and parameter setting. With its plug-and-play design, installation is quick and easy.

It provides reliable data transmission via 4G, with secure and stable communication. Local maintenance can also be performed through a WLAN connection.

KEY FEATURES:

• Covering EU all regions with 4G signals
• Full online monitoring, remote FW update and
  parameter settings
• Reliable 4G monitoring of single inverter
• IP66 rating
• Plug and play, quick installation
• Local maintenance with WLAN connection
• Dimension (W/H/D): 48/132/36mm

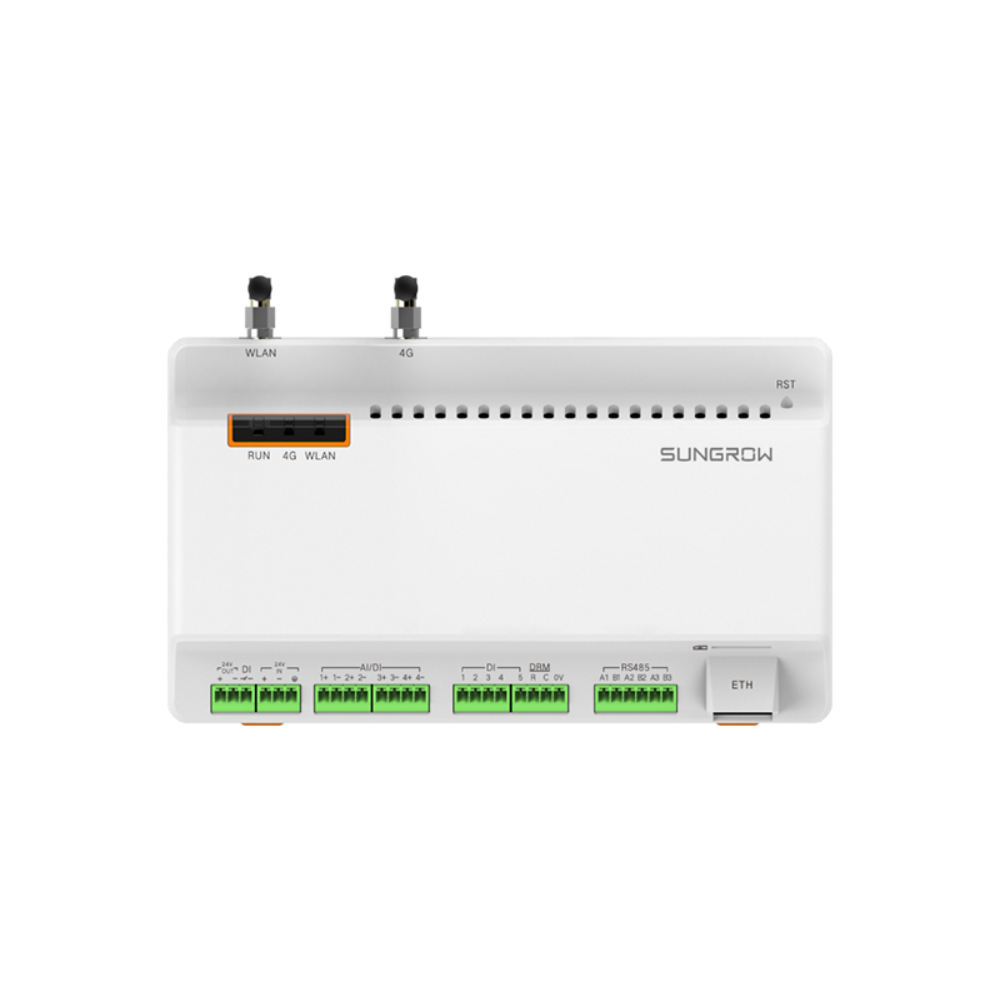

Sungrow Logger 1000A for Commercial Systems

The Logger1000A is a data acquisition and protocol conversion device designed for PV power plants. It supports the connection of up to 30 devices, including inverters, combiner boxes, meteorological stations, and energy meters.

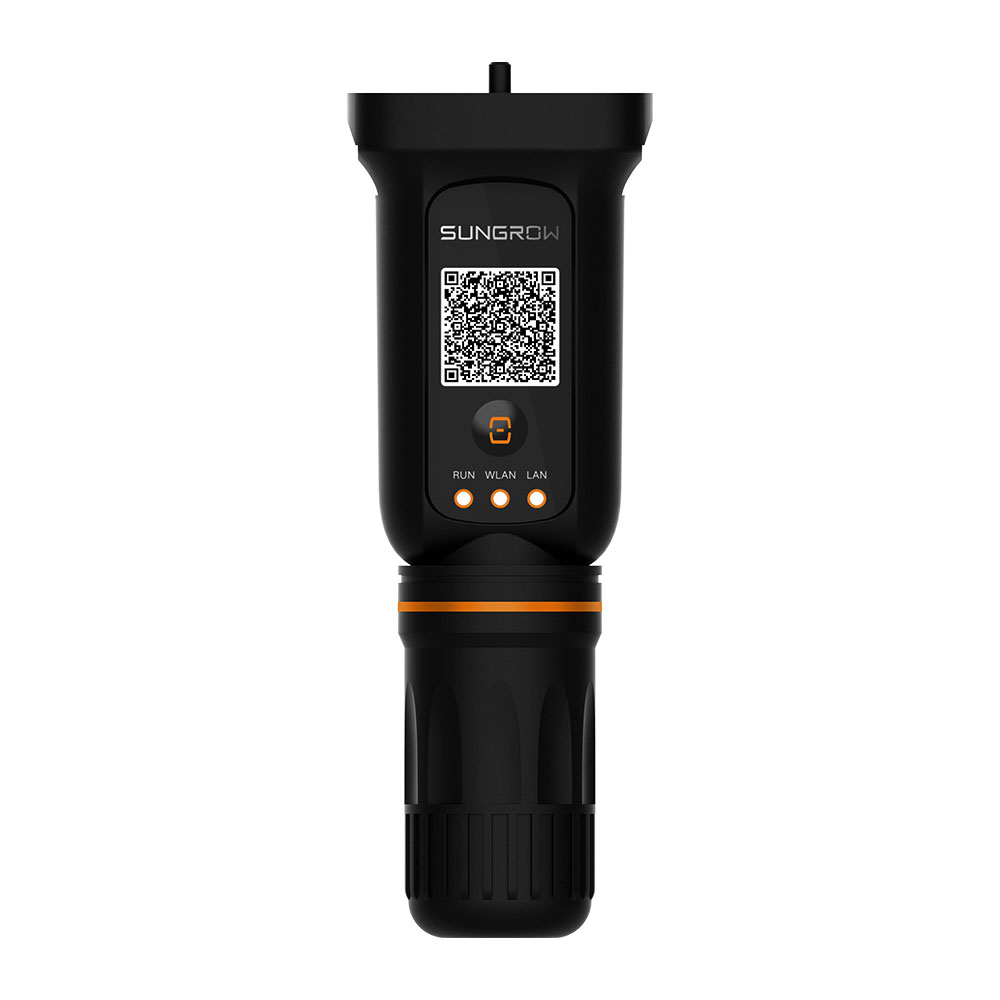

Sungrow WiNet-S2 V11 Communication Dongle, Version S2

The Sungrow WiNet-S2 V11 is a smart communication dongle designed to connect Sungrow inverters to monitoring systems via Wi-Fi or Ethernet. The WiNet-S2 offers accurate and reliable data with a 10-second refresh rate. It combines WiFi and Ethernet in one port, supporting remote operation and maintenance functions, including remote upgrades and parameter setting. With its plug-and-play design, installation is quick and easy.

It has an IP66 rating, and ensures secure data transmission with password protection and encryption.

KEY FEATURES:

• Applicable to scenarios in which wireless communication is inaccessible
• WLAN or Ethernet, flexible compatibility of plant networking, one-click access to iSolarCloud
• Supporting DHCP, and automatic network transmission without
  configuration
• IP66 rating, wide temperature range
• Plug and play, quick installation
• Supporting DHCP, and automatic network transmission without configuration
• Password and encrypted transmission for data protection
• Dimension (W/H/D): 48/132/36mm
