Meters

Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover

Emlite Bi-Directional meter provides three different readings that scroll across the screen automatically; these readings are Import, Export and NET values. NET Values should be used as Feed-In Tariff readings when used with DC-coupled storage or Hybrid (PV and Battery) inverters. Please check the Installation Manual file for details on how to install this BiDirectional meter correctly!

This meter meets the “Bi-directional meter” criteria as listed in ‘Guidance for generators: Co-location of electricity storage facilities with renewable generation supported under the Renewables Obligation or Feed-in Tariff scheme's (Version 2)’ document released by OFGEM.

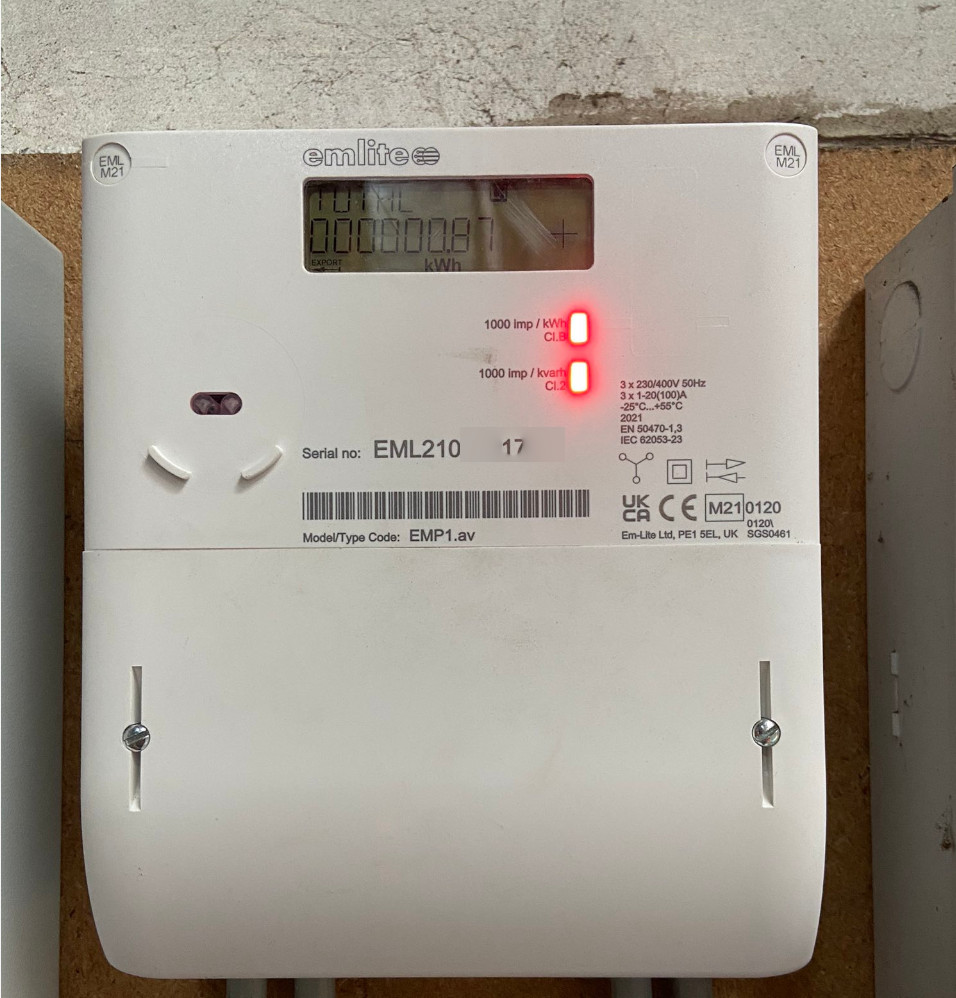

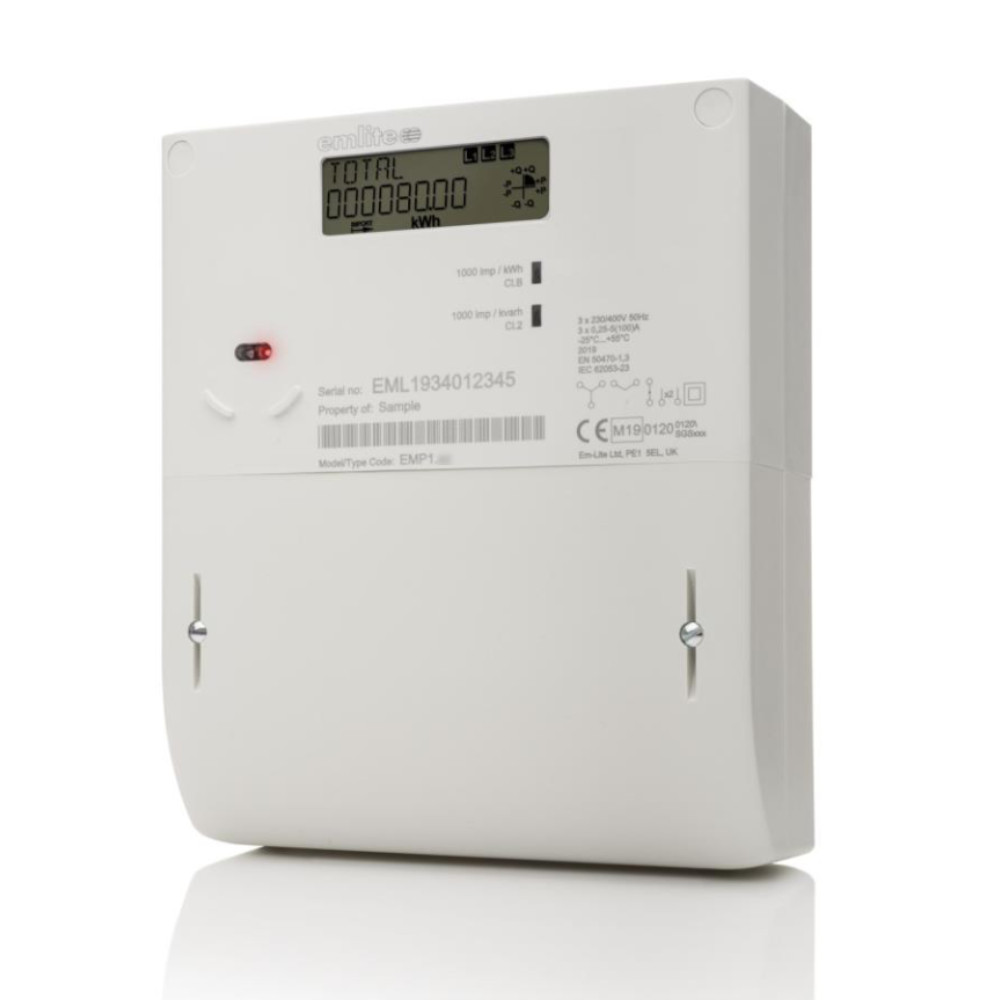

Emlite 3-Phase generation meter EMP 100A (1000 pulse/kWh)

The Emlite EMP1 three phase metering range offers high quality accurate meters that are suitable for direct connected domestic, commercial, Solar PV and light industrial applications.

The EMP1.AV is an entry model of the metering range but it’s of solid high quality construction and benefits from features normally found in more expensive metering brands.

This is a one pulsed output model; it can provide data for collection by an energy management system or AMR data logger. These pulses are output via the meter ’s auxiliary terminals. The output conforms to IEC 62053 -31.

KEY FEATURES:

• Three Phase 100A Rated
• Nominal Voltage: 3 x 230V
• Compact modern design
• Clear easy to read 8 digit LCD with specific symbols for different quantities
• 4 quadrant power measurement (Import and Export, Active and Reactive Energy)
• Optional Power Quality Information – Volts, Current, Power etc.
• Optical communications port
• Accuracy Class A or B (MID) [active energy] and Cl 2 [reactive energy]
• Fully MID approved
• Includes extended terminal cover
• Solid brass terminals
• Pulsed output
• IP54 Protection

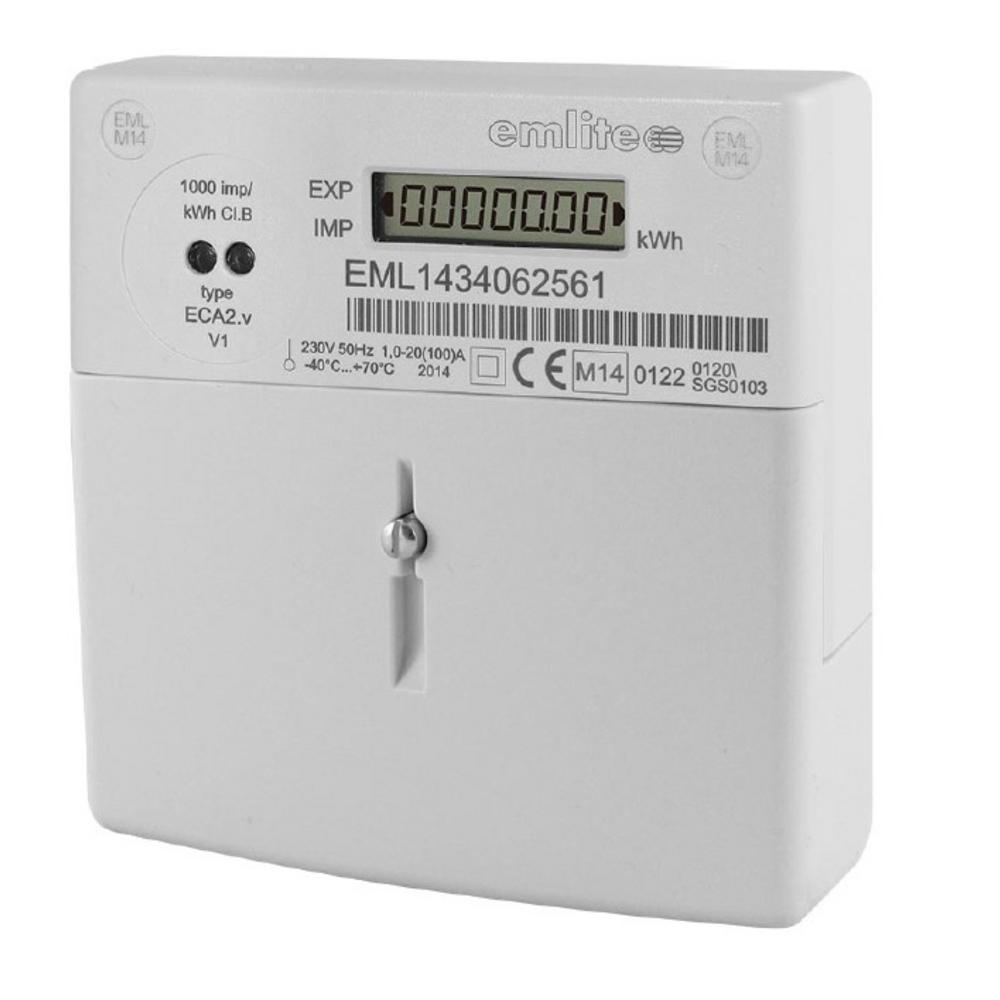

Emlite ECA2 1 Phase Meter 100A

The Emlite ECA2 single phase meter provides a compact solution for many metering applications. Fully approved in accordance with the Measuring Instruments Directive (MID), this highly accurate meter may be used for utility billing or micro-generation metering.

KEY FEATURES:

• Fully MID approved
• Measures Import and Export Active Energy
• Easy-to-read LCD Display
• Optical port for configuration or meter reading
• Pulsed Output version available

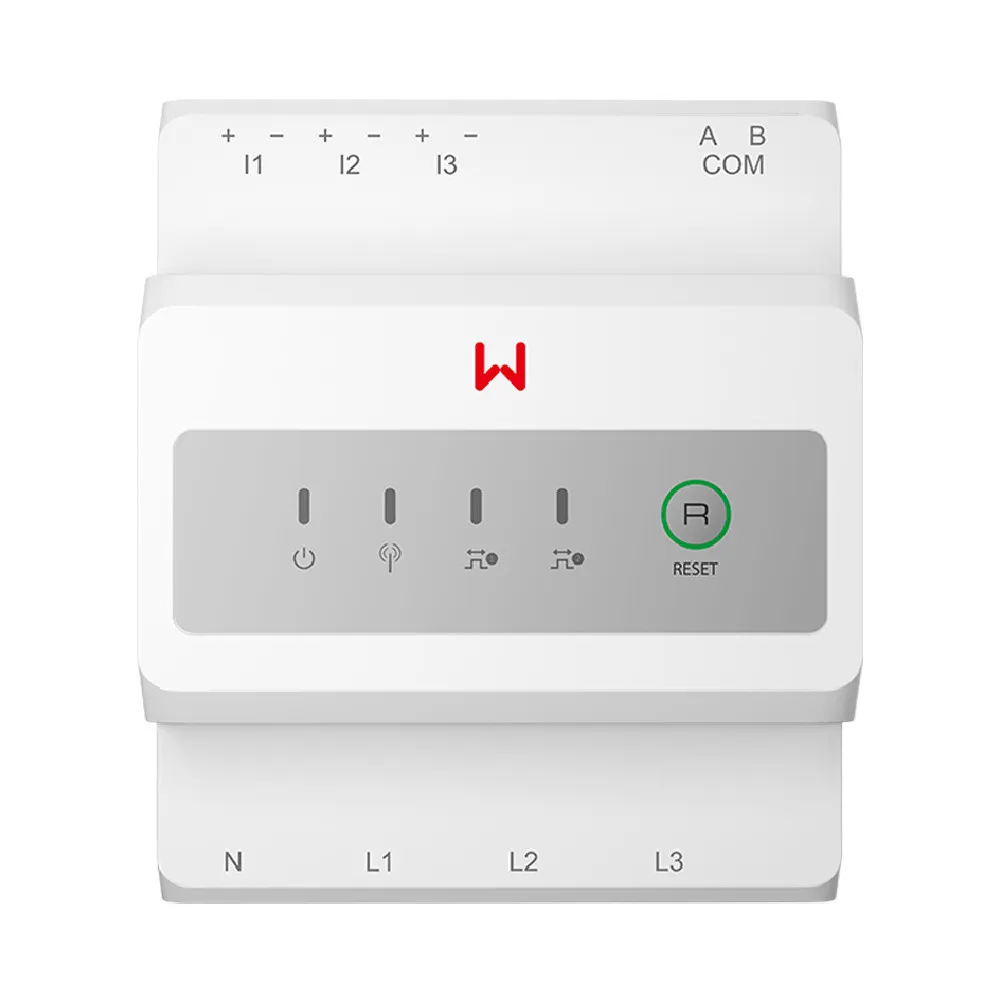

GoodWe GM330 3-Phase Smart Energy Meter

Compact and DIN-rail mountable, the GM330 weighs approximately 0.2 kg and is suitable for residential and commercial installations. It provides precise energy data to optimise system performance and enhance energy management.

KEY FEATURES:

• Three-phase smart energy meter for accurate grid monitoring
• Measures both energy import and export
• Supports export limitation with compatible GoodWe inverters
• Real-time energy data monitoring
• High accuracy metering (0.5% class)
• Compact DIN-rail mount design
• Suitable for residential and commercial installations
• Lightweight construction (approx. 0.2 kg)
• Reliable and durable build quality
• IP20 rating (indoor)
• Dimension (W/D/H): 72/72/85mm

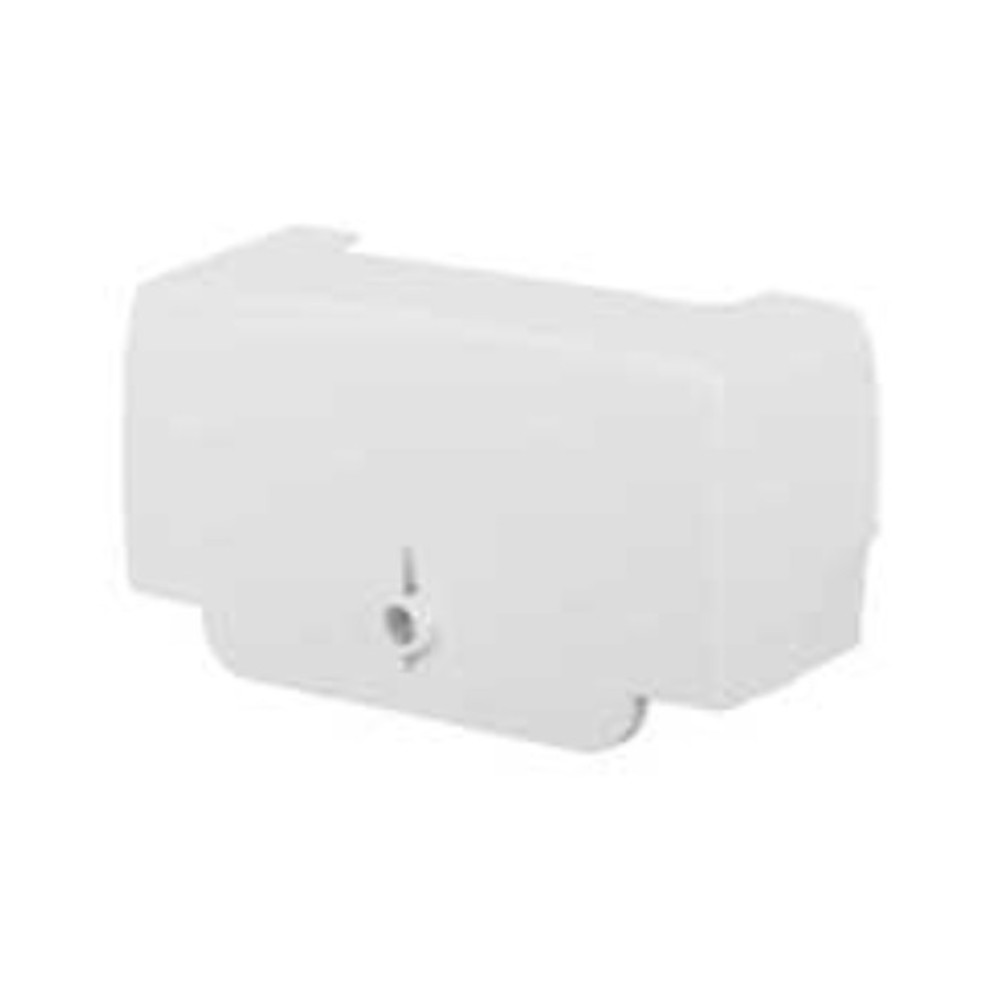

Rayleigh 1-ph meter extended cover

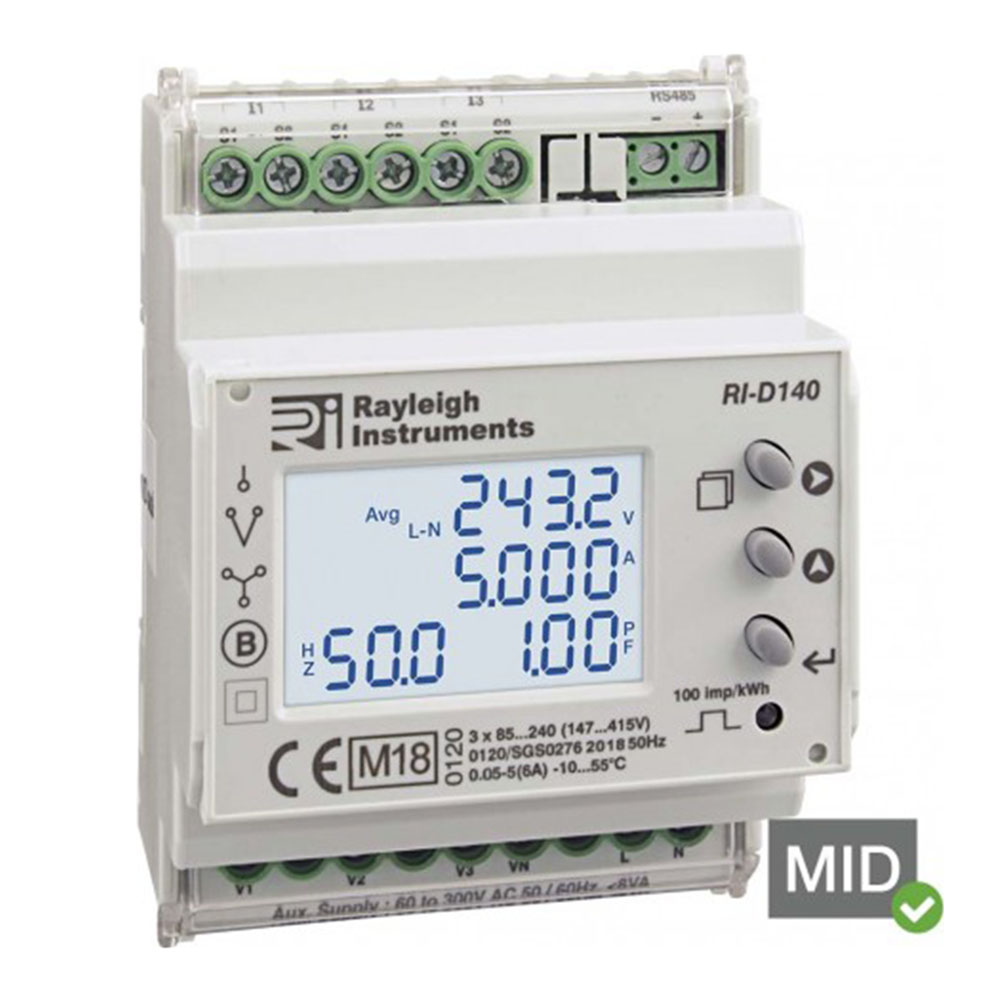

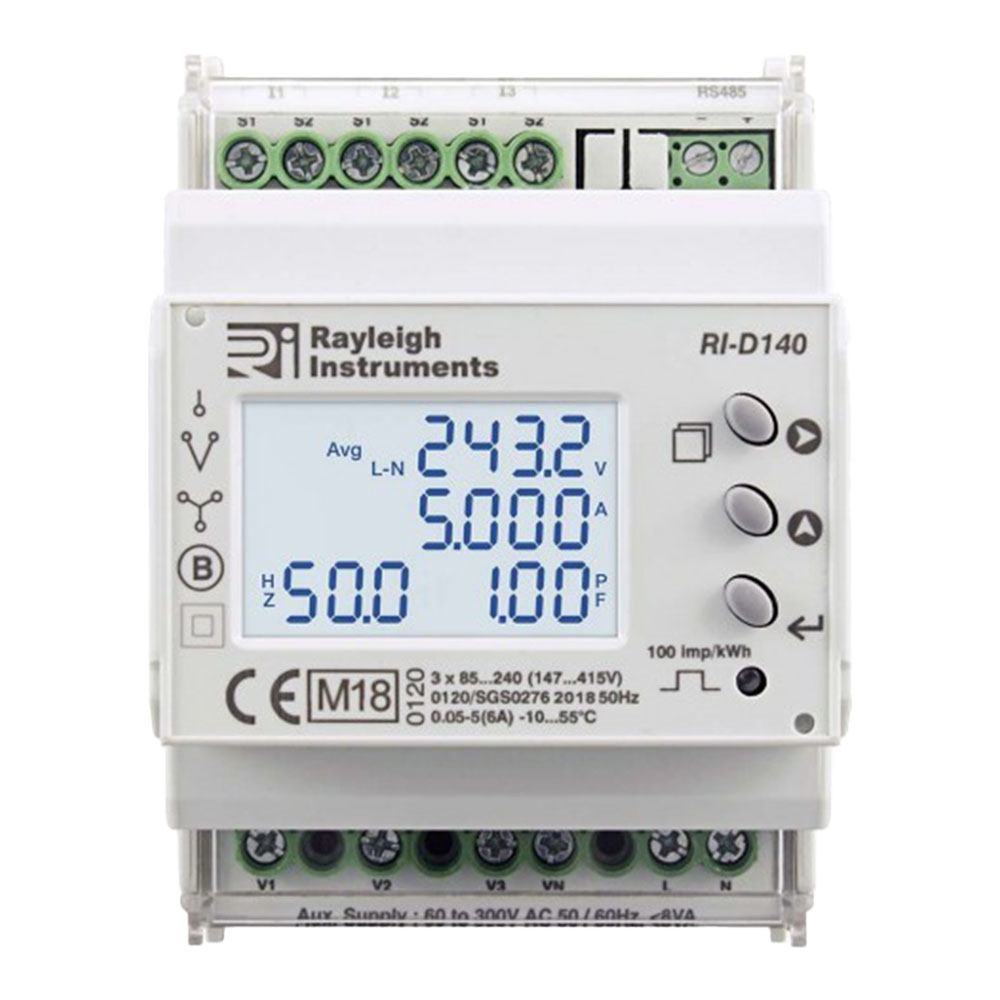

Rayleigh RI-D140-G-C (MID) Multi-function Power Meter

The RI-D140 is a MID-approved DIN rail mounted multifunction energy meter, suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.

These meters may be used in single or three phase four wire systems, depending on what mode it’s set as when first installed. It cannot be changed after installation and setup.

Its MID status means the RI-D140 has been tested for the build quality and accuracy of the meter and is certified for billing purposes.

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.


FEATURES:

• Four module DIN rail mounted
• Single Phase or Three Phase Network, Four Wire
• High definition white backlit LCD display
• -/1A or -/5A current transformer input (MID certification only on 5A)
• Conforms & Certified to MID B and D approval (SGS Cert. No. : 0120/SGS0276)
• RS485 Modbus Communication
• Simple programming and operation
• 12 month Warranty

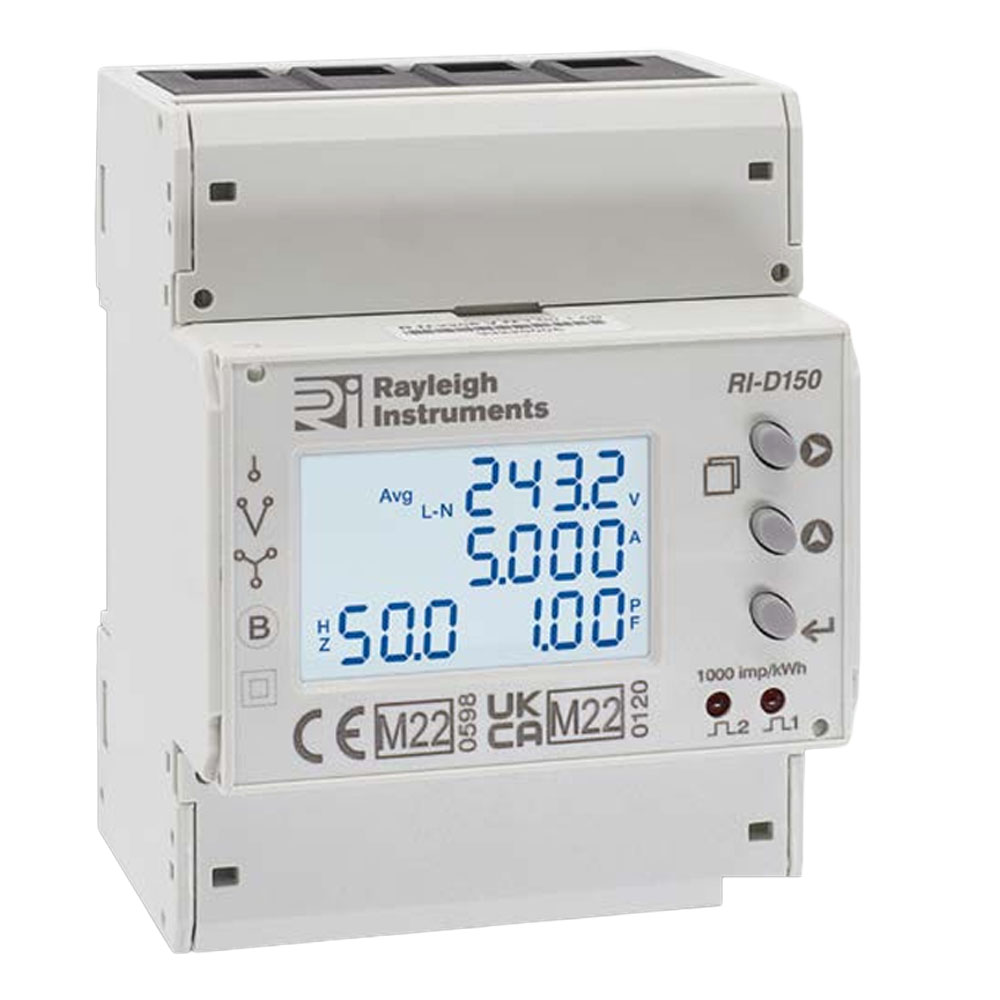

Rayleigh RI-D150-G-C (MID) Multi-function Power Meter - Three Phase

The RI-D150-G-C is a MID-approved DIN rail mounted multifunction energy meter, suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.

These meters may be used in single or three phase four wire systems, depending on what mode it’s set as when first installed.

Its MID status means the RI-D140 has been tested for the build quality and accuracy of the meter and is certified for billing purposes.

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.

FEATURES:

• Four module DIN rail mounted
• Single phase and three phase network compatible
• High definition white backlit LCD display
• 100A direct connected
• Generator tariff mode
• 2 x pulse output
• RS485 Modbus Communication

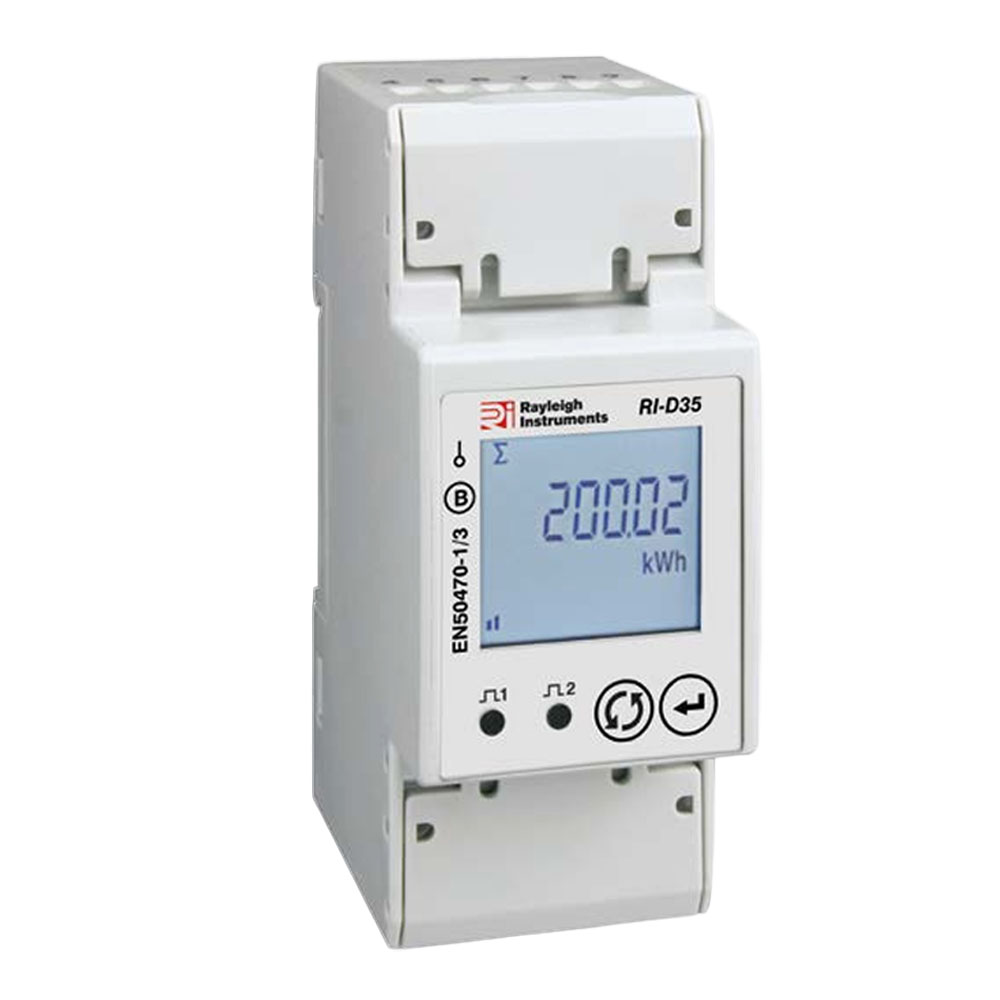

Rayleigh RI-D35-100-C - MID Energy Meter - Single Phase

The RI-D35-100-C - MID is  a high-performance single phase multifunction energy meter. It features a clear, high-definition LCD display with white backlight, offering reliable readings in all lighting conditions.

The meter supports RS485 Modbus or Mbus communication and includes two pulse outputs. Compact and DIN rail mounted, it provides accurate measurement of energy import/export, voltage, current, power, and more.

FEATURES:

• Two module width DIN rail mounte
• 100A direct connected
• High definition LCD display with white backlight
• MID B+D Certified (SGS Cert. No. : 0120/SGS0361)
• RS485 Modbus Communication
• Two module width DIN rail mounted
• Simple programming and operation

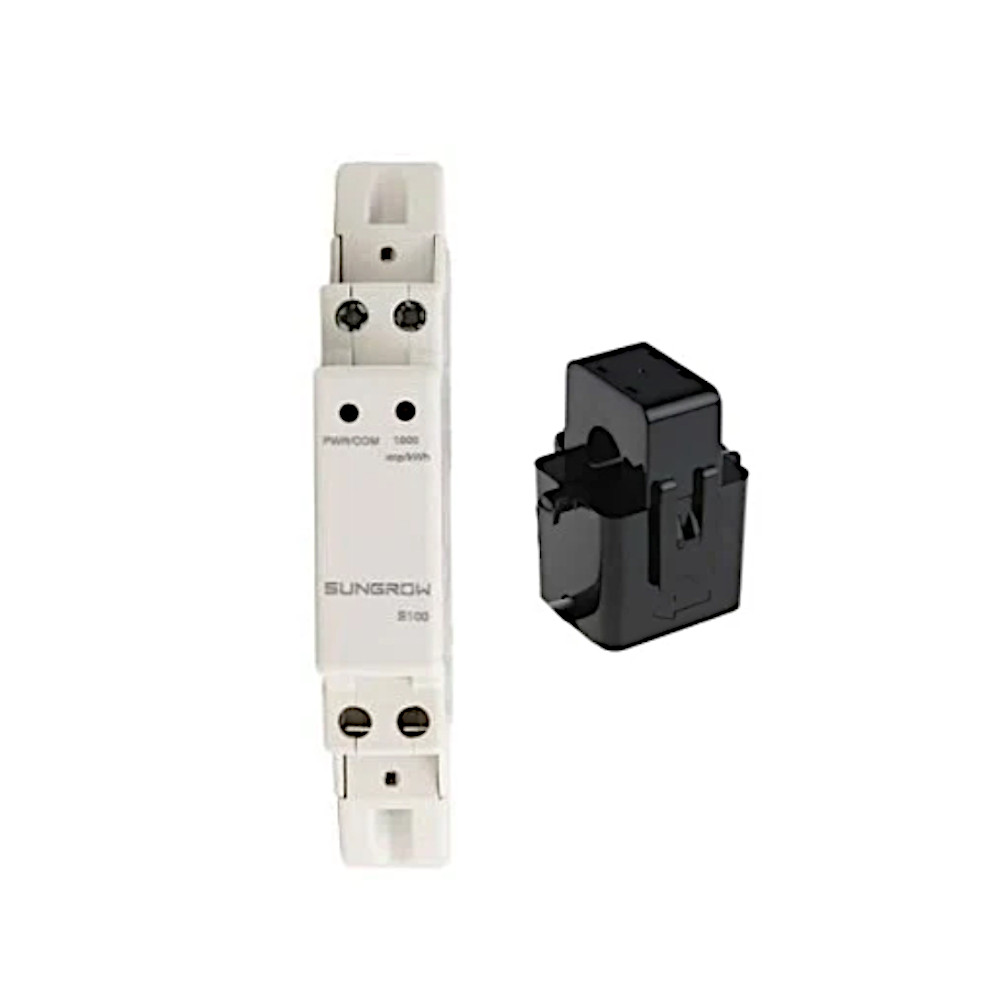

Sungrow 1 Phase Energy Meter S100

Sungrow S100 is a single phase energy meter that offers high quality accurate meters.

KEY FEATURES:

• Class 1 measurement accuracy
• Nominal voltage : 240 Vac
• Max. Operating Current: 100A
• Communication: RS485
• Mounting Type: DIN rail 35mm
• IP20 rating (indoor)
• Dimension (W/H/D): 18/117/65mm

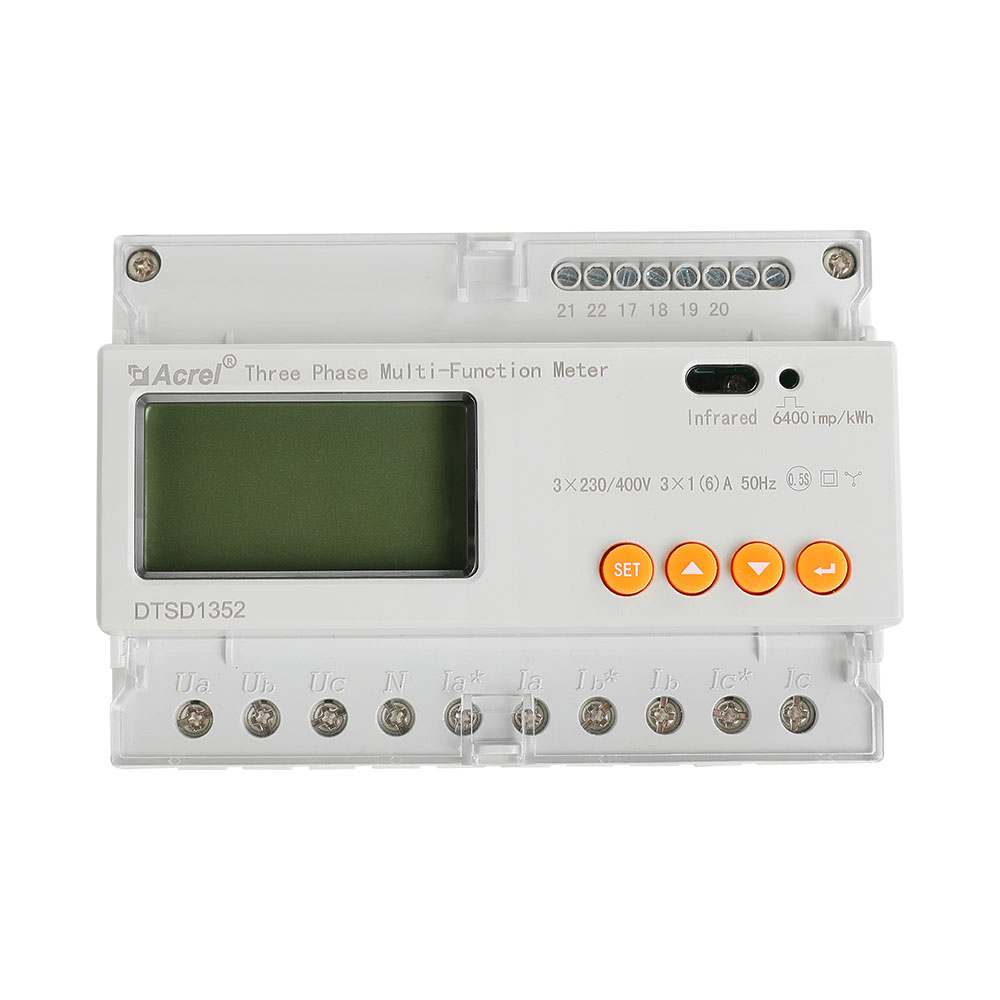

Sungrow 3 Phase Energy Meter DTSD1352-C/1 (6A), Indirect Measuring

Sungrow 3 Phase Energy Meter offers high quality accurate meters.

KEY FEATURES:

• Class 0.5 (Active) measurement accuracy
• Nominal voltage: 230 Vac / 400 Vac
• Max. operating current : 3x1 (6) A (via CTs)
• Communication: RS485
• Mounting Type: DIN rail 35mm
• IP20 rating (indoor)
• Dimension (W/H/D): 126/91/74mm
• Weight: 35g

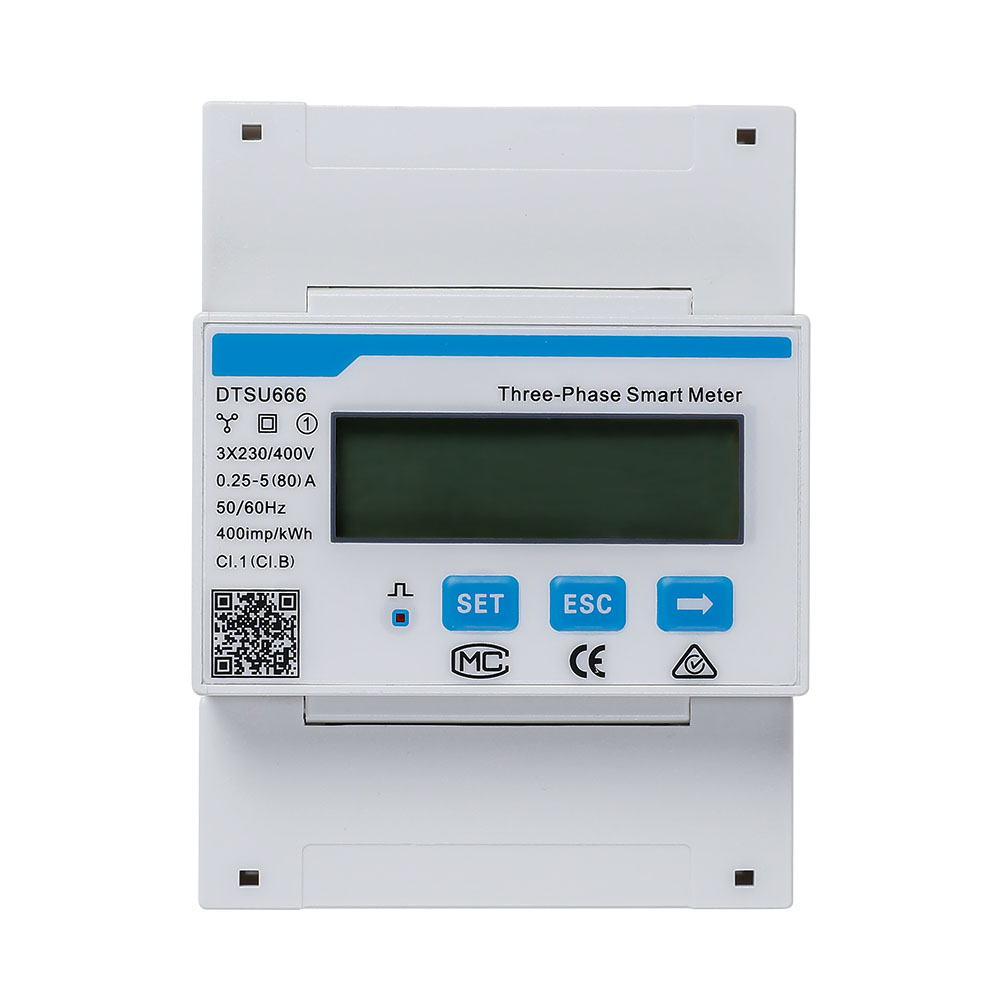

Sungrow 3 Phase Energy Meter DTSU666 5 (80A), Direct Measuring

The Sungrow DTSU666 3 phase energy meter is suitable for monitoring energy consumption and electrical parameters.

KEY FEATURES:

• Class 1 measurement accuracy
• Nominal voltage: 230 Vac / 400 Vac
• Max. operating current : 80 A
• Communication: RS485
• Mounting Type: DIN rail 35mm
• IP20 rating (indoor)
• Dimension (W/H/D): 75/65/100 mm
• Weight: 0.4kg
