K2 Insertion System

K2 HangerBolt M10-200 Set

For fastening the K2 SolidRail and SingleRail mounting rails on roofs with corrugated fiber cement or sheet metal on timber substructures. The K2 hanger bolts are equipped with an extra-long metric thread for installation height adjustment. Hanger bolts are outfitted with a pre-mounted adapter plate.

The set consists of:

• 1 hangerscrew
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

K2 Collar Nut M10

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M10

Also available in a box of 100 units.

K2 Countersunk Head Screw M6 x 70 - 200 Units

Head timber screws, drilling-point and Countersunk head 6x70/42. Drive size: TX25.

• Box of 200 Units
• Diameter [mm]: 6
• Length [mm]: 70
• Head diameter [mm]: 12
• Drive: Hexalobular socket - 25
• Head shape: Countersunk head
• Mounting systems: K2 InsertionRail System, K2 SolidRail System
• Material: stainless steel A2

K2 HangerBolt M12-300 Set

For fastening the K2 SolidRail and SingleRail mounting rails on roofs with corrugated fiber cement or sheet metal on timber substructures. The K2 hanger bolts are equipped with an extra-long metric thread for installation height adjustment. Hanger bolts are outfitted with a pre-mounted adapter plate.

The set consists of:

• 1 hangerscrew
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

K2 Insertrtion Rail Cable Clip, 8 cm

Plastic profile to hold the DC wiring in the K2 Insertion Rail system.

Material: Polycarbonate

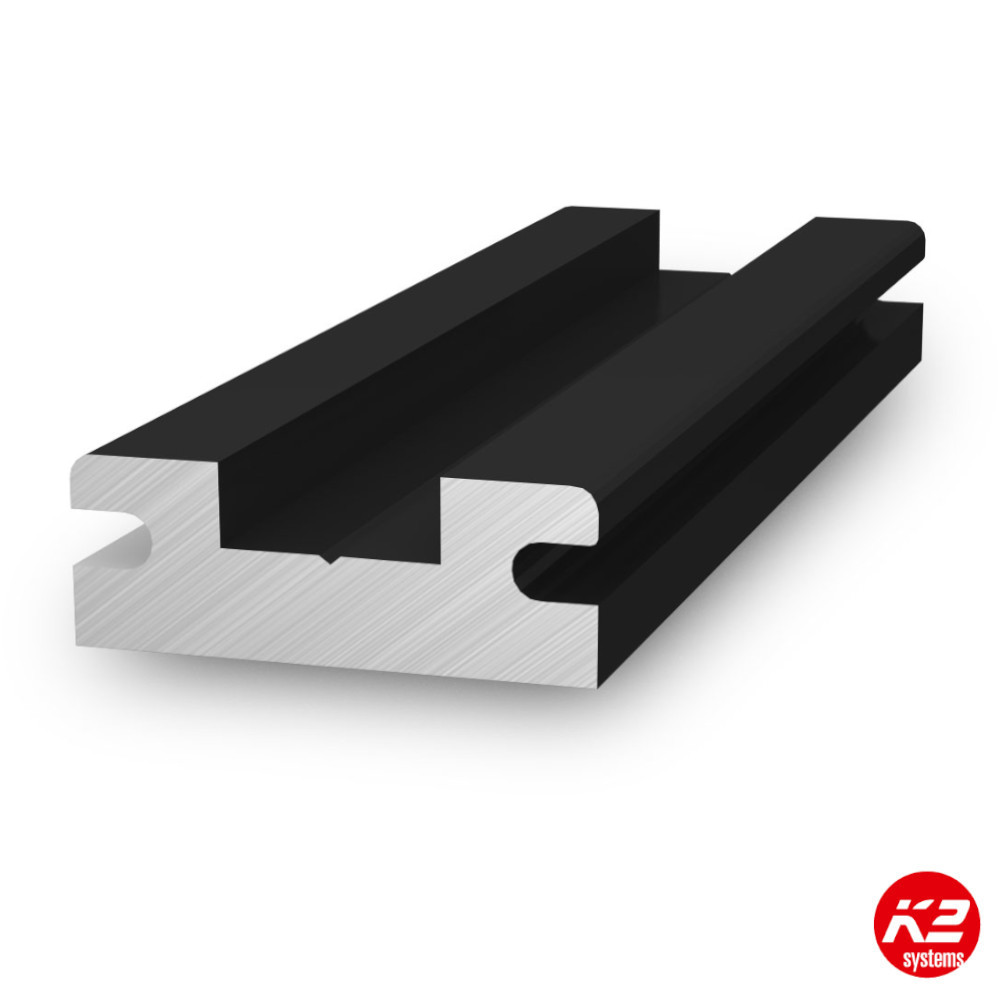

K2 Insertion Rail Connector, Black

Rail connector for quick and easy connection of two K2 Insertion Rails

Material: Aluminium EN AW-6063 T66

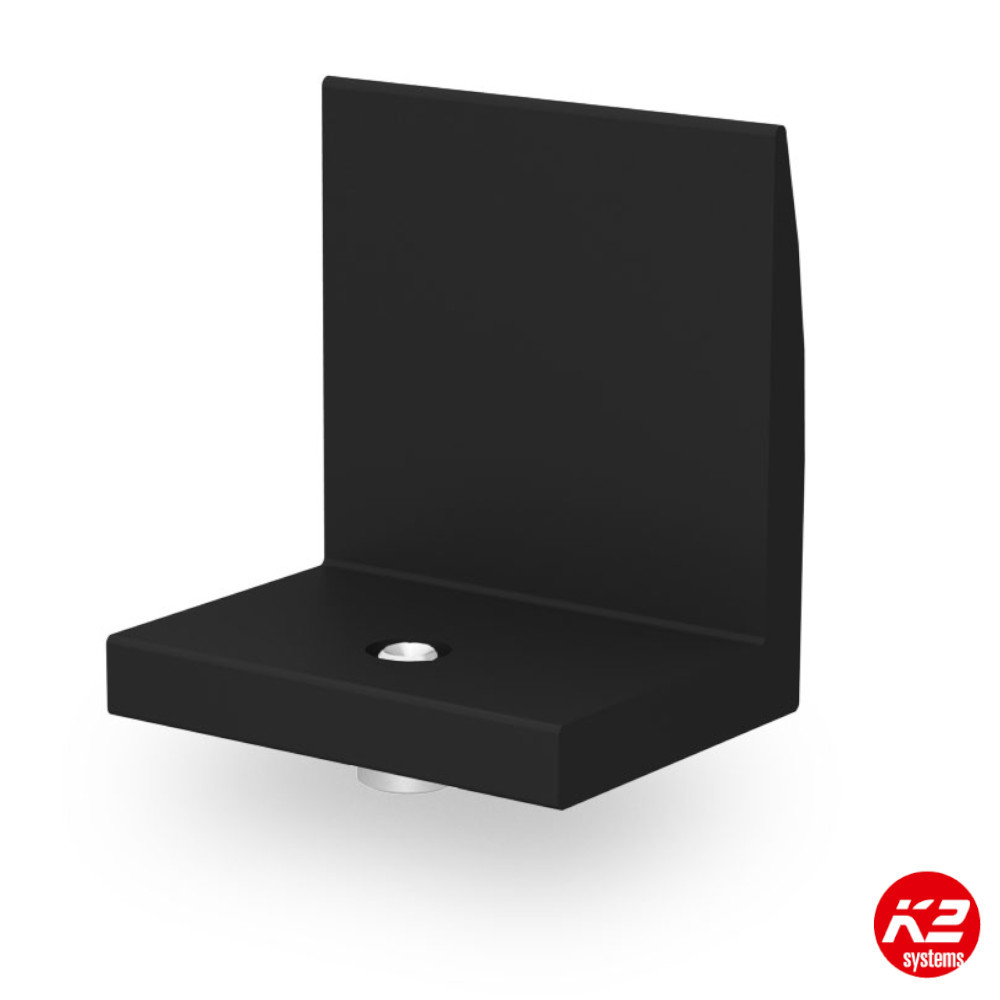

K2 Insertion Rail End Stop Set, Black

End angle for K2 Insertion Rail. Incl. fitted grub screw M6

Material: aluminium [AIMgSi0.5 F22]

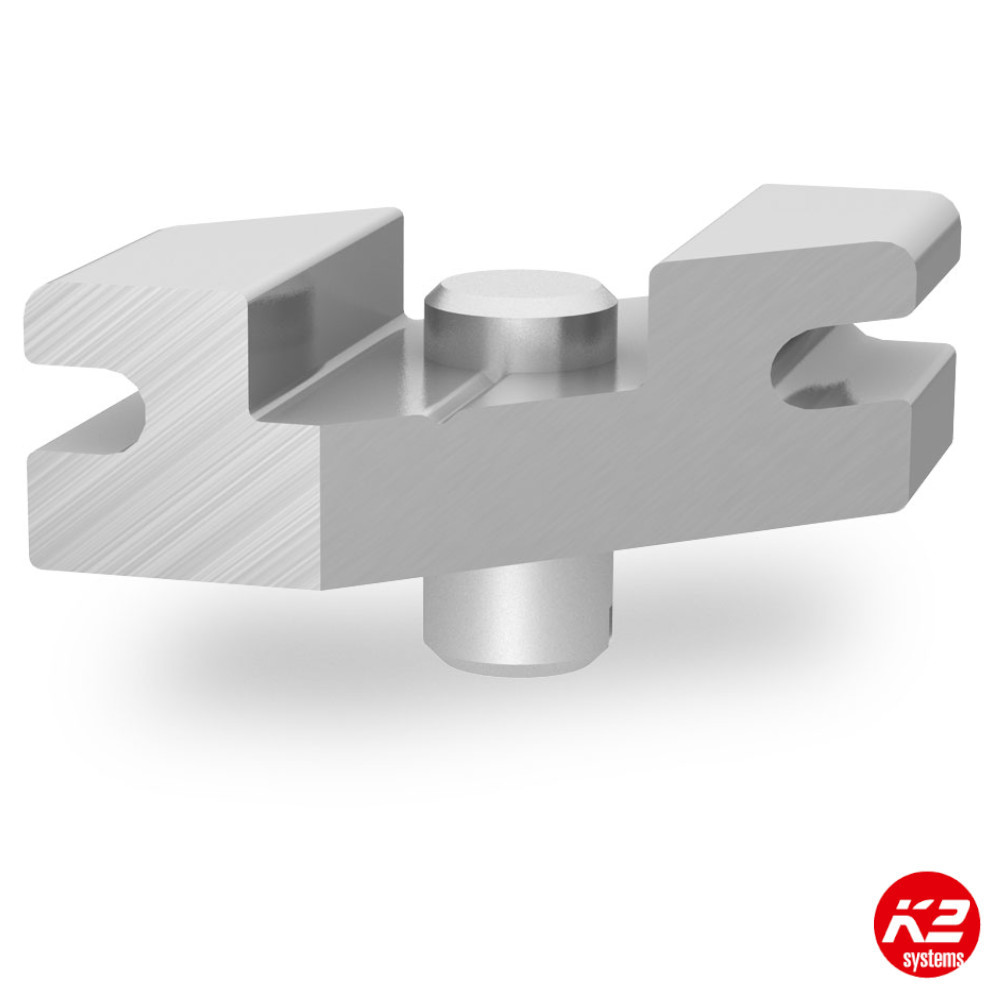

K2 Insertion Rail Fix Stop Set

K2 side stop to hold the insertion rail in place and prevent lateral protrusion. Incl. fitted grub screw M8

Material: Aluminium [AIMgSi0.5 F22]

K2 InsertionRail 30; 5.40 m Black

Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 30 mm. Material: Aluminium EN AW-6063 T66

FEATURES:

• Height [mm]: 45.7
• Length [m]: 5.40
• Width [mm]: 54
• Module frame height [mm]: 30
• Mounting systems: K2 InsertionRail
• Surface: Black anodised

K2 InsertionRail 30; 5.40 m Silver

Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 30 mm. Material: Aluminium EN AW-6063 T66

FEATURES:

• Height [mm]: 45.7
• Length [m]: 5.40
• Width [mm]: 54
• Module frame height [mm]: 30
• Mounting systems: K2 InsertionRail
• Surface: Aluminium mill

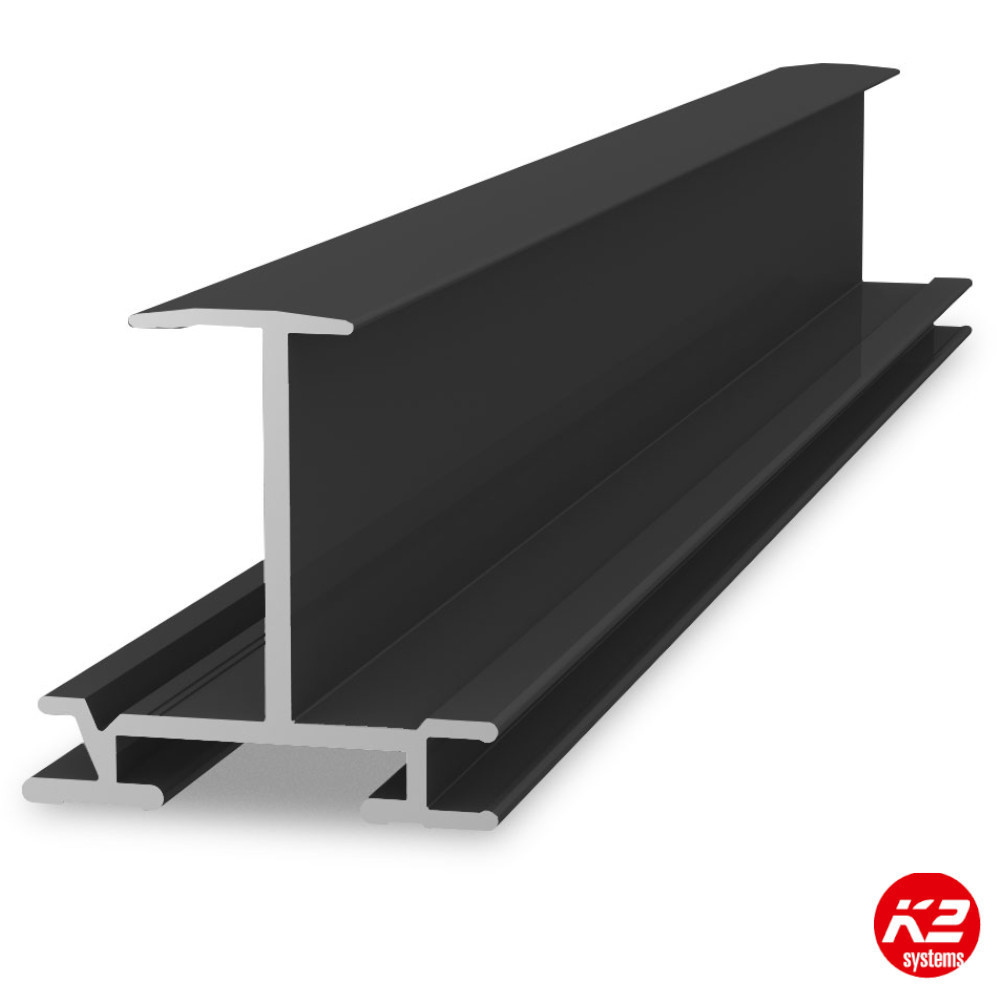

K2 InsertionRail 35; 5.40 m Black

Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 35 mm. Material: Aluminium EN AW-6063 T66

FEATURES:

• Height [mm]: 50.70
• Length [m]: 5.40
• Width [mm]: 54
• Module frame height [mm]: 35
• Mounting systems: K2 InsertionRail
• Surface: Black anodised

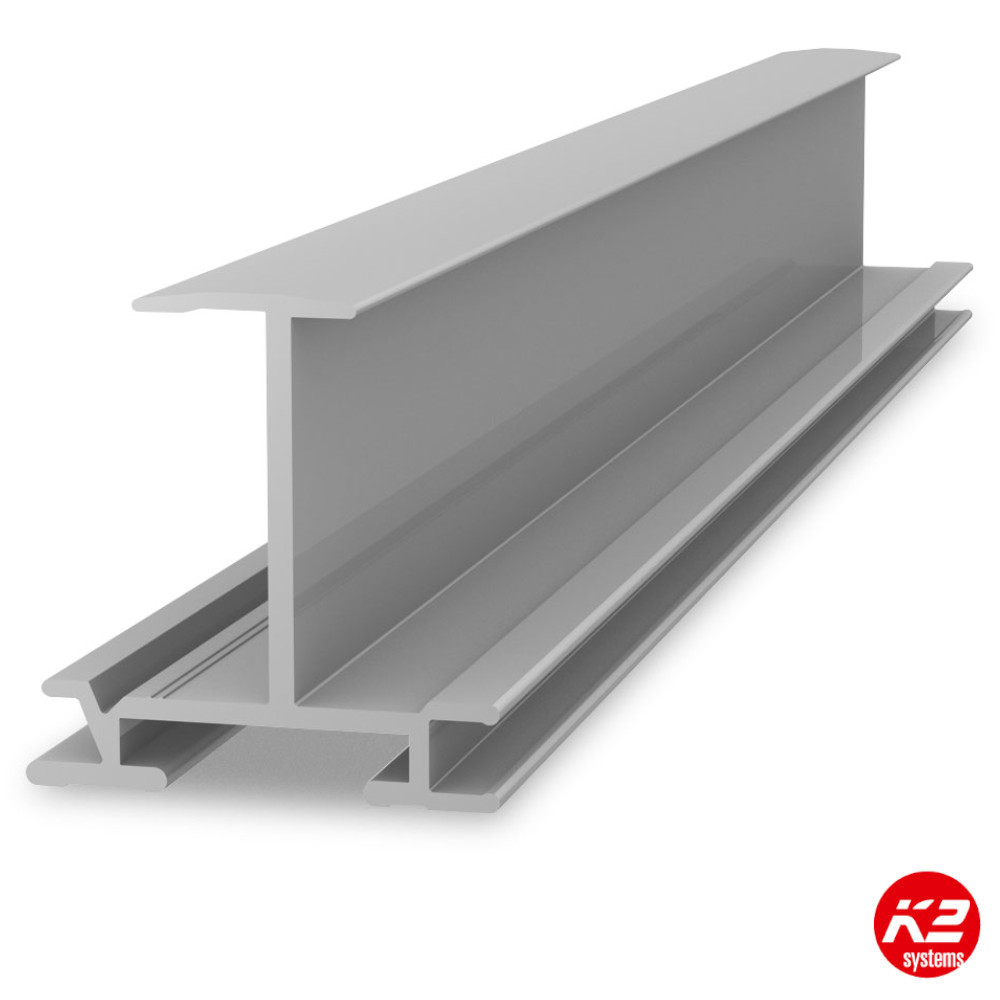

K2 InsertionRail 35; 5.40 m Silver

Insertion rail with static confirmation in K2 Base to mount solar modules with a frame height of 35 mm. Material: Aluminium EN AW-6063 T66

FEATURES:

• Height [mm]: 50.70
• Length [m]: 5.40
• Width [mm]: 54
• Module frame height [mm]: 35
• Mounting systems: K2 InsertionRail
• Surface: Aluminium mill

K2 Rafterbolt M10-200 Set

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Rafter Screw is equipped with an extra long metric thread enabling variable height adjustment. The screw is furnished with a hexagonal head, providing time saving installation with a power drill.

The set consists of:

• 1 rafter screw
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

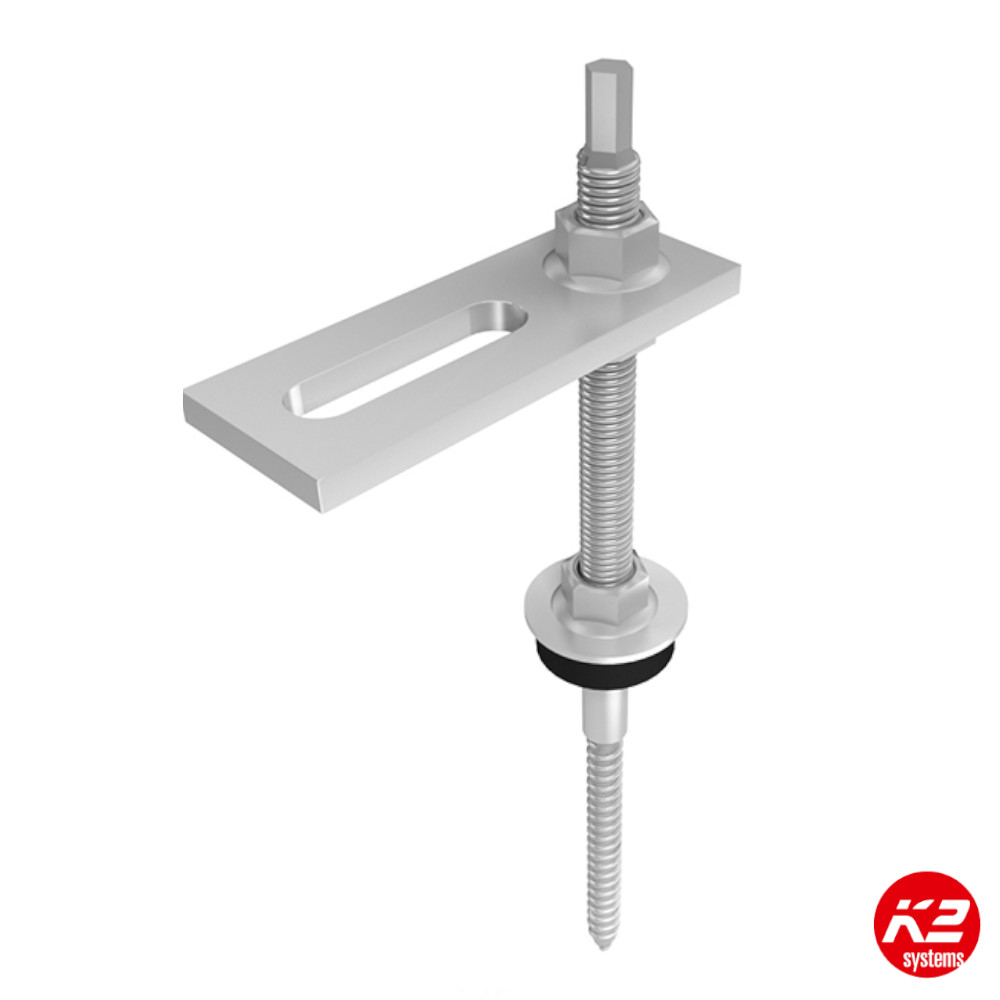

K2 Rafterbolt M10-250 Set

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Rafter Screw is equipped with an extra long metric thread enabling variable height adjustment. The screw is furnished with a hexagonal head, providing time saving installation with a power drill.

The set consists of:

• 1 rafter screw
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

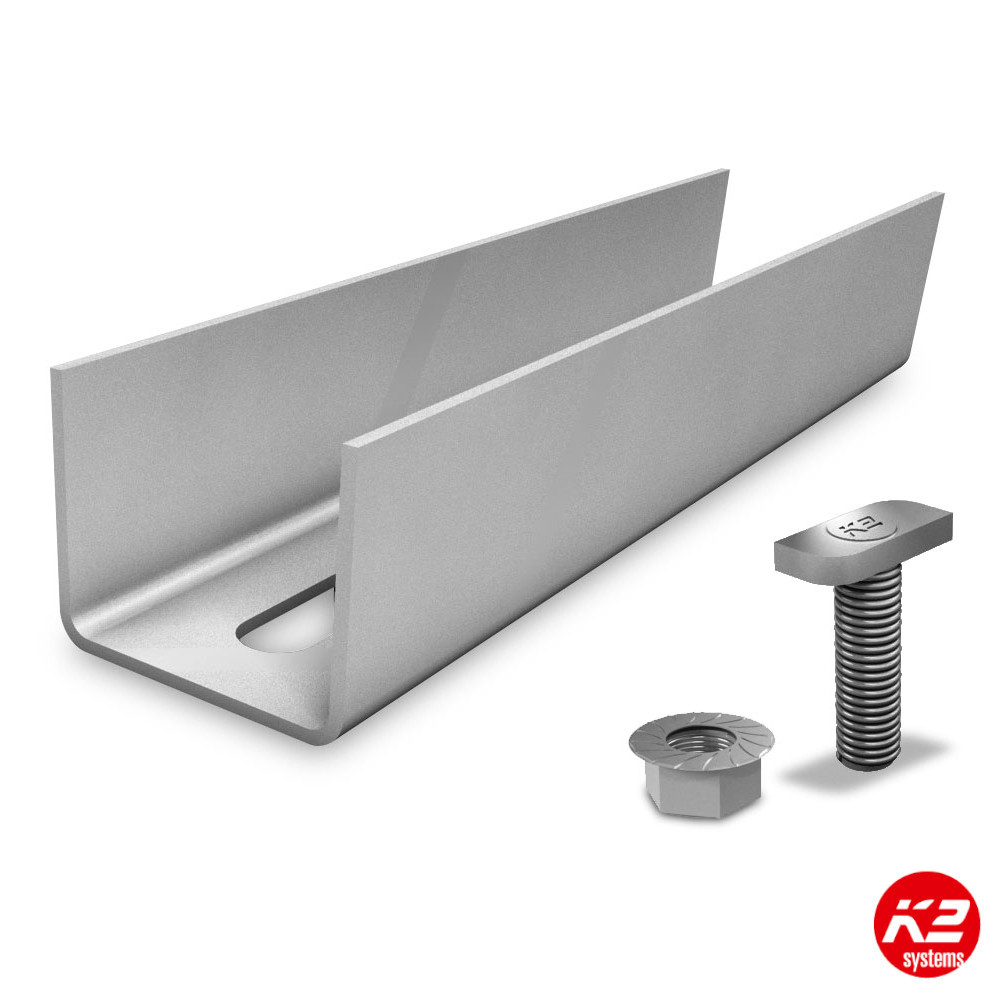

K2 Rail Connector Set - UltraLight / Light Rail

Aluminum rail connector for K2 SolidRail UltraLight or Light.

The set consists of:

• 1 SolidRail connector, Aluminium EN AW-6063 T66
• 2 T-Bolts M10x30 (P1000041), Stainless steel A2
• 2 Locking nut M10 (P1000042), Stainless steel A2
• Length 200 mm

Also available in a small box of 10 units and larger box of 80 units.

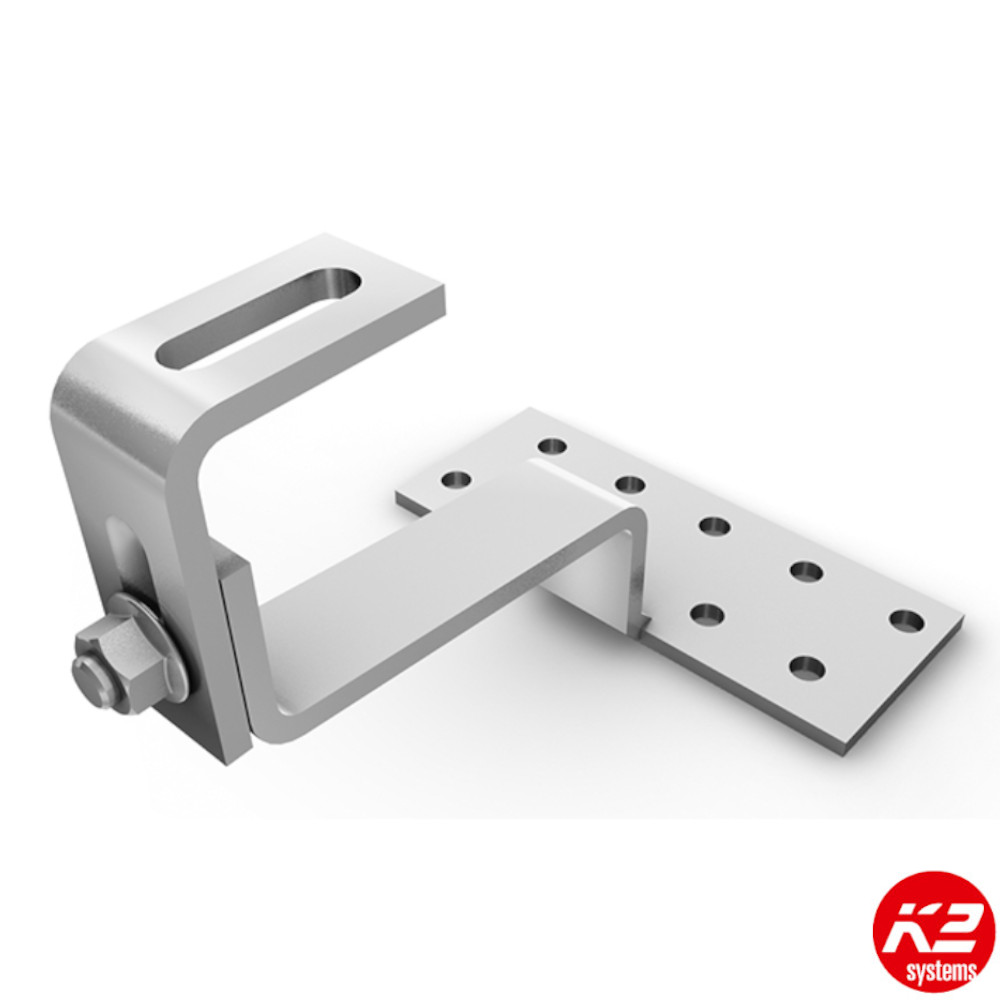

K2 Roof Hook Variable 1 (Pan Tile, for SoliRail System)

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Suitable mountingn systems: SolidRail and InsertionRail Systems
• Material: Stainless steel
• Height: min 55 max 90 mm
• Base plate 150x60x5 mm
• Bracket 30x6 mm
• Height under bracket: 43 mm
• Overall height:approx. 112-145 mm

Also available in a box of 25 units.

K2 Spax Screw 8 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

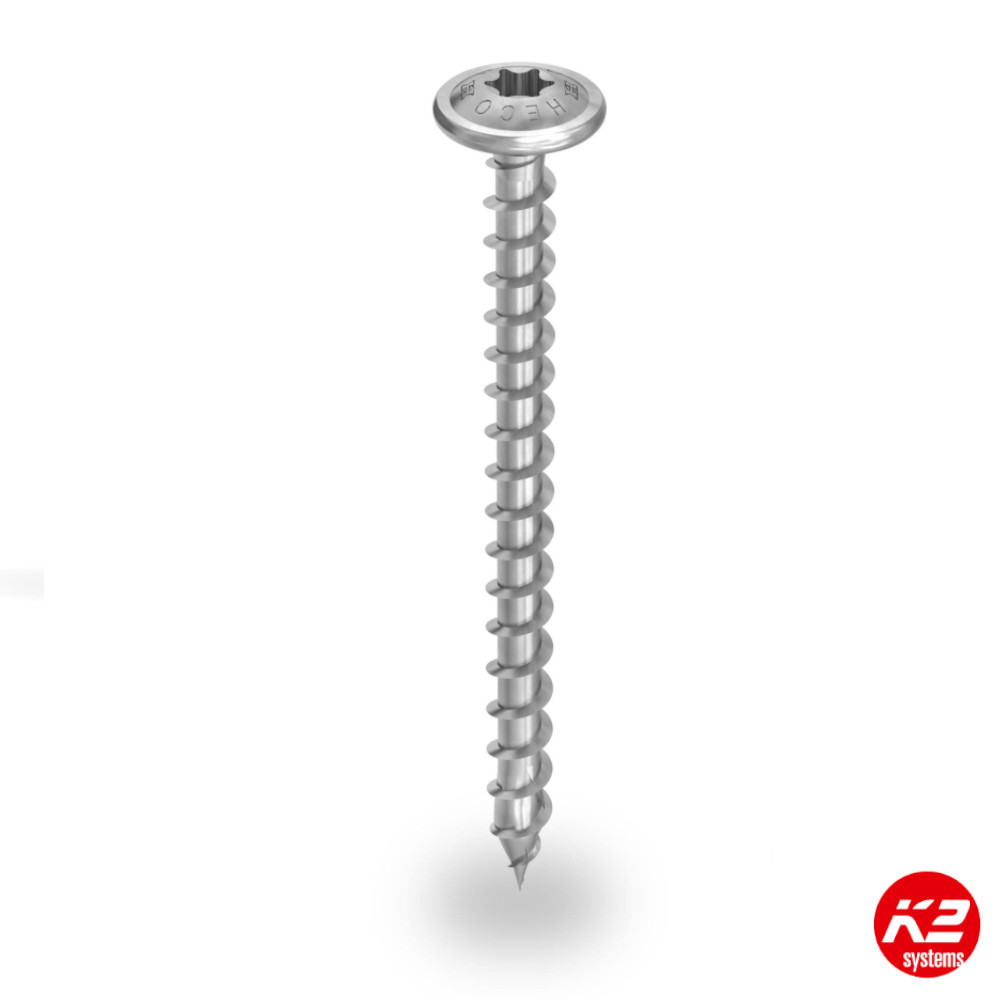

K2 Spax Screw M8 x 100

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x100
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

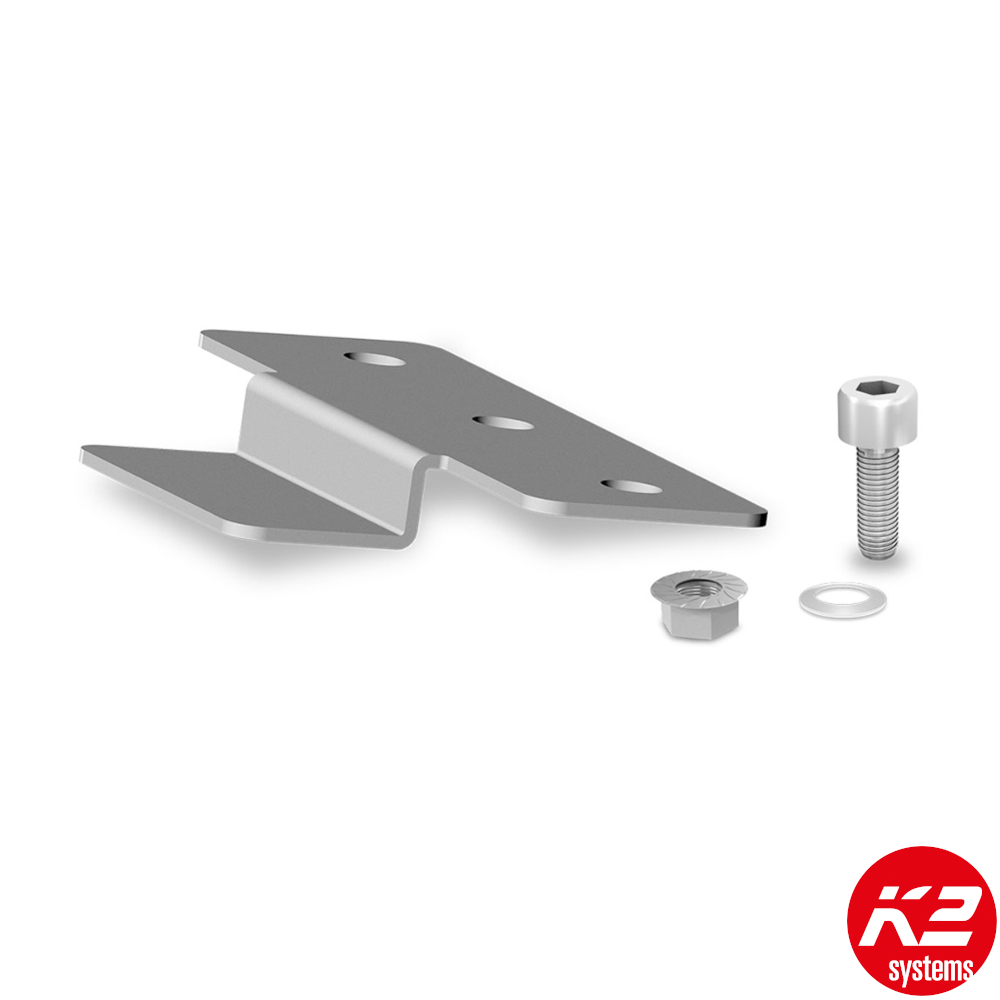

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

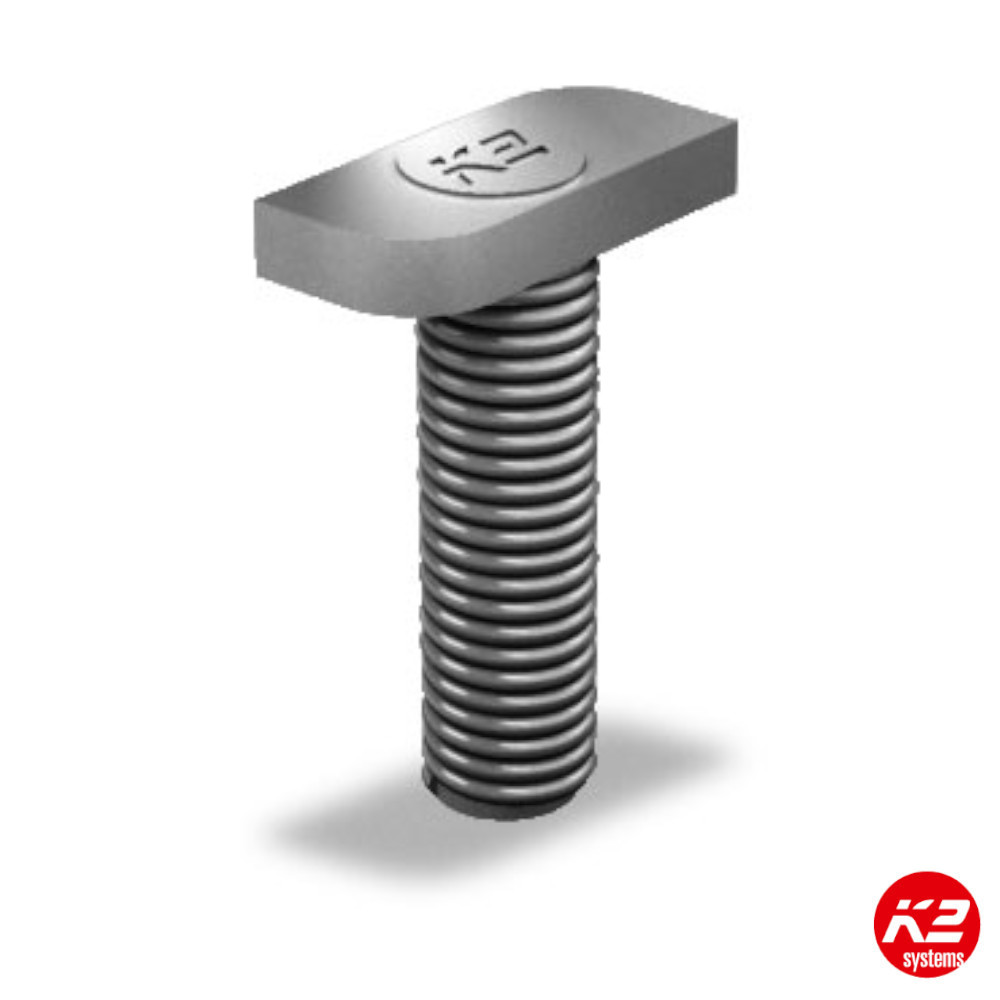

K2 T Bolt M10x30

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x30 mm

Also available in a box of 100 units.
