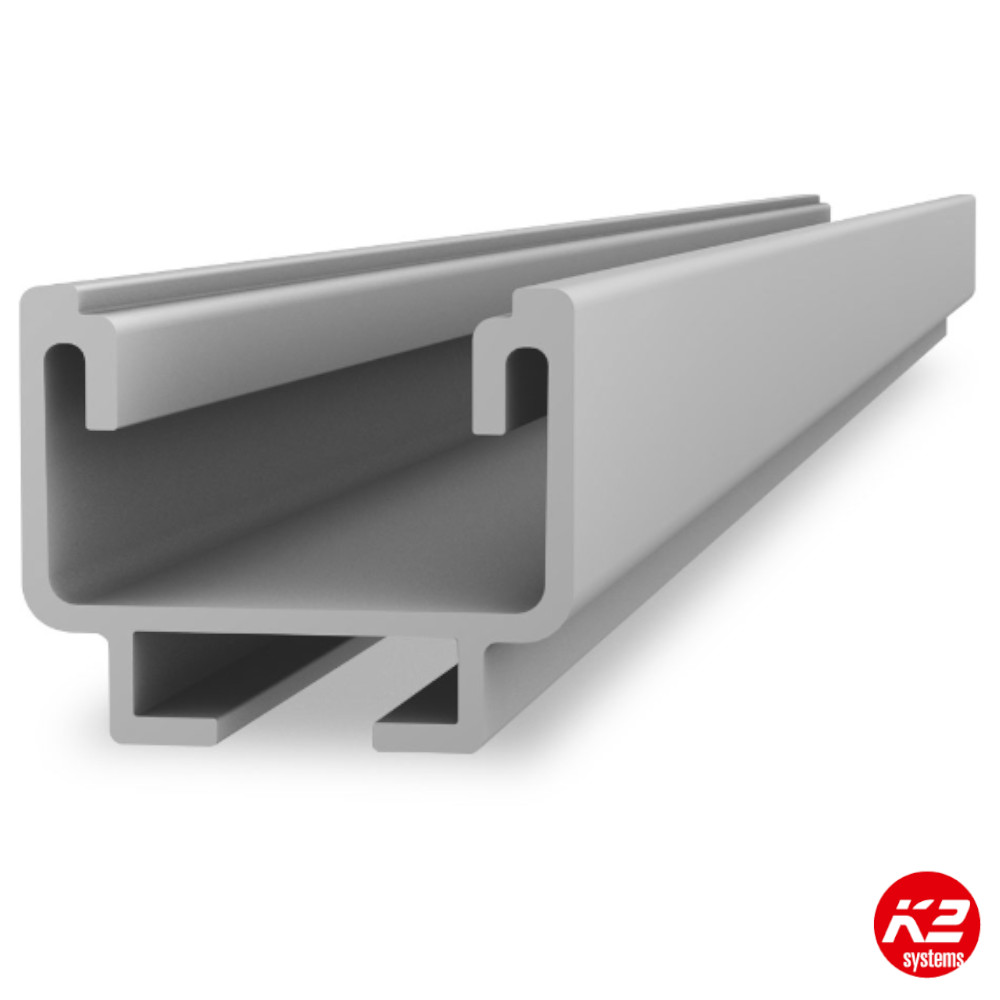

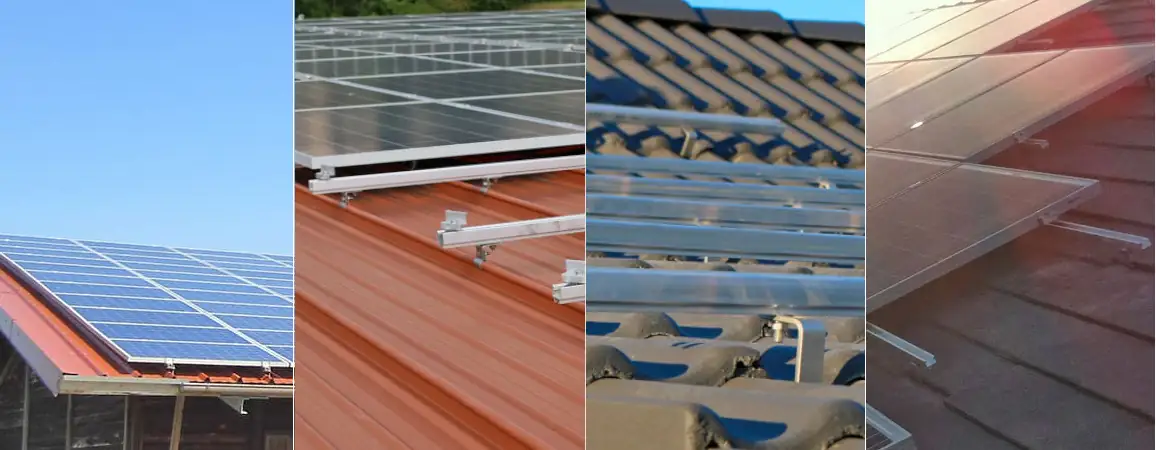

K2 SolidRail System

K2 HangerBolt M10-200 Set

For fastening the K2 SolidRail and SingleRail mounting rails on roofs with corrugated fiber cement or sheet metal on timber substructures. The K2 hanger bolts are equipped with an extra-long metric thread for installation height adjustment. Hanger bolts are outfitted with a pre-mounted adapter plate.

The set consists of:

• 1 hangerscrew
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

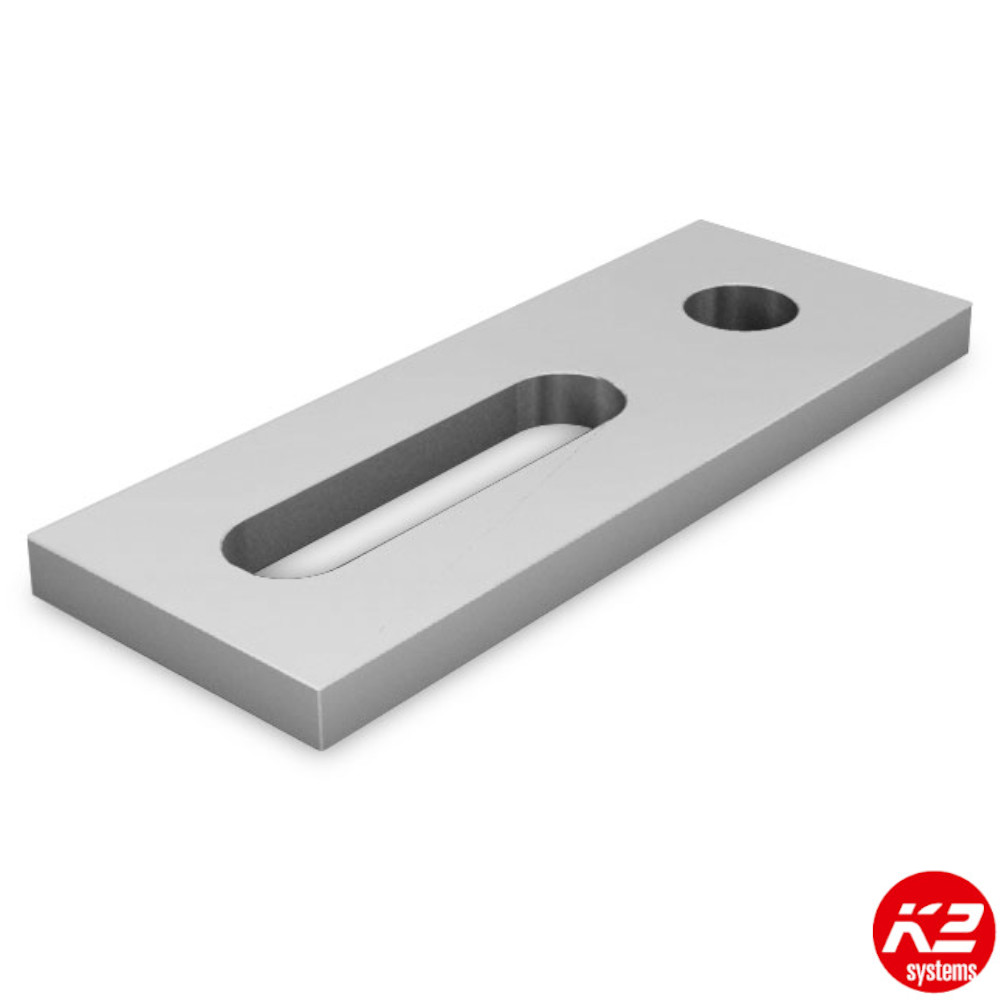

K2 ALUMINIUM Adapter plate M10

Adapter plate for Hanger Bolt and Solar Fastener M10; screws M10.

• Dimensions: 40 x 90 mm
• Material: Aluminium

Also available in a box of 300 units.

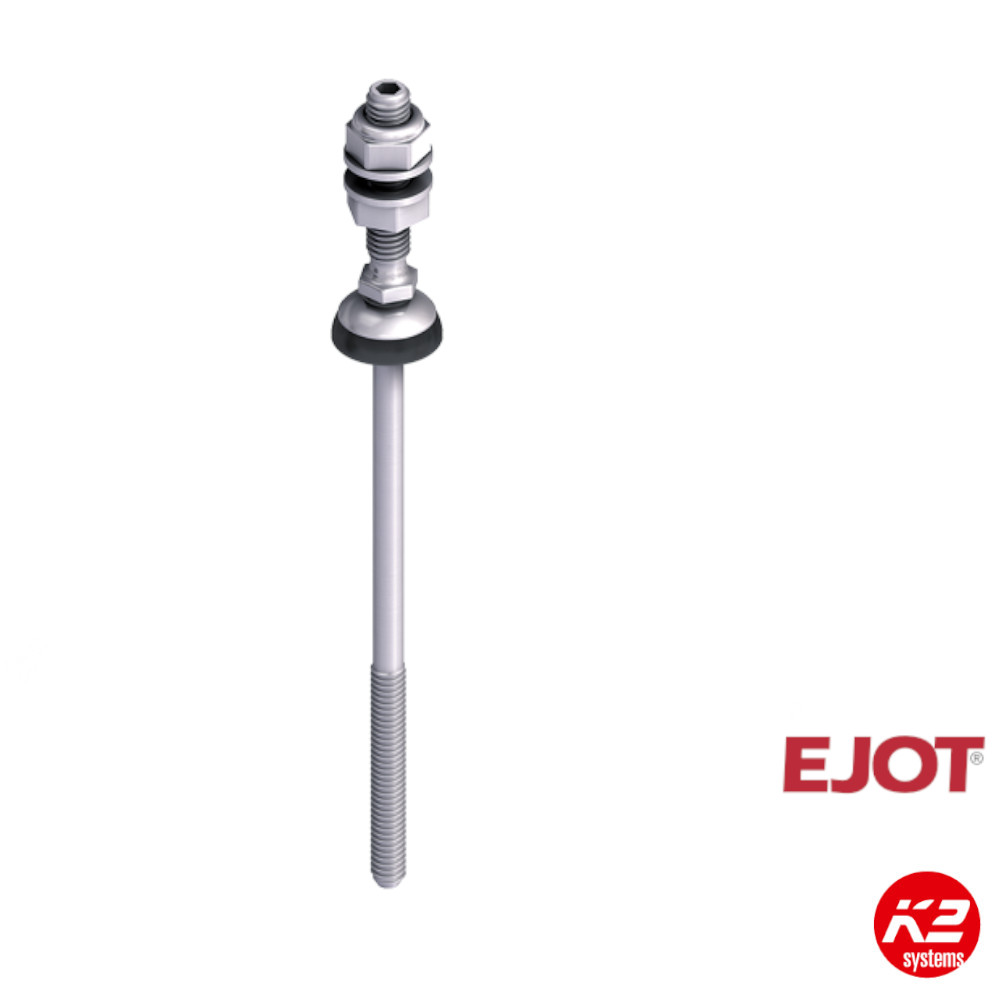

K2 Anchor Bolt/ Hanger Bolt for Steel M8 x115/M10x50 Length 165mm

Solar panel anchor bolt for steel Ø 8,0(bottom part) with M10x50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

Specification:

• Systems: InsertionRail and SolidRail
• Clamping Area (mm): 44-85
• Screw Length (mm): 115
• Total Length (mm): 165
• Screw Thread: M10x50

The set consists of:

• 1 M10 lock nut, Stainless steel
• 1 Washer, Stainless steel
• 1 M10 hexagon nut, Stainless steel
• 1 sealing washer, Stainless steel
• 1 FZD sealing washer, Stainless steel

Also available in a box of 25 units.

K2 Anchor Bolt for Steel M8x155/50 Length 205mm

Solar panel anchor bolt for steel Ø 8,0(bottom part) with M10x50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

Article is procured on the basis of order - return excluded

Specification:

• Systems: InsertionRail and SolidRail
• Clamping Area (mm): 84-125
• Screw Length (mm): 155
• Total Length (mm): 205
• Screw Thread: M10x50

The set consists of:

• 1 M10 lock nut, Stainless steel
• 1 Washer, Stainless steel
• 1 M10 hexagon nut, Stainless steel
• 1 sealing washer, Stainless steel
• 1 FZD sealing washer, Stainless steel

Also available in a box of 25 units.

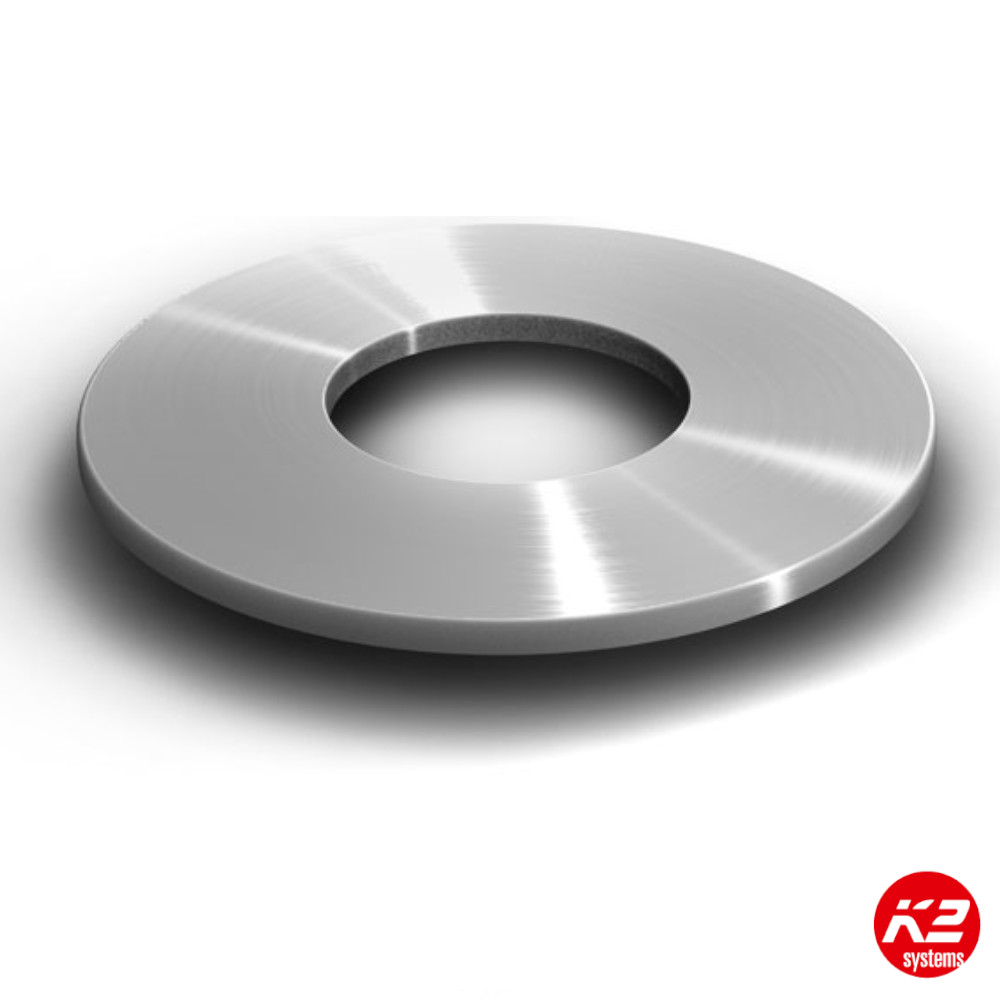

K2 Body Washer for M8 bolt connections

FEATURES:

• Stainless steel A2
• Dimensions: 8.4 x 30 x 1.5 mm
• Weight: 0,01 kg
• Warranty: 12 years (if installed correctly)
• Certificates: EN, CE

Also available in a box of 200 units.

K2 Clamp EC 25-40

Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

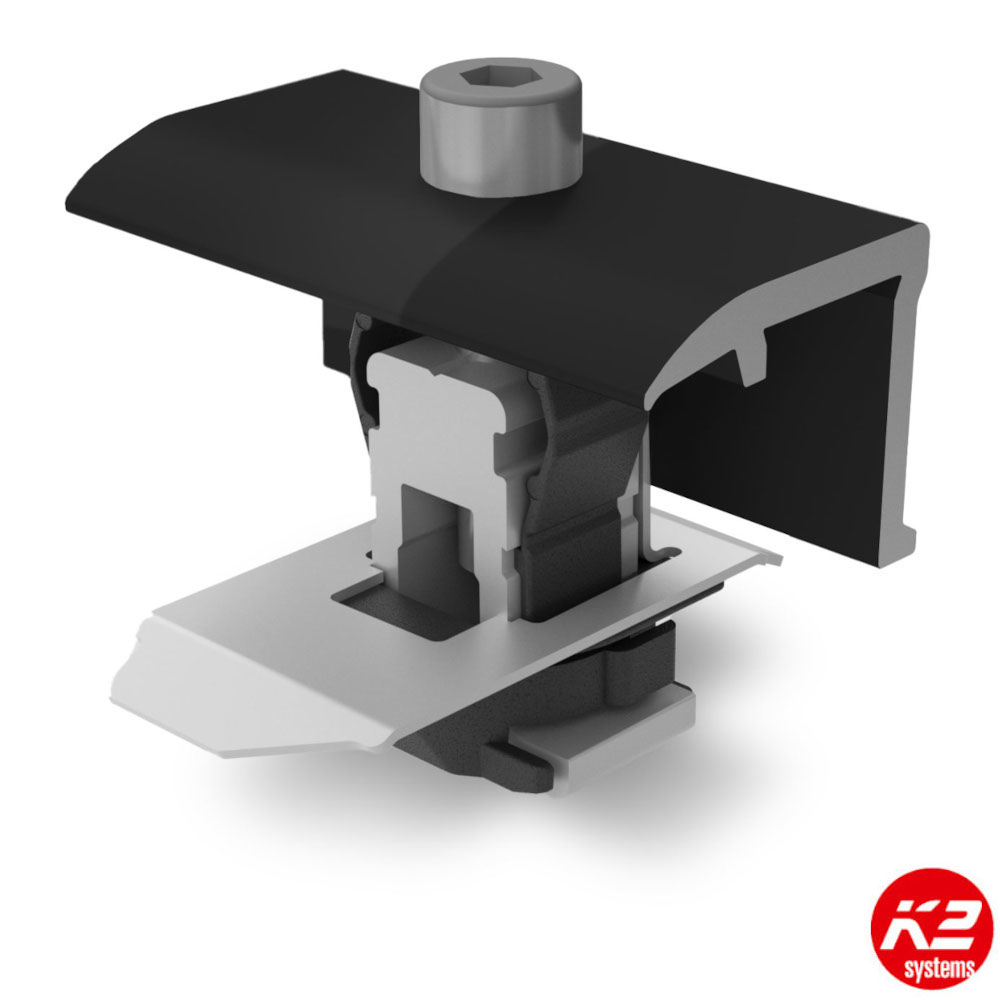

K2 Clamp EC 25-40 Black

Black anodised universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Black anodised
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

K2 Clamp MC 25-40

Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

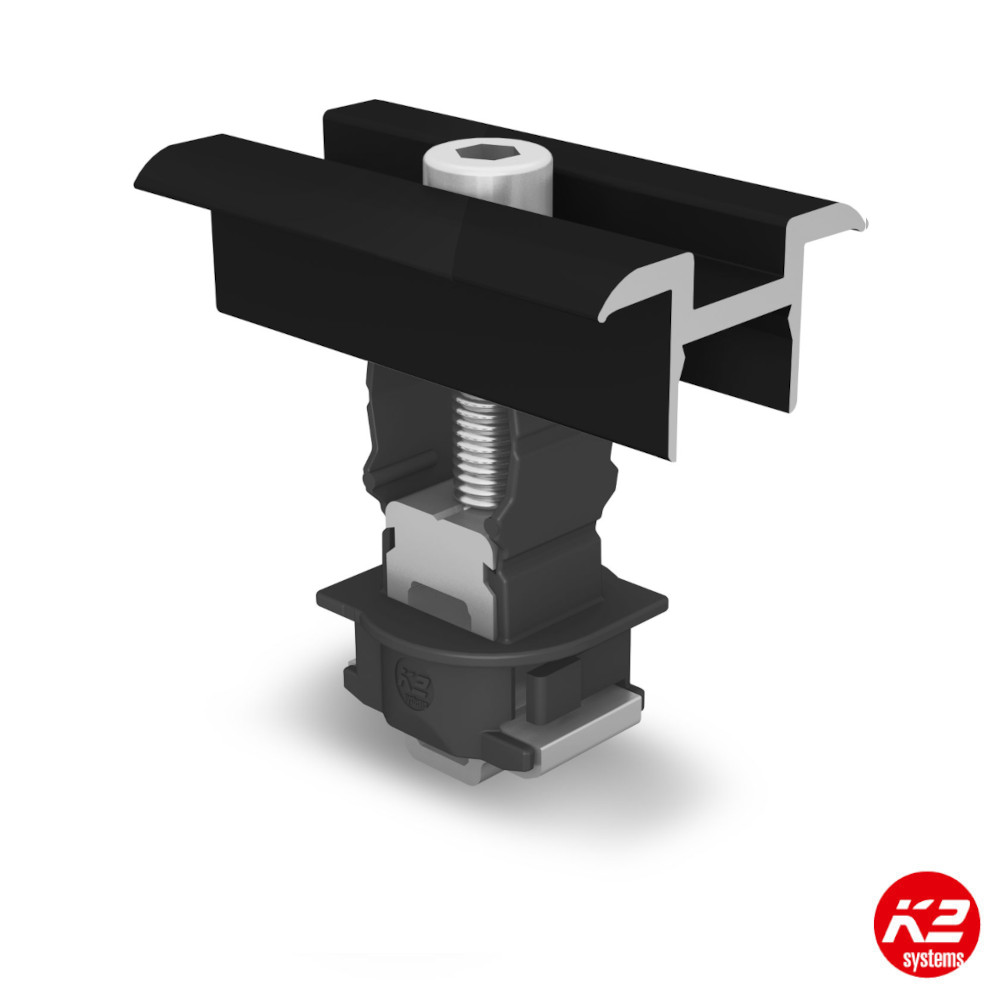

K2 Clamp MC 25-40 Black

Black anodized Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• Black anodised
• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

K2 Collar Nut M10

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M10

Also available in a box of 100 units.

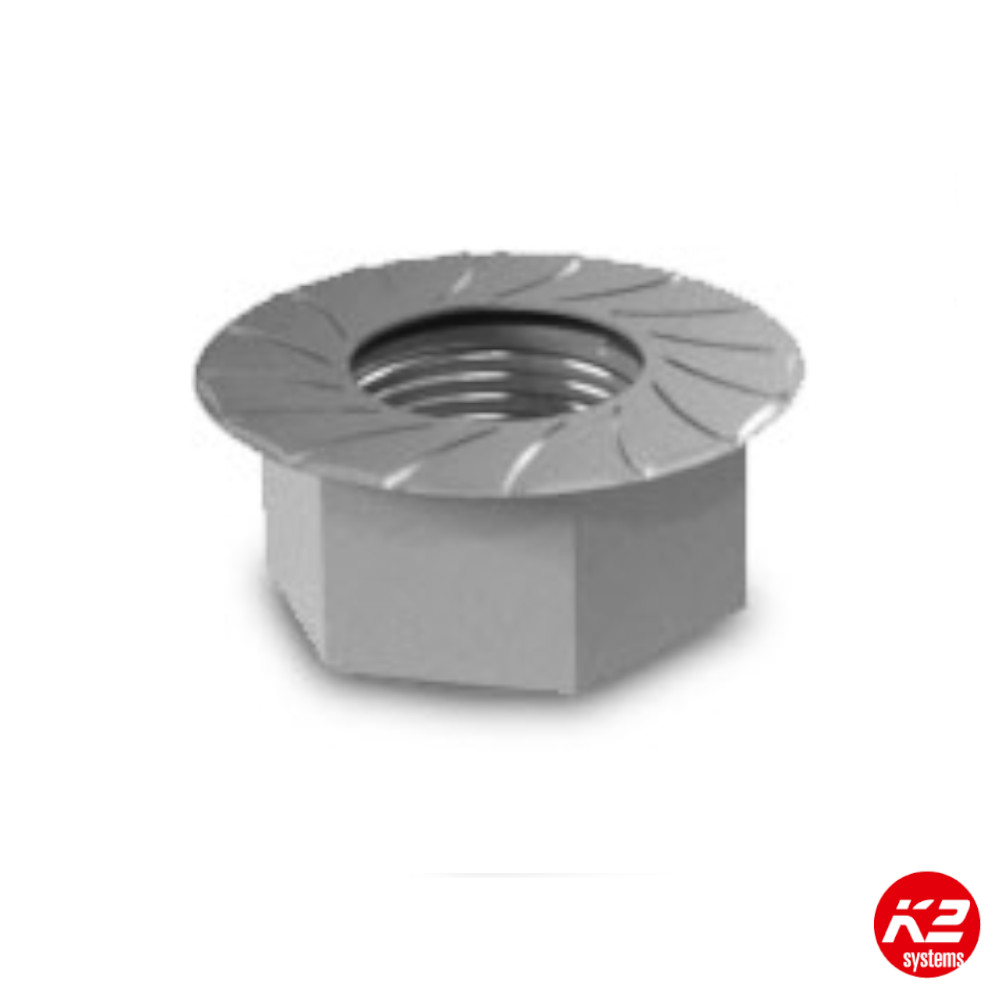

K2 Collar Nut M8

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M8

Also available in a box of 100 units.

K2 Countersunk Head Screw M6 x 70 - 200 Units

Head timber screws, drilling-point and Countersunk head 6x70/42. Drive size: TX25.

• Box of 200 Units
• Diameter [mm]: 6
• Length [mm]: 70
• Head diameter [mm]: 12
• Drive: Hexalobular socket - 25
• Head shape: Countersunk head
• Mounting systems: K2 InsertionRail System, K2 SolidRail System
• Material: stainless steel A2

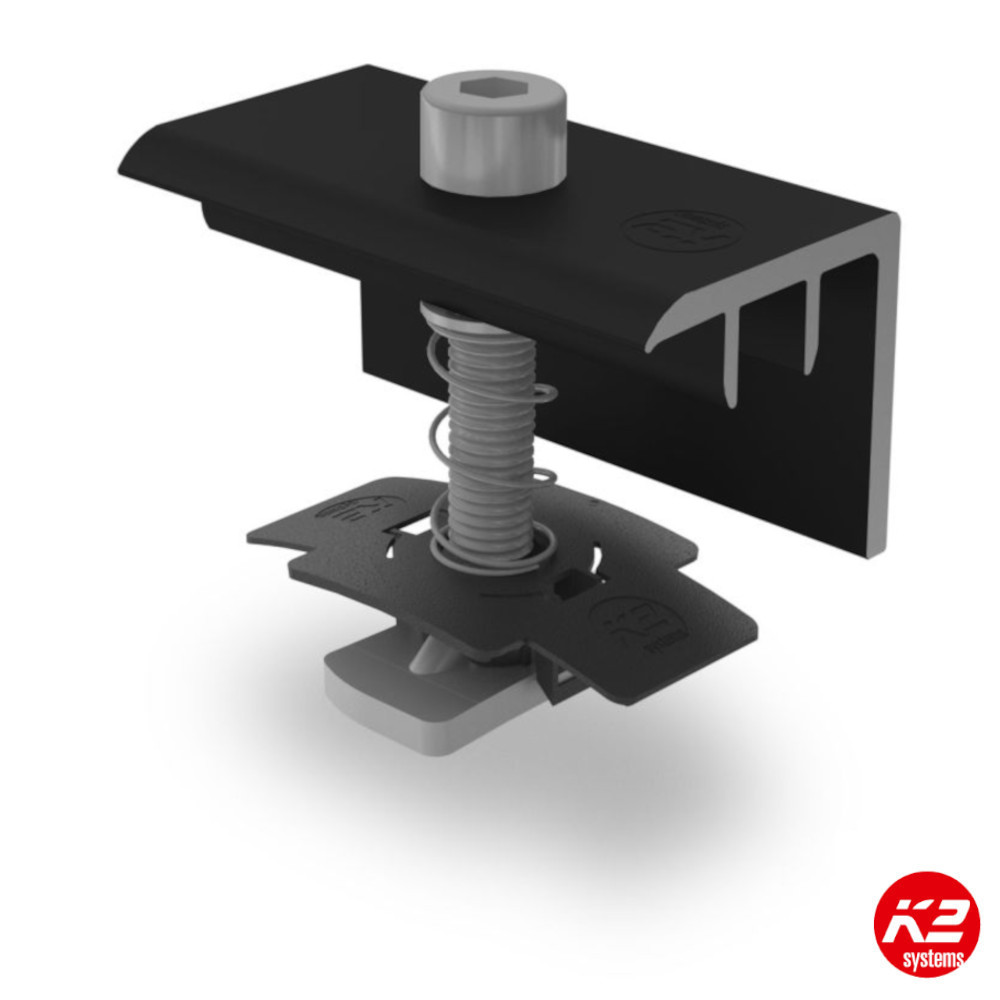

K2 End Clamp XS Set Black 30mm

Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 58mm
• Depth: 65mm

K2 End Clamp XS Set Black 35mm

Black anodised module end clamp set for fixing solar modules with frame heights of 35 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 63mm
• Depth: 65mm

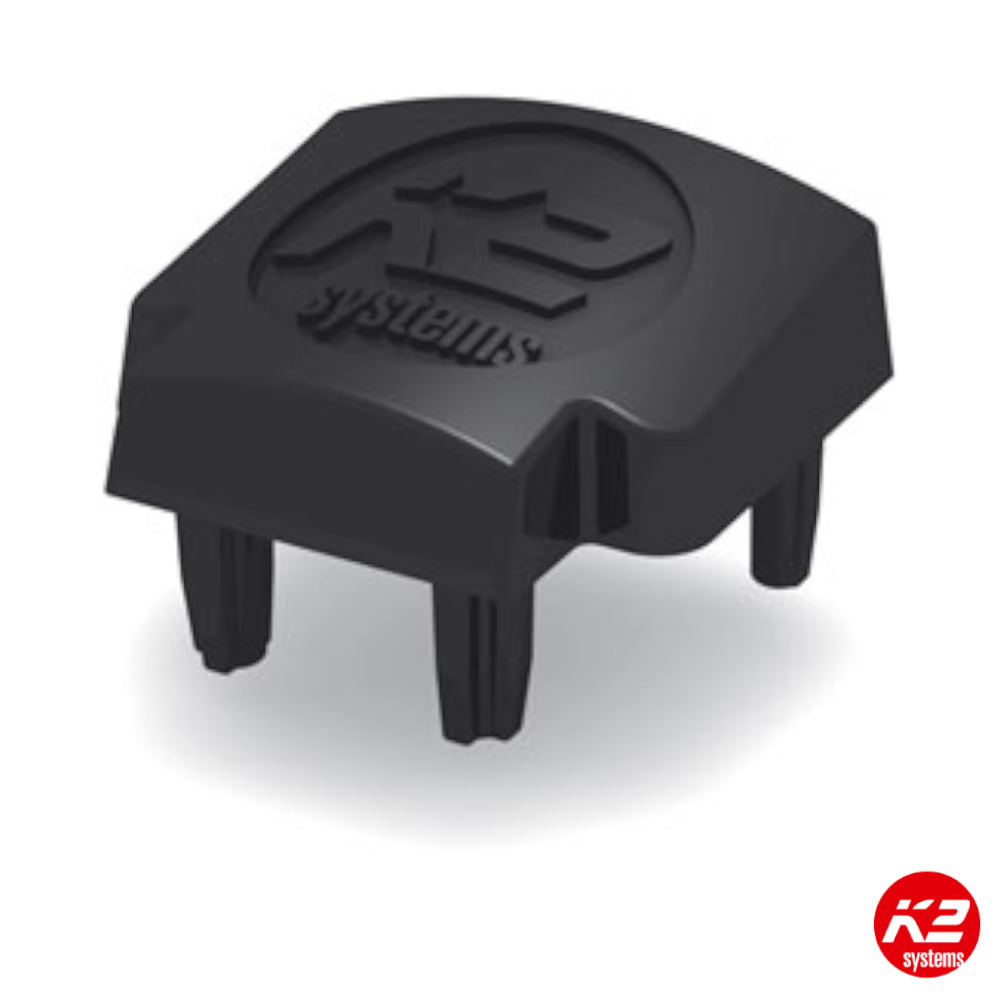

K2 EndCap for SolidRail Light

End caps for K2 SolidRail Light.

Material: glass fibre reinforced polyamide.

Also available in a box of 100 units.

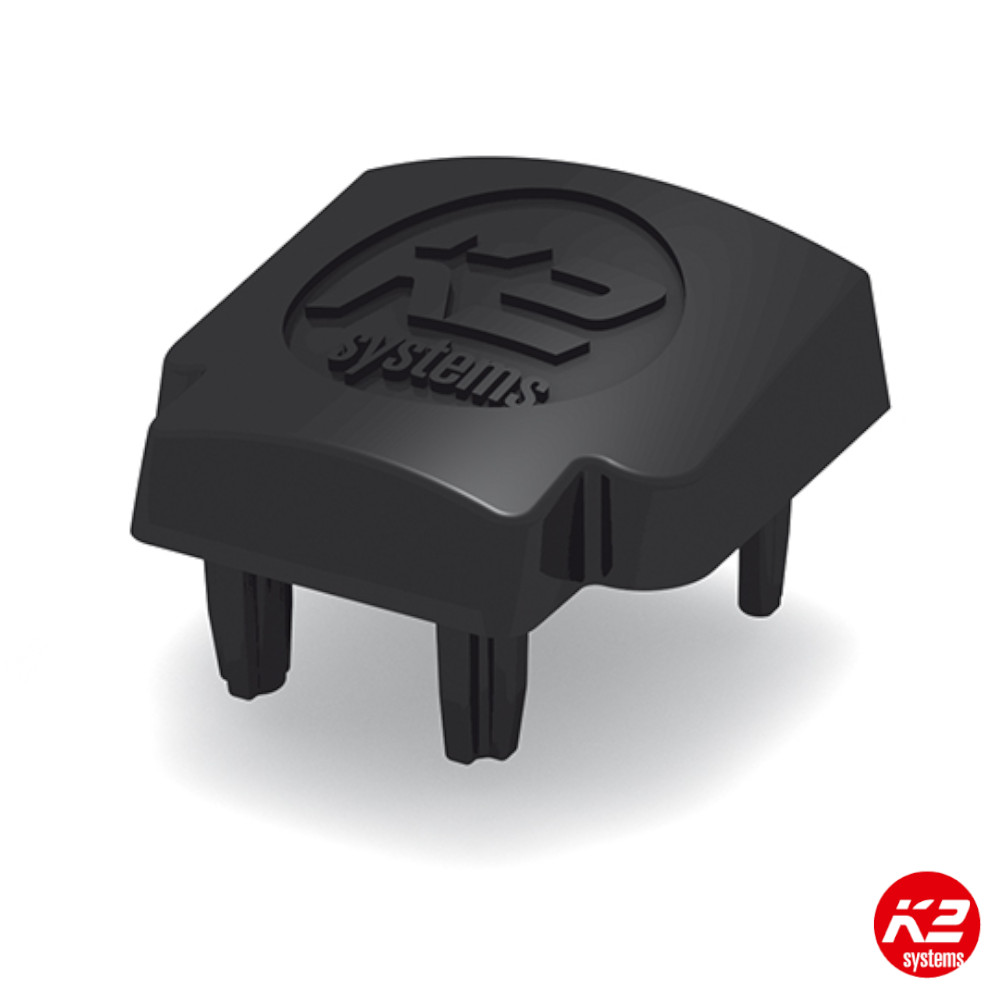

K2 End Cap for SolidRail Medium

K2 End Cap for K2 SolidRail Medium
Material: glass fibre reinforced polyamide

Also available in a box of 100 units.

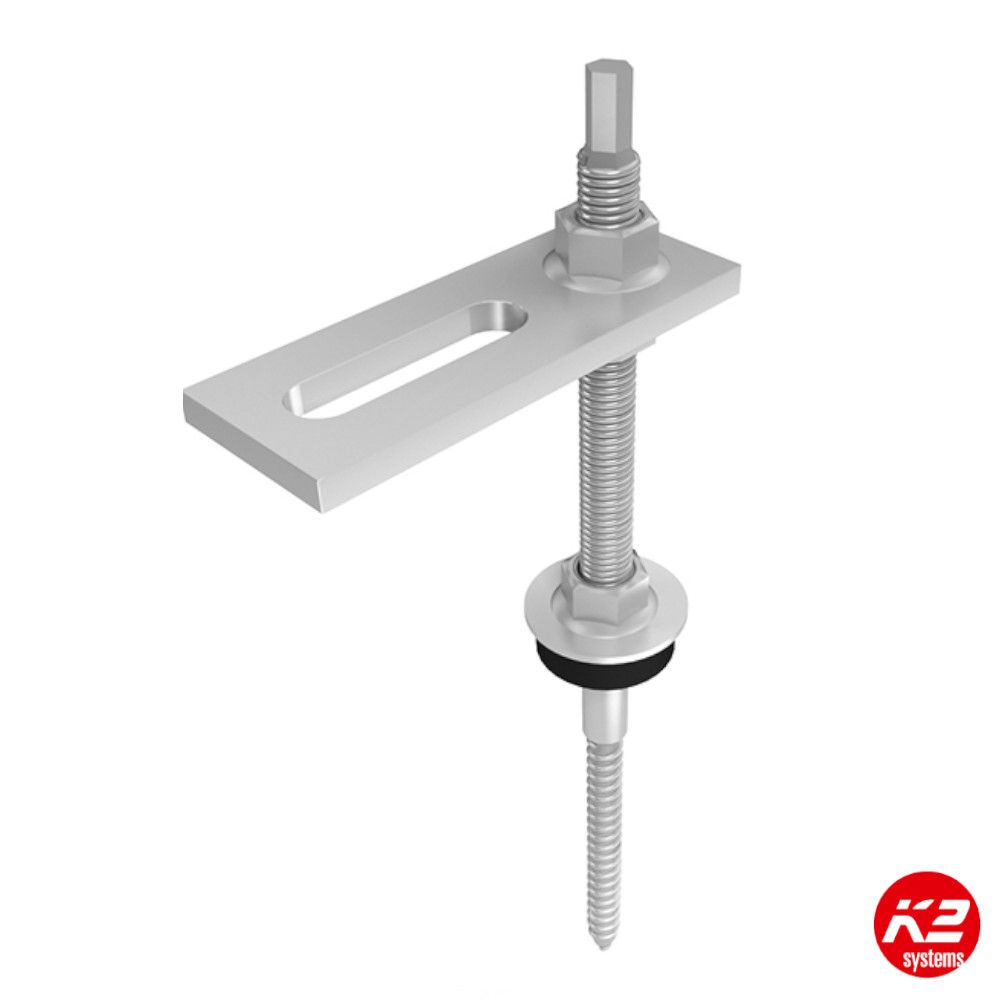

K2 HangerBolt M12-300 Set

For fastening the K2 SolidRail and SingleRail mounting rails on roofs with corrugated fiber cement or sheet metal on timber substructures. The K2 hanger bolts are equipped with an extra-long metric thread for installation height adjustment. Hanger bolts are outfitted with a pre-mounted adapter plate.

The set consists of:

• 1 hangerscrew
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

K2 Hexagonal socket head cap screw M10x20mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M10x 20
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 100 units.

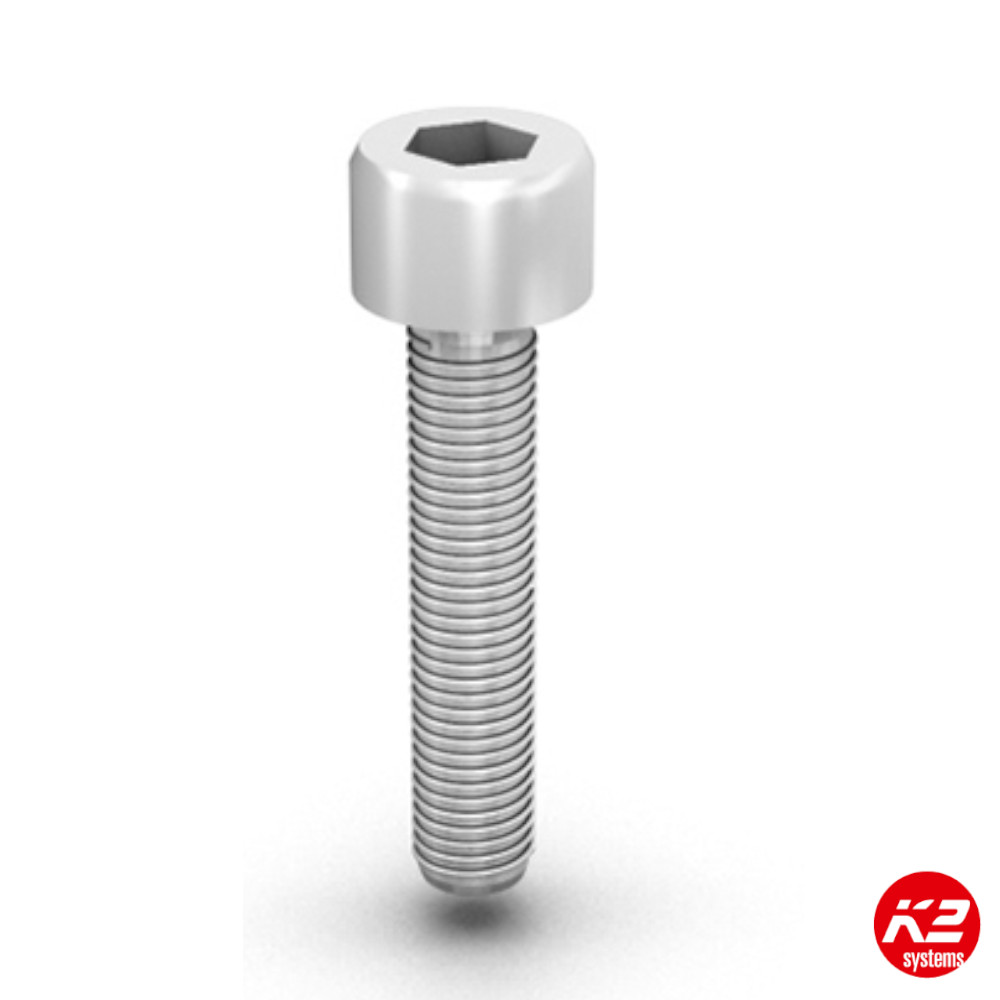

K2 Hexagonal socket head cap screw M8x16mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 16
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x20mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 20
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x25mm

Hexagon socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x25
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x35mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 35
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x50mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 50
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x60mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 60
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Locking Washer, M8 (Pack of 100)

FEATURES:

• Pack of 100 units
• Locking washer for bolted connections DIN EN 10151
• Dimensions: S8; 8.4 x 13 x 0.8 mm
• Stainless steel A2
• Warranty: 12 years
• Certificates: EN, CE

Also available in a box of 200 units.

K2 Mid Clamp XS Set 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

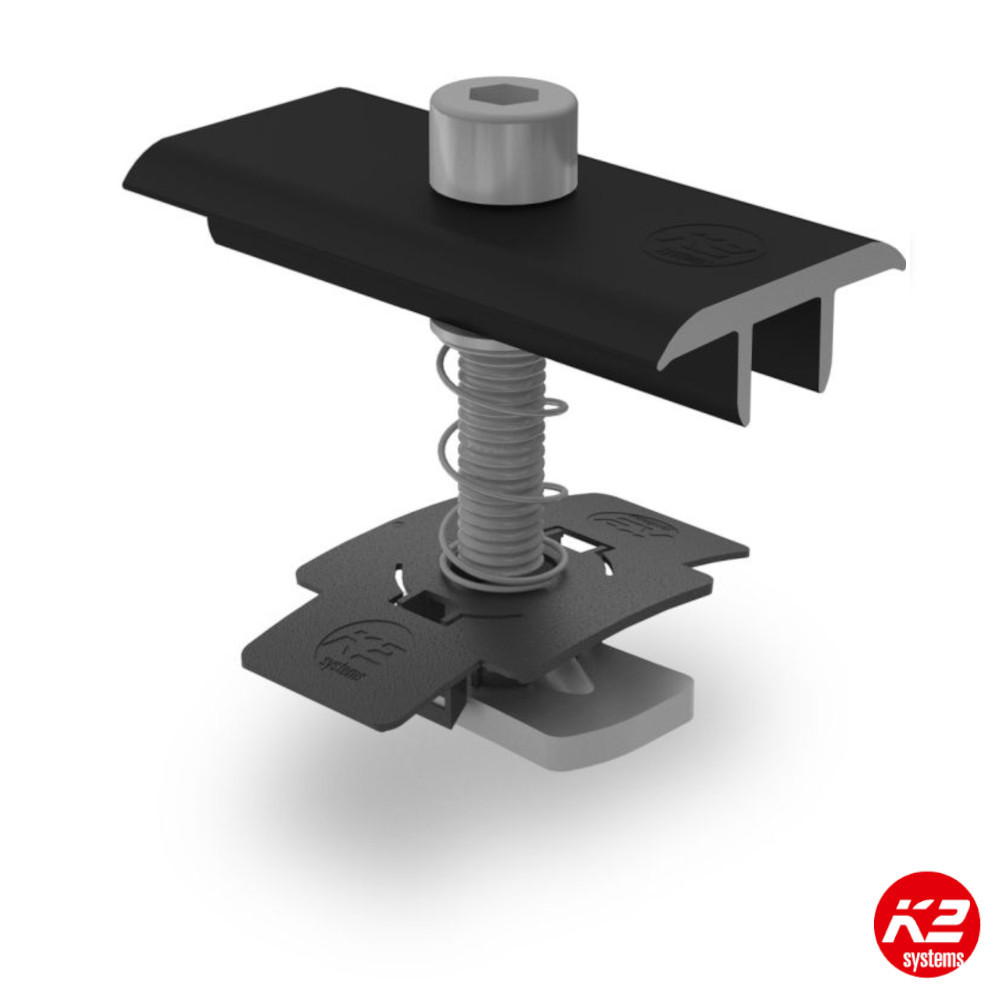

K2 Mid Clamp XS Set Black 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black Anodised
• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Omega Clip

External cable clip of solar cables for cables extending beyond K2 rails.

Fixation in the C-chamber of the profile.

Material: Polypropylen with UV stabiliser, black

K2 Rafterbolt M10-180 Set

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Rafter Screw is equipped with an extra long metric thread enabling variable height adjustment. The screw is furnished with a hexagonal head, providing time saving installation with a power drill.

The set consists of:

• 1 rafter screw
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

K2 Rafterbolt M10-200 Set

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Rafter Screw is equipped with an extra long metric thread enabling variable height adjustment. The screw is furnished with a hexagonal head, providing time saving installation with a power drill.

The set consists of:

• 1 rafter screw
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

K2 Rafterbolt M10-250 Set

For fastening of K2 System parts on trapeze and wave shape roofs. The K2 Rafter Screw is equipped with an extra long metric thread enabling variable height adjustment. The screw is furnished with a hexagonal head, providing time saving installation with a power drill.

The set consists of:

• 1 rafter screw
• 3 Collar nut with riffle, Stainless steel
• 1 Rubber seal, EPDM
• 1 Washer, Stainless steel
• 1 Adapter plate with long slot 11 x 39 mm, Stainless steel

Also available in a box of 100 units.

Available to order within 3-5 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

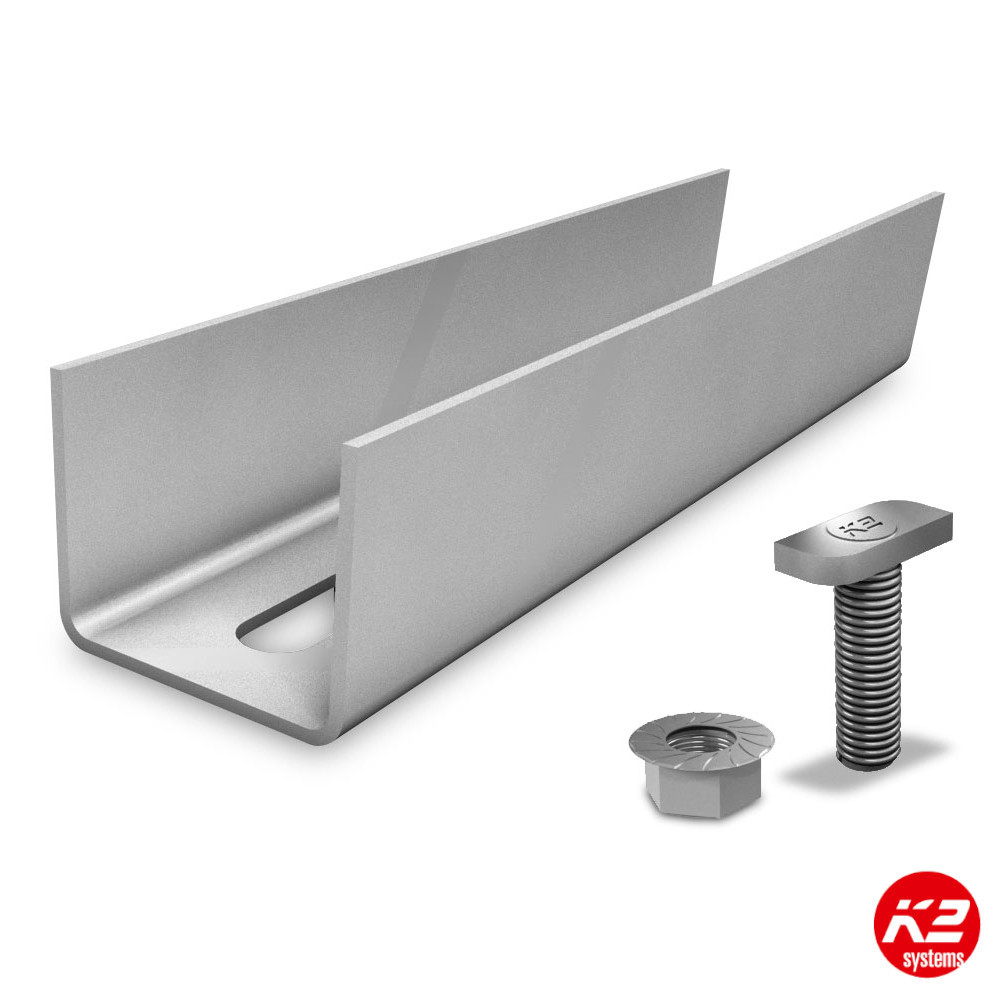

K2 Rail Connector Set - UltraLight / Light Rail

Aluminum rail connector for K2 SolidRail UltraLight or Light.

The set consists of:

• 1 SolidRail connector, Aluminium EN AW-6063 T66

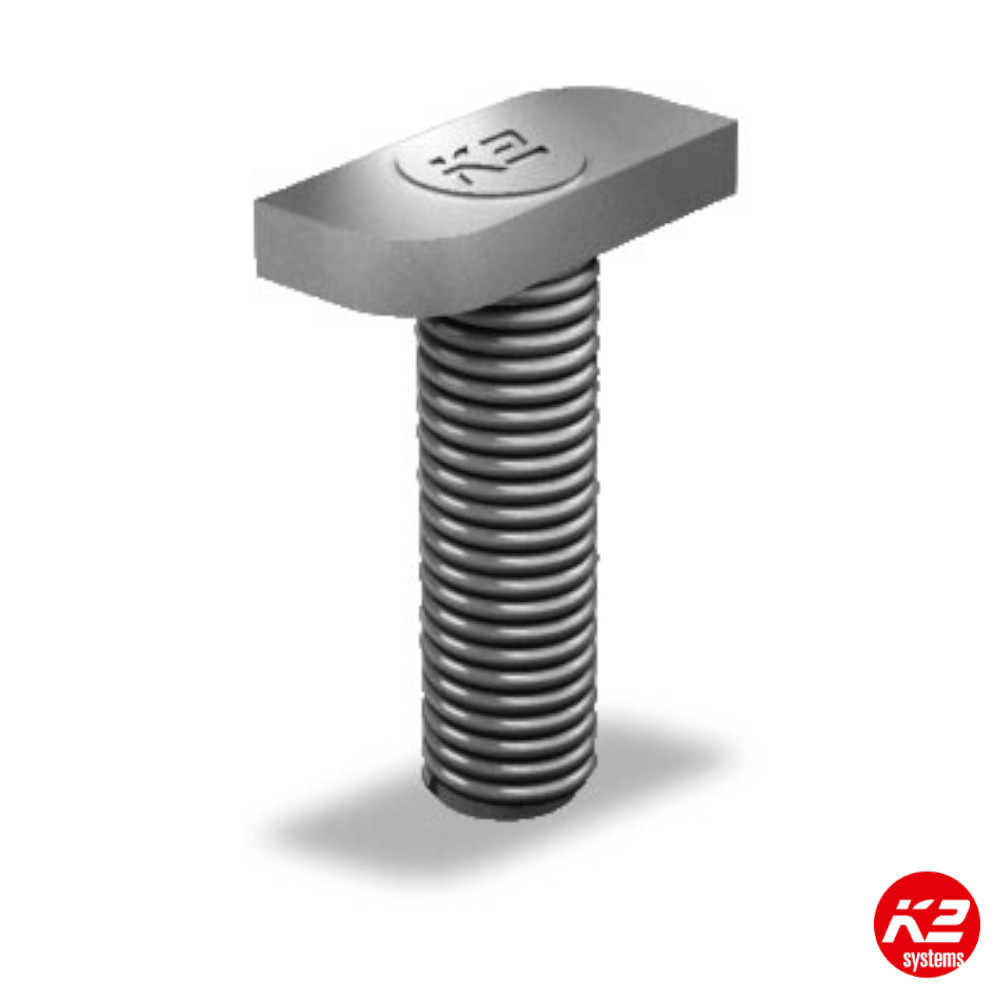

• 2 T-Bolts M10x30 (P1000041), Stainless steel A2
• 2 Locking nut M10 (P1000042), Stainless steel A2
• Length 200 mm

Also available in a small box of 10 units and larger box of 80 units.

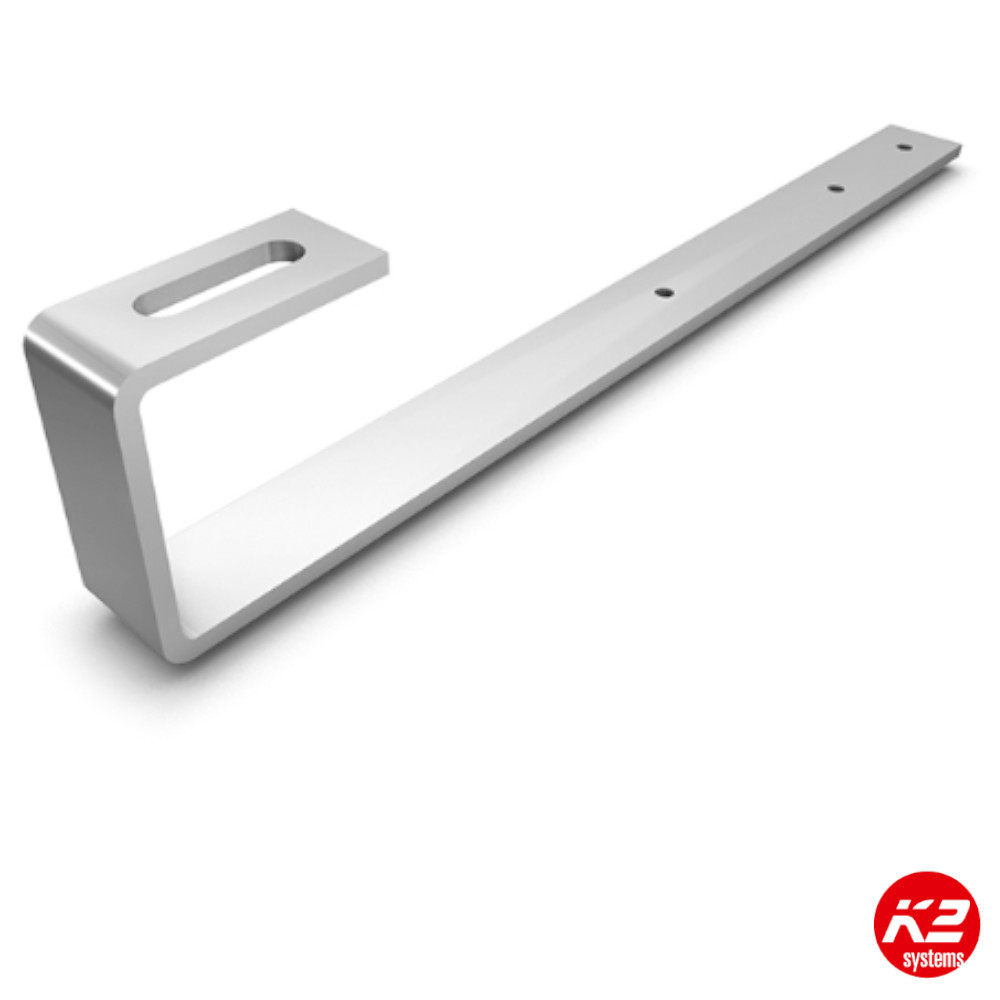

K2 Roof Hook - Slate

For fastening of K2 System parts on slate roofs. Bracket with elongated hole to fix the rail with T-Bolt M10 and three holes to fix the fastener with countersunk head wood screw.

• Material: Stainless steel A2
• Bracket: 40x6x250 mm
• Overall height: 70 mm

Also available in a box of 25 units.

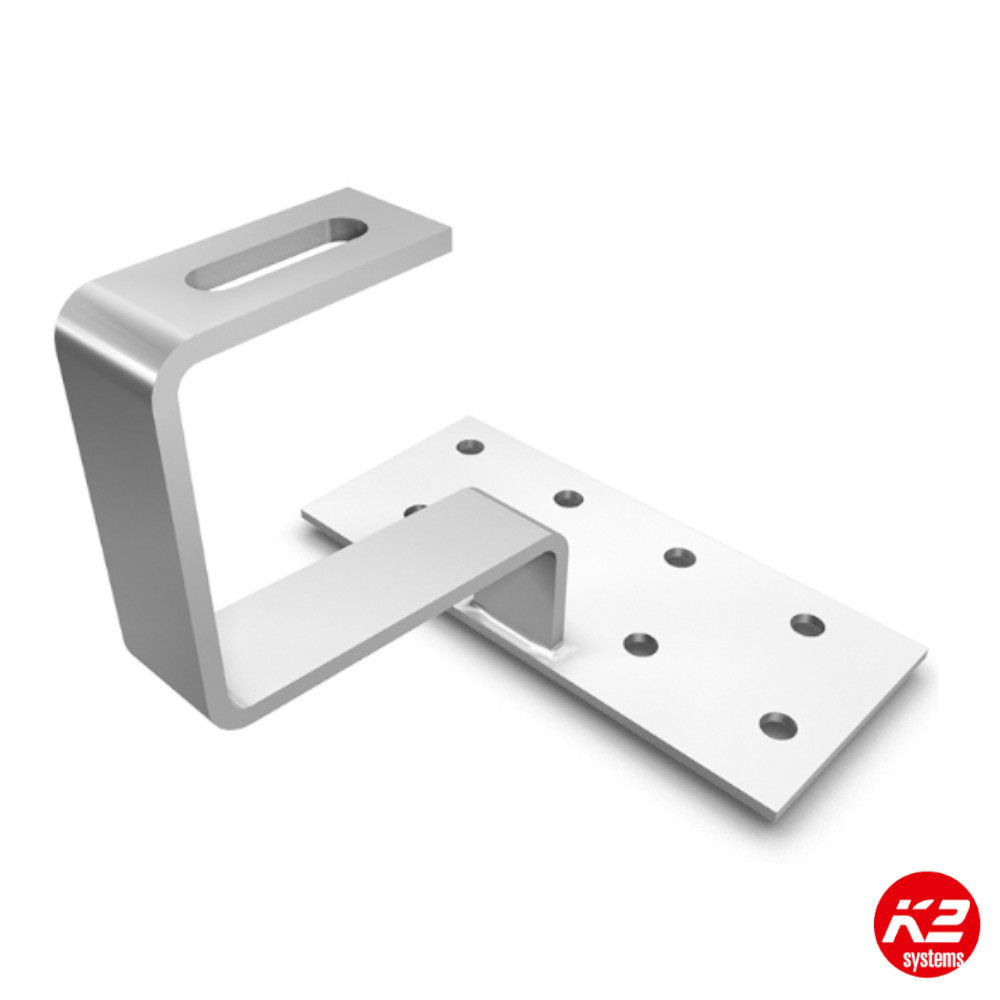

K2 Roof Hook H38mm (Pan Tile)

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with an elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Material: Stainless steel welded both sides
• Base plate: 180x80x4 mm
• Bracket: 35x6 mm
• Height under bracket: 38 mm
• For roof lath 24 mm height
• Overall height: approx. 124 mm

Also available in a box of 25 units.

K2 Roof Hook H47mm (Pan Tile)

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with an elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Material: Stainless steel welded both sides
• Base plate: 150x60x5 mm
• Bracket: 30x6 mm
• Height under bracket: 47 mm
• For roof lath 30 mm height
• Overall height: approx. 133 mm

Also available in a box of 25 units.

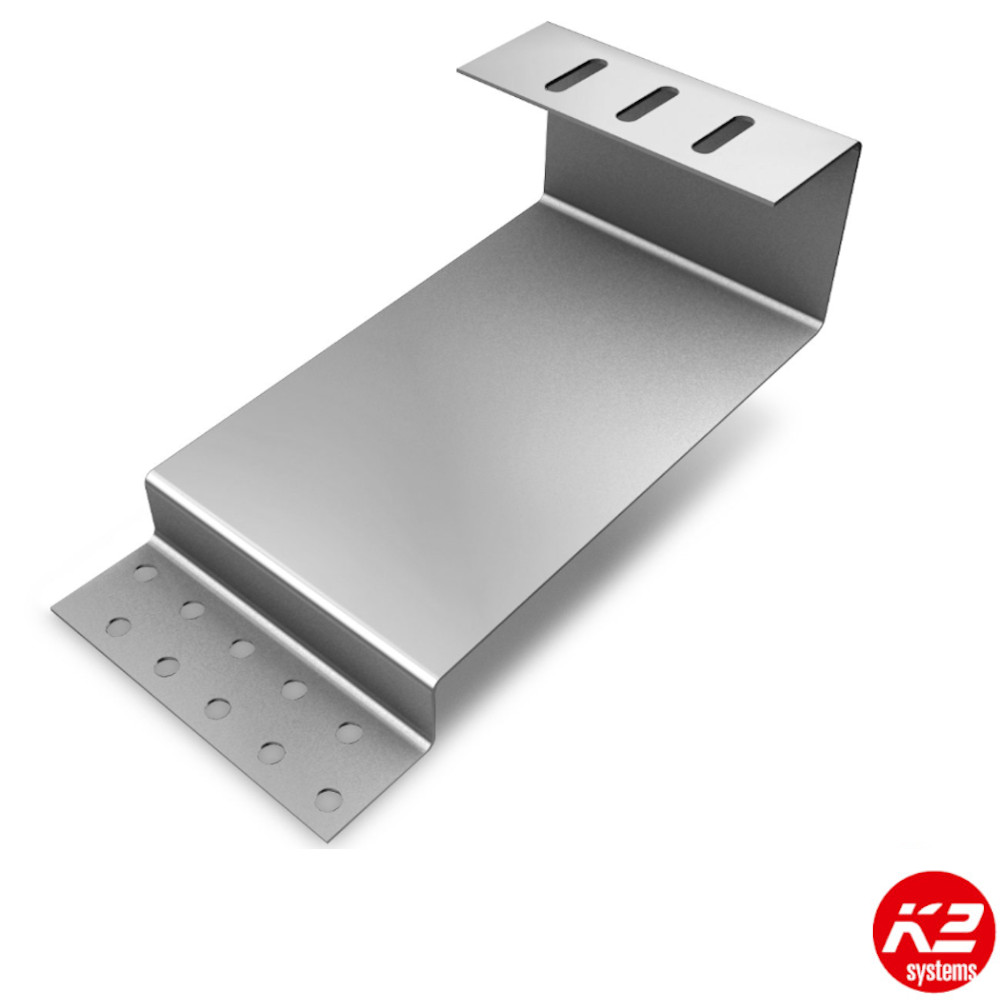

K2 Roof Hook Shingle 150mm

Roof Fastener for Flat Tile (double roofing)

For fastening of K2 System parts on clay brick roofs with flat tile roofing. Bracket with elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Material: Stainless steel A2
• Bracket: 40x6 mm
• Height under bracket: 33 mm
• Overall height: approx. 122 m

Also available in a box of 20 units.

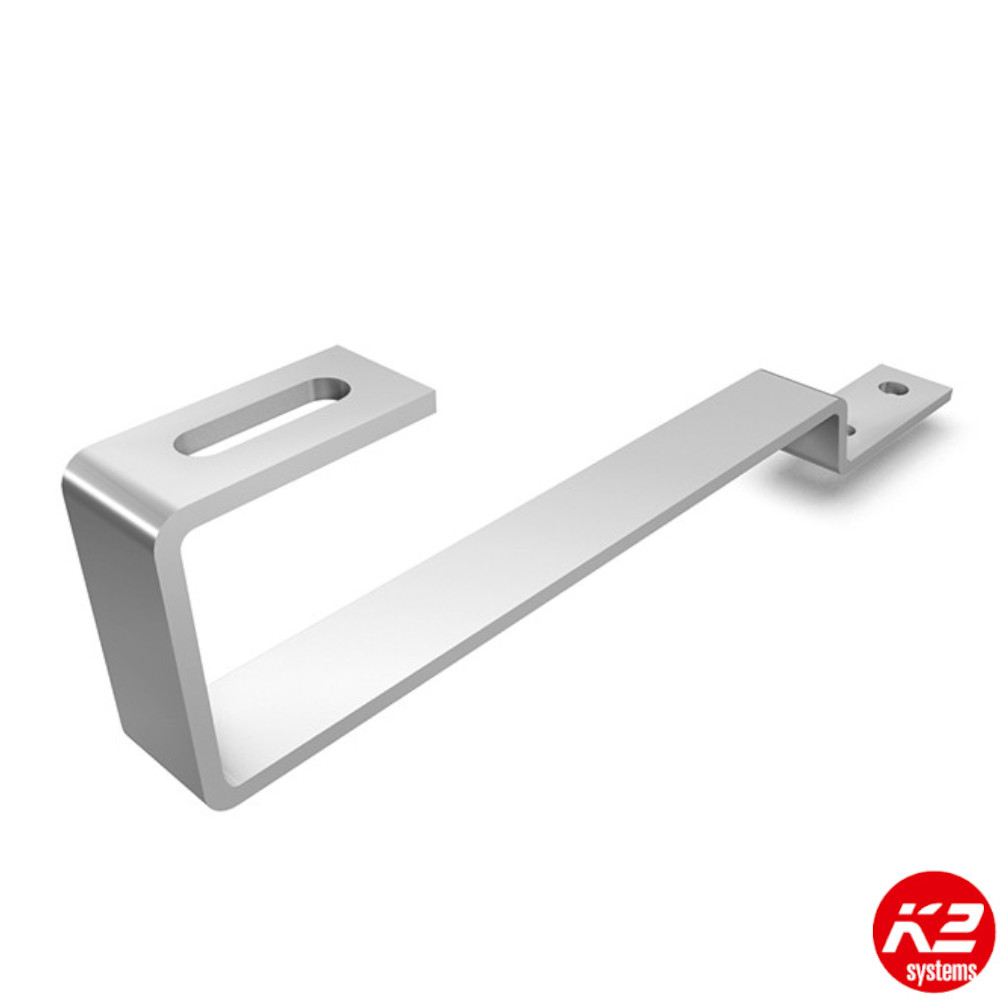

K2 Roof Hook Shingle 40mm

For fastening of K2 System parts on clay brick roofs with flat tile roofing. Bracket with an elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Material: Stainless steel A2
• Bracket: 40x6 mm
• Height under bracket: 33 mm
• Overall height: approx. 122 mm

Also available in a box of 25 units.

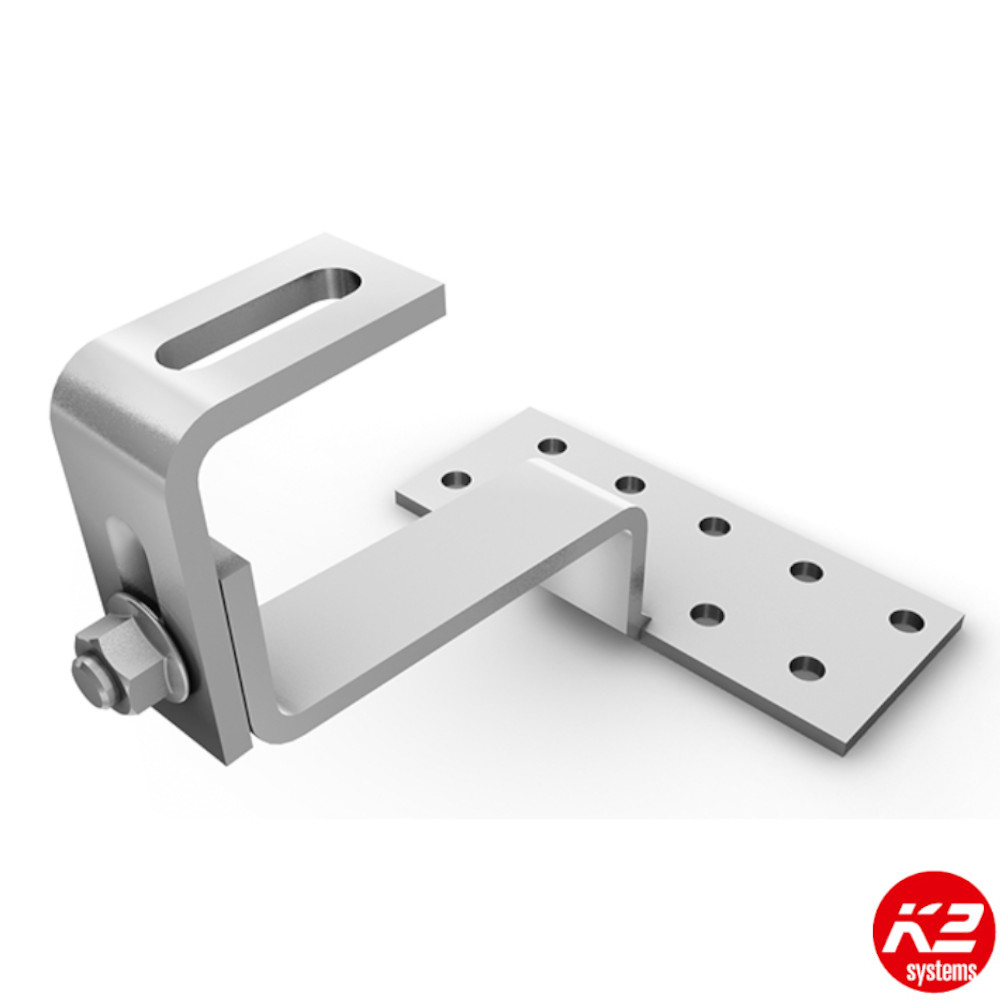

K2 Roof Hook Variable 1 (Pan Tile, for SoliRail System)

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with elongated hole to fix the rail with T-Bolt M10.

FEATURES:

• Suitable mountingn systems: SolidRail and InsertionRail Systems
• Material: Stainless steel
• Height: min 55 max 90 mm
• Base plate 150x60x5 mm
• Bracket 30x6 mm
• Height under bracket: 43 mm
• Overall height:approx. 112-145 mm

Also available in a box of 25 units.

K2 Self-locking hexagon flange nut serration M8

Self-locking flange nuts with locking teeth M8, DIN 6926.

• Material: stainless steel A2

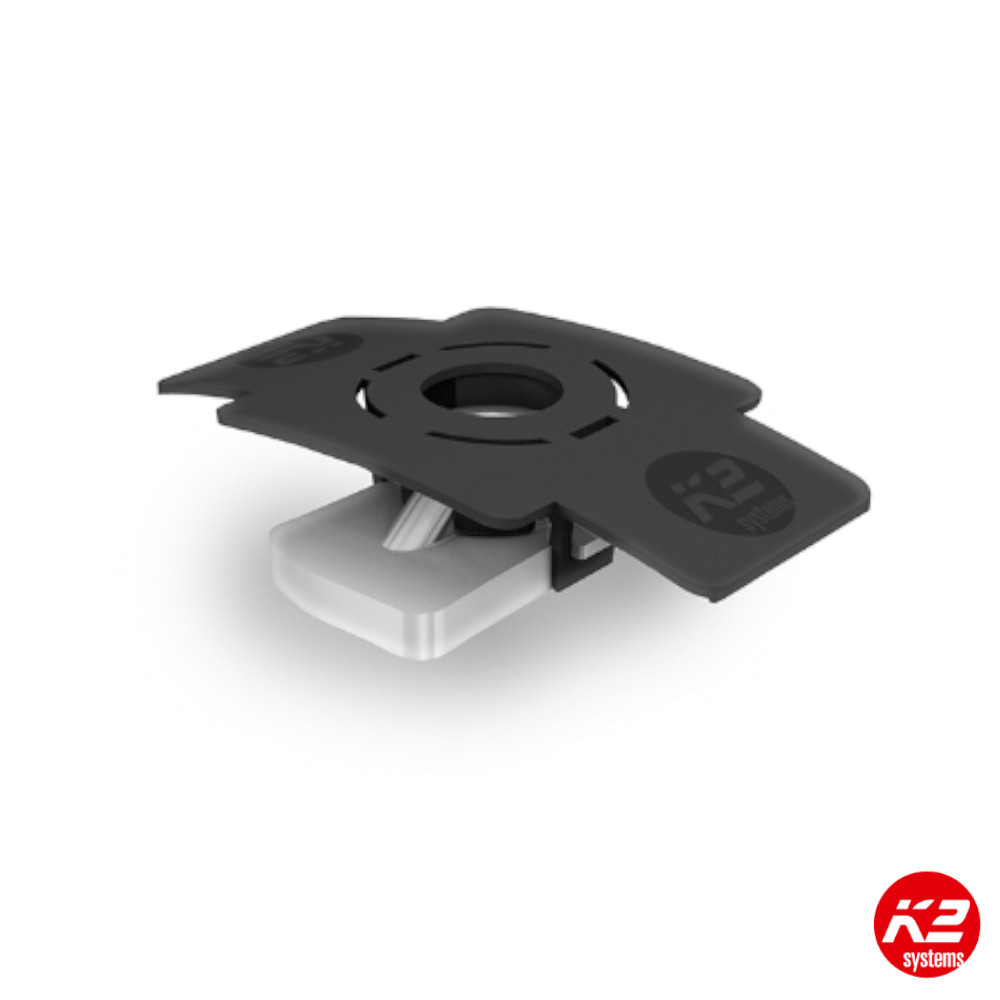

K2 Slot Nut M8 - Stainless Steel

The Fast-installation M K2 slot nut can be put into the K2 rail everywhere. The slotted nut will adjust itself in the rail and can be readjusted to every place of the rail.

• Material: Stainless steel
• Thread of screw: M8

Also available in a box of 250 units.

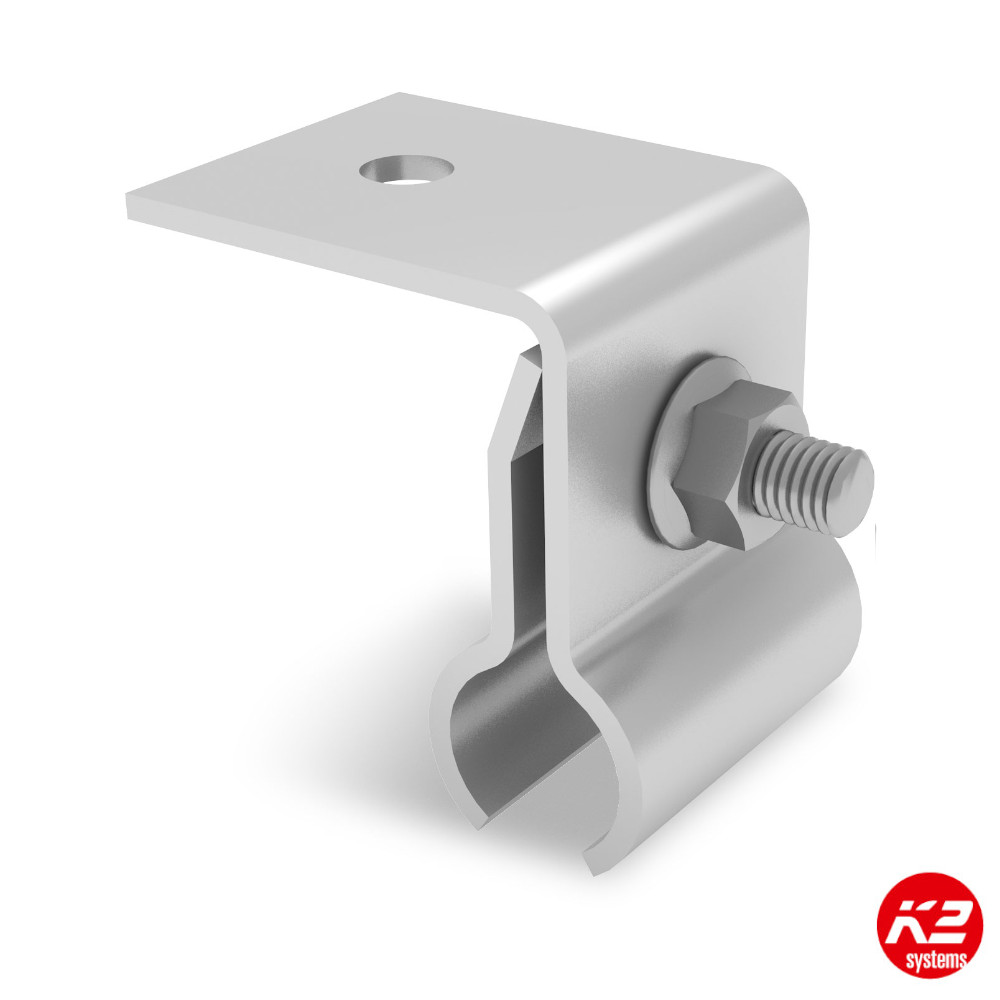

K2 Solid Round Seam Clamp

Metal seam clamp with a round hole for fixing the K2 SolidRail on metal seam roofs with double standing seam. Material: stainless steel A.

• Round seam
• Opening dimension: 10,5 mm

Also available in a box of 100 units.

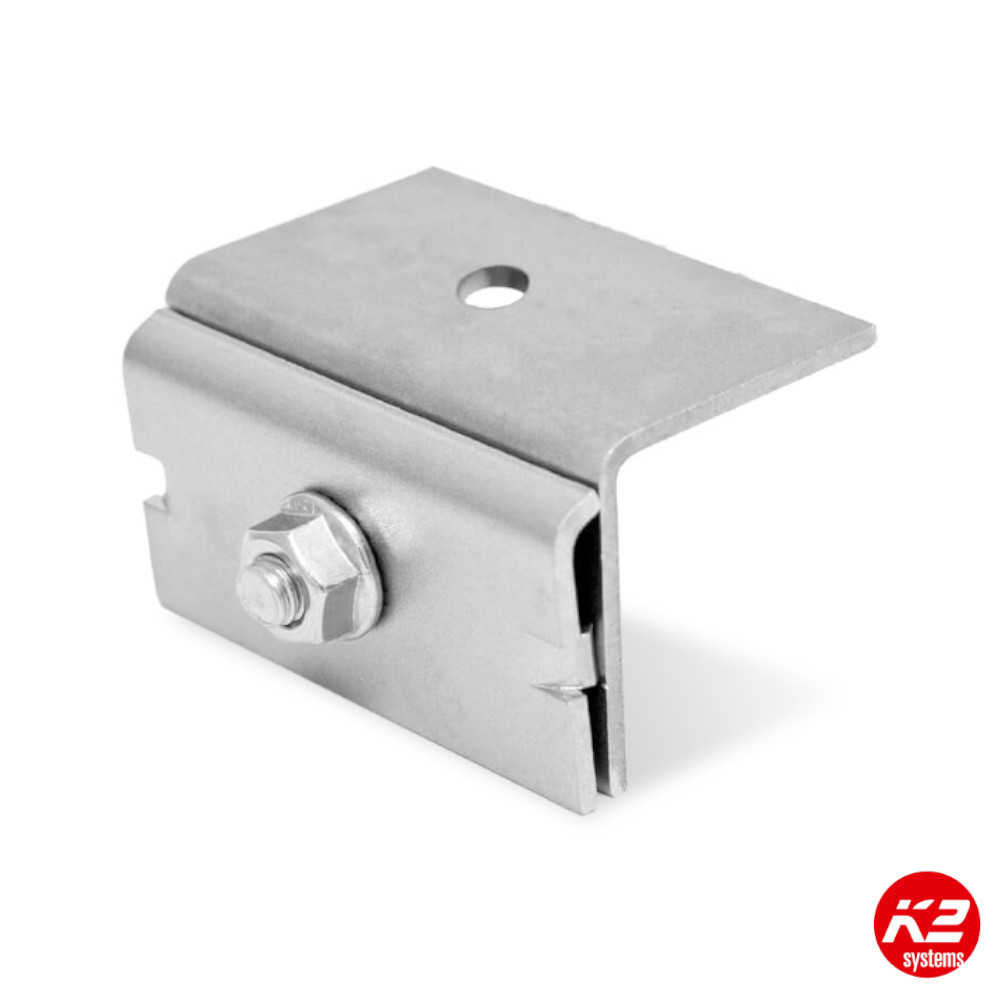

K2 Solid Standing Seam Clamp

Metal seam clamp with round hole for fixing the K2 SolidRail on metal seam roofs with double standing seam.

FEATURES:

• Double folded standing seam
• Material: Stainless Steel A2
• Standing seam opening width: 3.5 mm

Also available in a box of 100 units.

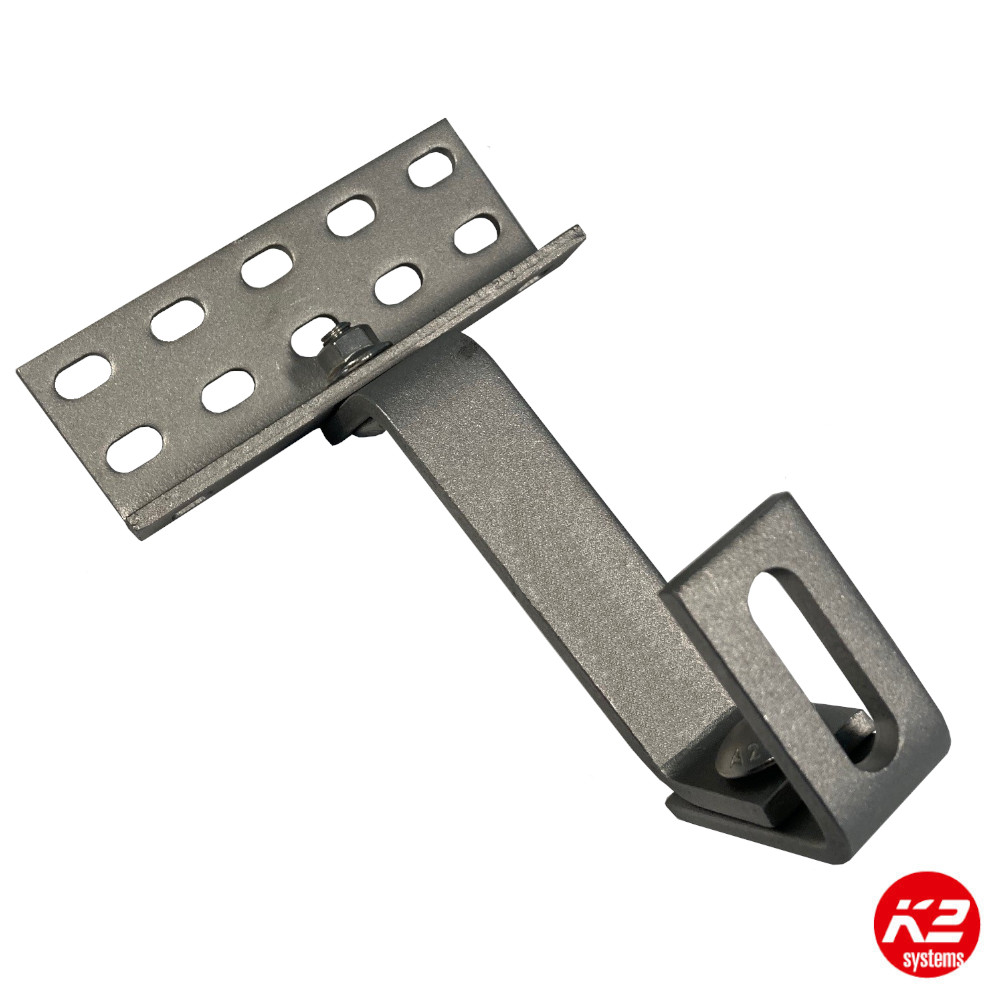

K2 SolidHook Vario 2 Narrow Rafters

Stainless steel roof hook for SolidRail and InsertionRail.

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10.

Similar to the original Vario2 (1000107) but the borehole pattern in the base plate is different. With this new design (non-staggered) borehole, one can now also fix the hook to narrow rafters as woodscrews can be placed in line.

FEATURES:

• Base plate: 140x55x5 mm
• Bracket: 30x6 mm
• Bracket height: 57-76 mm
• Height under bracket: 41-50 mm
• Total height: approx. 128-156 mm

K2 SolidRail Light Rail 3.65m

Aluminum mounting rail with static confirmation for low snow zones and short spans.

FEATURES:

• Length: 3.65m, Height: 37mm
• Material: Aluminium EN AW 6063-T66

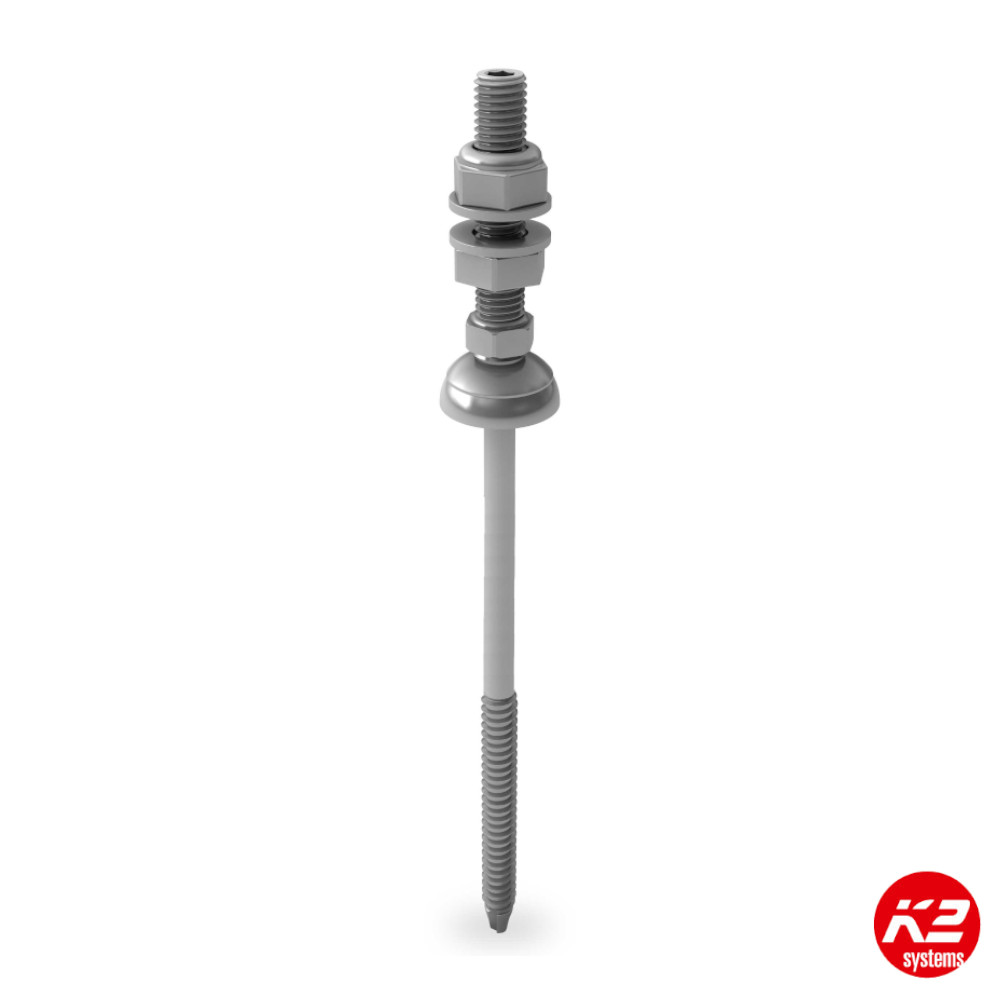

K2 SolidRail SolFastener M8x85/50 I FZD

Solar panel Solar Fastener for steel Ø 8,0 with M8x85/50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

• Clamping area (mm): 14-55
• Suitable mounting systems: InsertionRail, SolidRail

• Pitched Roof
• Screw Length (mm): 85
• Screw Thread: M10x50
• Weight: 0.094Kg

K2 SolidRail UltraLight Rail 3.65m

Aluminum mounting rail with static confirmation. Can be used variably for different roof connections.

FEATURES:

• Length: 3.65m, Height: 32mm
• Material: Aluminium EN AW-6063

Also sold in 100 units/pallet

K2 Spax Screw 6 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 100 Units
• Dimension: M6x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

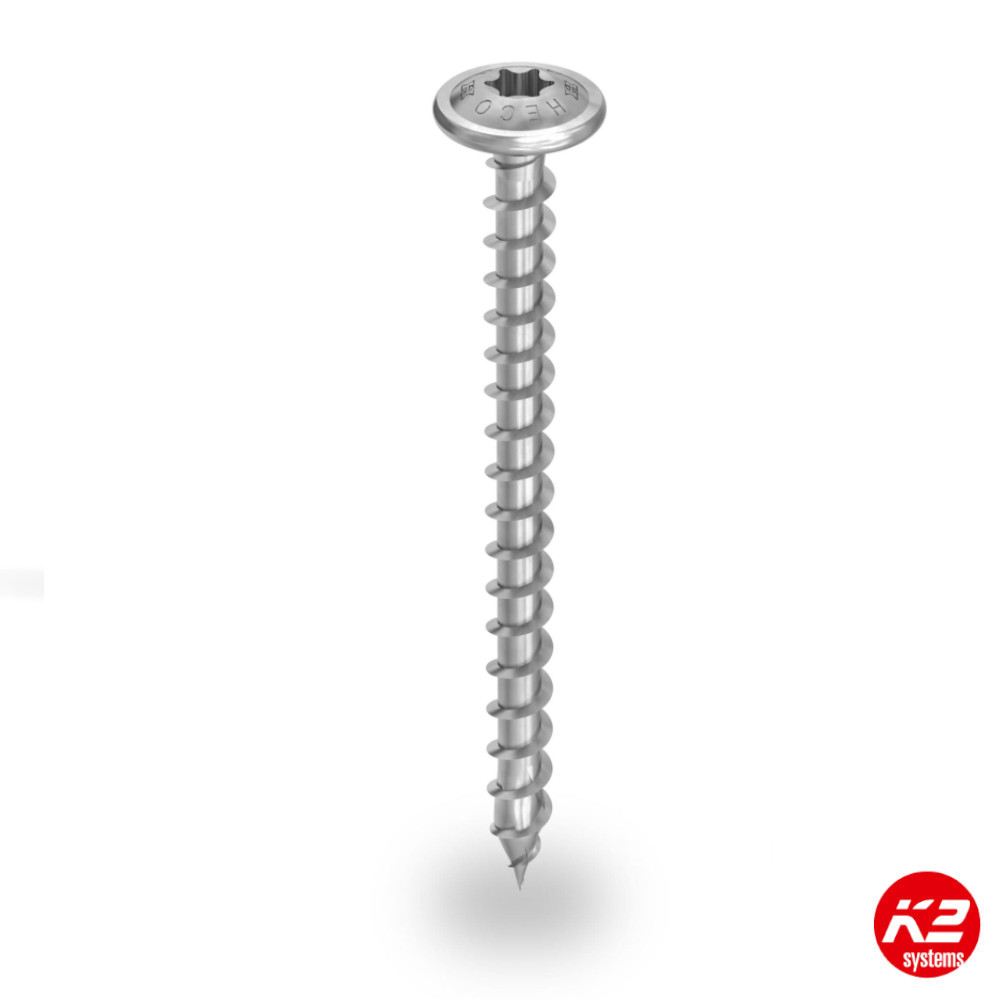

K2 Spax Screw 8 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Spax Screw M8 x 100

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x100
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

K2 T Bolt M8x30 20/12

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 20/12

Also available in a box of 100 units.

K2 T Bolt M10x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x20 mm

Also available in a box of 100 units.

K2 T Bolt M10x30

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x30 mm

Also available in a box of 100 units.

K2 T Bolt M8x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head shape: 20/12
• Head dimensions: 15.5 x 8.5 x 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.
