Sunwoda Oasis L261 All-in-One Cabinet - No STS
The Sunwoda OASIS L261 is a liquid-cooled, all-in-one LFP battery storage cabinet for commercial and industrial energy storage projects. With 261 kWh rated capacity and 125 kW AC rated output power, it supports solar self-consumption, peak shaving, load shifting and wider C&I energy management applications.

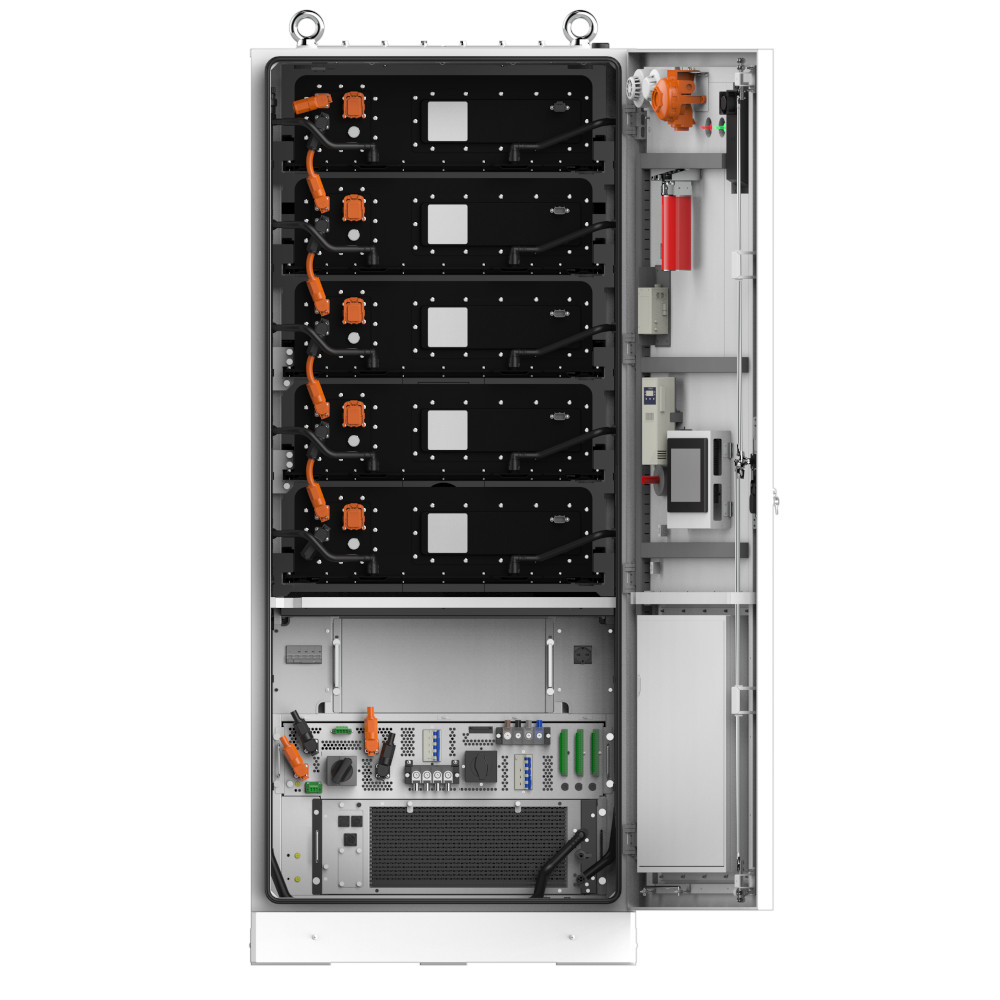

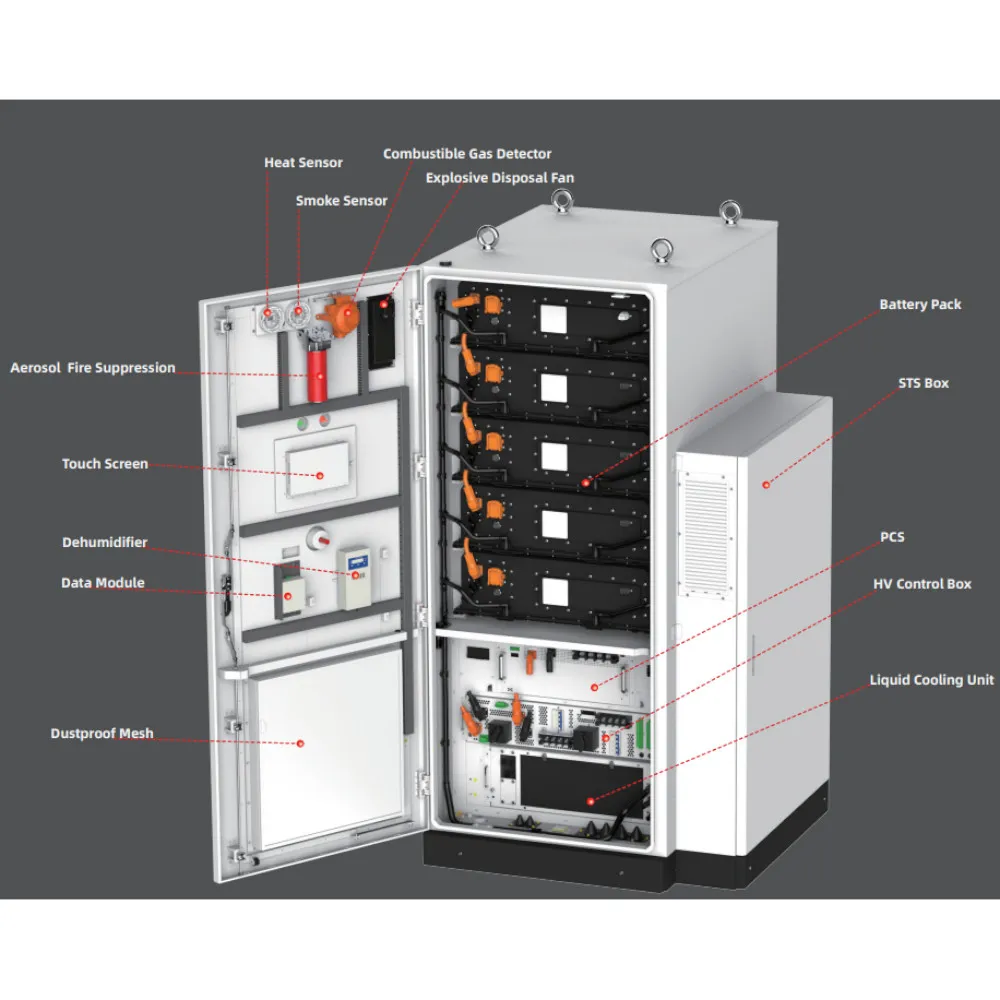

Built with Sunwoda’s 314 Ah LFP cells, the cabinet integrates battery packs, BMS, PCS, liquid cooling, monitoring and fire protection systems in one outdoor-ready enclosure. The system supports parallel expansion for larger projects, subject to approved inverter compatibility and final system design.
Sunwoda Energy is a globally recognised BNEF Tier 1 Energy Storage Manufacturer with in-house battery cell production and decades of lithium-ion battery experience.
This version does not include an integrated Static Transfer Switch (STS) module. If backup operation with grid/off-grid switching is required, the optional STS module must be specified separately according to the final system design.
Why Choose the Sunwoda OASIS L261 All-in-One
More Features:
- 125 kW / 261 kWh all-in-one C&I energy storage cabinet
- Parallel expansion to MW-scale available, subject to approved system design
- Standardised interfaces for plug-and-play commissioning and minimal on-site work
- Multi-layer safety with liquid cooling and built-in fire suppression
- Compact footprint of less than 1.5 m² per cabinet
- Communication via CAN, RS485 and Ethernet
- Outdoor-ready design with IP55 cabinet protection and IP67 pack-level protection
- On & off-grid operation automatic switching within 20ms, support micro-grid application
- C3 corrosion protection; operation up to 2,000 m altitude
- An optional STS module, which provides seamless backup for critical loads during grid outages, is available (Note that this model does not include STS)
- Supports PV self-consumption, peak shaving, load shifting and C&I energy management applications
- Microgrid capable with inverters, PV arrays, diesel generators, and critical loads for off-grid or weak-grid sites
- Cloud platform scheduling for remote fleet control, fault logging, and energy efficiency management
- The cabinet comes with a baseline 5-year product quality warranty covering workmanship and materials.
Technical Information:
- Rated capacity (usable): 261.25 kWh
- Cell specification: 3.2V 314Ah LFP cells
- Pack capacity: 52.25 kWh per pack
- Number of battery packs: 5
- Battery pack configuration: 1P52S*5
- Rated Voltage (V): 832
- AC Rated output power (kW): 125
- AC side Rated Voltage (V): 400Vac
- Cooling Method: Liquid Cooling
- Protection level: IP55
- Cell cycle life: 9,000 cycles at 25°C, 0.5C/0.5C, 90% DOD, EOL 70%
- Dimensions (W × D × H) in mm: 980 × 1390 × 2350
- Weight: < 2,400 kg
- Certifications: UN38.3, CE, IEC standards
Please contact us for trade pricing and availability.
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sunwoda Oasis |
| Brand | Sunwoda |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Commercial/Industrial |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 261.2 |
| Charge/Discharge Rate | 0.5C |
| Battery Usable Capacity (kWh) | 261.2 |
| Depth Of Discharge (%) | 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP55 |
| Dimensions (W x H x D) mm | 980 x 2350 x 1390 |
| Product Weight (Kg) | 2400 |
Sunwoda OASIS L261 All-in-One Datasheet - 16 01 2026.pdf
Download
Sunwoda OASIS L261 All-in-One User Manual- 29 04 2026.pdf
Download
Sunwoda Sustainability ESG Report 2024 - 21 04 2025c.pdf
Download
Sunwoda Energy Brochure - 19 01 2026.pdf
Download
Sunwoda OASIS L261, OASIS L261 All-in-One WarrantyTerms - 17 12 2025.pdf
Download
