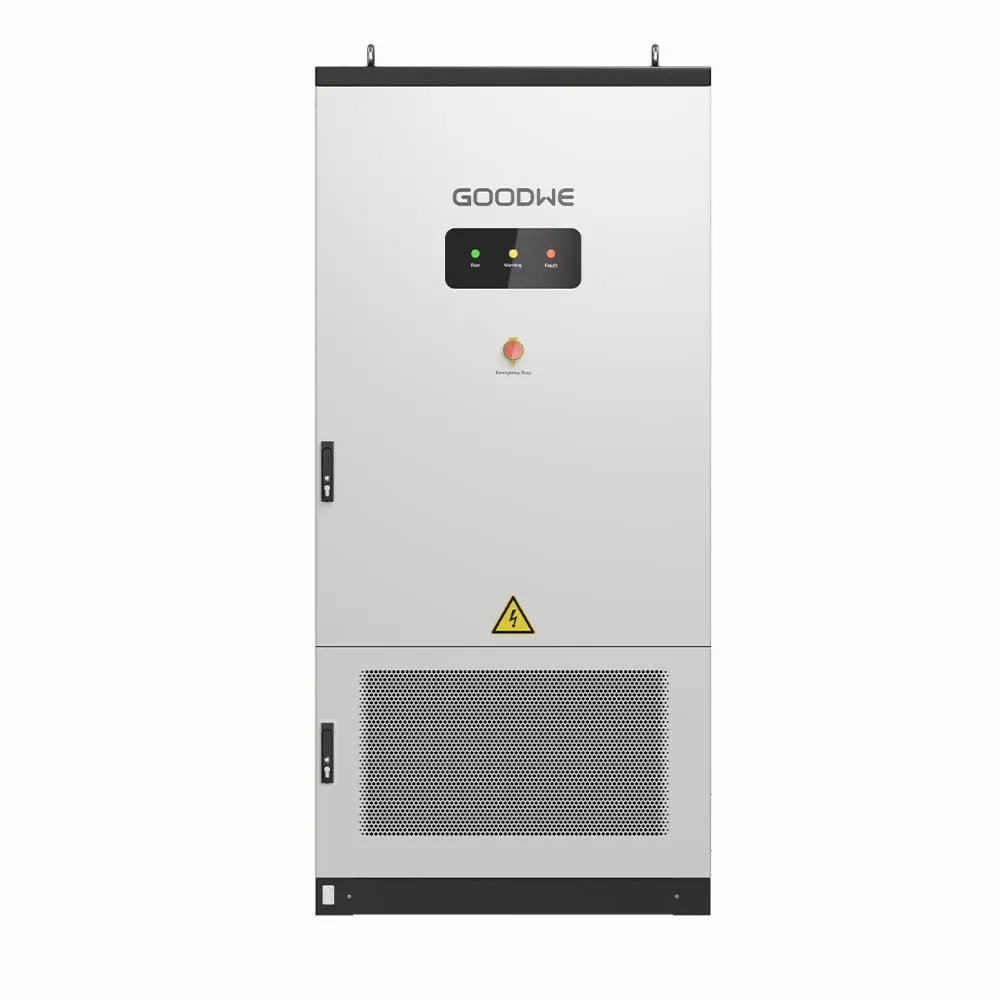

GoodWe ESA 125kW/261kWh C&I All-in-One ESS
The GoodWe GW125/261-ESA-LCN-G10 is a
fully integrated C&I all-in-one energy storage system designed for
larger commercial and industrial projects. With 125 kW output and
approximately 261 kWh usable energy, it combines the battery, PCS,
EMS and BMS in one outdoor cabinet.
Its liquid-cooled design supports stable operation in demanding environments, while the integrated architecture helps simplify installation, operation and maintenance. The system is suitable for backup power, peak shaving, self-consumption optimisation, demand control, load management, energy trading applications and off-grid backup.
For scalable C&I projects, multiple ESA
units can operate in parallel. The system supports up to 20 units in
parallel, reaching up to 2.5 MW / 5.22 MWh.
Learn More About GoodWe ESA ESS Battery System
Key Benefits
- 125 kW / 261 kWh all-in-one C&I energy storage system
- Integrated battery, PCS, EMS and BMS in one outdoor cabinet
- Scalable design for larger commercial and industrial projects
- Maximum system scale: up to approx. 2.5 MW / 5.22 MWh
- Reduced installation time and commissioning cost compared with separate battery and inverter systems
- Supports backup power, peak shaving, self-consumption optimisation, load management, demand control and energy trading
- Hybrid cooling with liquid-cooled battery modules for stable operation
- LFP battery technology with 314Ah cells for high safety and long service life
- Six-layer protection strategy from cell to system level
- Aerosol-based fire suppression at the battery pack and cabinet level
- Smart EMS with AI-driven battery diagnosis and health prediction
- Remote monitoring and system management via the GoodWe platform
Why Choose
the ESA ESS?Â
The GoodWe ESA ESS is designed for projects that require a pre-integrated C&I energy storage system rather than a separate battery cabinet and inverter setup. The GW125/261-ESA-LCN-G10 combines the battery, PCS, EMS and BMS in one cabinet, making it suitable for applications where simplified installation, integrated control and high storage capacity in a compact footprint are priorities.
With a footprint of only 1.47 m² and an energy density of 177.6 kWh/m², the ESA cabinet is well-suited to sites where space is limited. Its liquid-cooled design and multi-level protection help support stable operation in demanding C&I environments.

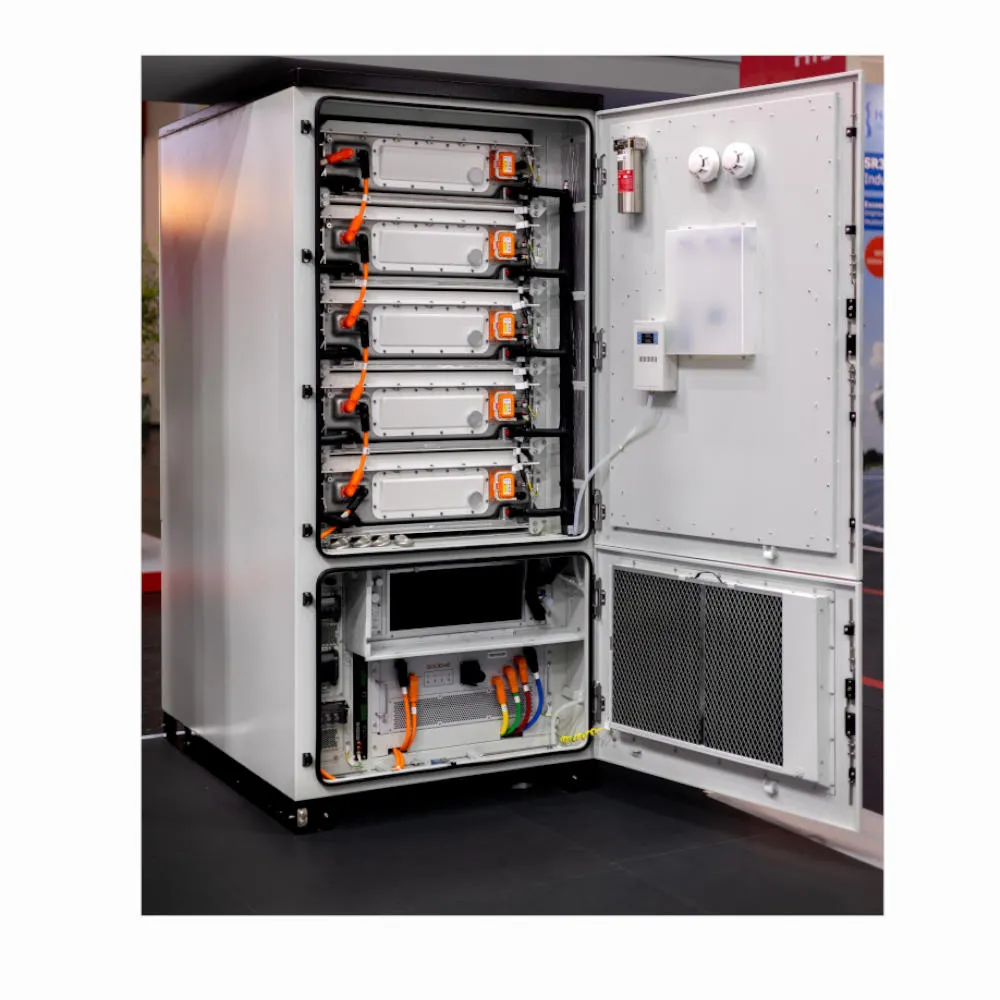

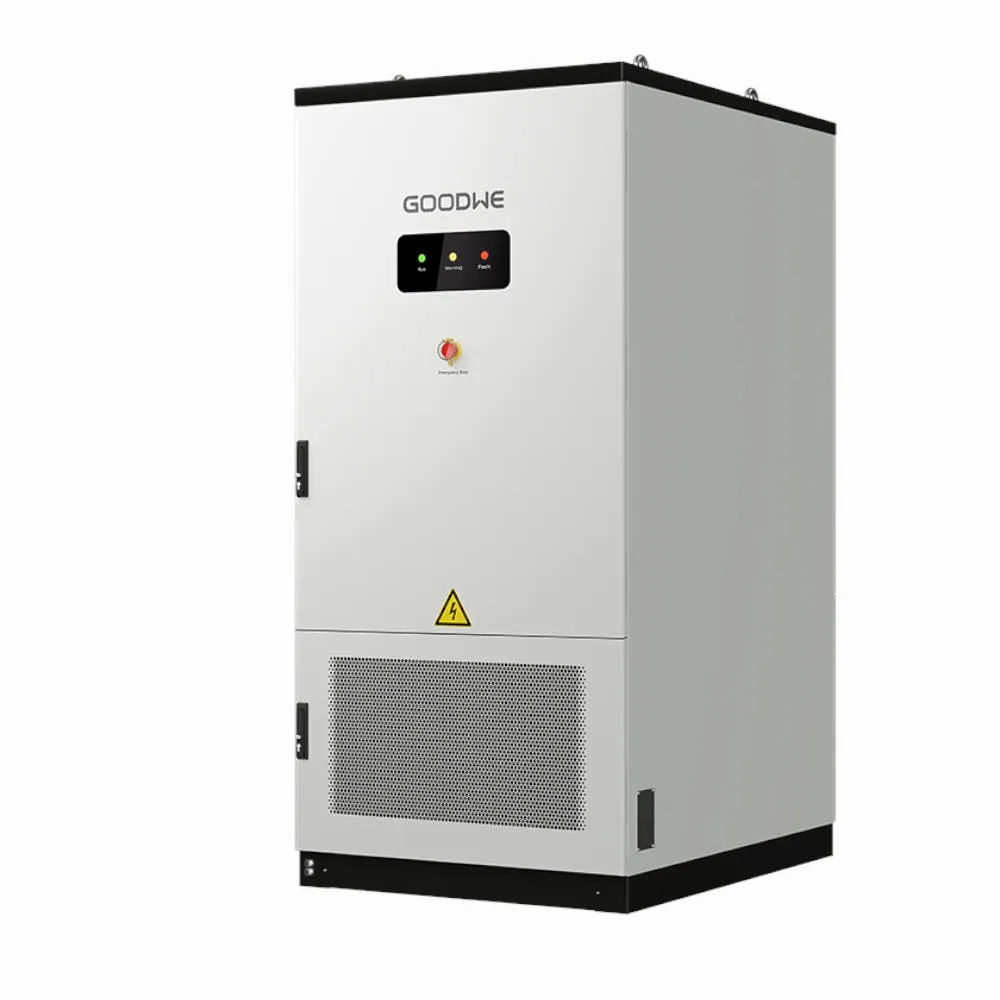

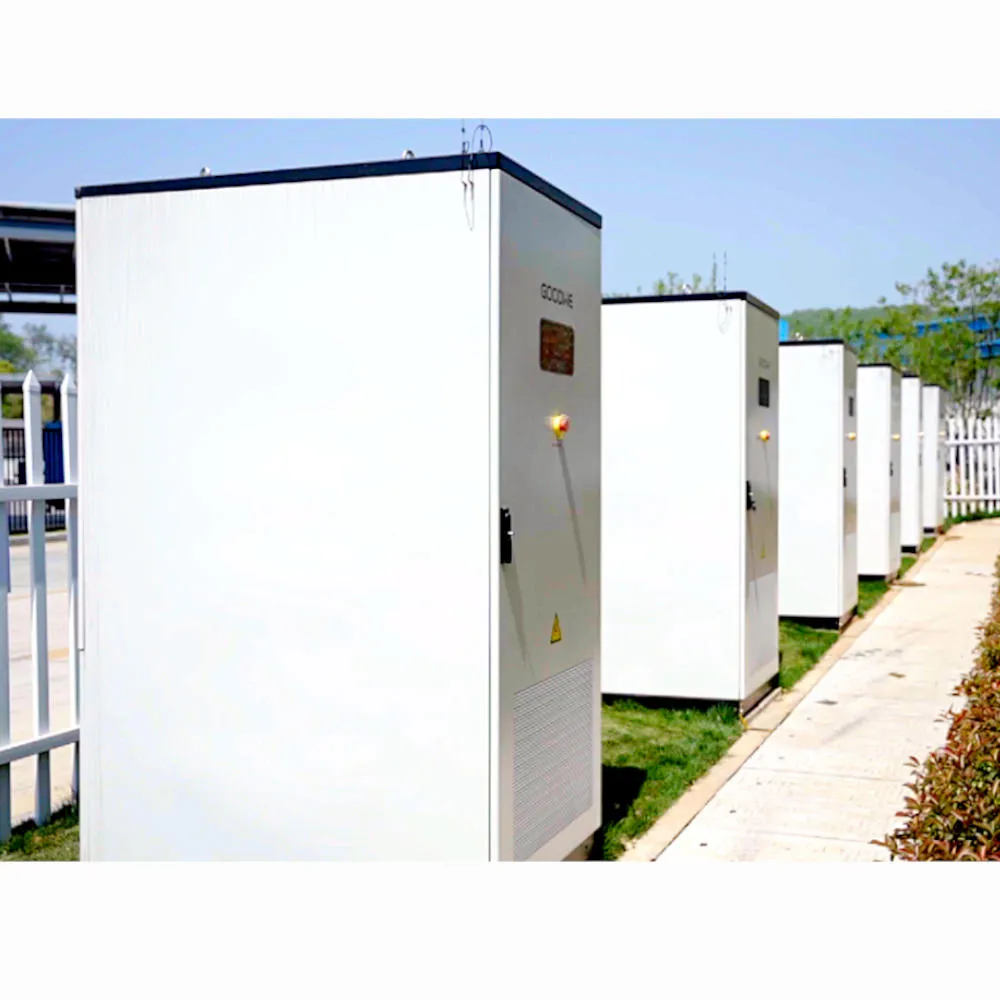

For projects requiring a more flexible battery cabinet solution built around GoodWe ET hybrid inverters, the GoodWe BAT-C is available as an alternative, including the 112.6kWh GW112.6-BAT-AC-G10 model.
ApplicationsÂ
The GoodWe ESA ESS is suitable for:
- Factories and manufacturing facilities
- Commercial buildings and complexes
- Logistics and warehousing sites
- Retail and business parks
- Agricultural facilities and farms
- EV charging stations
- Microgrids
- Grid-connected and off-grid applications
- PV self-consumption projects
- Backup power, peak shaving, demand control and energy trading
Technical Information:
- Power output: 125 kW
- Usable energy: approx. 261 kWh
-
Battery technology: LFP / lithium iron phosphate
-
Cell capacity: 314Ah
-
Module nominal energy: 52.25 kWh
-
Number of battery packs: 5
-
Cycle life: 6,000 cycles
-
Charge/discharge rating: 0.5P, approx. 2-hour system duration
-
Depth of discharge: 90–100%
-
Cooling method: hybrid cooling with PCS air cooling and battery liquid cooling
-
Protection class: IP54 for outdoor installation
- Safety protection: six-layer protection from cell to system level
-
Fire suppression: aerosol-based fire suppression at battery pack and cabinet level
-
Monitoring: smoke, thermal, combustible gas and humidity monitoring via the GoodWe platform
-
Scalability:Â supports up to 20 units in parallel, reaching up to approx. 2.5 MW / 5.22 MWh
-
Microgrid compatibility: supports off-grid operation when paired with a GoodWe STS Box
-
Cabinet footprint: approx. 1.47 m²
-
Energy density: 177.6 kWh/m²
-
Nominal battery voltage: approx. 832 V
-
Operating voltage range: 676–936 V
-
Max. charge/discharge current: approx. 198.5 A
-
Smart control: AI-driven battery diagnosis and health prediction
- Certification: TĂśV Rheinland certified for environmental adaptability
- Dimensions (W x H x D mm):Â 1050 Ă— 2250 Ă— 1400
- Weight: approx. 2580 kg
AVAILABLE TO ORDER
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | GoodWe ESA ESS |
| Brand | GoodWe |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Commercial/Industrial |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 261.25 |
| Charge/Discharge Rate | 0.5P |
| Battery Usable Capacity (kWh) | 261.25 |
| Depth Of Discharge (%) | up to 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP54 |
| Dimensions (W x H x D) mm | 1050 Ă— 2250 Ă— 1400 |
| Product Weight (Kg) | 2580 |
