Dunext PowerHill P100-215kWh Battery Storage - One-Cabinet System per Site
Dunext PowerHill 215kWh battery + 100 kW AC Inverter + 5-year warranty
Dunext PowerHill P100-215kWh commercial and industrial energy battery storage is an all-in-one, pre-assembled system designed for quick connection and commissioning saving time and operating costs.
The plug-and-play system delivers flexible energy capacity for various uses, including backup power, grid services, and energy cost reduction. It suits a wide range of C&I installations including but not limited to factories, warehouses, supermarkets, charging stations, and farms.
The system charges/discharges energy within a 2-hour period (0.5C Rate), allows for flexible scalability, and supports both AC-Coupled and DC-Coupled installations.
It comes with a standard 5-Year Warranty - extendable to 10 years, and short delivery lead times (to be confirmed with Dunext).
Learn More About Dunext PowerHill P100-215 (click to expand/close)
FEATURES: (click to expand/close)
✔ Supports Different C&I Scenarios
- Multi Application: Self-Consumption, Arbitrage, Peak Shaving & Load Shifting, Backup Function, Off-Grid
- It supports On-Grid connection, On/Off Grid Switching , Pure Off-Grid with Diesel Generator.
✔ Expandable and Robust
- The system can be scaled up to 6 battery cabinets connected in parallel with the max 1.29MWh battery capacity.
- The PowerHill cabinet is designed for outdoor installation, provides an IP55 protection level against dust and water jets from all directions.
- The cabinet can resist fire for at least 1-hour.
✔ All-in-One Design, Easy Installation and Maintenance
- Integral prefabricated installation with only 5 cables wiring.
- Shipment of full packages
✔ Pre-Assembled System

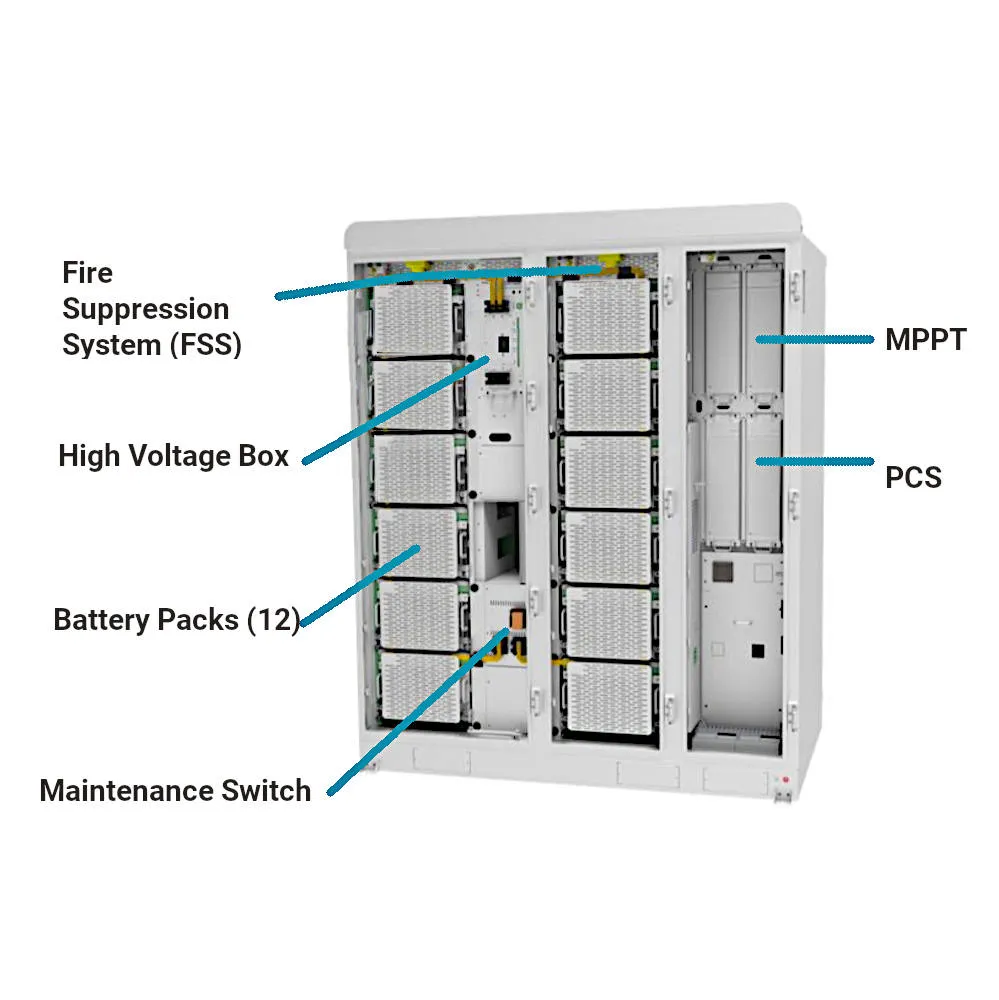

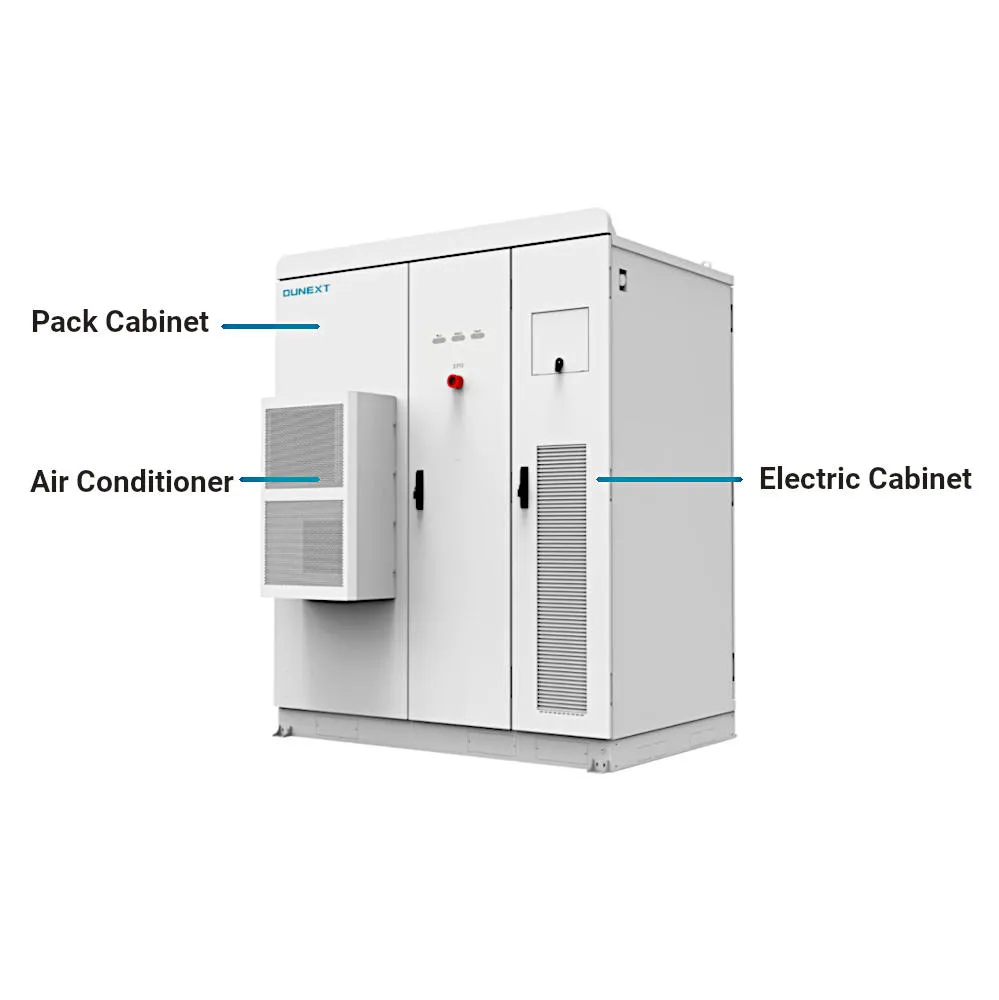

PowerHill is an outdoor battery cabinet with integrated PCS, 12 battery packs (LFP), BMS, fire protection system, air conditioning system, and optional MPPT.
✔ Optimised Thermal Management Design
Two air-conditioners with independent ventilation design make the internal temperature No More Than 35℃ and temperature difference <4℃.
✔ Cooling Method: Forced Air-cooling System
✔ Comprehensive Safety Features
- The Dunext PowerHill system has five layers of protection: overcharge, short-circuit, overheating, mechanical, and over-discharge.
- Fire Suppression System: Combustible Gas Detection + Novec1231 (Perfluorohexane fire extinguishing device), with water fire fighting joint as the last barrier.

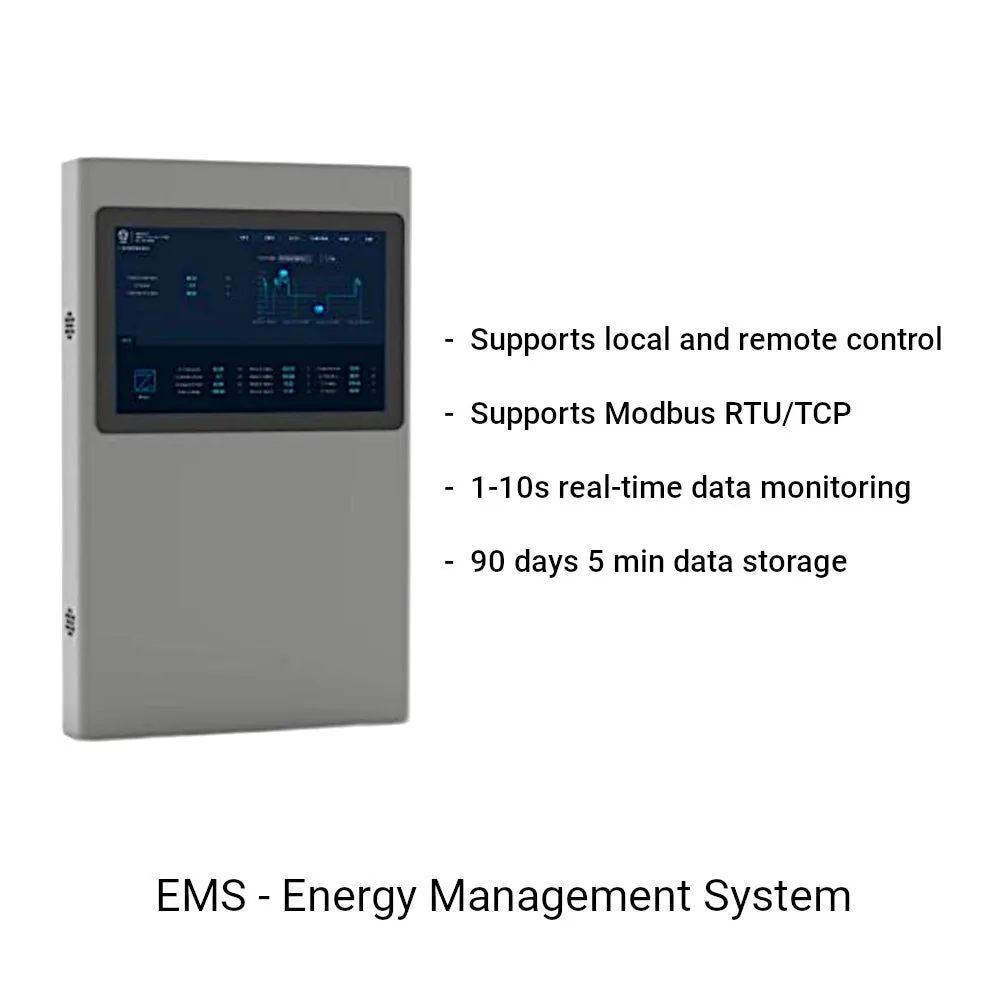

✔ Communication and Management Capabilities
- Intelligent O&M Cloud platform DuLink.
The DuLink App can be downloaded from Google Play and Apple Store. - Communication Interface RS485, Ethernet; Communication Protocol: Modbus RTU
✔ Certification Standards
The system complies to widely recognised standards: CE (IEC 61000, IEC 62477), IEC 62619, UN 3480, G99, G100; Battery cell: UL9549A, UL1973.
TECHNICAL INFORMATION:
Cabinet, Battery, and PCS
Cabinet
- Rated ESS capacity: 215 kWh
- Depth of Discharge:100% (in testing conditions)
- Charge/discharge power:100kW
- IP 55
- Operating Temperature [℃]: -20 ～ 50
- Communication Protocol: Modbus RTU
- System Dimension (WxHxD): 1686 x 2093 x 1354 mm
- Weight: ≤ 2.5 tonnes
- Standard 5-Year Warranty (10-Year Option Available)

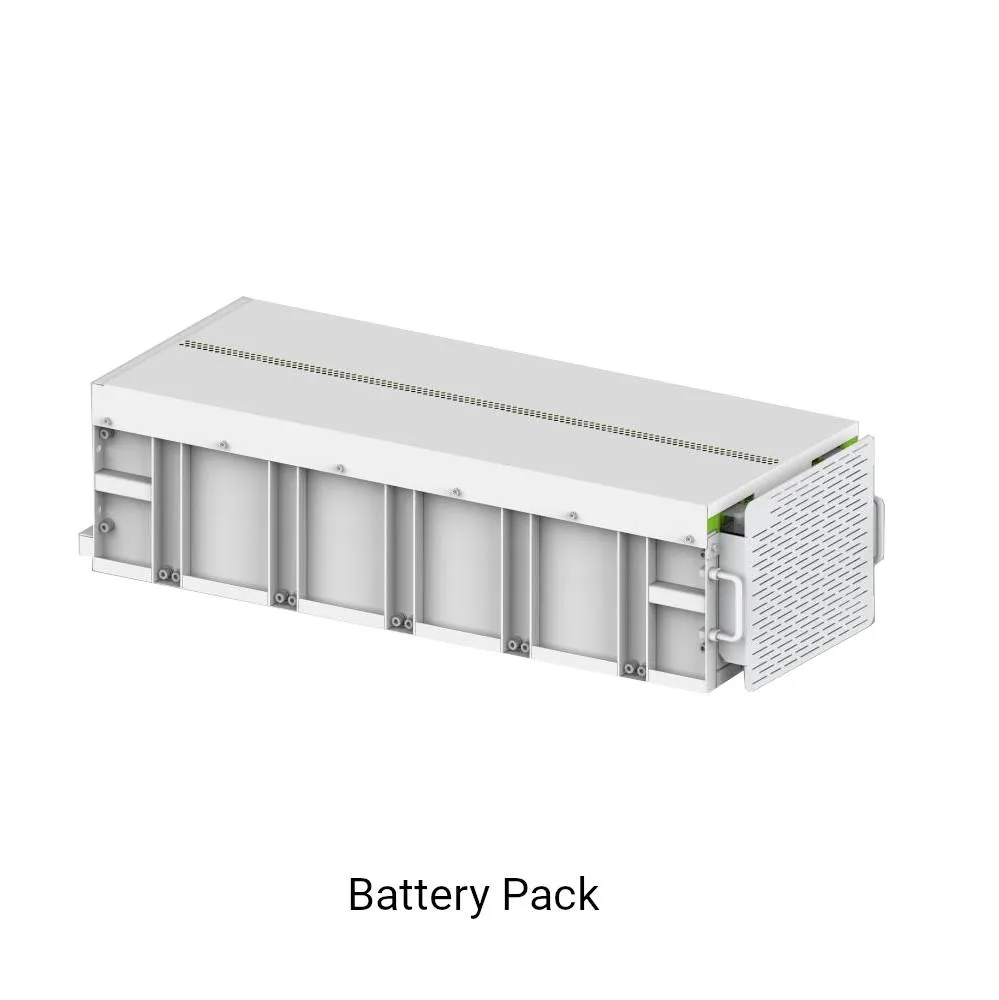

Battery (DC)
- Cell Material: LFP
- Rated battery capacity: 280Ah / 17.92kWh
- Rated Voltage: 64V
- Battery String Configuration: 1P20S
- System Dimension (WxHxD): 378 x 260 x 985 mm
- Weight: 150kg
PCS (AC)
- Max. output power 100kW
- AC voltage and Frequency: 380 / 400 V (3P4W)，50 / 60 Hz
- Rated AC Output: 144A
- AC current harmonics THDi ≤ 3.0 %
MPPT
- Rated PV input power: 120kWp
- PV input oversize: 120%
- Max PV input current: 200A
PowerHill Series Installation Video (Duration 6:27)
| Brand | Dunext |
| Battery / System Model | Dunext PowerHill (C&I) |
| Battery End User | Commercial/Industrial |
| High / Low Voltage Battery | High Voltage |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 215.04 |
| Depth Of Discharge (%) | up to 100 |
| Battery Usable Capacity (kWh) | 215 |
| Charge/Discharge Rate | 0.5C |
| Protection Rating (IP) | Suitable for Outdoors |
| Grid Connection | Grid and Off Grid Capable |
| Dimensions (W x H x D) mm | 1686 x 2093 x 1354 |
