Batteries & BMS

• Modular and stackable: Each LXD5.0-10 provides 5 kWh usable and stacks from 5 kWh to 40 kWh (8 modules). Self-detecting modules speed recognition and commissioning, and new and existing modules can be mixed for easy expansion.
• Safety first: LFP cells for chemical and thermal stability, IP66 enclosure, and VDE 2510-50 compliance for protection against dust, water and electrical hazards.
• Smart monitoring: Works with GoodWe inverters for remote monitoring, diagnosis and firmware updates. Auto-restart after undervoltage plus dual protection from BMS and DCDC manager.
• Cohesive ecosystem: Compatible with GoodWe ET G2, ET Plus+, BT, EH Plus+ and BH inverter series.

Key Features:

• Scalable: 5 kWh modules build to 40 kWh (8 total) — up to 4 per stack or two stacks (2×4).
• GoodWe-ready: Works with GoodWe hybrid/battery inverters; remote diagnostics & firmware updates via inverter.
• Reliable performance: Auto-restart after undervoltage and a built-in DCDC for high efficiency.
• Fast installation: Self-detecting modules and plug-and-play wiring speed commissioning.
• Durable: IP66 rated for indoor/outdoor use.
• Mounting: Floor stack or wall-mount (mounting base/bracket required).
• Warranty: Standard 10-year limited warranty.

Lynx D Series - Unboxing (Duration 5:14)

• Usable Energy: 5kWh
• LiFePO4 (LFP) technology
• Scalability: Up to 6 battery modules
• Maintains full 1C charge/discharge in cold conditions, giving faster cycling than most competitor systems
• Integrated DCDC converter in each battery module
• Operating Voltage Range (single-phase): 350~550 V
• Peak output power (7.5 kW/10s)
• Charging Temperature Range: -18~55 (°C)
• 6-layer storage safety protection
• Fire suppression and heating as standard
• Floor and Wall mounting possible
• Certification: EC62619, IEC60730, EN62477, CE, RCM, N38.3 ADR
• IP66
• Warranty: 10 years

Compact, elegantly designed, IP66-rated all-in-one energy storage system that integrates hybrid inverter, LFP battery stack, UPS-grade backup switching, and battery enclosure.

Operates reliably indoors or outdoors in any weather conditions. Pre-wired and modular for fast installation.

Ideal applications:

• New builds and retrofits seeking whole-home backup and bill reduction
• Homes targeting high self-consumption with large PV arrays
• Projects needing capacity growth over time

Power and capacity:

• Inverter sizes: 3, 3.6, 5, 6, 8, 10 kW single-phase
• Battery modules: 5.12 kWh or 8.32 kWh LFP
• Scalable storage: 5–48 kWh per system (up to 6 modules per stack)
• Mix-and-match old and new battery modules for expansions

Multiple inverter configuration:

• Up to 6 inverters (up to 288kWh total storage capacity)
• On-grid & Backup parallel possible; AC-coupling scenario supported

Backup and performance:

• <4 ms UPS-level switchover (built-in) for whole-home backup
• 1C charge and discharge for fast cycling

Safety and reliability:

• LFP chemistry with high cycle stability
• Six-layer safety architecture, including AI-driven arc fault interruption (AFCI 3.0)
• Cell- and module-level monitoring

Smart energy features:

• Smart home integration with multi-protocol comms
• On-grid, off-grid, microgrid and AC-coupled scenarios

Scope of delivery:

• Inverter Box: CT 120A/40mA and connection cable; Battery base; Smart dongle; Adjustable feet; Communication cable; Decorative covers; Handles; Anti-tip bracket; PV terminals, AC terminals, other miscellaneous parts.
• Battery Box: Battery; Plugs and screws
• Smart Meter
•  “How to Install the ESA 3–10 kW from GoodWe Solar Academy”

• Usable Energy: 8kWh
• LiFePO4 (LFP) technology
• Scalability: Up to 6 battery modules
• Maintains full 1C charge/discharge in cold conditions, giving faster cycling than most competitor systems
• 1C charge/discharge rate possible at low temp. environments
• Integrated DCDC converter in each battery module
• Operating Voltage Range (single-phase): 350~550 V
• Peak output power (12 kW/10s)
• Charging Temperature Range: -18~55 (°C)
• 6-layer storage safety protection
• Fire suppression and heating as standard
• Floor and Wall mounting possible
• Certification: EC62619, IEC60730, EN62477, CE, RCM, N38.3 ADR
• IP66
• Warranty: 10 years

Compact, elegantly designed, IP66-rated all-in-one energy storage system that integrates hybrid inverter, LFP battery stack, UPS-grade backup switching, and battery enclosure.

Operates reliably indoors or outdoors in any weather conditions. Pre-wired and modular for fast installation.

Ideal applications:

• New builds and retrofits seeking whole-home backup and bill reduction
• Homes targeting high self-consumption with large PV arrays
• Projects needing capacity growth over time

Power and capacity:

• Inverter sizes: 3, 3.6, 5, 6, 8, 10 kW single-phase
• Battery modules: 5.12 kWh or 8.32 kWh LFP
• Scalable storage: 5–48 kWh per system (up to 6 modules per stack)
• Mix-and-match old and new battery modules for expansions

Multiple inverter configuration:

• Up to 6 inverters (up to 288kWh total storage capacity)
• On-grid & Backup parallel possible; AC-coupling scenario supported

Backup and performance:

• <4 ms UPS-level switchover (built-in) for whole-home backup
• 1C charge and discharge for fast cycling

Safety and reliability:

• LFP chemistry with high cycle stability
• Six-layer safety architecture, including AI-driven arc fault interruption (AFCI 3.0)
• Cell- and module-level monitoring

Smart energy features:

• Smart home integration with multi-protocol comms
• On-grid, off-grid, microgrid and AC-coupled scenarios

Scope of delivery:

• Inverter Box: CT 120A/40mA and connection cable; Battery base; Smart dongle; Adjustable feet; Communication cable; Decorative covers; Handles; Anti-tip bracket; PV terminals, AC terminals, other miscellaneous parts.
• Battery Box: Battery; Plugs and screws
• Smart Meter
•  “How to Install the ESA 3–10 kW from GoodWe Solar Academy”

Key Features:

• Nominal Battery Energy: 5.12 kWh
• Scalable: 5 kWh modules build to 150 kWh (30 units in parallel)
• 90A charge / 100A discharge capability
• Operating Voltage Range: 43.2~58.24 V
• Built-in BMS (no external PCU required
• Fire suppression and heating as standard
• Plug-and-play installation with pre-wired communication cables
• LFP (lithium iron phosphate) technology for enhanced safety and long lifespan
• Remote monitoring, diagnostics and auto-reboot
• IP65-rated for indoor and outdoor installation
• Wall or floor-mounted installation
• Compatible with GoodWe ES hybrid inverters
• ES G2 + Lynx U G3 qualify for 10 years warranty, once installed by GoodWe Plus+ certified installer. Manual registration is required by installers, more details in https://10year-warranty.semsportal.com/#/

Lynx U G3 Series - How to install (Duration 4:56)

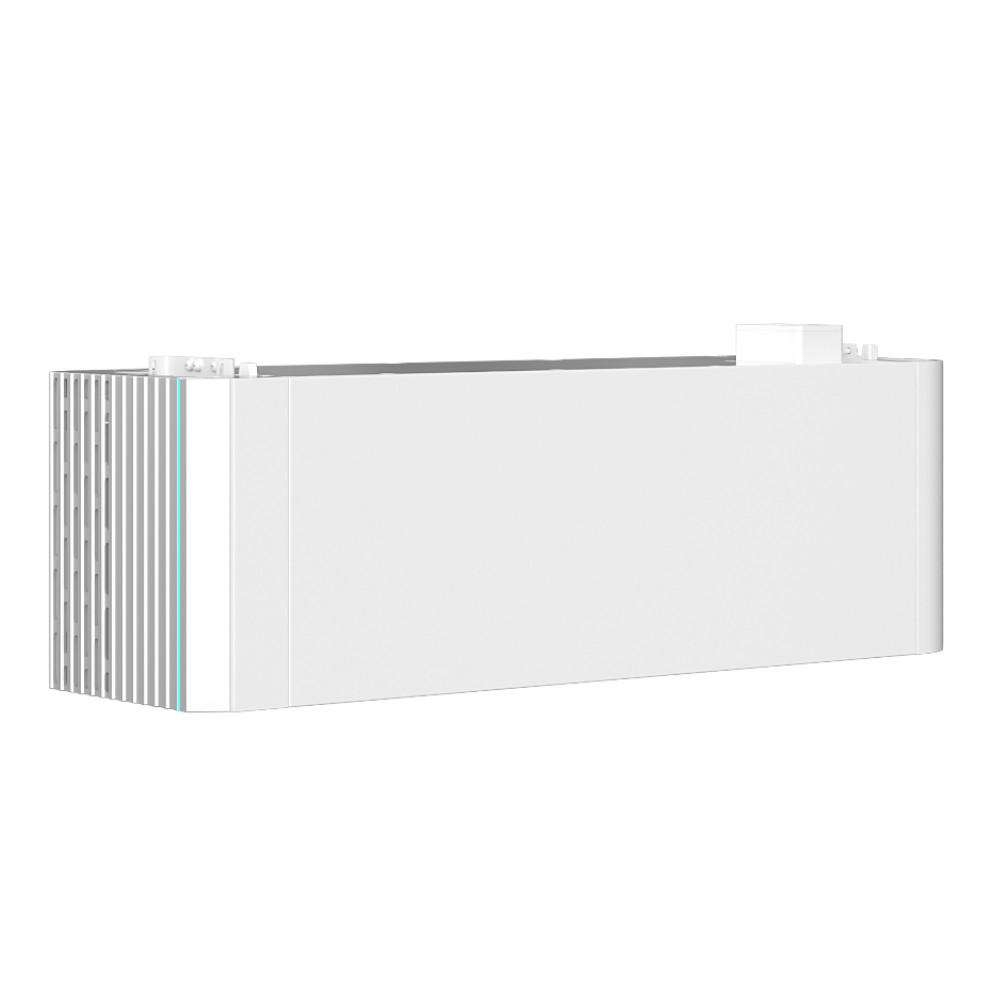

• Available capacity: 5.2 kWh battery
• LiFePO4 technology (280Ah cell)
• 1 to 6 batteries per stack (max 30kWh)
• Max. 20 stacks in parallel
• Installation is quick and uncomplicated. Batteries are simply stacked on top of each other with no additional assembly is required
• DOD: 100% (under test conditions)
• Max. charging and discharging power: 2,500W
• Peak discharge / charge power of 3,750W
• Service life: > 7000 cycles
• Full temperature monitoring
• Multi-layer full battery safety protection
• 15 mins stackable installation
• 5 mins fast commissioning
• AI assisted energy planning, safety protection, VPP scheduling, and service support
• Instantaneous 0 ms backup switching
• Smart Cube app function
• IP66 protection rating
• The battery needs a Smart Cube Energy Controler to work
• Any combination of HBP-5.0 and HBP-8.0 battery modules can be used with the Haier Smart Cube EC.
• Mixing Smart Cube batteries with those from other manufacturers is not supported.
• 10-year product warranty and 10-year performance warranty

• Available capacity: 7.8 kWh battery
• LiFePO4 technology (280Ah cell)
• 1 to 6 batteries per stack (max 30kWh)
• Max. 20 stacks in parallel
• Installation is quick and uncomplicated. Batteries are simply stacked on top of each other with no additional assembly is required
• DOD: 100% (under test conditions)
• Max. charging and discharging power: 4,000W
• Peak discharge / charge power of 6,000W
• Service life: > 7000 cycles
• Full temperature monitoring
• Multi-layer full battery safety protection
• 15 mins stackable installation
• 5 mins fast commissioning
• AI assisted energy planning, safety protection, VPP scheduling, and service support
• Instantaneous 0 ms backup switching
• Smart Cube app function
• IP66 protection rating
• The battery needs a Smart Cube Energy Controler to work
• Any combination of HBP-5.0 and HBP-8.0 battery modules can be used with the Haier Smart Cube EC.
• Mixing Smart Cube batteries with those from other manufacturers is not supported.
• 10-year product warranty and 10-year performance warranty

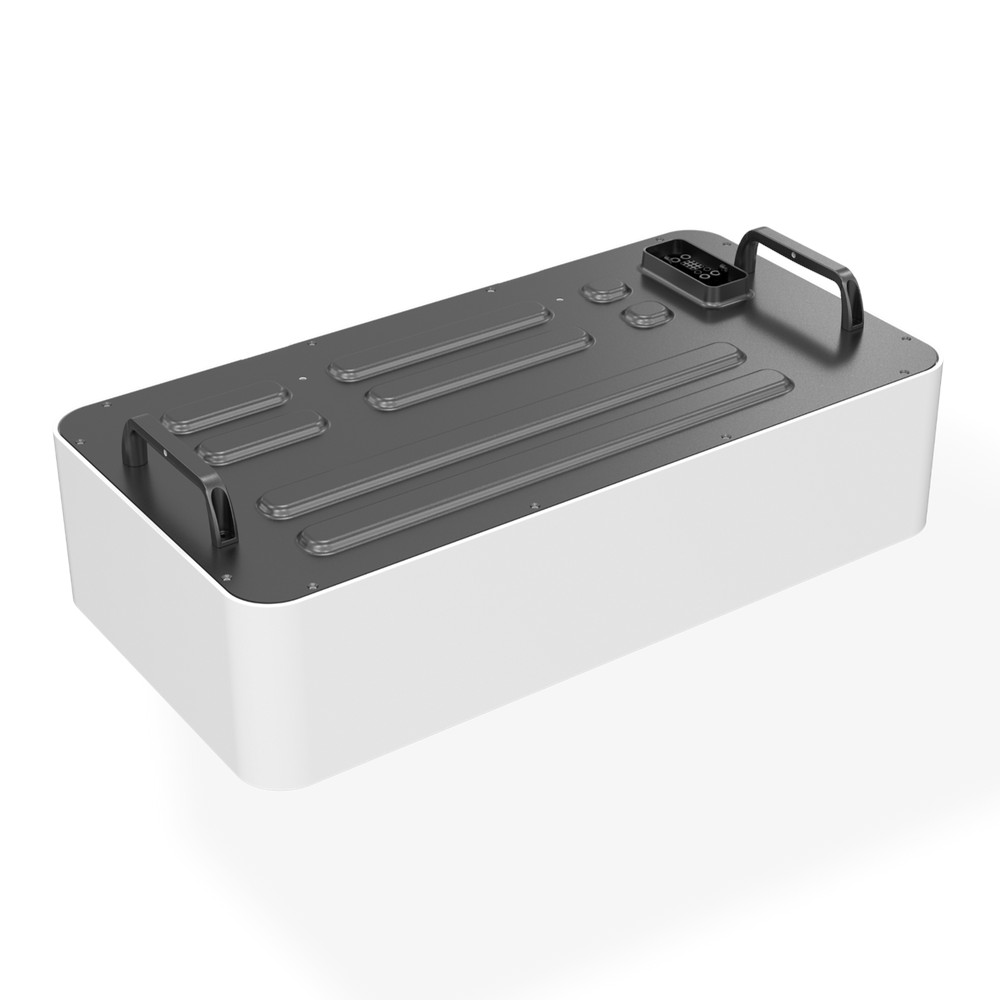

• Quick, clean installation: Plug-and-play stack with no inter-module cabling; integrated BMS and simple addressing for fast commissioning.
• Flexibility: The system uses modular 5 kWh blocks with a slimline design; runs from 2–8 modules (10–40 kWh) with no redesign.
• Multi Stack: Up to 2 stacks or 80kWh per inverter.
• Expandable: Up to 8 inverters per system, giving a battery capacity of up to 640kWh.
• High-voltage architecture: Up to 50 A continuous; 8-module stack ≈ 28 kW DC (actual AC capped by inverter); up to 100% usable energy (configurable reserve SoC).
• Safety and reliability: LFP chemistry, multi-level BMS, certified protection (incl. VDE 2510-50), robust serviceable enclosure; stable performance and strong backup protection.
• Sungrow ecosystem: Seamless hybrid-inverter compatibility, auto recognition, iSolarCloud monitoring, and EPS <10 ms switchover (inverter/firmware dependent); strong UK support.

Technical specifications:

• Energy Capacity (Nominal): 5.0 kWh
• Nominal Voltage: 70.4 V
• Capacity range (per stack): 10-40 kWh
• Continuous charging and discharging current: Up to 50 A
• Safety Features: over-voltage/under-voltage protection; over-temperature protection; short-circuit and overcurrent protection
• Certifications: CE, UN38.3, IEC 62619, VDE 2510-50
• Enclosure Rating: IP55 (for outdoor/indoor use when fully installed)
• Installation: Floor-mounted on compatible base/switchgear (sold separately)
• Dimensions (W × D × H): 675 x 350 x 160 mm
• Inverter Compatibility: Sungrow SHT series (15-25 kW) three-phase hybrid inverters
• Monitoring: Via Sungrow inverter + iSolarCloud app
• 10-year product warranty

Sungrow SBH Battery Installation (Duration 4:45)
