K2 D-Dome 6.10 System

K2 Adapter plate M10Hanger Bolt Climber

Aluminium adapter plate for M10 hanger bolts Climber Set or as an accessory for the Dome FixPro item.

• Dimensions (W x H x D): 50 x 5 x 90 mm
• Material: Aluminium

K2 Adapter plate M12

Aluminium adapter plate for M12 hanger bolts Climber Set or as an accessory for the Dome FixPro item.

• Dimensions (W x H x D): 50 x 90 mm
• Material: Aluminium

K2 Climber 36/50 M12

K2 Climber 36/50 Hanger Bolt M12, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M12.

Material: Aluminium EN AW-6063 T66

K2 Climber M8 36/50 Set

A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included.

The set consists of:

• 1 Climber 36/50 Aluminium EN AW-6063 T66
• 1 Bolt with serrated under head M8x20, stainless steel A2
• 1 MK2 insert nut M8 (1001643), stainless steel

Also available in a box of 200 units.

K2 Climber for SingleRail 36/50 M10

K2 Climber 36/50 Hanger Bolt M10, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M10. For fixing the mounting rail SingleRail or CrossRail to the hanger bolt M10.

Material: Aluminium EN AW-6063 T66

Also available in a box of 250 units.

K2 D-Dome 6.10 Base Set

Pre-assembled basic rail set for the D-Dome 6.10 system for module widths of 960-1170 mm.

Details:

• Height(mm): 77.5
• Length(m): 2.48
• Width(mm): 75
• Module width(mm): 960-1170
• Mounting Systems: K2 Dome 6 System
• Material: Aluminium mill

INCLUDES:

• BasicRail 2.48 m
• 2 x Dome 6.10 SD
• 2 x Dome 6 EndPlate
• 3 x Dome Mat S

K2 D-Dome 6.10 Base Set (Earlier Model)

Pre-assembled basic rail set for the D-Dome 6.10 system. Includes SpeedRail 2.25 m, Dome SD, MidPlate and Mat S.

Material: Aluminium, EPDM, stainless steel

K2 Dome 6 Connector Set

Rail connector set as connecting element between two K2 Dome 6.10 Base Set. Length: 495 mm. Including accessories and equipotential bonding.

Material: Aluminium, stainless steel

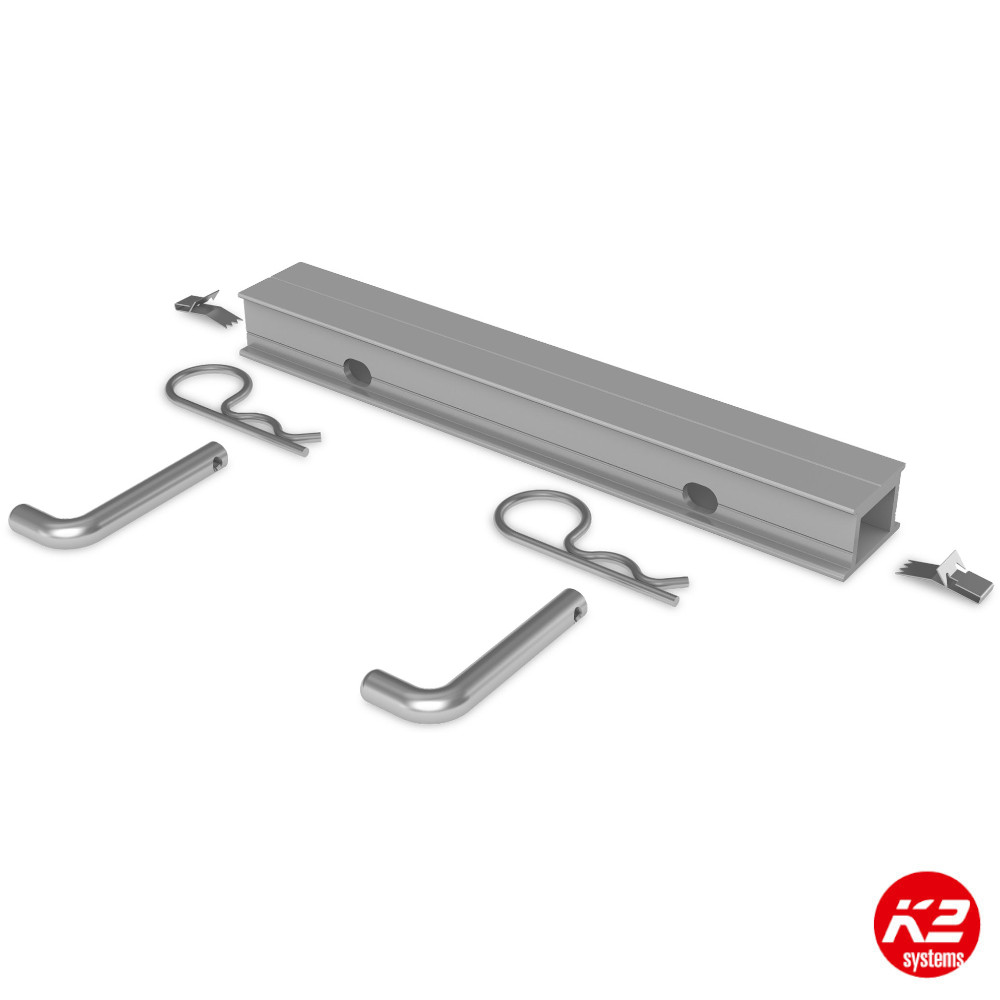

K2 Dome 6 Connector Set with Bonding

Rail connector set as connecting element between two K2 Dome 6 Base Set. Including accessories and equipotential bonding.

Length (mm): 195
Material: Aluminium, stainless steel

Sales Unit: 1

Box Units: 20

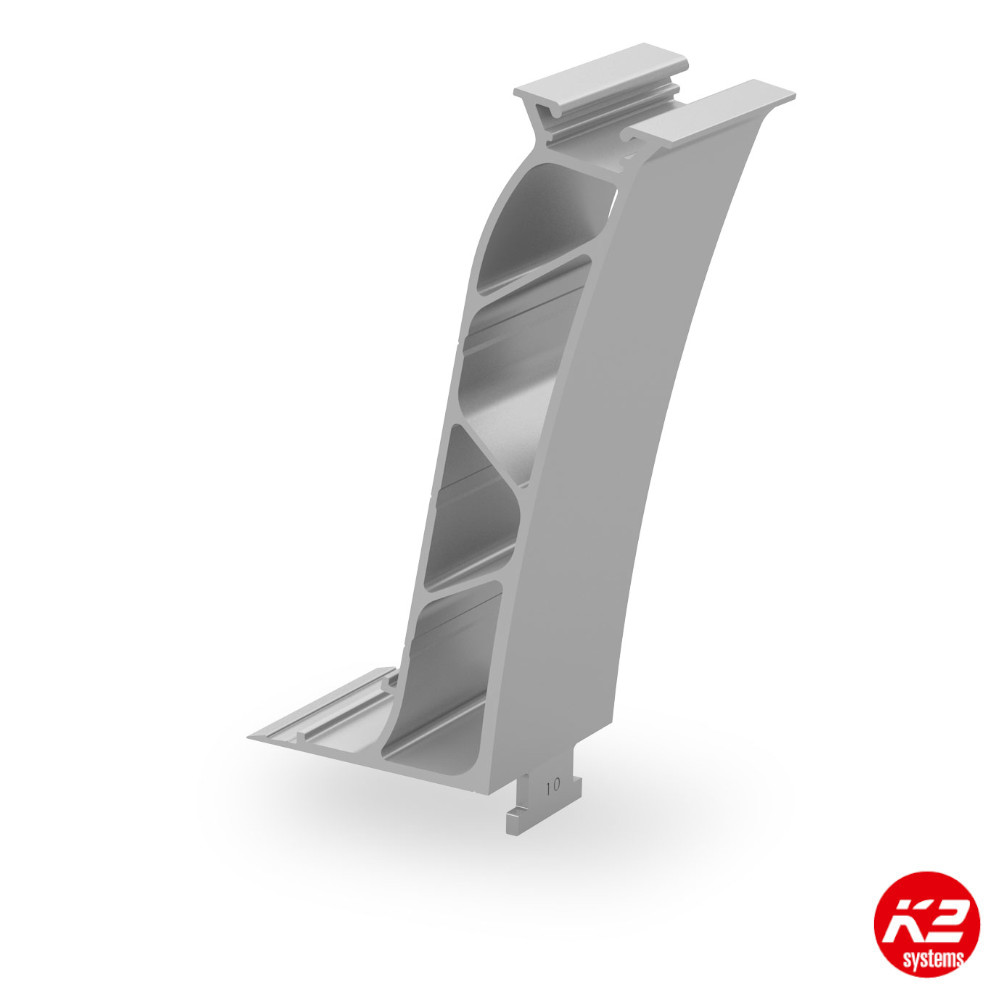

K2 Dome 6.10 Peak with hole

Component for the module elevation of the Dome 6.10 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the SpeedRail with a socket head bolt and MK2.

Material: Aluminium EN AW-6063 T66.

Note: This product replaces item2003248.

K2 Dome 6.10 Peak with hole

Component for the module elevation of the Dome 6.15 system. The peak can either be clicked into the pre-assembled base plate or fixed directly to the BasicRail with a socket head bolt and MK2

Material: Aluminium EN AW-6063 T66.

K2 Dome FixPro L

Fixing accessories for mounting the K2 Dome 6 system on roofs ≥ 3° on a mounting foot. Depending on the mounting foot, a climber M10 or M12 and an adapter plate are required separately.

Suitable module length [mm]: 1617 - 2392
Mounting systems: Dome 6 System; flat roof
Material: Aluminium, stainless steel, PA

K2 Dome FixPro S

Fixing accessories for attaching the K2 Dome 6 (Classic LS system and Dome Zero) to a mounting base for roofs ≥ 3°. Depending on the mounting base, a Climber M10 or M12 and an adapter plate are required separately.

Suitable for module lengths: Classic LS system: 1562 - 2390 mm; Dome Zero: 1640 - 2390 mm
Mounting systems: K2 Dome 6 System, K2 Dome Zero System
Material: Aluminium, stainless steel, PA

K2 Dome Porter Extra Long

The Porter is suitable for a fast and universal bearing of different ballasts for the K2 Dome 6.10 (S-Dome and D-Dome) systems.

For module dimensions 1998-2405 mm in combination with MiniClamp.

Dimensions:

• Width: 2450 m
• Height: 60 mm
• Depth: 40 mm

Material: Aluminium

K2 Dome Speed Porter

Accessory for ballast of K2 Dome flat roof systems.

• Dimensions: 200x80x15 mm
• Material: aluminium (EN AW-5754 H111)

Also available in a small box of 10 units; full box of 250 units.

K2 Dome Speed Spacer

Distance tool for the Dome system; Dome 6.0 System, Dome 6.10 System, Dome Classic System, Dome V System.

• Length: 2.50m
• Material: Aluminium, Acromide

Also available in a 150/box.

K2 DomeClamp End Clamp 30-50 mm (former K2 Mini End Clamp)

Universal end clamp set for fastening solar modules on the K2 Dome 6 System. Suitable for modules with 30-50 mm frames.

Material: aluminium, stainless steel

Also available in a box of 20 units.

K2 DomeClamp End Clamp 30-50 mm BLACK (former K2 Mini End Clamp)

Black anodized universal end clamp set for fastening solar modules on the K2 Dome 6 System. Suitable for modules with 30-50 mm frames.

Material: aluminium, stainless steel

Also available in a box of 20 units.

K2 DomeClamp Middle Clamp 30-50 mm (former K2 Mini Mid Clamp)

Universal middle clamp set for fastening solar modules on the K2 Dome 6 System and K2 MiniRail System.

• Module frame height [mm]: 30-50
• Material: Aluminium, EPDM

Also available in a box of 20 units.

K2 DomeClamp Middle Clamp 30-50 mm, black anodized (former K2 Mini Mid Clamp)

Black anodized universal middle clamp set for fastening solar modules on the K2 Dome 6 System and K2 MiniRail System.

• Module frame height [mm]: 30-50
• Material: Aluminium Black, anodized, EPDM

Also available in a box of 20 units.

K2 Mat-S Tool

Mat-S Tool for mounting the Mat S on the SpeedRail.

Material: Polyamid

Also available: bags of 3, small boxes of 12 units.

K2 S-Dome 6.15 Windbreaker Short

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System. Suitable for module lengths 1448 mm - 1799 mm.

Material: Steel with Magnelis ZM310 coating

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301
