Solar Mounting Systems

K2 Single Snap Seam Clamp CF x

Double standing seam suits SingleRail System.

The K2 Single Snap Seam Clamp CF x is suitable for angled and snap seam profiles. It is made of titanium zinc, aluminium, stainless or galvanised steel.

FEATURES:

• Aluminium clamp
• Opening dimension: 14.0mm

Also available in a box of 50 units.

K2 Single Standing Seam Clamp

Double standing seam suits SingleRail System.

The Single Standing SeamClamp is suitable for double folded standing seams made of titanium zinc, aluminium, stainless or galvanised steel.

FEATURES:

• Aluminium clamp
• Opening dimension: 7.0mm

Also available in a box of 50 units.

K2 SingleHook 1.1 Set

To fasten K2 system components to tile roofs with narrow rafters from 36 mm. Slotted bore hole bracket for installation and height adjustability of the SingleRail including T-Bolt (stainless steel) and locking nut (stainless steel).

Material: Aluminium EN AW-6063 T66

Also available in a box of 40 units.

K2 SingleHook Vario Set

Dual, height-adjustable SingleHook Vario roof fastener, made of stainless steel, for direct connection to the SingleRail.

Bracket with slotted hole for mounting and adjusting the height of the SingleRail.

Height of bracket infinitely adjustable on baseplate to suit various battens by means of slotted hole. Including T-Bolt and Locking nut for SingleRail assembly.

Dimensions:

• Base plate width: 100 mm
• Height under bracket: 45-65 mm
• Bracket height: 68 mm
• Total height: 172-192 mm
• Bracket depth: 110 mm

Material: Stainless steel

Also available in a box of 25 units.

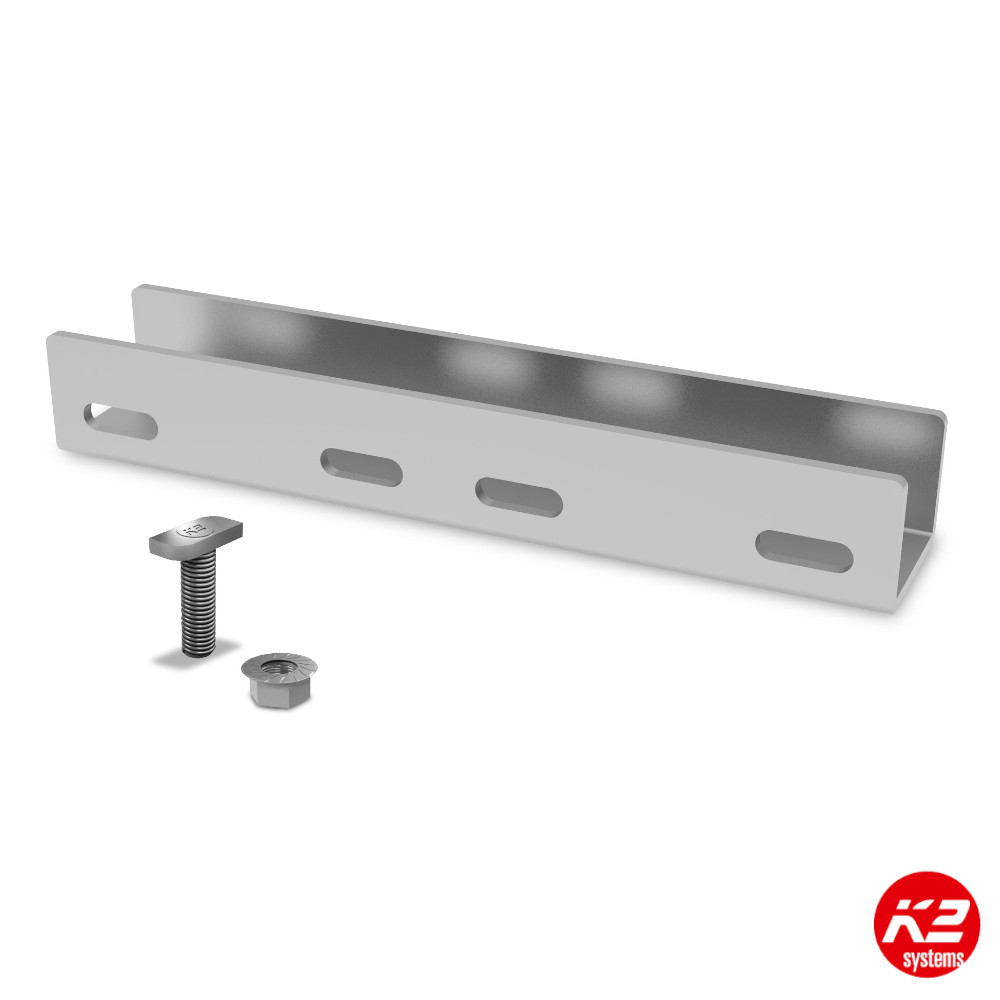

K2 SingleRail 36 - Rail Connector Set

K2 SingleRail 36 - Rail Connector Set Rail connector for K2 mounting rails, type "SingleRail 36". Material: Aluminium.

Set consists of:

• 1 x SingleRail connector 36, aluminium EN AW-6063 T66
• 4 x T-Bolts M8x20 Stainless Steel
• 4 x locking nut M8, Stainless Steel

Also available in a small box of 10 units and larger box of 60 units.

K2 SingleRail 36 3.65m

K2 SingleRail 36 mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections

FEATURES:

• Length: 3.65m
• Material: aluminium EN AW-6063 T66

Also sold in 100 units/pallet

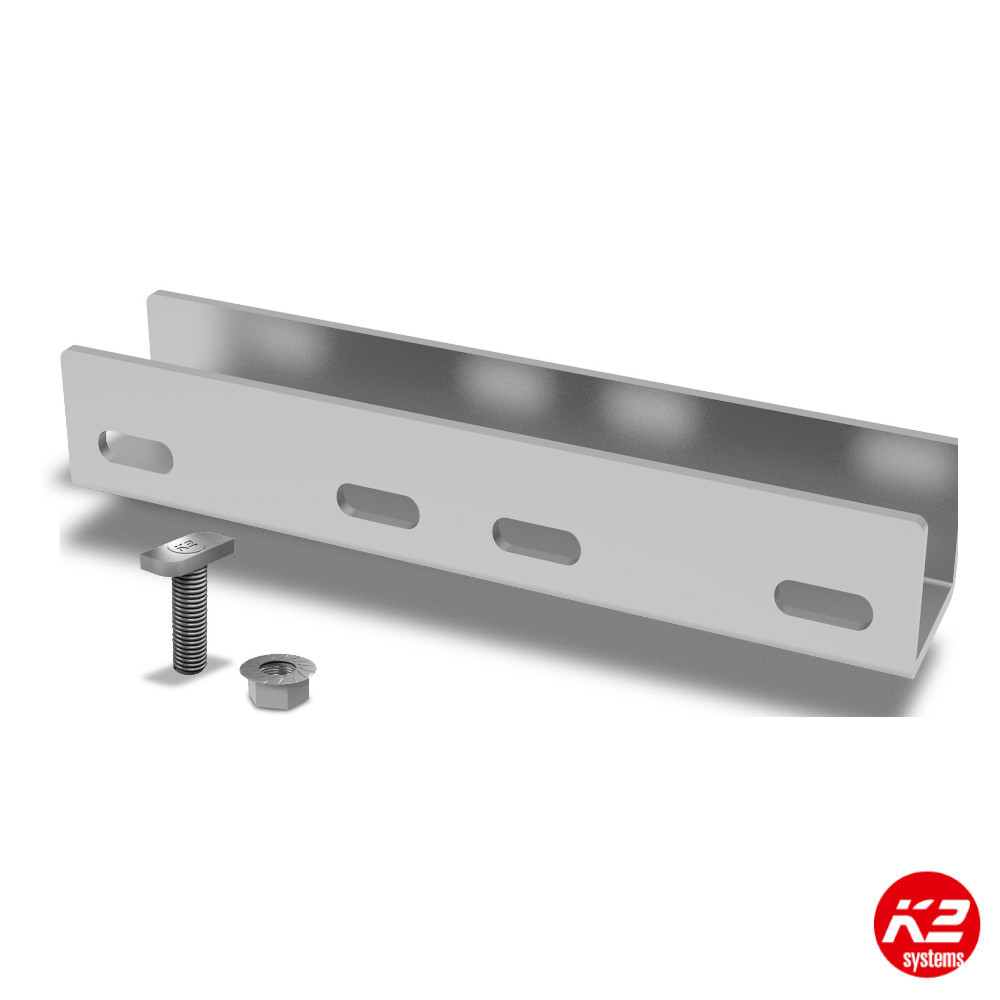

K2 SingleRail 50 - Rail Connector Set

K2 SingleRail 50 - Rail Connector Set Rail connector for K2 mounting rails, type "SingleRail 50". Material: Aluminium.

Set consists of:

• 1 x SingleRail connector 50, aluminium EN AW-6063 T66
• 4 x T-Bolts M8x20 Stainless Steel
• 4 x locking nut M8, Stainless Steel

Also available in a small box of 10 units and larger box of 50 units.

K2 SingleRail 50 3.65m

K2 SingleRail 50 mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections

FEATURES:

• Length: 3.65m
• Material: Aluminium

Also sold in 100 units/pallet

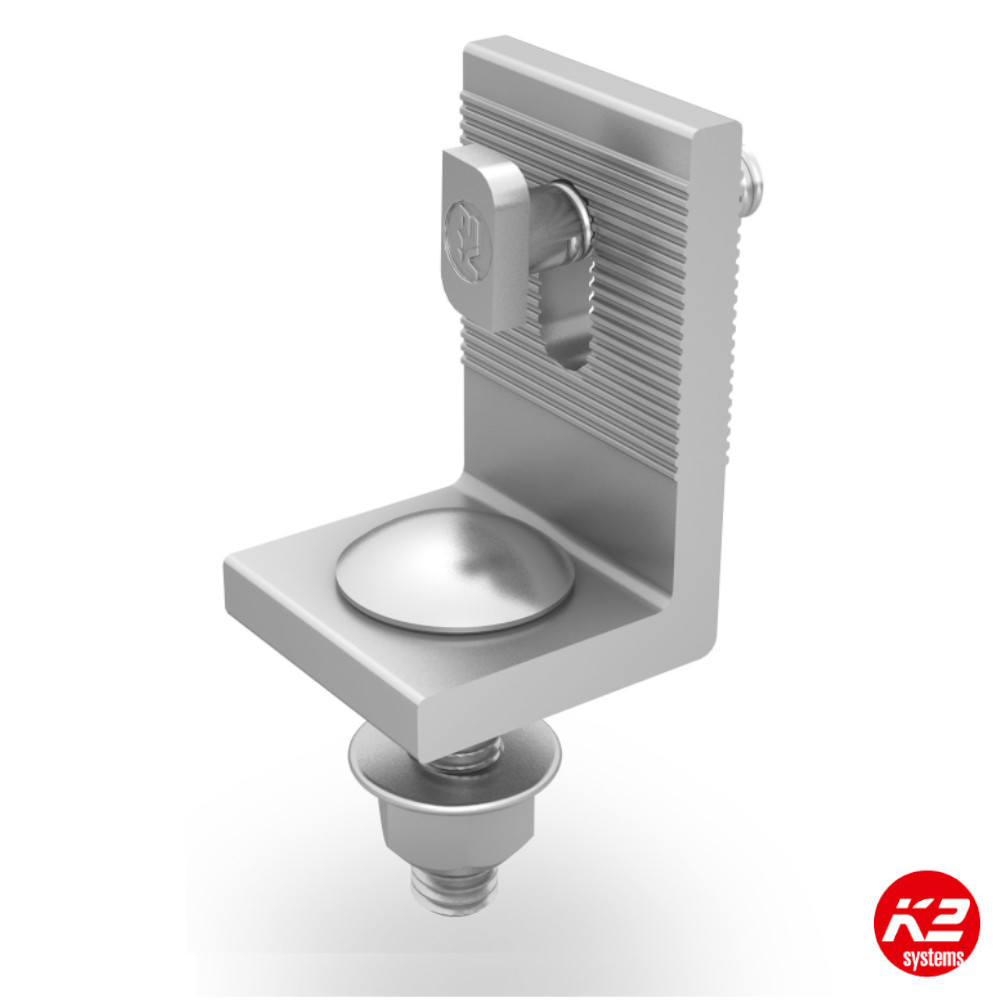

K2 SingleRail L-Adapter SET

Set consists of:

• 1 L-adapter SingleRail, aluminium
• 1 self-locking nut M8, stainless steel
• 1 T-Bolt M8x20, stainless steel
• 1 Mushroom head bolt M10x25 stainless steel
• 1 Serrated nut M10, stainless steel

Also available in a box of 100 units.

K2 SingleRail Splice Foot

Aluminium roof fastener with SingleRail connection for bitumen roofs. Base plate: 89 mm x 50.8 mm. Total height of component: 68 mm. Height adjustment: 36.9 mm - 57.5 mm.

Material: Aluminium EN AW-6063 T66.

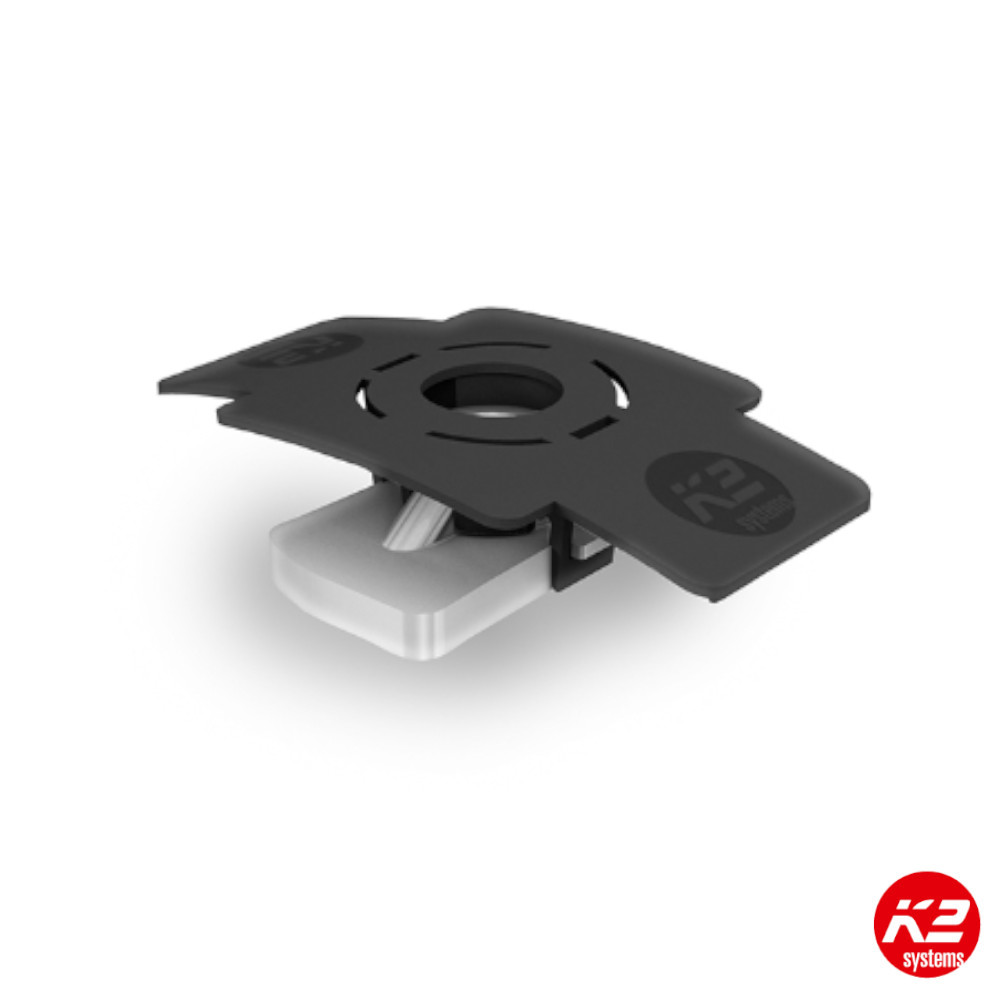

K2 Slot Nut M8 - Stainless Steel

The Fast-installation M K2 slot nut can be put into the K2 rail everywhere. The slotted nut will adjust itself in the rail and can be readjusted to every place of the rail.

• Material: Stainless steel
• Thread of screw: M8

Also available in a box of 250 units.

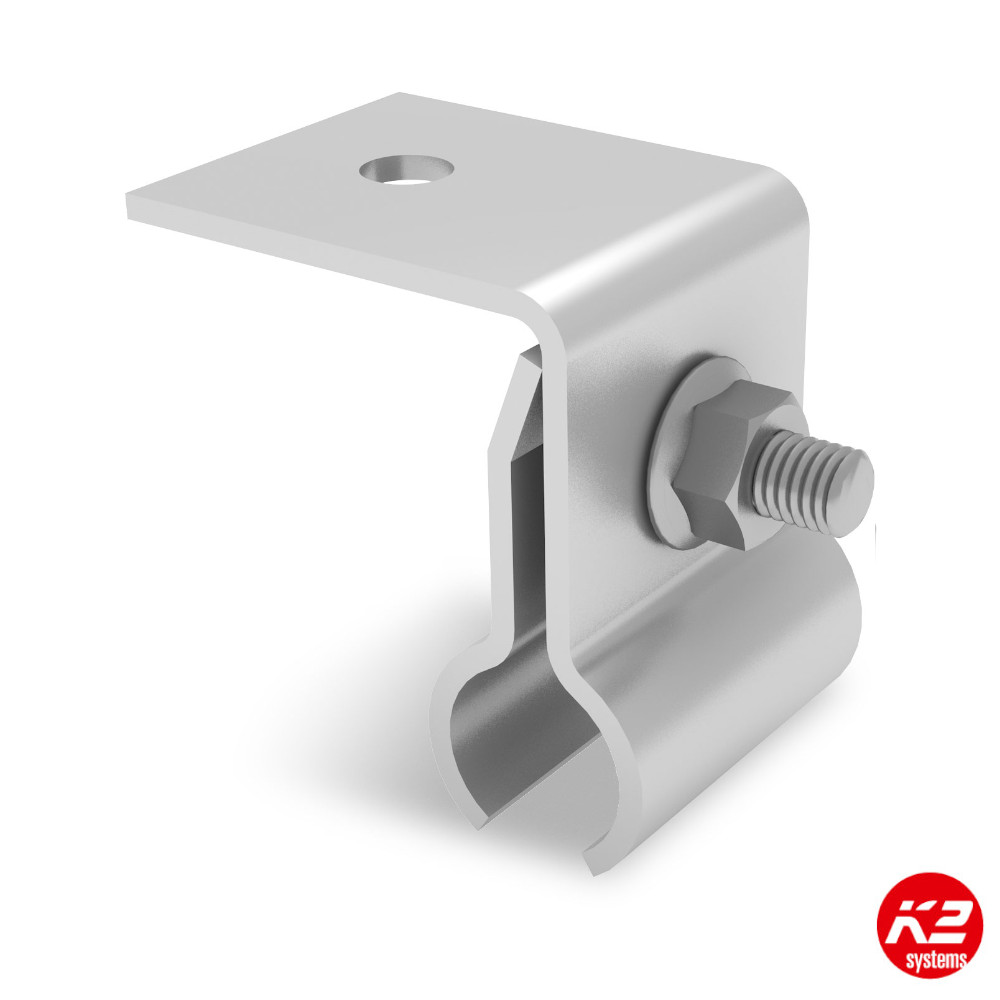

K2 Solid Round Seam Clamp

Metal seam clamp with a round hole for fixing the K2 SolidRail on metal seam roofs with double standing seam. Material: stainless steel A.

• Round seam
• Opening dimension: 10,5 mm

Also available in a box of 100 units.

K2 Solid Snap Seam Clamp CF x

The K2 Solid Snap Seam Clamp CF x is suitable for angled and snap seam profiles. Material: Clamp: Aluminium; Screws: Stainless steel A2

FEATURES:

• Aluminium clamp

• Opening dimension: 14.0mm

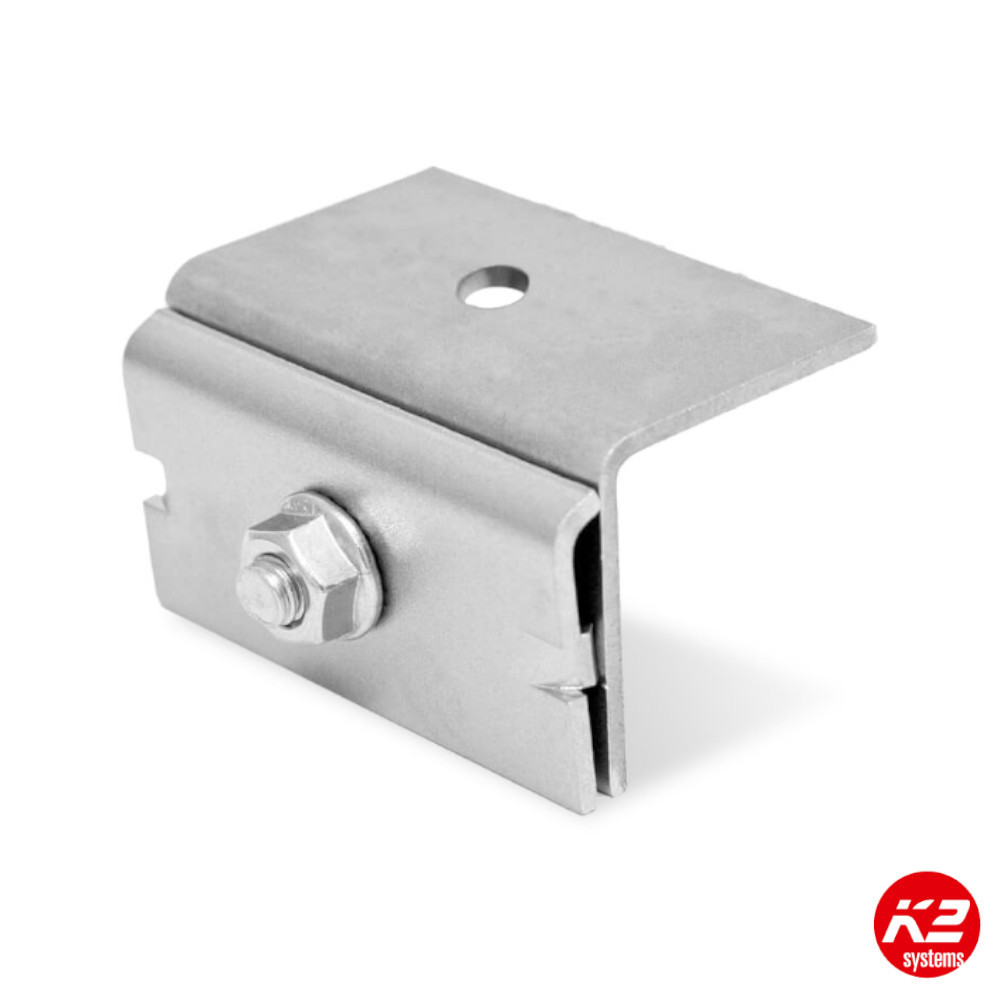

K2 Solid Standing Seam Clamp

Metal seam clamp with round hole for fixing the K2 SolidRail on metal seam roofs with double standing seam.

FEATURES:

• Double folded standing seam
• Material: Stainless Steel A2
• Standing seam opening width: 3.5 mm

Also available in a box of 100 units.

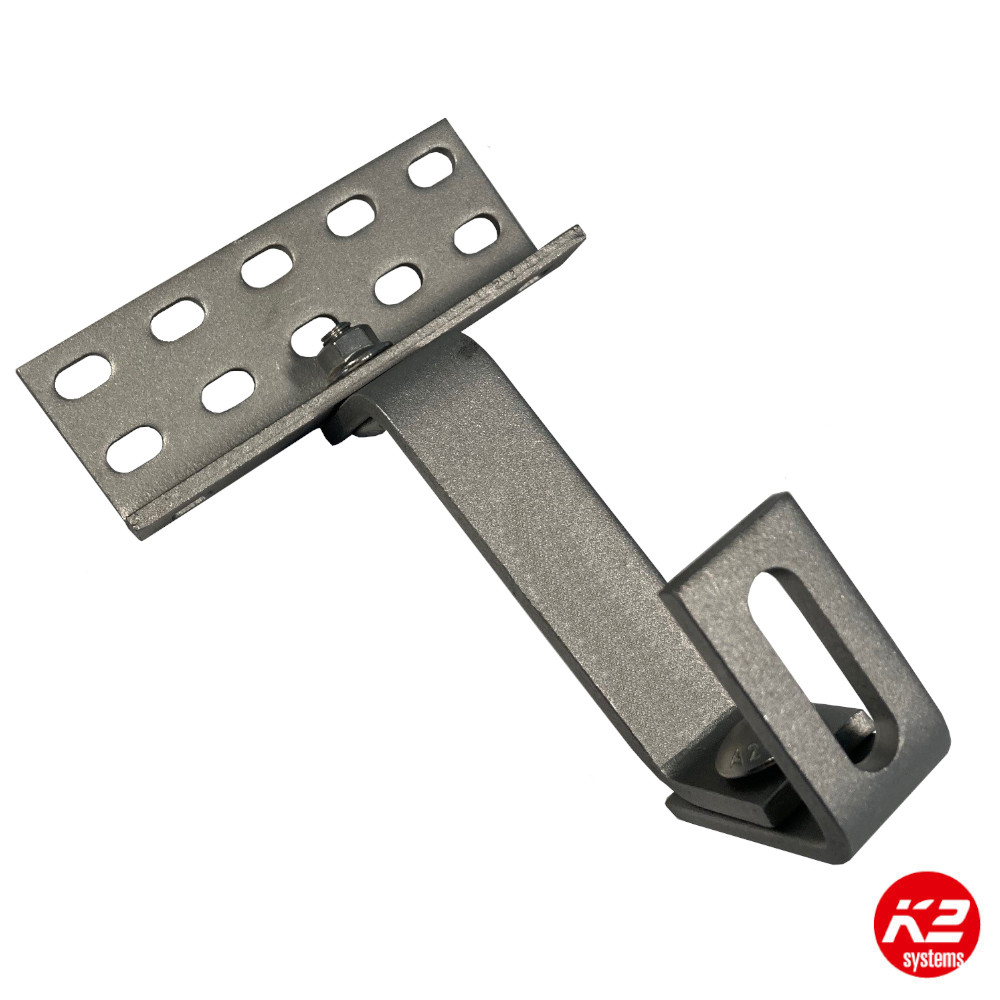

K2 SolidHook Vario 2 Narrow Rafters

Stainless steel roof hook for SolidRail and InsertionRail.

For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10.

Similar to the original Vario2 (1000107) but the borehole pattern in the base plate is different. With this new design (non-staggered) borehole, one can now also fix the hook to narrow rafters as woodscrews can be placed in line.

FEATURES:

• Base plate: 140x55x5 mm
• Bracket: 30x6 mm
• Bracket height: 57-76 mm
• Height under bracket: 41-50 mm
• Total height: approx. 128-156 mm

K2 SolidRail Light Rail 3.65m

Aluminum mounting rail with static confirmation for low snow zones and short spans.

FEATURES:

• Length: 3.65m, Height: 37mm
• Material: Aluminium EN AW 6063-T66

K2 SolidRail SolFastener M8x85/50 I FZD

Solar panel Solar Fastener for steel Ø 8,0 with M8x85/50 thread, FZD Solar fastener (stainless steel) for mounting K2 system components on roofs with sheet metal or trapeze or wave shaped roofs (for steel substructure) (without adapter plate). Building authority-certified. The head of the bolt has a six-lobe drive.

• Clamping area (mm): 14-55
• Suitable mounting systems: InsertionRail, SolidRail

• Pitched Roof
• Screw Length (mm): 85
• Screw Thread: M10x50
• Weight: 0.094Kg

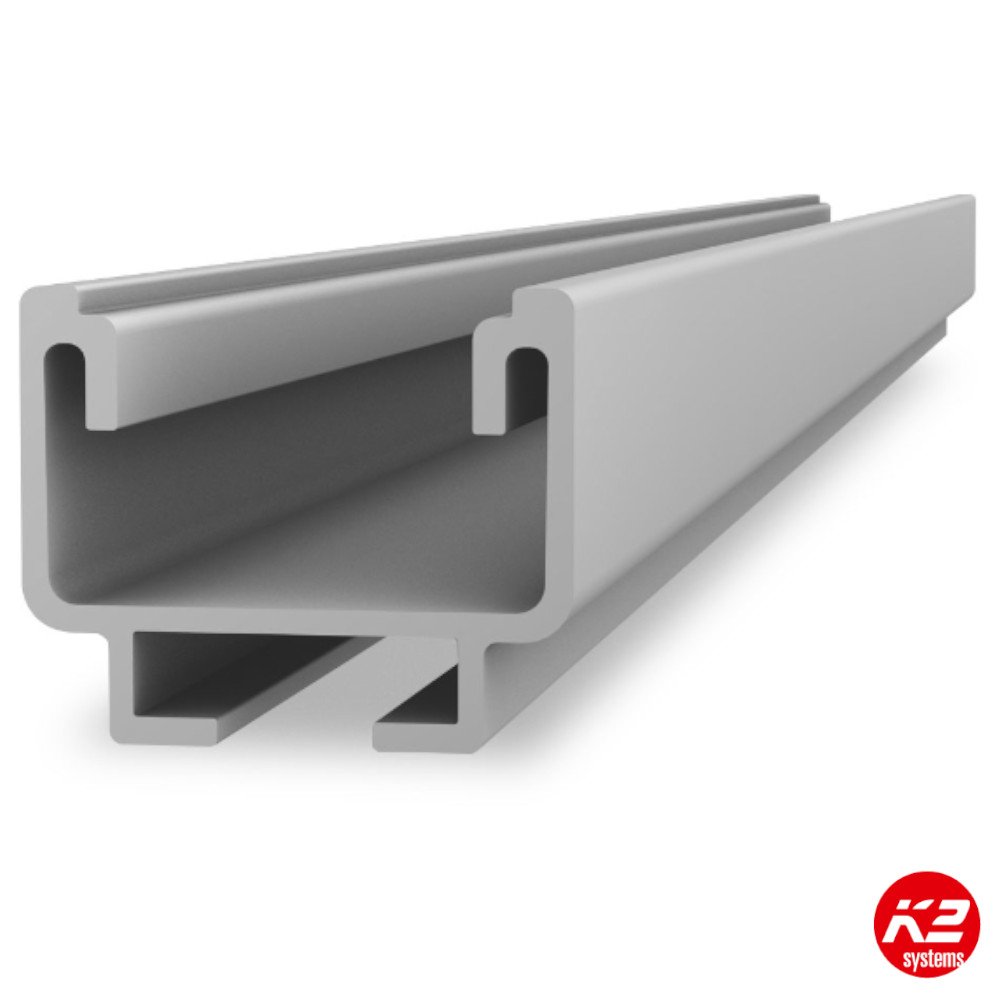

K2 SolidRail UltraLight Rail 3.65m

Aluminum mounting rail with static confirmation. Can be used variably for different roof connections.

FEATURES:

• Length: 3.65m, Height: 32mm
• Material: Aluminium EN AW-6063

Also sold in 100 units/pallet

K2 Spax Screw 6 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 100 Units
• Dimension: M6x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Spax Screw 8 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Spax Screw M8 x 100

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x100
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 SpeedClip

Glass fibre reinforced clip for direct mounting of SpeedRail on sheet metal.

Material: glass fibre reinforced polyamide, EPDM

Also available in a box of 40 units.

Please note, for each SpeedClip you need 2 head steel sheet screws 6x36 mm

K2 Speedlock Set 22

“SpeedLock” mounting security for fusing the K2 SpeedRail in case of thermal expansion.

The set consists of:

• 1 SpeedLock, Aluminium
• 1 DIN 7991 hexagon socket countersunk head screw M8 x 20, stainless steel
• 1 M K2 slot nut with clip, Stainless steel, plastic

Also available in a small box of 10 units and larger box of 140 units.

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

K2 T Bolt M8x30 20/12

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 20/12

Also available in a box of 100 units.

K2 T Bolt M10x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x20 mm

Also available in a box of 100 units.

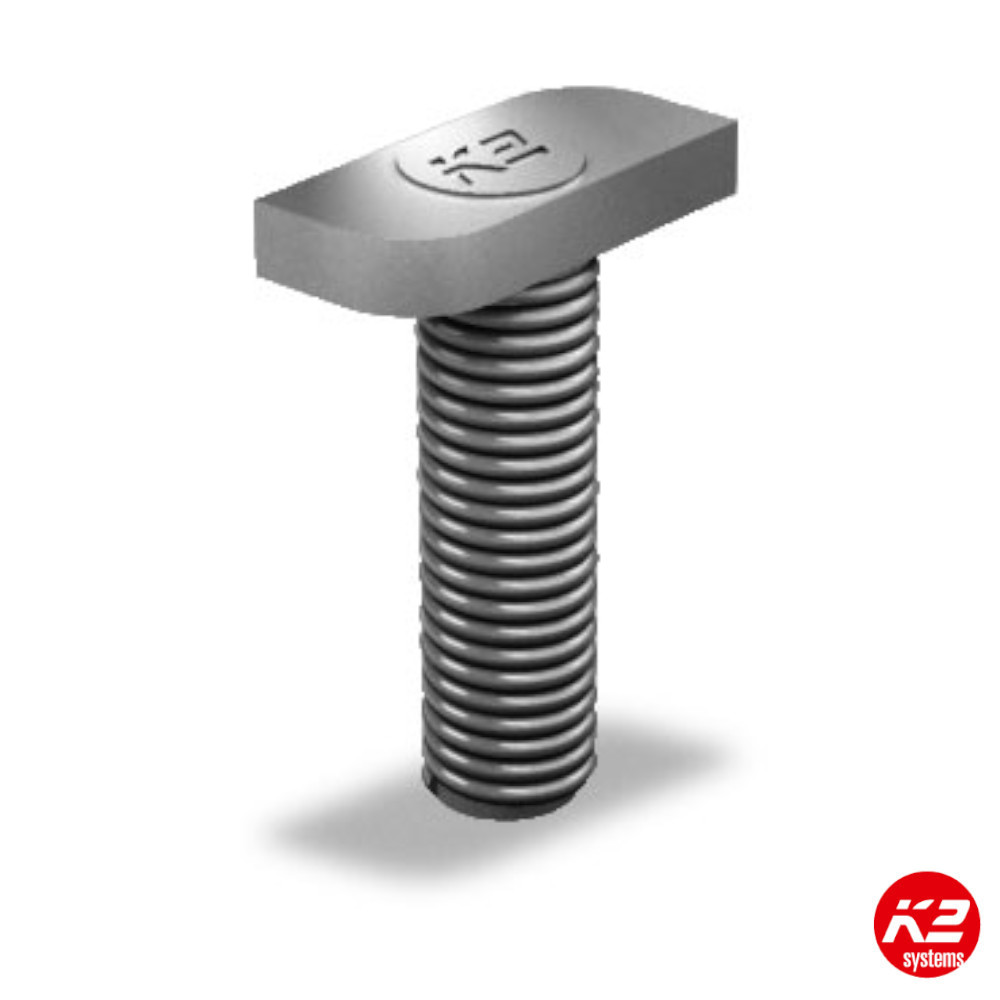

K2 T Bolt M10x30

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x30 mm

Also available in a box of 100 units.

K2 T Bolt M8x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head shape: 20/12
• Head dimensions: 15.5 x 8.5 x 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x20 with Wider Head 28/15

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head: 28/15 with four cornered shaft
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x30

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x30 mm

Also available in a box of 100 units.

K2 TerraGrif K2SZ

Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames.

** Incompatible systems: BasicRail (landscape mounting).

Material: stainless steel 301 TA

K2 Thread-Forming Metal Screw 4.8x20mm

K2 Self-tapping screw with mounted EPDM supported washer. Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 4.8x20 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 500 units.

K2 TiltUp Vento Beam 1.30m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.30m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Beam 1.60m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.60m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Beam 2.36m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 2.36m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Brace 679mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 679mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 856mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 856mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,320/Pallet.

K2 TiltUp Vento Brace 1,047mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1,047mm
• Material: aluminium EN AW 6060 T6

Also available in a 858/Pallet.

K2 TiltUp Vento Brace 446mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 446mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 558mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 558mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Foot

For the connection between the concrete foundation and the TiliUp Vento Brace.

• Scope of application: flat roof
• Material: Aluminium EN AW 6063 T66

Also available in a 9600/Pallet and 400/Box.

K2 TiltUp Vento Spring Plug

Spring plug DIN 11024.

• Scope of application: flat roof
• Material: Stainless steel A2-AISI304

Also available in a 100/small box, 1,500/box, 6,000/Pallet.

K2 TiltUp Vento Pin

Pin for connecting the TiltUp Vento profiles.

• Scope of application: flat roof
• Length: 65mm
• Diameter: 8mm
• Material: Stainless steel, 1.4301 (X5CrNi18-10) TS520

K2 Universal KL-Clamp – Box of 20

K2 sheet metal seam clamp for Klip-Lok 700 Hi-strength® and Klip-Lok Optima® 700 (Lysaght ™) sheet metal roofing; KingKlip® 700 (Fielders®); Klip-Lok® 406 (Lysaght ™).

With direct connection option for K2 module clamps.

Material: Aluminium EN AW 6063-T66

S-5! Seam Clamp

For fastening of K2 System parts on standing seam metal roofs.

Available to order within 2-3 working days. Contact sales on 020 3763 7000 or at sales@alternergy.co.uk.

S-5-GXM 10 Mini insert

S-5-GXM 10 Mini insert - specifically for use with the S-5-K Grip Mini clamp.

GXM-10 insert is suitable for use on:

• SpeedDeck® SpeedDeck®
• LYSAGHT KLIP-LOK® 406
• McElroy Metal Mirage
• AEP Span Klip-Rib®
• Metal Sales Clip-Loc
• Safintra Saflok 410
• Safintra Saflok 700
• Domico Dach®And other similar profiles

Please refer to product datasheet for full list of compatible roof materials.

Note: K-Grip seam clamps can come with 2 different ‘mini inserts’: one smaller S-5-GXM 50 (Mini) and one bigger S-5-GXM 10 (Mini), which is more popular in this country. Still, it's important to check if the insert you require fits in the roof covering before ordering.

S-5-GXM 50 Mini insert

S-5-GXM 50 Mini insert - specifically for use with the S-5-K Grip Mini clamp.

GXM-50 insert is suitable for use on:

• LYSAGHT KLIP-LOK Classic® 700
• LYSAGHT KLIP-LOK 700 Hi-Strength®
• Stramit® Speed Deck Ultra®
• Fielders KingKlip® 700
• And other similar profiles

Please refer to product datasheet for full list of compatible roof materials.

Note: K-Grip seam clamps can come with 2 different ‘mini inserts’: one smaller S-5-GXM 50 (Mini) and one bigger S-5-GXM 10 (Mini), which is more popular in this country. Still, it's important to check if the insert you require fits in the roof covering before ordering.

S-5-K Grip Mini clamp

The S-5-K Grip Mini clamp was specifically developed to fit Klip-Rib® and other bulb snap-together seams. The design utilizes multiple inserts (sold separately) in order to accommodate a variety of bulb snap-together profiles. Each insert has a unique shape that allows for a tight fit and provides increased holding strength over other attachment options. Compatible with most common metal roofing materials excluding copper.

The S-5-K Grip Mini is a bit shorter than the S-5-K Grip and has one base bolt rather than two.

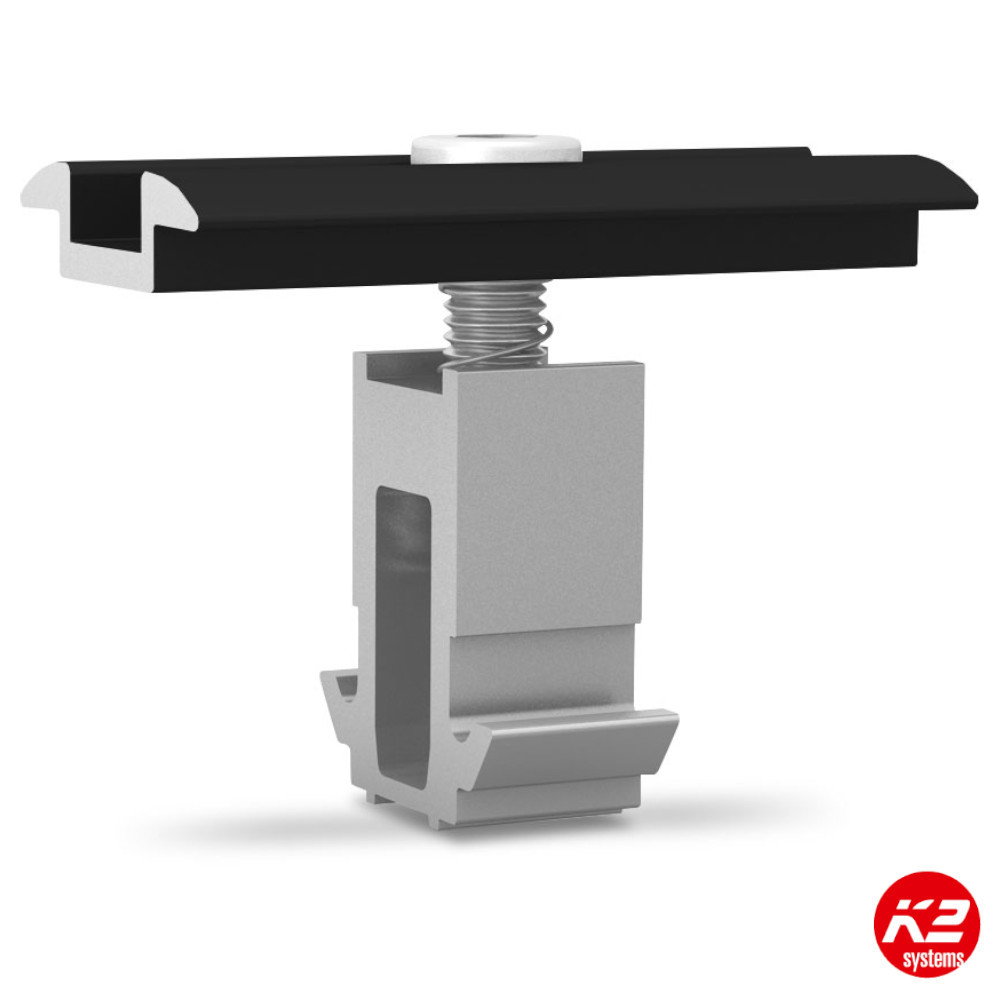

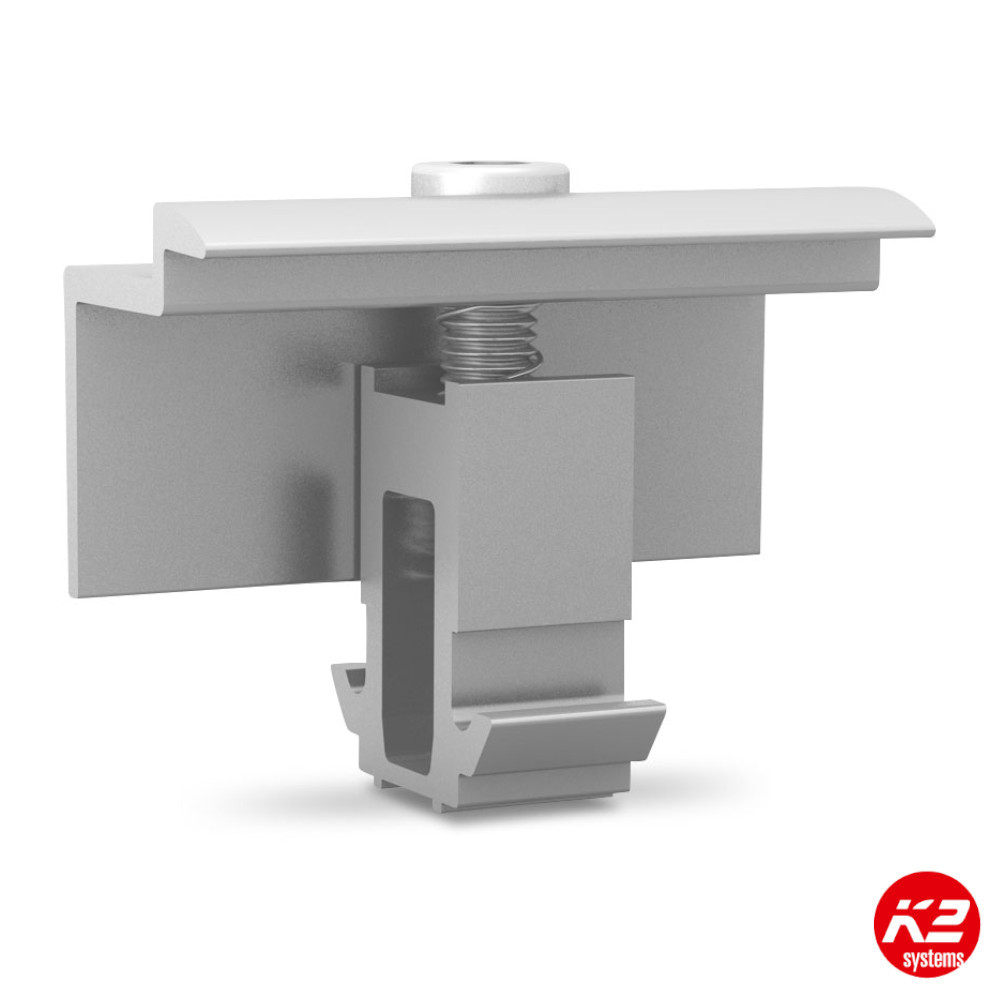

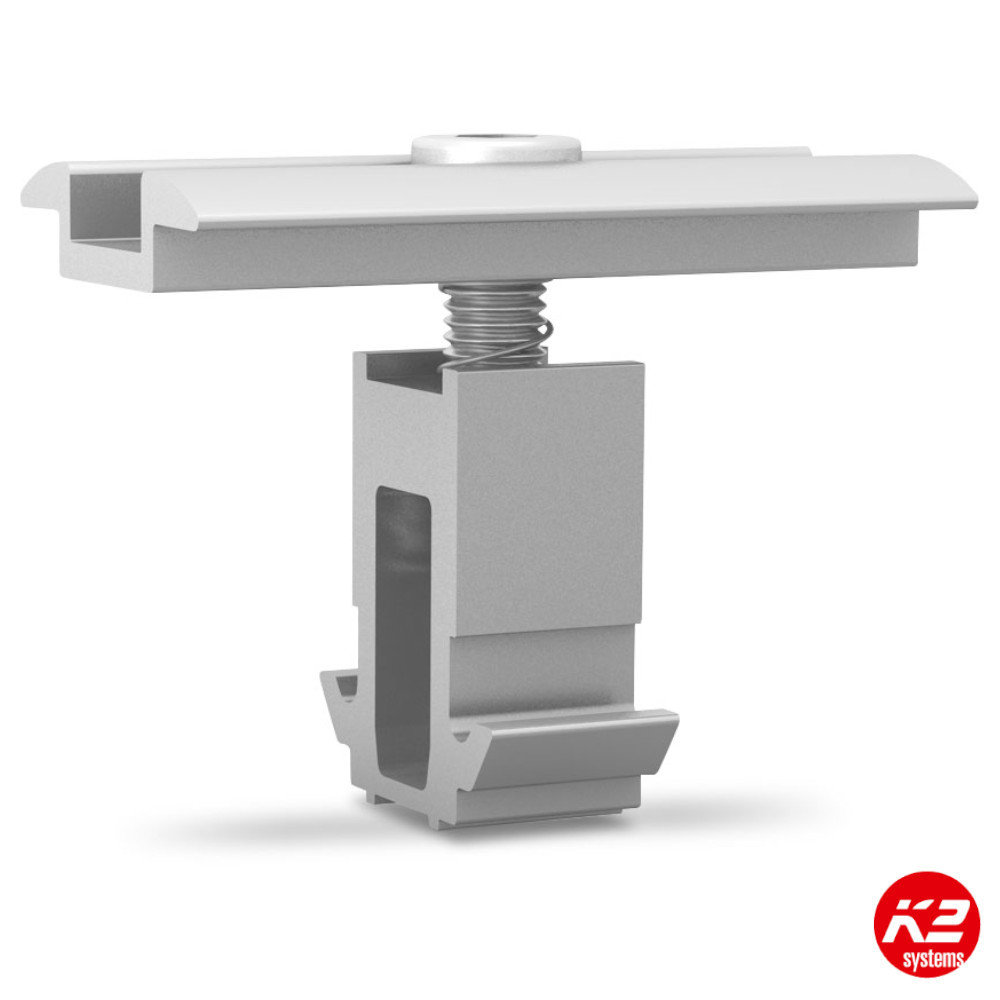

All included hardware is stainless steel. Each mini clamp is supplied with 1 x M8 bolt.
