K2 SingleRail System

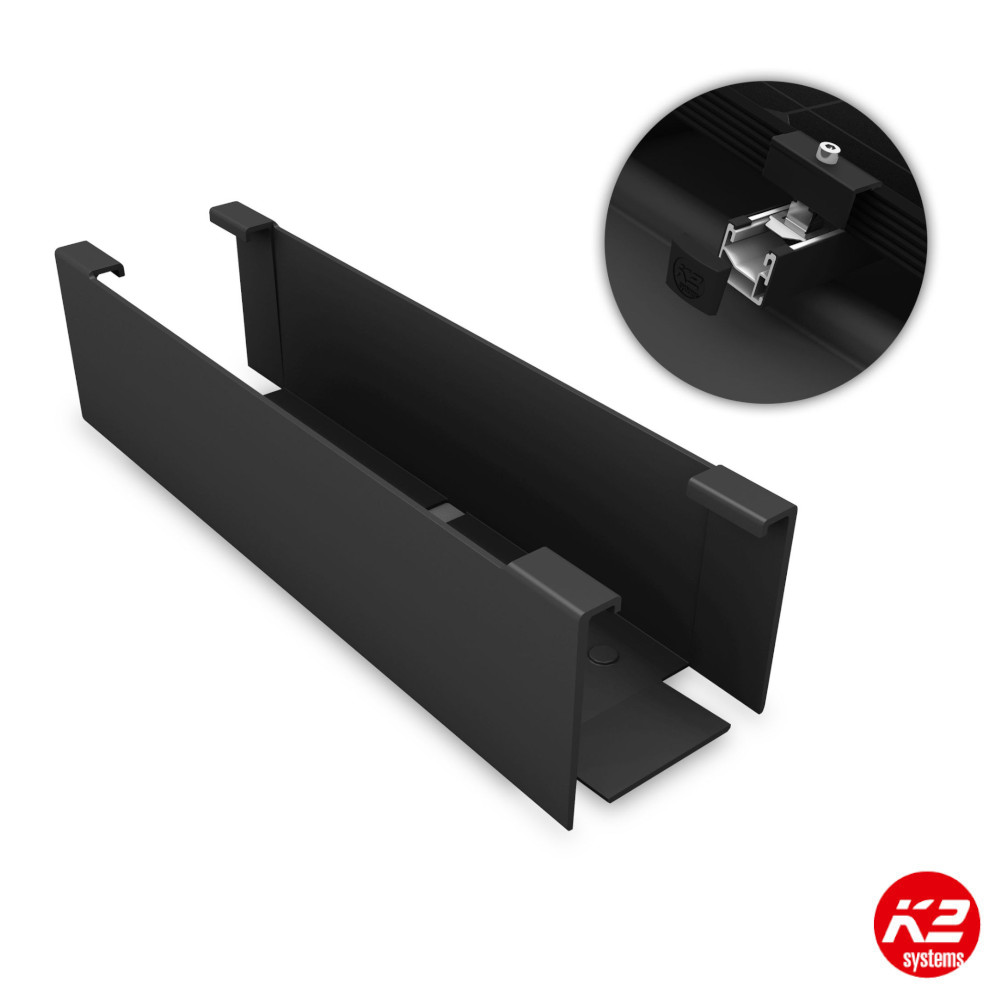

K2 BlackCover SingleRail 36

K2 BlackCover for black covering of the rail ends of the K2 SingleRail 36 and K2 SingleRail 36 light. Length of the cover: 150 mm.

FEATURES:

• Colour: Black
• Material: Plastic PA6 GK30

Also available in:

• Box of 112 units
• Bag of 16 units
• Pallet of 2,688 units

K2 Clamp EC 25-40

Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

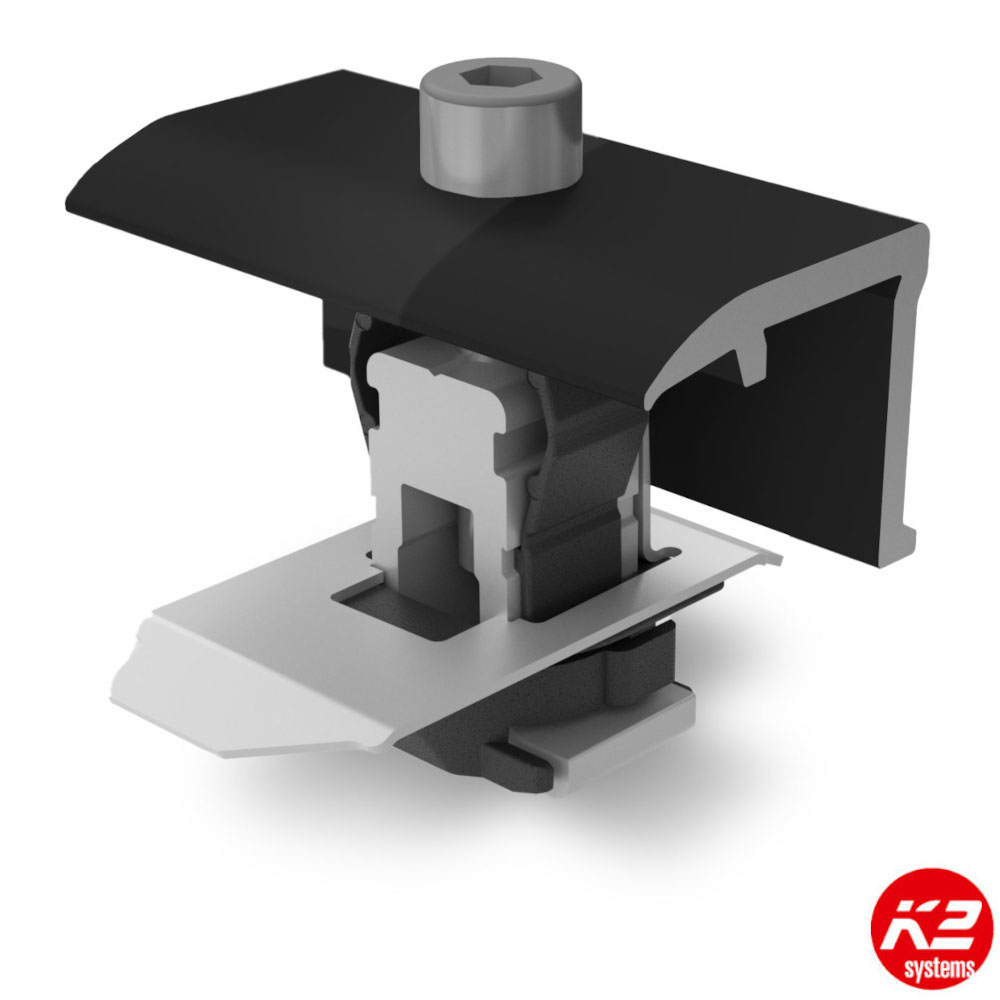

K2 Clamp EC 25-40 Black

Black anodised universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Black anodised
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

K2 Clamp MC 25-40

Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

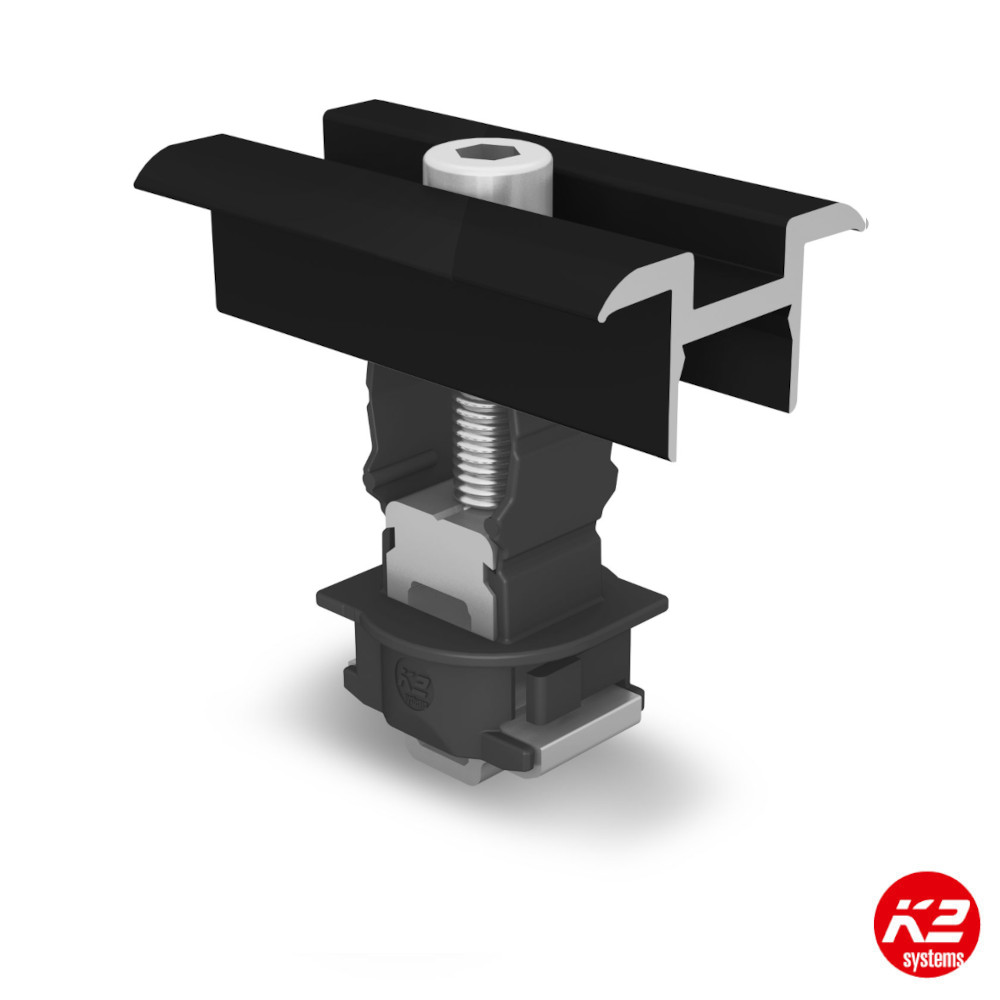

K2 Clamp MC 25-40 Black

Black anodized Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• Black anodised
• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

K2 Climber 36/50 M12

K2 Climber 36/50 Hanger Bolt M12, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M12.

Material: Aluminium EN AW-6063 T66

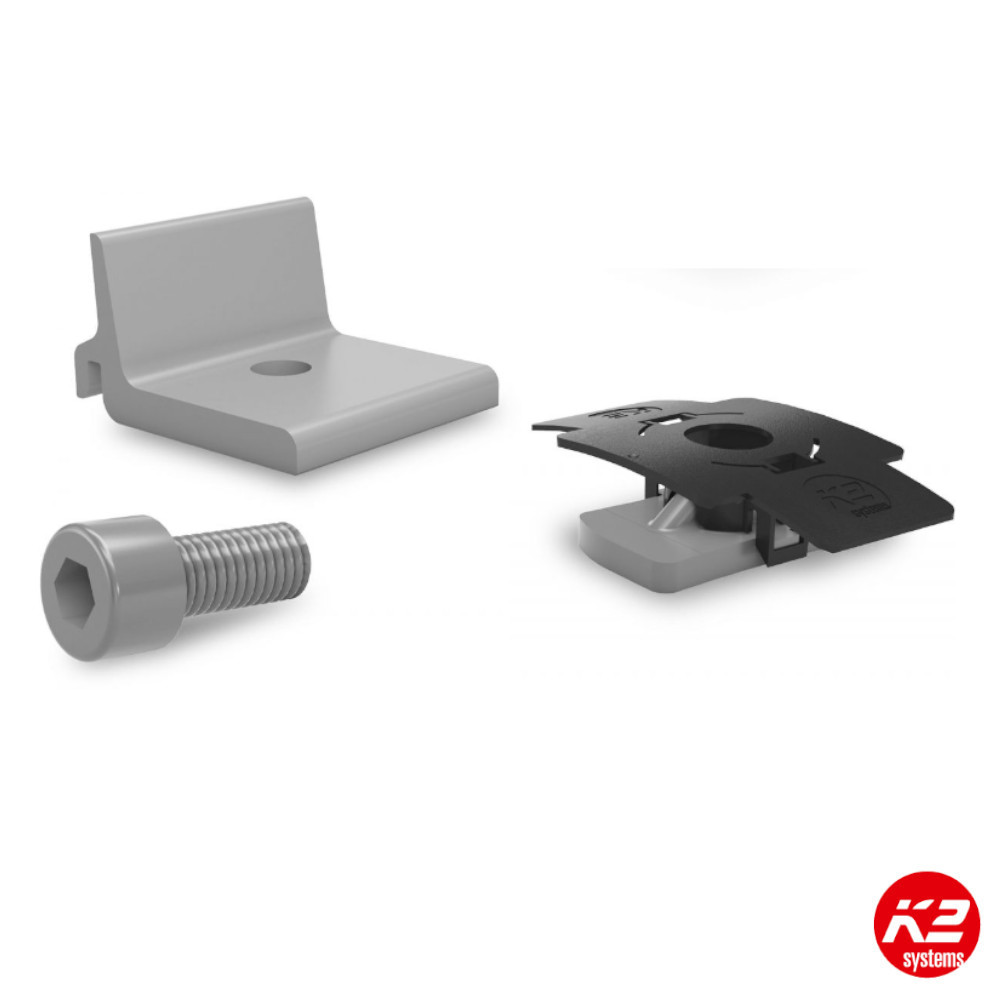

K2 Climber M8 36/50 Set

A cross connector for the K2 SingleRail 36 & 50 and the K2 CrossRail 36 & 48. Nuts and bolts included.

The set consists of:

• 1 Climber 36/50 Aluminium EN AW-6063 T66
• 1 Bolt with serrated under head M8x20, stainless steel A2
• 1 MK2 insert nut M8 (1001643), stainless steel

Also available in a box of 200 units.

K2 Climber for SingleRail 36/50 M10

K2 Climber 36/50 Hanger Bolt M10, for securing K2 Dome FixPro sets.K2 Climber 36/50 for hanger bolt M10. For fixing the mounting rail SingleRail or CrossRail to the hanger bolt M10.

Material: Aluminium EN AW-6063 T66

Also available in a box of 250 units.

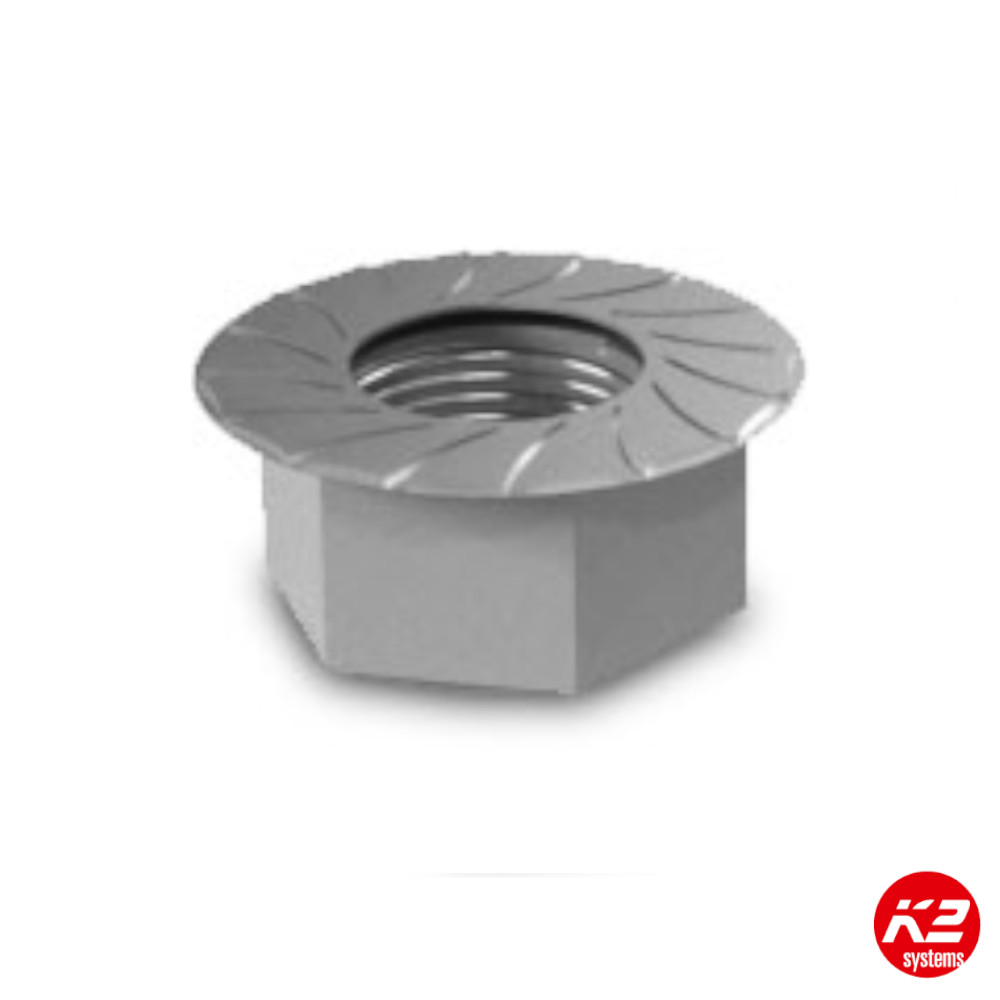

K2 Collar Nut M10

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M10

Also available in a box of 100 units.

K2 Collar Nut M8

FEATURES:

• Hexagon flange nut with serration, DIN 6923
• The locking splines prevent accidental release
• Material: Stainless steel A2
• Thread of screw: M8

Also available in a box of 100 units.

K2 Countersunk Head Screw M6 x 70 - 200 Units

Head timber screws, drilling-point and Countersunk head 6x70/42. Drive size: TX25.

• Box of 200 Units
• Diameter [mm]: 6
• Length [mm]: 70
• Head diameter [mm]: 12
• Drive: Hexalobular socket - 25
• Head shape: Countersunk head
• Mounting systems: K2 InsertionRail System, K2 SolidRail System
• Material: stainless steel A2

K2 CrossHook 2 FLA Set

Roof Hook for fastening of K2 system components to tile roofs with flat roof tiles, in accordance with BS EN 490. With pre-assembled K2 Climber 36/48 and Allen bolt for K2 SingleRail mounting.

Material: Stainless steel (1.4301)

Dimensions:

• Base plate width: 150mm
• Height under arms: 44mm
• Arm height: 46mm
• Total height: 100mm
• Depth: 116mm

Included:

• CrossHook 2
• Climber 36/48
• Allen bolt

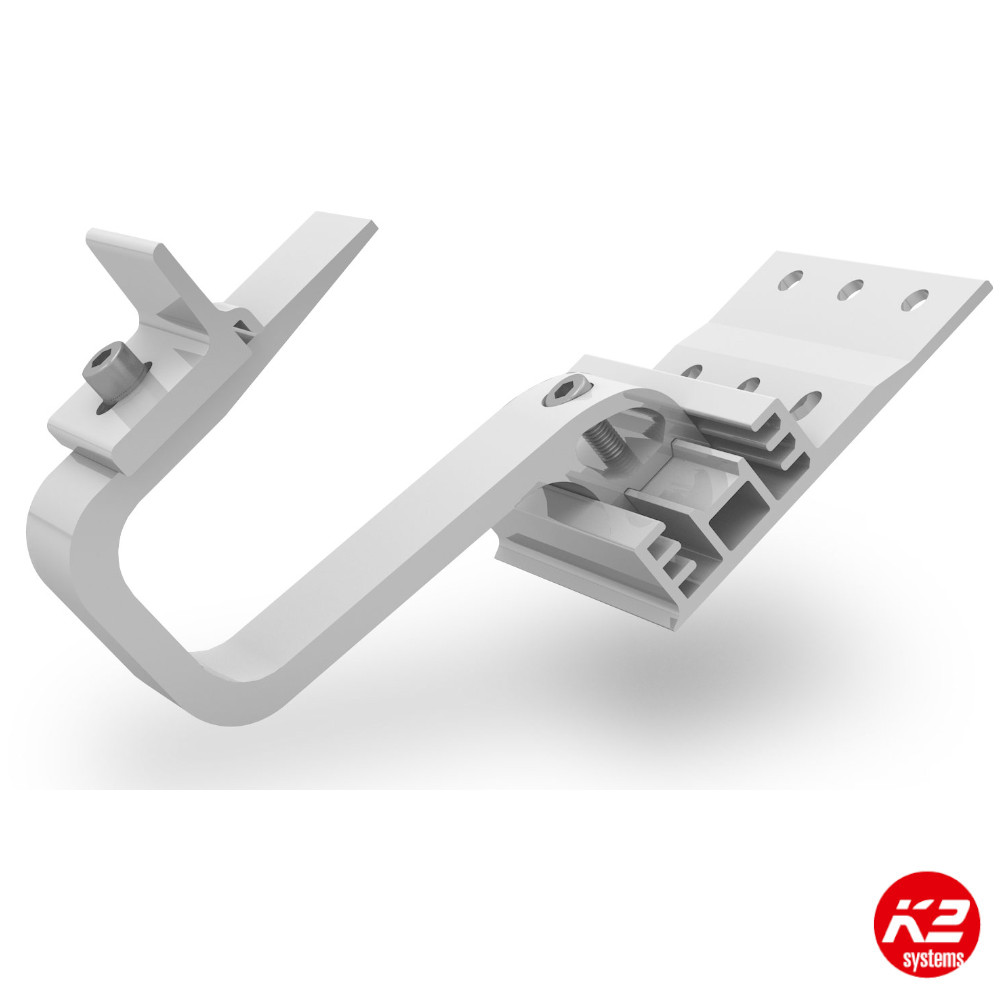

CrossHook 3S Set

Aluminium-roof fastener with 3 height adjustments in the base plate (40, 47, 54 mm) for narrow rafters from 36 mm.

For fastening the K2 SingleRail and CrossRail mounting rails.

Dimensions:

• Base plate width: 100mm
• Bracket depth: 83mm
• Total height: 123/130/137 mm
• Bracket height: 56mm

Includes:

• Pre-assembled Climber 36/50
• Allen bolt

Material: Aluminium EN AW-6063 T66

Also available in a box of 20 units.

Note: This part replaces item 2001672.

K2 End Cap for SingleRail 36

The high quality plastic mouldings fit accurately, are easily fixed and give the mounting system a shapely finish. Material: glass fibre reinforced polyamide.

Also available in a box of 100 units.

K2 End Clamp XS Set Black 30mm

Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 58mm
• Depth: 65mm

K2 End Clamp XS Set Black 35mm

Black anodised module end clamp set for fixing solar modules with frame heights of 35 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 63mm
• Depth: 65mm

K2 Hexagonal socket head cap screw M8x20mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 20
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Hexagonal socket head cap screw M8x50mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 50
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Mid Clamp XS Set 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black Anodised
• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Omega Clip

External cable clip of solar cables for cables extending beyond K2 rails.

Fixation in the C-chamber of the profile.

Material: Polypropylen with UV stabiliser, black

K2 Pad Spacer PA 2mm

Spacer compensates for height differences when installing the K2 threaded roof hooks and the K2 rails (except solid), any number of spacers can be stacked on top of each other for individual height compensation.

Material: glass fiber reinforced PA

Also available in a box of 1,000 units.

K2 Self-Tapping Moulded Screw 6x25mm

K2 Self-tapping screw with mounted EPDM supported washer.Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 6x25 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 160 units.

K2 Single Round Seam Clamp

Round standing clamp suits SingleRail System.

The Single Round Seam Clamp is used for mounting on various round bulb seams (such as Kalzip, Bemo, Aluform or RIB-ROOF Evolution).

FEATURES:

• Aluminium clamp
• A2 Stainless Steel screws
• Opening dimension:25.0mm

Also available in a box of 50 units.

K2 Single Snap Seam Clamp CF x

Double standing seam suits SingleRail System.

The K2 Single Snap Seam Clamp CF x is suitable for angled and snap seam profiles. It is made of titanium zinc, aluminium, stainless or galvanised steel.

FEATURES:

• Aluminium clamp
• Opening dimension: 14.0mm

Also available in a box of 50 units.

K2 Single Standing Seam Clamp

Double standing seam suits SingleRail System.

The Single Standing SeamClamp is suitable for double folded standing seams made of titanium zinc, aluminium, stainless or galvanised steel.

FEATURES:

• Aluminium clamp
• Opening dimension: 7.0mm

Also available in a box of 50 units.

K2 SingleHook 1.1 Set

To fasten K2 system components to tile roofs with narrow rafters from 36 mm. Slotted bore hole bracket for installation and height adjustability of the SingleRail including T-Bolt (stainless steel) and locking nut (stainless steel).

Material: Aluminium EN AW-6063 T66

Also available in a box of 40 units.

K2 SingleHook Vario Set

Dual, height-adjustable SingleHook Vario roof fastener, made of stainless steel, for direct connection to the SingleRail.

Bracket with slotted hole for mounting and adjusting the height of the SingleRail.

Height of bracket infinitely adjustable on baseplate to suit various battens by means of slotted hole. Including T-Bolt and Locking nut for SingleRail assembly.

Dimensions:

• Base plate width: 100 mm
• Height under bracket: 45-65 mm
• Bracket height: 68 mm
• Total height: 172-192 mm
• Bracket depth: 110 mm

Material: Stainless steel

Also available in a box of 25 units.

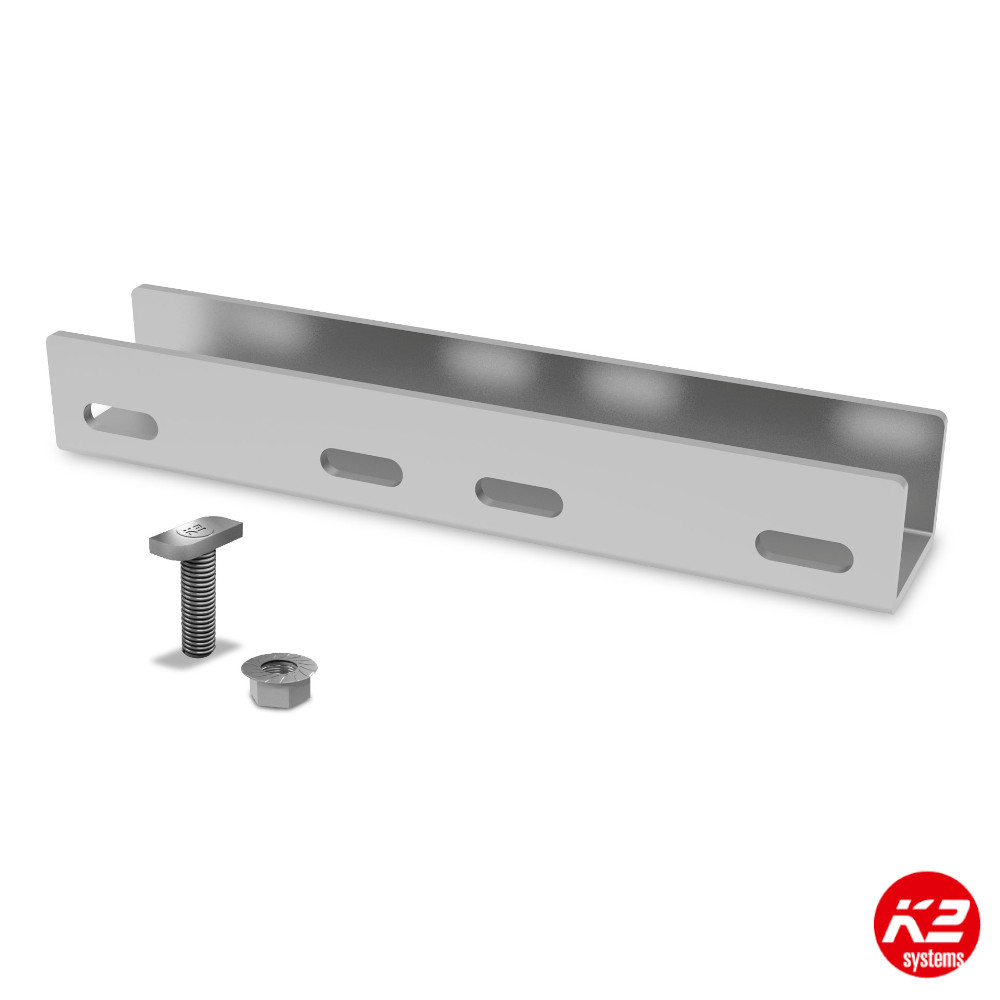

K2 SingleRail 36 - Rail Connector Set

K2 SingleRail 36 - Rail Connector Set Rail connector for K2 mounting rails, type "SingleRail 36". Material: Aluminium.

Set consists of:

• 1 x SingleRail connector 36, aluminium EN AW-6063 T66
• 4 x T-Bolts M8x20 Stainless Steel
• 4 x locking nut M8, Stainless Steel

Also available in a small box of 10 units and larger box of 60 units.

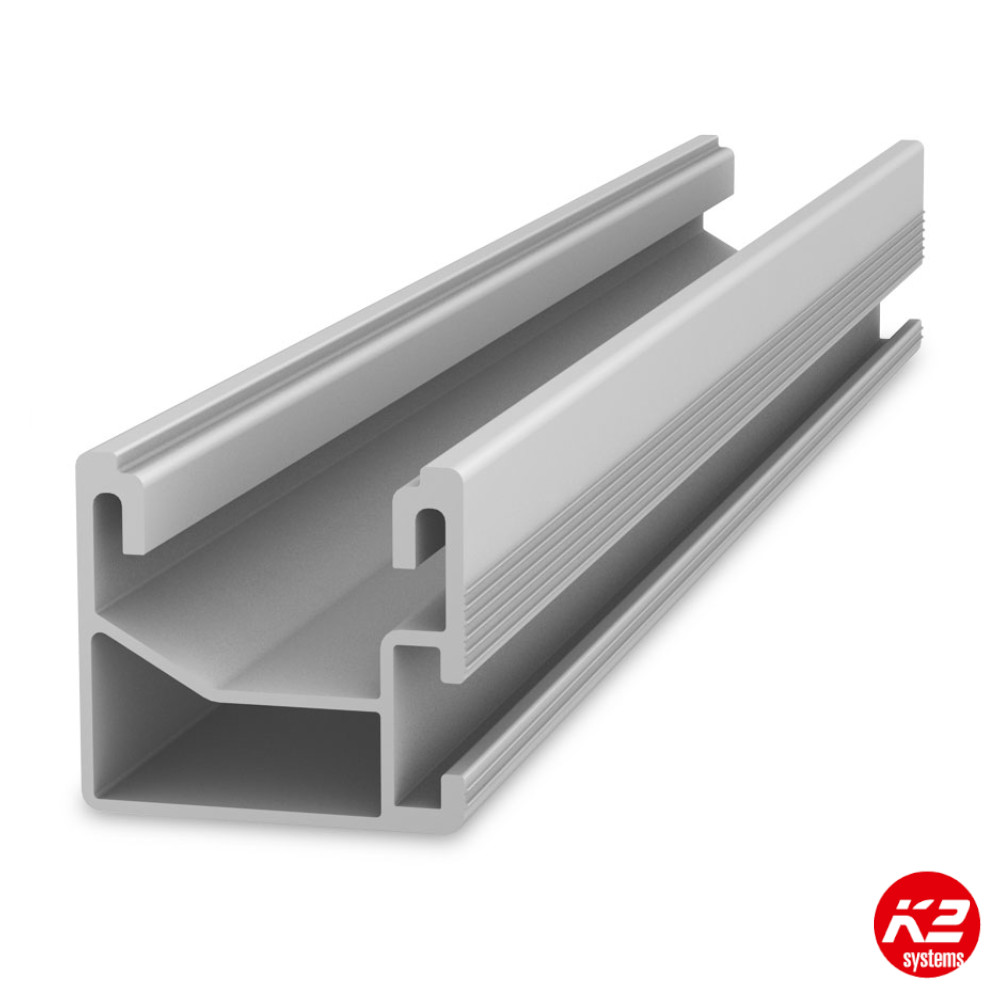

K2 SingleRail 36 3.65m

K2 SingleRail 36 mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections

FEATURES:

• Length: 3.65m
• Material: aluminium EN AW-6063 T66

Also sold in 100 units/pallet

K2 SingleRail 50 - Rail Connector Set

K2 SingleRail 50 - Rail Connector Set Rail connector for K2 mounting rails, type "SingleRail 50". Material: Aluminium.

Set consists of:

• 1 x SingleRail connector 50, aluminium EN AW-6063 T66
• 4 x T-Bolts M8x20 Stainless Steel
• 4 x locking nut M8, Stainless Steel

Also available in a small box of 10 units and larger box of 50 units.

K2 SingleRail 50 3.65m

K2 SingleRail 50 mounting rail with side-connection and static confirmation in K2 Base. Can be used variably for different roof connections

FEATURES:

• Length: 3.65m
• Material: Aluminium

Also sold in 100 units/pallet

K2 SingleRail L-Adapter SET

Set consists of:

• 1 L-adapter SingleRail, aluminium
• 1 self-locking nut M8, stainless steel
• 1 T-Bolt M8x20, stainless steel
• 1 Mushroom head bolt M10x25 stainless steel
• 1 Serrated nut M10, stainless steel

Also available in a box of 100 units.

K2 SingleRail Splice Foot

Aluminium roof fastener with SingleRail connection for bitumen roofs. Base plate: 89 mm x 50.8 mm. Total height of component: 68 mm. Height adjustment: 36.9 mm - 57.5 mm.

Material: Aluminium EN AW-6063 T66.

K2 Solid Snap Seam Clamp CF x

The K2 Solid Snap Seam Clamp CF x is suitable for angled and snap seam profiles. Material: Clamp: Aluminium; Screws: Stainless steel A2

FEATURES:

• Aluminium clamp

• Opening dimension: 14.0mm


K2 Spax Screw 6 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 100 Units
• Dimension: M6x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Spax Screw 8 x 80

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x80
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Spax Screw M8 x 100

Self-drilling wood screw, flange head Self-drilling wood screw with flange head (Topix) and star socket (Torx) from Heco. With European Technical Assessment (ETA) approval.

• Box of 50 Units
• Dimension: M8x100
• Matches TX 25/40 screwdrivers
• Material: stainless steel A2

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

K2 T Bolt M8x30 20/12

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 20/12

Also available in a box of 100 units.

K2 T Bolt M10x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x20 mm

Also available in a box of 100 units.

K2 T Bolt M10x30

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x30 mm

Also available in a box of 100 units.

K2 T Bolt M8x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head shape: 20/12
• Head dimensions: 15.5 x 8.5 x 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x20 with Wider Head 28/15

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head: 28/15 with four cornered shaft
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x30

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x30 mm

Also available in a box of 100 units.

K2 Universal End Clamp One SILVER 30-42mm

Universal clamp (end clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight(32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Domeand D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 33 x 66.8 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.

K2 Universal KL-Clamp – Box of 20

K2 sheet metal seam clamp for Klip-Lok 700 Hi-strength® and Klip-Lok Optima® 700 (Lysaght ™) sheet metal roofing; KingKlip® 700 (Fielders®); Klip-Lok® 406 (Lysaght ™).

With direct connection option for K2 module clamps.

Material: Aluminium EN AW 6063-T66

K2 Universal Mid Clamp One SILVER 30-42mm

Universal clamp (mid clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight (32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Dome and D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 37 x 65.6 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.
