Rayleigh RI-D140-G-C (MID) Multi-function Power Meter
The RI-D140 is a MID-approved DIN rail mounted multifunction energy meter, suitable for monitoring energy consumption and many other electrical parameters in industrial and commercial applications.
These meters may be used in single or three phase four wire systems, depending on what mode it’s set as when first installed. It cannot be changed after installation and setup.
Its MID status means the RI-D140 has been tested for the build quality and accuracy of the meter and is certified for billing purposes.

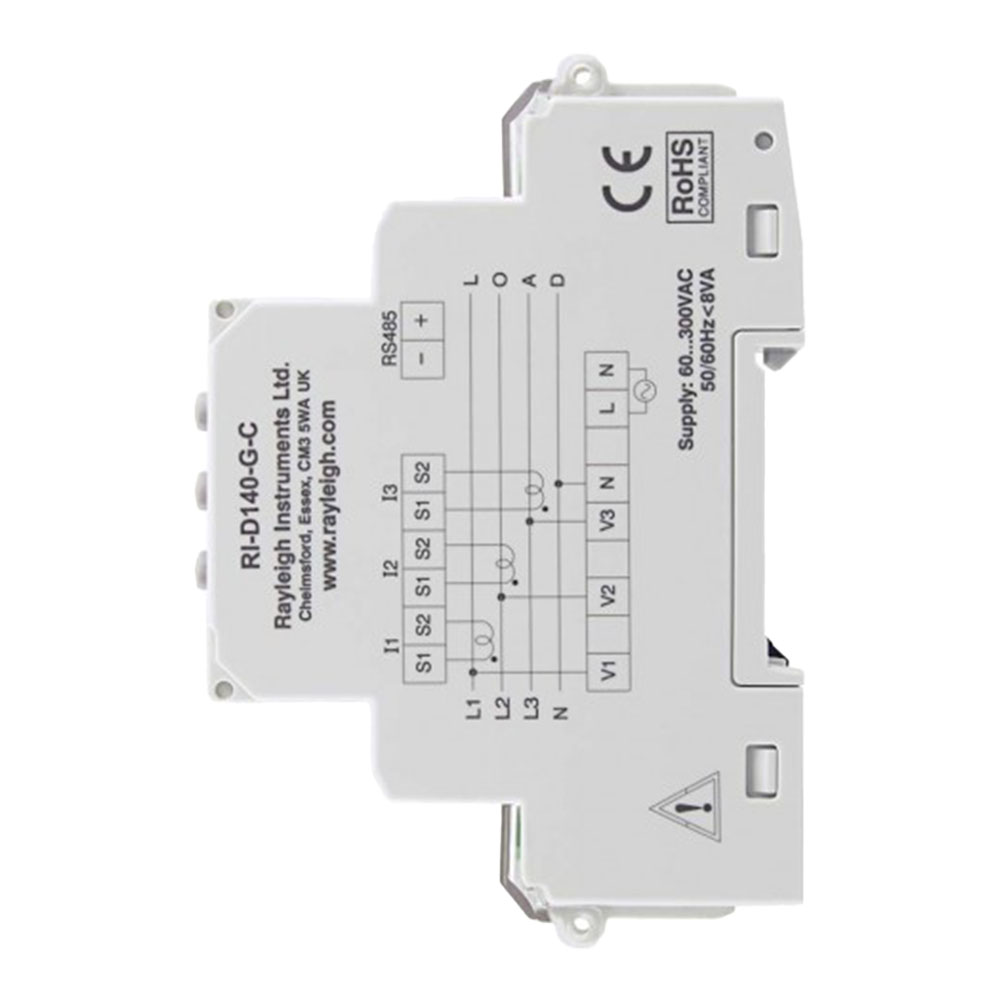

The unit is housed in a compact four module width housing suitable for 35mm DIN rail mounting.
FEATURES:
- Four module DIN rail mounted
- Single Phase or Three Phase Network, Four Wire
- High definition white backlit LCD display
- -/1A or -/5A current transformer input (MID certification only on 5A)
- Conforms & Certified to MID B and D approval (SGS Cert. No. : 0120/SGS0276)
- RS485 Modbus Communication
- Simple programming and operation
- 12 month Warranty
| Accessory Phase | Single Phase or Three Phase |
| Accessory By Type | Energy & Smart Meters or Inverter Accessories |
| Brand | Rayleigh |
