String Inverters

GoodWe 1.5kW XS G3 1Ph String Inverter - 1MPPT, DC & AFCI

The GoodWe XS G3 is a compact single-phase inverter for modern homes. It delivers high yields in a lightweight unit and is suitable for indoor or outdoor installation. It supports high-current modules up to 16 A and allows up to 110% AC output.

Natural convection keeps it quiet, and a low start-up voltage helps the inverter begin tracking earlier in the morning and stay online later as array voltage dips.

Quick commissioning via the GoodWe app, SEMS monitoring, smart-home and SG-ready (Smart Grid-ready) compatibility, export limiting, 24-hour load monitoring, and weather-resistant construction make it a reliable fit for single-phase residential systems.

KEY FEATURES:

• 1.5kW, single-phase string inverter with AFCI
• Ultra-compact and lightweight (4.6 kg)
• 1 MPPT architecture for simple, cost-effective installs
• Supports high-power modules with up to 16 A input current
• Low start-up voltage (50V) - for higher energy harvest
• European efficiency: 96.0%
• 10% additional power compared to the nominal output
• Silent, fanless operation using natural convection cooling
• App-based commissioning and remote monitoring via GoodWe SEMS
• Smart home and SG-ready integration
• Export-limiting compatibility for UK DNO requirements
• IP66 enclosure for indoor or outdoor installation
• Surge protection Type III (Type II optional)
• Warranty: 10 years

GoodWe 100kW GT 3Ph String Inverter - AFCI, Type I+II SPD DC

Engineered for modern C&I solar, the GT Series combines high power density with smart thermal design to deliver strong output, solid reliability and quicker payback.

Multiple MPPTs and high string current (21A) support today’s large-format, high-power modules, while robust surge protection and weatherproofing keep systems running in tough environments. The result is a compact, installer-friendly inverter platform that simplifies commissioning and helps maximise lifetime energy yield on rooftops, carports and small ground-mounts.

KEY FEATURES:

• 8 MPPTs
• Type I+II SPD DC
• Up to 150 kW max DC input (150% DC oversizing)
• Lower CAPEX & OPEX: high power density with up to 137kW maximum power for low voltage grid applications (400V).
• AFCI for enhanced arc-fault mitigation.
• Up to 21 A per string, compatible with high-current PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.4%
• IP66 enclosure with C4 corrosion protection (optional C5) for coastal/industrial sites.
• Communication: RS485, WiFi or 4G or PLC(Optional)
• String-level monitoring and remote portal access for fast diagnostics via GoodWe platforms
• Typical applications: large commercial rooftops (warehouses, distribution centres, schools, hospitals), carports/canopies, and small–medium ground-mount or community solar
• Warranty: 5 Years

GoodWe 10kW SDT G3 3Ph String Inverter - 2 MPPTs, DC & AFCI

GoodWe 10K SDT-30 is a three-phase string inverter with 2 MPPTs and integrated AFCI. It suits modern high-power PV modules for residential and small commercial systems. The lightweight, compact design and quiet operation make it easy to handle and straightforward to install.

It delivers high energy yields with 150% DC oversizing and 110% AC overloading, plus high conversion efficiency. The unit is IP66 rated for outdoor use and supports simple commissioning and smart energy management.

KEY FEATURES:

• 10 kW, 3-phase, 2 MPPT, 2 strings (1 per MPPT) for flexible rooftop layouts
• AFCI (Arc-Fault Circuit Interrupter) for enhanced DC safety with automatic arc detection
• Max PV input: 1100 V
• European efficiency: 98%
• Supports 150% DC oversizing and 110% AC overloading for better yield
• Compact & light: 14.7 kg
• Communication: standard RS485; Wi-Fi, LAN, 4G, or Bluetooth (Optional)
• Fanless design for quiet operation
• IP66 enclosure for outdoor installation
• Built-in DC switch, Type II SPD optional
• Anti-islanding and grid protections integrated

GoodWe 110kW GT 3Ph String Inverter - AFCI, Type I+II SPD DC

Engineered for modern C&I solar, the GT Series combines high power density with smart thermal design to deliver strong output, solid reliability and quicker payback.

Multiple MPPTs and high string current (21A) support today’s large-format, high-power modules, while robust surge protection and weatherproofing keep systems running in tough environments. The result is a compact, installer-friendly inverter platform that simplifies commissioning and helps maximise lifetime energy yield on rooftops, carports and small ground-mounts.

KEY FEATURES:

• 10 MPPTs
• AFCI, Type I+II SPD DC
• Up to 165 kW max DC input (150% DC oversizing)
• Lower CAPEX & OPEX: high power density with up to 137kW maximum power for low voltage grid applications (400V).
• AFCI for enhanced arc-fault mitigation.
• Up to 21 A per string, compatible with high-current PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.4%
• IP66 enclosure with C4 corrosion protection (optional C5) for coastal/industrial sites.
• Communication: RS485, WiFi or 4G or PLC(Optional)
• String-level monitoring and remote portal access for fast diagnostics via GoodWe platforms
• Typical applications: large commercial rooftops (warehouses, distribution centres, schools, hospitals), carports/canopies, and small–medium ground-mount or community solar
• Warranty: 5 Years

GoodWe 125kW GT 3Ph String Inverter - AFCI, Type I+II SPD DC

Engineered for modern C&I solar, the GT Series combines high power density with smart thermal design to deliver strong output, solid reliability and quicker payback.

Multiple MPPTs and high string current (21A) support today’s large-format, high-power modules, while robust surge protection and weatherproofing keep systems running in tough environments. The result is a compact, installer-friendly inverter platform that simplifies commissioning and helps maximise lifetime energy yield on rooftops, carports and small ground-mounts.

KEY FEATURES:

• 10 MPPTs
• Type I+II SPD DC
• Up to 187.5 kW max DC input (150% DC oversizing)
• Lower CAPEX & OPEX: high power density with up to 137kW maximum power for low voltage grid applications (400V).
• AFCI for enhanced arc-fault mitigation.
• Up to 21 A per string, compatible with high-current PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.4%
• IP66 enclosure with C4 corrosion protection (optional C5) for coastal/industrial sites.
• Communication: RS485, WiFi or 4G or PLC(Optional)
• String-level monitoring and remote portal access for fast diagnostics via GoodWe platforms
• Typical applications: large commercial rooftops (warehouses, distribution centres, schools, hospitals), carports/canopies, and small–medium ground-mount or community solar
• Warranty: 5 Years

GoodWe 150kW GT inverter with 10MPPT DC & AFCI Type I & II DC SPD & Type I AC SPD

The GoodWe GT 150kW string inverter is ideal for large-scale commercial and industrial applications. Engineered for modern C&I solar, the GT Series combines high power density with smart thermal design to deliver strong output, solid reliability and quicker payback.

Multiple MPPTs and high string current (21A) support today’s large-format, high-power modules, while robust surge protection and weatherproofing keep systems running in tough environments. The result is a compact, installer-friendly inverter platform that simplifies commissioning and helps maximise lifetime energy yield on rooftops, carports and small ground-mounts

Note: Pending for G99/G100 Certificate

KEY FEATURES:

• 10 MPPTs
• Type I+II SPD DC
• AI-driven AFCI 3.0 for safety
• DC smart circuit breaker
• Max. Input Current per MPPT: 42A
• Up to 21 A per string, compatible with high-current PV modules
• European efficiency: up to 98.5%
• IP66 protection
• Communication: RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth
• Warranty: 5 Years


GoodWe 15kW 3ph String Inverter

The GoodWe SDT G3 Series is a three-phase string inverter, designed for residential and small commercial systems with high-power PV modules. The SDT G3 inverters allow for high current input.

With up to 22 A maximum current input per string, the inverter is fully compatible with high-power modules.

It offers integrated safety features including AFCI (Arc-Fault Circuit Interruption) and optional Type II surge protection on both the AC and DC sides, ensuring enhanced electrical safety and lightning protection. With IP66 protection and a naturally cooled design, the SDT G3 operates quietly and efficiently, making it ideal for both indoor and outdoor installations.

Note: Pending for G98/G99/G100 Certificate

KEY FEATURES:

• Maximum efficiency of 98.2%
• Modern and compact design
• Smart and silent operation
• Increased yield (110% AC power)
• 2 MPPTs
• Optional AFCI 3.0 function
• Smart energy management
• IP66 protection
• AFCI (optional)
• DC Surge Protection Type III (Type II Optional)
• Cooling Method: Natural Convection
• Integrated Remote Shutdown

GoodWe 1kW XS G3 1Ph String Inverter - 1MPPT, DC & AFCI

The GoodWe XS G3 is a compact single-phase inverter for modern homes. It delivers high yields in a lightweight unit and is suitable for indoor or outdoor installation. It supports high-current modules up to 16 A and allows up to 110% AC output.

Natural convection keeps it quiet, and a low start-up voltage helps the inverter begin tracking earlier in the morning and stay online later as array voltage dips.

Quick commissioning via the GoodWe app, SEMS monitoring, smart-home and SG-ready (Smart Grid-ready) compatibility, export limiting, 24-hour load monitoring, and weather-resistant construction make it a reliable fit for single-phase residential systems.

KEY FEATURES:

• 1kW, single-phase string inverter with AFCI
• Ultra-compact and lightweight (4.6 kg)
• 1 MPPT architecture for simple, cost-effective installs
• Supports high-power modules with up to 16 A input current
• Low start-up voltage (50V) - for higher energy harvest
• European efficiency: 95.0%
• 10% additional power compared to the nominal output
• Silent, fanless operation using natural convection cooling
• App-based commissioning and remote monitoring via GoodWe SEMS
• Smart home and SG-ready integration
• Export-limiting compatibility for UK DNO requirements
• IP66 enclosure for indoor or outdoor installation
• Surge protection Type III (Type II optional)
• Warranty: 10 years

GoodWe 2.5kW XS G3 1Ph String Inverter - 1MPPT, DC & AFCI

The GoodWe XS G3 is a compact single-phase inverter for modern homes. It delivers high yields in a lightweight unit and is suitable for indoor or outdoor installation. It supports high-current modules up to 16 A and allows up to 110% AC output.

Natural convection keeps it quiet, and a low start-up voltage helps the inverter begin tracking earlier in the morning and stay online later as array voltage dips.

Quick commissioning via the GoodWe app, SEMS monitoring, smart-home and SG-ready (Smart Grid-ready) compatibility, export limiting, 24-hour load monitoring, and weather-resistant construction make it a reliable fit for single-phase residential systems.

KEY FEATURES:

• 2.5kW, single-phase string inverter with AFCI
• Ultra-compact and lightweight (4.6 kg)
• 1 MPPT architecture for simple, cost-effective installs
• Supports high-power modules with up to 16 A input current
• Low start-up voltage (50V) - for higher energy harvest
• European efficiency: 97.0%
• 10% additional power compared to the nominal output
• Silent, fanless operation using natural convection cooling
• App-based commissioning and remote monitoring via GoodWe SEMS
• Smart home and SG-ready integration
• Export-limiting compatibility for UK DNO requirements
• IP66 enclosure for indoor or outdoor installation
• Surge protection Type III (Type II optional)
• Warranty: 10 years

GoodWe 20kW 3ph String Inverter

The GoodWe SDT G3 Series is a three-phase string inverter, designed for residential and small commercial systems with high-power PV modules. The SDT G3 inverters allow for high current input.

With up to 22 A maximum current input per string, the inverter is fully compatible with high-power modules.

It offers integrated safety features including AFCI (Arc-Fault Circuit Interruption) and optional Type II surge protection on both the AC and DC sides, ensuring enhanced electrical safety and lightning protection. With IP66 protection and a naturally cooled design, the SDT G3 operates quietly and efficiently, making it ideal for both indoor and outdoor installations.

Note: Pending for G98/G99/G100 Certificate

KEY FEATURES:

• Maximum efficiency of 98.2%
• Modern and compact design
• Smart and silent operation
• Increased yield (110% AC power)
• 2 MPPTs
• Max. Input Current per MPPT:  32 / 22A
• Optional AFCI 3.0 function
• Smart energy management
• IP66 protection
• AFCI (optional)
• DC Surge Protection Type III (Type II Optional)
• Smart Fan Cooling
• Integrated Remote Shutdown

GoodWe 25kW 3ph String Inverter

The GoodWe SDT G3 Series is a three-phase string inverter, designed for residential and small commercial systems with high-power PV modules. The SDT G3 inverters allow for high current input.

It offers integrated safety features including AFCI (Arc-Fault Circuit Interruption) and optional Type II surge protection on both the AC and DC sides, ensuring enhanced electrical safety and lightning protection. With IP66 protection and a naturally cooled design, the SDT G3 operates quietly and efficiently, making it ideal for both indoor and outdoor installations.

Note: Pending for G98/G99/G100 Certificate

KEY FEATURES:

• Maximum efficiency of 98.3%
• Enhanced performance
• Smart and silent operation
• Increased yield (110% AC power)
• 3 MPPTs
• Max. Input Current per MPPT:  40A
• Optional AFCI 3.0 function
• Smart energy management
• IP66 protection
• AFCI (optional)
• DC Surge Protection Type II
• Smart Fan Cooling
• Integrated Remote Shutdown

GoodWe 25kW SDT G3 3Ph String Inverter - 3 MPPTs, DC & AFCI

The SDT G3 25–40 kW series is purpose-built for three-phase commercial and industrial PV systems using modern high-power modules. It accepts high input currents, supports generous DC oversizing and delivers quiet, reliable operation thanks to its fanless, IP66 design.

Optional Type II SPDs on both AC and DC sides, together with Arc Fault Circuit Interrupter 3.0 (AFCI 3.0), raise site safety by detecting arc faults, sending alarms via monitoring and shutting the inverter down when needed.

Note: G99 ENA Certified, document pending

KEY FEATURES:

• 25 kW, 3-phase, 3 MPPTs for flexible rooftop layouts
• AFCI 3.0 for enhanced DC safety with automatic arc detection, alarms and inverter shutdown
• High current input for high-power PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.3%
• Supports up to 150% DC oversizing
• Supports 110% AC overloading for increased energy yield
• Fanless, silent operation for C&I rooftops
• IP66 enclosure for outdoor installation
• Built-in DC switch
• Optional Type II SPD on both DC and AC sides
• Anti-islanding and grid protections integrated
• Smart energy management
• Communication: RS485, WiFi, LAN or 4G or Bluetooth (Optional)
• Warranty: 5 Years

GoodWe 2kW XS G3 1Ph String Inverter - 1MPPT, DC & AFCI

The GoodWe XS G3 is a compact single-phase inverter for modern homes. It delivers high yields in a lightweight unit and is suitable for indoor or outdoor installation. It supports high-current modules up to 16 A and allows up to 110% AC output.

Natural convection keeps it quiet, and a low start-up voltage helps the inverter begin tracking earlier in the morning and stay online later as array voltage dips.

Quick commissioning via the GoodWe app, SEMS monitoring, smart-home and SG-ready (Smart Grid-ready) compatibility, export limiting, 24-hour load monitoring, and weather-resistant construction make it a reliable fit for single-phase residential systems.

KEY FEATURES:

• 2kW, single-phase string inverter with AFCI
• Ultra-compact and lightweight (4.6 kg)
• 1 MPPT architecture for simple, cost-effective installs
• Supports high-power modules with up to 16 A input current
• Low start-up voltage (50V) - for higher energy harvest
• European efficiency: 96.8%
• 10% additional power compared to the nominal output
• Silent, fanless operation using natural convection cooling
• App-based commissioning and remote monitoring via GoodWe SEMS
• Smart home and SG-ready integration
• Export-limiting compatibility for UK DNO requirements
• IP66 enclosure for indoor or outdoor installation
• Surge protection Type III (Type II optional)
• Warranty: 10 years

GoodWe 3kW DNS G3 1Ph String Inverter - 2MPPTs, DC & AFCI

The GoodWe DNS G3 is a single-phase residential inverter engineered for safe, reliable and near-silent operation while maximising energy yield.

Its compact, fanless design suits discreet wall mounting, and its modern, smart-home-ready platform supports flexible system control. With 16 A input current per string, dual MPPTs, the DNS G3 pairs seamlessly with today’s high-power PV modules.

Add GoodWe HomeKit 1000 or GM1000 to enable export limiting and whole-home load monitoring. It delivers high efficiency, robust protection and straightforward app-based monitoring to help homeowners get more from their solar investment.

KEY FEATURES:

• Compact and quiet.
• 3.6 kW, single-phase string inverter with AFCI for enhanced protection.
• Dual MPPT architecture: Two independent trackers optimise production across different roof aspects or partial shading.
• Supports high-power modules with up to 16 A input current and allows up to 110% AC output.
• European efficiency: 97.0%
• Low start-up voltage (50V) - for higher energy harvest.
• Maximum input voltage: 600V.
• Smart home readiness: Works with GoodWe HomeKit 1000 or GM1000 for power export limiting and load monitoring.
• Easy monitoring: Built-in Wi-Fi for remote performance tracking and diagnostics via the GoodWe smartphone app.
• Safety and durability: IP66 enclosure for dust and water resistance, integrated surge protection.
• Tidy indoor or outdoor wall mounting.
• Warranty: 10 years.

GoodWe 30kW SDT G3 3Ph String Inverter - 3 MPPTs, DC & AFCI

The SDT G3 25–40 kW series is purpose-built for three-phase commercial and industrial PV systems using modern high-power modules. It accepts high input currents, supports generous DC oversizing and delivers quiet, reliable operation thanks to its fanless, IP66 design.

Optional Type II SPDs on both AC and DC sides, together with Arc Fault Circuit Interrupter 3.0 (AFCI 3.0), raise site safety by detecting arc faults, sending alarms via monitoring and shutting the inverter down when needed.

Note: G99 ENA Certified, document pending

KEY FEATURES:

• 30 kW, 3-phase, 3 MPPTs for flexible rooftop layouts
• AFCI 3.0 for enhanced DC safety with automatic arc detection, alarms and inverter shutdown
• High current input for high-power PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.3%
• Supports up to 150% DC oversizing
• Supports 110% AC overloading for increased energy yield
• Fanless, silent operation for C&I rooftops
• IP66 enclosure for outdoor installation
• Built-in DC switch
• Optional Type II SPD on both DC and AC sides
• Anti-islanding and grid protections integrated
• Smart energy management
• Communication: RS485, WiFi, LAN or 4G or Bluetooth (Optional)
• Warranty: 5 Years

GoodWe 30kW SDT G3 3Ph String Inverter - 3 MPPTs, DC (No AFCI)

The SDT G3 25–40 kW series is purpose-built for three-phase commercial and industrial PV systems using modern high-power modules. It accepts high input currents, supports generous DC oversizing and delivers quiet, reliable operation thanks to its fanless, IP66 design.

Optional Type II SPDs on both AC and DC sides, together with Arc Fault Circuit Interrupter 3.0 (AFCI 3.0), raise site safety by detecting arc faults, sending alarms via monitoring and shutting the inverter down when needed.

Note: G99 ENA Certified, document pending

KEY FEATURES:

• 30 kW, 3-phase, 3 MPPTs for flexible rooftop layouts
• High current input for high-power PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.3%
• Supports up to 150% DC oversizing
• Supports 110% AC overloading for increased energy yield
• Fanless, silent operation for C&I rooftops
• IP66 enclosure for outdoor installation
• Built-in DC switch
• Optional Type II SPD on both DC and AC sides
• Anti-islanding and grid protections integrated
• Smart energy management
• Communication: RS485, WiFi, LAN or 4G or Bluetooth (Optional)
• Warranty: 5 Years

GoodWe 3kW DNS G3 1Ph String Inverter - 2MPPTs, DC & AFCI

The GoodWe DNS G3 is a single-phase residential inverter engineered for safe, reliable and near-silent operation while maximising energy yield.

Its compact, fanless design suits discreet wall mounting, and its modern, smart-home-ready platform supports flexible system control. With 16 A input current per string, dual MPPTs, the DNS G3 pairs seamlessly with today’s high-power PV modules.

Add GoodWe HomeKit 1000 or GM1000 to enable export limiting and whole-home load monitoring. It delivers high efficiency, robust protection and straightforward app-based monitoring to help homeowners get more from their solar investment.

KEY FEATURES:

• Compact and quiet.
• 3 kW, single-phase string inverter with AFCI for enhanced protection.
• Dual MPPT architecture: Two independent trackers optimise production across different roof aspects or partial shading.
• Supports high-power modules with up to 16 A input current and allows up to 110% AC output.
• European efficiency: 97.4%
• Low start-up voltage (50V) - for higher energy harvest.
• Maximum input voltage: 600V.
• Smart home readiness: Works with GoodWe HomeKit 1000 or GM1000 for power export limiting and load monitoring.
• Easy monitoring: Built-in Wi-Fi for remote performance tracking and diagnostics via the GoodWe smartphone app.
• Safety and durability: IP66 enclosure for dust and water resistance, integrated surge protection.
• Tidy indoor or outdoor wall mounting.
• Warranty: 10 years.

GoodWe 3kW XS G3 1Ph String Inverter - 1MPPT, DC & AFCI

The GoodWe XS G3 is a compact single-phase inverter for modern homes. It delivers high yields in a lightweight unit and is suitable for indoor or outdoor installation. It supports high-current modules up to 16 A and allows up to 110% AC output.

Natural convection keeps it quiet, and a low start-up voltage helps the inverter begin tracking earlier in the morning and stay online later as array voltage dips.

Quick commissioning via the GoodWe app, SEMS monitoring, smart-home and SG-ready (Smart Grid-ready) compatibility, export limiting, 24-hour load monitoring, and weather-resistant construction make it a reliable fit for single-phase residential systems.

KEY FEATURES:

• 3kW, single-phase string inverter with AFCI
• Ultra-compact and lightweight (4.6 kg)
• 1 MPPT architecture for simple, cost-effective installs
• Supports high-power modules with up to 16 A input current
• Low start-up voltage (50V) - for higher energy harvest
• European efficiency: 97.1%
• 10% additional power compared to the nominal output
• Silent, fanless operation using natural convection cooling
• App-based commissioning and remote monitoring via GoodWe SEMS
• Smart home and SG-ready integration
• Export-limiting compatibility for UK DNO requirements
• IP66 enclosure for indoor or outdoor installation
• Surge protection Type III (Type II optional)
• Warranty: 10 years

GoodWe 4.2kW DNS G3 1Ph String Inverter - 2MPPTs, DC & AFCI

The GoodWe DNS G3 is a single-phase residential inverter engineered for safe, reliable and near-silent operation while maximising energy yield.

Its compact, fanless design suits discreet wall mounting, and its modern, smart-home-ready platform supports flexible system control. With 16 A input current per string, dual MPPTs, the DNS G3 pairs seamlessly with today’s high-power PV modules.

Add GoodWe HomeKit 1000 or GM1000 to enable export limiting and whole-home load monitoring. It delivers high efficiency, robust protection and straightforward app-based monitoring to help homeowners get more from their solar investment.

KEY FEATURES:

• Compact and quiet.
• 4.2kW, single-phase string inverter with AFCI for enhanced protection.
• Dual MPPT architecture: Two independent trackers optimise production across different roof aspects or partial shading.
• Supports high-power modules with up to 16 A input current and allows up to 110% AC output.
• European efficiency: 97.2%
• Low start-up voltage (50V) - for higher energy harvest.
• Maximum input voltage: 600V.
• Smart home readiness: Works with GoodWe HomeKit 1000 or GM1000 for power export limiting and load monitoring.
• Easy monitoring: Built-in Wi-Fi for remote performance tracking and diagnostics via the GoodWe smartphone app.
• Safety and durability: IP66 enclosure for dust and water resistance, integrated surge protection.
• Tidy indoor or outdoor wall mounting.
• Warranty: 10 years.

GoodWe 40kW SDT G3 3Ph String Inverter - 4 MPPTs, DC & AFCI

The SDT G3 25–40 kW series is purpose-built for three-phase commercial and industrial PV systems using modern high-power modules. It accepts high input currents, supports generous DC oversizing and delivers quiet, reliable operation thanks to its fanless, IP66 design.

Optional Type II SPDs on both AC and DC sides, together with Arc Fault Circuit Interrupter 3.0 (AFCI 3.0), raise site safety by detecting arc faults, sending alarms via monitoring and shutting the inverter down when needed.

Note: G99 Certificate pending

KEY FEATURES:

• 40 kW, 3-phase, 4 MPPTs for flexible rooftop layouts
• AFCI 3.0 for enhanced DC safety with automatic arc detection, alarms and inverter shutdown
• High current input for high-power PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 97.7%
• Supports up to 150% DC oversizing
• Supports 110% AC overloading for increased energy yield
• Fanless, silent operation for C&I rooftops
• IP66 enclosure for outdoor installation
• Built-in DC switch
• Optional Type II SPD on both DC and AC sides
• Anti-islanding and grid protections integrated
• Smart energy management
• Communication: RS485, WiFi, LAN or 4G or Bluetooth (Optional)
• Warranty: 5 Years

GoodWe 5kW DNS G3 1Ph String Inverter - 2MPPTs, DC & AFCI

The GoodWe DNS G3 is a single-phase residential inverter engineered for safe, reliable and near-silent operation while maximising energy yield.

Its compact, fanless design suits discreet wall mounting, and its modern, smart-home-ready platform supports flexible system control. With 16 A input current per string, dual MPPTs, the DNS G3 pairs seamlessly with today’s high-power PV modules.

Add GoodWe HomeKit 1000 or GM1000 to enable export limiting and whole-home load monitoring. It delivers high efficiency, robust protection and straightforward app-based monitoring to help homeowners get more from their solar investment.

KEY FEATURES:

• Compact and quiet.
• 5 kW, single-phase string inverter with AFCI for enhanced protection.
• Dual MPPT architecture: Two independent trackers optimise production across different roof aspects or partial shading.
• Supports high-power modules with up to 16 A input current and allows up to 110% AC output.
• European efficiency: 97.3%
• Low start-up voltage (50V) - for higher energy harvest.
• Maximum input voltage: 600V.
• Smart home readiness: Works with GoodWe HomeKit 1000 or GM1000 for power export limiting and load monitoring.
• Easy monitoring: Built-in Wi-Fi for remote performance tracking and diagnostics via the GoodWe smartphone app.
• Safety and durability: IP66 enclosure for dust and water resistance, integrated surge protection.
• Tidy indoor or outdoor wall mounting.
• Warranty: 10 years.

GoodWe 60kW SMT 3Ph String Inverter - 6 MPPTs, DC & AFCI

The GoodWe SMT Series 25–60 kW is built for complex C&I layouts and modern high-power modules. Featuring up to six MPPTs and a wide operating range, the inverters perform consistently across conditions.

The compact, lightweight design makes transport and installation straightforward, while integration with the GoodWe Smart Energy Controller SEC1000 enables load monitoring and export limitation.

KEY FEATURES:

• 60 kW, 3-phase, 6 MPPTs for multiple orientations and partial shading
• AFCI for enhanced DC safety with automatic arc detection, alarms and inverter shutdown
• Easy handling with a compact, lightweight chassis
• Up to 15 A per string, compatible with high-current PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.1%
• Full power up to 45°C and 110% AC output for longer peak production
• Fuse-free design for simpler maintenance and improved reliability
• Supports 110% AC overloading for increased energy yield
• Export control ready via SEC1000 integration for power export limiting and load monitoring
• Ingress protection: IP65
• Communication: RS485, WiFi
• Type II SPD on DC and AC sides
• Remote data monitoring and site management via GoodWe platforms
• Warranty: 5 Years

GoodWe 6kW DNS G3 1Ph String Inverter - 2MPPTs, DC & AFCI

The GoodWe DNS G3 is a single-phase residential inverter engineered for safe, reliable and near-silent operation while maximising energy yield.

Its compact, fanless design suits discreet wall mounting, and its modern, smart-home-ready platform supports flexible system control. With 16 A input current per string, dual MPPTs, the DNS G3 pairs seamlessly with today’s high-power PV modules.

Add GoodWe HomeKit 1000 or GM1000 to enable export limiting and whole-home load monitoring. It delivers high efficiency, robust protection and straightforward app-based monitoring to help homeowners get more from their solar investment.

KEY FEATURES:

• Compact and quiet.
• 6 kW, single-phase string inverter with AFCI for enhanced protection.
• Dual MPPT architecture: Two independent trackers optimise production across different roof aspects or partial shading.
• Supports high-power modules with up to 16 A input current and allows up to 110% AC output.
• European efficiency: 97.4%
• Low start-up voltage (50V) - for higher energy harvest.
• Maximum input voltage: 600V.
• Smart home readiness: Works with GoodWe HomeKit 1000 or GM1000 for power export limiting and load monitoring.
• Easy monitoring: Built-in Wi-Fi for remote performance tracking and diagnostics via the GoodWe smartphone app.
• Safety and durability: IP66 enclosure for dust and water resistance, integrated surge protection.
• Tidy indoor or outdoor wall mounting.
• Warranty: 10 years.

GoodWe 80kW SMT 3Ph String Inverter - 6 MPPTs, DC & AFCI

A robust three-phase 80 kW inverter for commercial rooftops and small ground-mounts. It pairs wide MPPT tracking with 150% DC oversizing, high input current, and built-in protection to deliver strong yields with straightforward installation and low ongoing maintenance.

Designed for UK C&I projects that need reliable performance, clear monitoring, and grid-friendly control.

KEY FEATURES:

• 80 kW, 3-phase, 6 MPPTs
• Up to 120 kW max DC input (150% DC oversizing)
• AFCI (3.0) plus DC/AC surge protection for safer operation
• Up to 21 A per string, compatible with high-current PV modules
• Max PV input voltage: 1100 V
• European efficiency: up to 98.1%
• Compact, installer-friendly design with quick commissioning and tidy wiring
• Ingress protection: IP66
• Outdoor-ready enclosure for commercial rooftops and plant rooms
• Communication: RS485, WiFi + LAN+Bluetooth
• Type II SPD on DC and AC sides
• String-level monitoring and remote portal access for fast diagnostics via GoodWe platforms
• Warranty: 5 Years

Huawei SUN2000 100KTL-M2 AFCI 3ph Inverter

Huawei integrates the latest digital and internet technology in the new FusionSolar Smart PV solution portfolio. The wide range of SUN2000 inverters helps you on any commercial rooftop for maximal efficiency.

Huawei SUN2000 100KTL-M2 three-phase inverter with 10 MPPTs ensures safe, efficient and reliable management of your photovoltaic system, which are combined with a series of technical features that make it among the smartest large size inverters on the market.

Smart:

• Smart I-V curve diagnosis: implements the I-V scan and integrity diagnosis for the PV strings. In this way, potential risks and failures can be detected in time
• Support AFCI & Smart String Level Disconnector
• 20V PV Strings

Safety:

• Integrated DC switch, safe and convenient component even during maintenance
• Residual current monitoring unit: immediately disconnects from the mains after detecting that the residual current exceeds the threshold
• Design without fuses

Reliable:

• Natural convection cooling technology
• IP66 protection degree: it can be installed both indoors and outdoors, away from flammable materials and not under direct sunlight
• Type II surge arresters for both DC and AC
• Standard 5 year manufacturer warranty can be extended

This inverter must be commissioned either by using the SUN2000 App on your phone or by connecting to the Smart Logger.

SMA Sunny Boy SB 4.0 1AV-41 Inverter - with WiFi

The Sunny Boy 3.0–6.0 ensures maximum energy yields for private homes. Thanks to its integrated web interface for easy commissioning via a smartphone or tablet and SMA Smart Connected service, this inverter offers true ease and comfort for PV system operators and installers.

New: With its integrated RS485 interface, the TS4-R module optimisers can be easily added into the system, with all communication and monitoring facilitated through the inverter.

Quick and easy to install: With its reduced weight (17.5Kg), the Sunny Boy can be installed quickly while taking up minimal space. The Sunny Boy can be commissioned quickly via smartphone or tablet thanks to its web interface.

Intelligent solar power generation: Established product features such as SMA ShadeFix and SMA Smart Connected are now supplemented with integrated TS4-R communication for module optimisation. The SMA ShadeFix integrated shade management system ensures maximum yields in light shade. Free online monitoring via Sunny Portal and Sunny Places Dynamic active power limitation means direct use of excess energy, less power from the grid

Flexibly expandable anytime:With the Sunny Boy, PV system operators can ensure that their PV system always generates maximum yields. If greater use of solar power is made in your own home, intelligent energy management and SMA storage solutions can be added at any time to systems with the Sunny Boy.

Please note:

This model includes the Wi-Fi Function.

Solplanet ASW LT, 100kW, 3ph 10MPPT Inverter, WiFi-Stick, With DC

The powerful three-phase Solplanet ASW 75-110K LT Series is a flexible and reliable solution for commercial and industrial installations.

The ASW 100K-LT includes 10 independent MPP trackers and 32A rated input current per MPPT and is compatible with bifacial and latest large PV panels. Its 150% DC/AC sizing ratio allows for versatile system designs.

The IP66 certified waterproof design enables large-scale power production plants to maintain a steady production regardless of the environmental conditions, and Solplanet's ShadeSol integrated intelligent shadow management system keeps the installation at maximum capacity, even in shady conditions.

The inverter is equipped with the export active power limit function, so as to meet the grid standards for limiting the output power at the grid connection point.

KEY FEATURES:

• Quick & easy-to-install with standard tools
• 10 MPPT for flexible solar panel design for higher efficiency
• 32A input current each MPPT, ideal for bifacial and large area PV modules
• Wide MPP voltage range 200V-1000V – increased generation in low light conditions
• Oversizing of solar panels by 150% for higher efficiency
• SUNCLIX DC Plug-in connectors
• Fuseless design
• Built-in Type II surge protection device both DC & AC side
• IP66 protection design for outdoor use
• Easy commissioning with cloud-based Solplanet App
• 24/7 System monitoring with Solplanet Apps
• ShadeSol shadow management system
• Wi-Fi stick included
• Compact wall mount design (bracket included)
• 5-Year warranty

Solplanet 110kW, 3ph 10MPPT Inverter, WiFi-Stick, With DC

The powerful three-phase Solplanet ASW 75-110K LT Series is a flexible and reliable solution for commercial and industrial installations.

The ASW 110K-LT includes 10 independent MPP trackers and 32A rated input current per MPPT and is compatible with bifacial and latest large PV panels. Its 150% DC/AC sizing ratio allows for versatile system designs.

The IP66 certified waterproof design enables large-scale power production plants to maintain a steady production regardless of the environmental conditions, and Solplanet's ShadeSol integrated intelligent shadow management system keeps the installation at maximum capacity, even in shady conditions.

The inverter is equipped with the export active power limit function, so as to meet the grid standards for limiting the output power at the grid connection point.

KEY FEATURES:

• Quick & easy-to-install with standard tools
• 10 MPPT for flexible solar panel design for higher efficiency
• 32A input current each MPPT, ideal for bifacial and large area PV modules
• Wide MPP voltage range 200V-1000V – increased generation in low light conditions
• Oversizing of solar panels by 150% for higher efficiency
• SUNCLIX DC Plug-in connectors
• Fuseless design
• Built-in Type II surge protection device both DC & AC side
• IP66 protection design for outdoor use
• Easy commissioning with cloud-based Solplanet App
• 24/7 System monitoring with Solplanet Apps
• ShadeSol shadow management system
• Wi-Fi stick included
• Compact wall mount design (bracket included)
• 5-Year warranty

Solplanet ASW LT G2 Pro, 5.0kW, 3ph 2MPPT Inverter, WiFi-Stick, With DC

The ASW 3-10K LT-G2 Pro three-phase string inverter series delivers the latest innovations for residential and commercial use.

The inverters include 2 independent MPP trackers and up to 20A rated input current per MPPT. They are perfectly compatible with high power, bifacial and larger size wafer-based solar panels. A wide MPPT range with 150% oversizing of the PV power array ensures high energy yield and flexibility in nearly every application.

Solplanet’s cloud-based app provides user-friendly, quick setup and easy commissioning features.

KEY FEATURES:

• Quick & easy-to-install with standard tools
• Compact wall mount design (bracket included)
• Max 20A input current, ideal for bifacial and large area PV modules
• Wide MPP voltage range 150V-1000V with low start up voltage – increased generation in low light conditions
• 150 % PV array oversizing for higher yields
• SUNCLIX DC Plug-in connectors
• Built-in Type II surge protection device both DC & AC side
• IP66 protection design for outdoor use
• Easy commissioning & monitoring with cloud-based Solplanet app
• Wi-Fi stick included
• 10-Year warranty

Solplanet ASW LT, 80kW, 3ph 8MPPT Inverter, WiFi-Stick, With DC

The powerful three-phase Solplanet ASW 75-110K LT Series is a flexible and reliable solution for commercial and industrial installations.

The ASW 80K-LT includes 8 independent MPP trackers and 32A rated input current per MPPT and is compatible with bifacial and latest large PV panels. Its 150% DC/AC sizing ratio allows for versatile system designs.

The IP66 certified waterproof design enables large-scale power production plants to maintain a steady production regardless of the environmental conditions, and Solplanet's ShadeSol integrated intelligent shadow management system keeps the installation at maximum capacity, even in shady conditions.

The inverter is equipped with the export active power limit function, so as to meet the grid standards for limiting the output power at the grid connection point.

KEY FEATURES:

• Quick & easy-to-install with standard tools
• 8 MPPT for flexible solar panel design for higher efficiency
• 32A input current each MPPT, ideal for bifacial and large area PV modules
• Wide MPP voltage range 200V-1000V – increased generation in low light conditions
• Oversizing of solar panels by 150% for higher efficiency
• SUNCLIX DC Plug-in connectors
• Fuseless design
• Built-in Type II surge protection device both DC & AC side
• IP66 protection design for outdoor use
• Easy commissioning with cloud-based Solplanet App
• 24/7 System monitoring with Solplanet Apps
• ShadeSol shadow management system
• Wi-Fi stick included
• Compact wall mount design (bracket included)
• 5-Year warranty

Sungrow 10kW 3-Phase Optimised String Inverter

The SG10RT-P2-V11 is a high-performance 10 kW three-phase grid-tied solar inverter from Sungrow, designed for commercial and large residential PV systems. It delivers reliable, high-efficiency power conversion while maximizing energy yield across a wide operating range.

Equipped with advanced MPPT technology, smart monitoring, and comprehensive protection features, the SG10RT-P2-V11 ensures stable performance even under variable conditions.

KEY FEATURES:

• Compact & Lightweight Design
• Dual MPP trackers
• European Efficiency: 97.9%
• Surge protection: DC Type II / AC Type II
• Arc fault circuit interrupter (AFCI)
• DC Switch
• Built-in PID recovery function
• Sungrow optimiser compatible
• Communication: WLAN, Ethernet, RS485, DI, DO
• Dimensions (WxHxD): 370x480x195 mm
• IP65 protection
• Weight: 18kg
• Dongle included
• MCS Certified
• 10-year warranty

Sungrow 125kW P2 Inverter

The Sungrow SG125CX-P2 string inverter ideal for commercial systems. The increased amount of 12 MPPTs allows better and more flexible solar power plant design. This inverter is easy for one person to install. It’s compatible with high-power modules and provides more safety due to AFCI 2.0 technology. Durable, high-quality fans ensure the perfect operating temperature at any time.

KEY FEATURES:

• Dynamic shading optimization mode
• 12 MPPTs with max. efficiency 98.5%
• Grid fault record function, easy for remote O&M
• Key component diagnosis and protection
• Compatible max. 240mm² Al AC cables
• Compatible with over 500Wp+ PV module
• Drawer-style cable sealing plate support AC cable pre-assembly
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 Anti-corrosion
• Support AFCI 2.0 function
• Max efficiency 98.5%
• Smart IV Curve Diagnosis
• G99 Certified
• 5-year warranty

Sungrow 125kW P2 Optimised Inverter

The Sungrow SG125CX-P2-V21 is an optimised 125kW string inverter ideal for commercial systems. The increased amount of 12 MPPTs allows better and more flexible solar power plant design. This inverter is easy for one person to install. It’s compatible with high-power modules and provides more safety due to AFCI 2.0 technology. It`s Durable, smart forced air cooling system ensure the perfect operating temperature at any time.

KEY FEATURES:

• Dynamic shading optimization mode
• 12 MPPTs with max. efficiency 98.5%
• Grid fault record function, easy for remote O&M
• Key component diagnosis and protection
• Compatible max. 240mm² Al AC cables
• Compatible with over 500Wp+ PV module
• Drawer-style cable sealing plate support AC cable pre-assembly
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 Anti-corrosion
• Support AFCI 2.0 function
• Max efficiency 98.5%
• Smart IV Curve Diagnosis
• G99 Certified
• 5-year warranty

Sungrow 12kW 3 Phase String Inverter

The Sungrow 3-phase String Inverter has more power, more functions, and less needed space. Relative to its functions, the 3-phase PV inverter is very compact and easy to install. The perfect solution for bigger rooftops.

With its spacially efficient design and unique push-in connectors, this product is made to be accessible and user friendly.

KEY FEATURES:

• Dual MPP trackers
• Maximum Input Current: 37.5A
• European Efficiency: 97.9%
• IP65 protection
• Built-in PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, DI, DO
• Weight: 18kg
• 10-year warranty

Sungrow 150kW P2 Inverter

The Sungrow SG150CX is a powerful on-grid inverter designed for commercial and industrial (C&I) applications. It features up to 7 MPPTs to maximise energy yield across different panel orientations and shading conditions, delivering high efficiency and stable 3-phase output.

Advanced technologies such as Smart IV Curve Diagnosis, AFCI 3.0 arc-fault protection, integrated surge protection, and intelligent air-cooling enhance safety and reliability. With remote monitoring capabilities and robust IP66 protection, this transformerless inverter ensures dependable performance in demanding environments.

KEY FEATURES:

• 150 kW three-phase on-grid string inverter
• Up to 7 MPPTs for maximum energy harvest
• High efficiency (up to 98.8%)
• AFCI 3.0 arc-fault circuit protection
• Smart IV Curve Diagnosis for advanced monitoring
• Integrated surge protection (SPD Type II)
• Intelligent forced air-cooling system
• IP66 rated enclosure for outdoor installation
• Remote monitoring and communication options
• G99 Certified
• 5-year warranty

Sungrow 15kW 3 Phase Optimised String Inverter

• Compact & Lightweight Design
• Dual MPP trackers
• European Efficiency: 97.9%
• Surge protection: DC Type II / AC Type II
• Arc fault circuit interrupter (AFCI)
• DC Switch
• Built-in PID recovery function
• Sungrow optimiser compatible
• Communication: WLAN, Ethernet, RS485, DI, DO
• Dimensions (WxHxD): 370x480x195 mm
• IP65 protection
• Weight: 22kg
• Dongle included
• MCS Certified
• 10-year warranty

Sungrow 20kW 3-Phase Optimised String Inverter

The SG20RT-P2-V11 is a high-performance 20 kW three-phase grid-tied solar inverter from Sungrow, designed for commercial and large residential PV systems. It delivers reliable, high-efficiency power conversion while maximizing energy yield across a wide operating range.

Equipped with advanced MPPT technology, smart monitoring, and comprehensive protection features, the SG20RT-P2-V11 ensures stable performance even under variable conditions.

KEY FEATURES:

• Compact & Lightweight Design
• Dual MPP trackers
• European Efficiency: 97.9%
• Surge protection: DC Type II / AC Type II
• Arc fault circuit interrupter (AFCI)
• DC Switch
• Built-in PID recovery function
• Sungrow optimiser compatible
• Communication: WLAN, Ethernet, RS485, DI, DO
• Dimensions (WxHxD): 370x480x195 mm
• IP65 protection
• Weight: 22kg
• Dongle included
• MCS Certified
• 10-year warranty

Sungrow 33kW P2 Inverter

The Sungrow SG33CX-P2 is a three-phase string inverter designed for commercial applications. This inverter combines power, safety and lightweight. It’s compatible with high-power modules and provides more safety due to AFCI 2.0 technology. This inverter is easy for one person to install. Durable, high-quality fans ensure the perfect operating temperature at any time.

KEY FEATURES:

• Dynamic shading optimization mode
• Built-in PID recovery function
• Key component diagnosis and protection
• Plug and Play with Buckle Design
• Compatible with over 500Wp+ PV module
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 Anti-corrosion
• Support AFCI 2.0 function
• Max efficiency 98.5%
• Smart IV Curve Diagnosis
• G99 Certified
• 5-year warranty

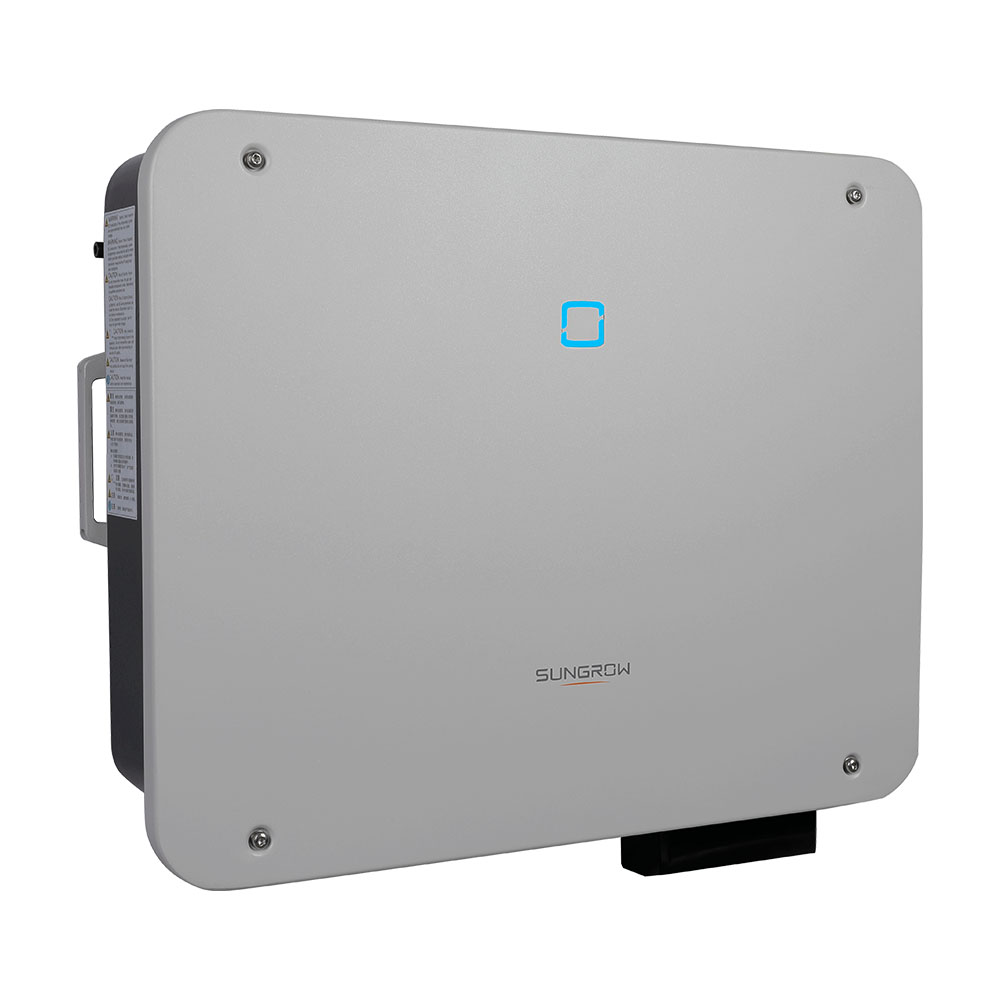

Sungrow 33kW P2 Optimised Inverter (ASG02267)

The Sungrow SG33CX-P2 is a three-phase optimised string inverter designed for commercial applications. It features multiple MPPTs for flexible system design and includes advanced built-in safety functions. Compatible with high-power modules, it also offers enhanced protection with AFCI 2.0 technology. Lightweight and compact, the inverter is easy for one person to install.

KEY FEATURES:

• Dynamic shading optimisation mode
• Built-in PID recovery function
• Key component diagnostics and protection
• Plug and Play with buckle design
• Compatible with over 500Wp+ PV module
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 anti-corrosion rating
• Supports AFCI 2.0 function
• Maximum efficiency of 98.5%
• Smart IV curve diagnosis
• G99 certified
• 5-year warranty

Sungrow 350kW High Voltage Inverter (1500V)

The Sungrow SG350HX is a high-performance 350 kW multi-MPPT string inverter designed for 1500 vdc systems ideal for commercial applications. The increased capacity of 12 MPPTs (optional: up to 16 MPPTs) allows for better and more flexible solar power plant designs. With a maximum efficiency of 99%, the SG350HX supports high-power modules of 500 Wp and more.

It enables seamless data exchange with tracker systems to improve energy yield and features 24-hour real-time AC and DC insulation monitoring to detect and address insulation faults promptly. Additionally, it is equipped with integrated DC switches for enhanced safety and reliability.

KEY FEATURES:

• Up to 16 MPPTs with max. efficiency 99%
• Q at night function, save investment
• Power line communication (PLC)
• Smart IV Curve diagnosis,active O&M
• Compatible with 500Wp+ module
• 24h real-time AC and DC insulation monitoring
• 2 strings per MPPT, no fear of string reverse connection
• G99 Certified
• IP66 protection

Sungrow 350kW High Voltage Inverter (1500V) - 6MPPT Trackers

The Sungrow SG350HX-20 is a high-performance 350 kW multi-MPPT string inverter designed for 1500 vdc systems ideal for commercial applications. It has 6 MPPTs and Max. European efficiency 99.8%

This inverter has an IP66 rating, making it suitable for both indoor and outdoor installations. It features 24-hour real-time AC and DC insulation monitoring to detect and address insulation faults promptly. Additionally, it is equipped with integrated DC switches for enhanced safety and reliability.

Note: Pending for G99/G100 Certificate

KEY FEATURES:

• Up to 6 MPPTs with max. efficiency 99%
• Max 30 inputs, adapt to different DC/AC ratios
• Q at night function, save investment
• Power line communication (PLC)
• Smart IV Curve diagnosis,active O&M
• Intelligent DC switch, automatically cut off the fault
• 24h real-time AC and DC insulation monitoring
• Smart-cooled fan
• IP66 protection

Sungrow 40kW P2 Inverter

The Sungrow SG40CX-P2 V12 is a three-phase string inverter designed for commercial applications. It’s compatible with high-power modules and provides more safety due to AFCI 2.0 technology. This inverter is easy for one person to install. Durable, high-quality fans ensure the perfect operating temperature at any time.

KEY FEATURES:

• Dynamic shading optimization mode
• Built-in PID recovery function
• Key component diagnosis and protection
• Plug and Play with Buckle Design
• Compatible with over 500Wp+ PV module
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 Anti-corrosion
• Support AFCI 2.0 function
• Max efficiency 98.5%
• Smart IV Curve Diagnosis
• G99 Certified
• 5-year warranty

Sungrow 4kW Single Phase String Inverter - Dual Tracker

The Sungrow 1-phase String Inverter - original since its launch. The display and the push-click-go connector make this product as easy as possible to handle. The perfect solution for houses with limited rooftop size.

Plug-and-play installation allows for a user friendly setup, while the lightweight and compact design are optimised for heat dissipation.

Also included in the box:

KEY FEATURES:

• Dual MPP trackers
• Maximum Input Current: 32A
• European Efficiency: 97.2%
• IP65 protection
• Built-in smart PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, DI (Ripple control & DRM)
• Weight: 10kg
• 10-year warranty

Sungrow 50kW P2 Inverter

The Sungrow SG50CX-P2 is a three-phase string inverter designed for commercial applications. This inverter combines power, safety and lightweight. It’s compatible with high-power modules and provides more safety due to AFCI 2.0 technology. This inverter is easy for one person to install. Durable, high-quality fans ensure the perfect operating temperature at any time.

KEY FEATURES:

• Dynamic shading optimization mode
• Built-in PID recovery function
• Key component diagnosis and protection
• Plug and Play with Buckle Design
• Compatible with over 500Wp+ PV module
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 Anti-corrosion
• Support AFCI 2.0 function
• Max efficiency 98.5%
• Smart IV Curve Diagnosis
• G99 Certified
• 5-year warranty

Sungrow 50kW P2 Optimised Inverter (ASG02270)

The Sungrow SG50CX-P2 is a three-phase optimised string inverter designed for commercial applications. It features multiple MPPTs for flexible system design and includes advanced built-in safety functions. Compatible with high-power modules, it also offers enhanced protection with AFCI 2.0 technology. Lightweight and compact, the inverter is easy for one person to install.

KEY FEATURES:

• Dynamic shading optimisation mode
• Built-in PID recovery function
• Key component diagnostics and protection
• Plug and Play with buckle design
• Compatible with over 500Wp+ PV module
• DC Type I+II SPD, AC Type II SPD
• IP66 protection and C5 anti-corrosion rating
• Supports AFCI 2.0 function
• Maximum efficiency of 98.5%
• Smart IV curve diagnosis
• G99 certified
• 5-year warranty

Sungrow 5kW Single Phase String Inverter - Dual Tracker

The Sungrow 1-phase String Inverter - original since its launch. The display and the push-click-go connector make this product as easy as possible to handle. The perfect solution for houses with limited rooftop size.

Plug-and-play installation allows for a user friendly setup, while the lightweight and compact design are optimised for heat dissipation.

Also included in the box:

KEY FEATURES:

• Dual MPP trackers
• Maximum Input Current: 32A
• European Efficiency: 97.3%
• IP65 protection
• Built-in smart PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, DI (Ripple control & DRM)
• Weight: 10kg
• 10-year warranty

Sungrow 6kW Single Phase String Inverter - Dual Tracker

The Sungrow 1-phase String Inverter - original since its launch. The display and the push-click-go connector make this product as easy as possible to handle. The perfect solution for houses with limited rooftop size.

Plug-and-play installation allows for a user friendly setup, while the lightweight and compact design are optimised for heat dissipation.

Also included in the box:

KEY FEATURES:

• Dual MPP trackers
• Maximum Input Current: 32A
• European Efficiency: 97.5%
• IP65 protection
• Built-in smart PID recovery function
• Natural cooling
• Communication: WLAN, Ethernet, RS485, DI (Ripple control & DRM)
• Weight: 10kg
• 10-year warranty

Viridian Clearline 1.0kW 1ph Inverter, 1 MPPT, With DC

The Clearline CSI1000 is a light and compact residential inverter. The maximum DC voltage is 500V, a start voltage of 40V. There is one MPPT with a maximum input of 15A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.2%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP65
• Export Limitation optional
• 10-year warranty

Viridian Clearline 1.5kW 1ph Inverter, 1 MPPT, With DC

The Clearline CSI1500 is a light and compact residential inverter. The maximum DC voltage is 500V, a start voltage of 50V. There is one MPPT with a maximum input of 15A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.3%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP65
• Export Limitation optional
• 10-year warranty

Viridian Clearline 2.0kW 1ph Inverter, 1 MPPT, With DC

The Clearline CSI2000 is a light and compact residential inverter. The maximum DC voltage is 500V, a start voltage of 50V. There is one MPPT with a maximum input of 15A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.5%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP65
• Export Limitation optional
• 10-year warranty

Viridian Clearline 2.5kW 1ph Inverter, 1 MPPT, With DC

The Clearline CSI2000 is a light and compact residential inverter. The maximum DC voltage is 600V, a start voltage of 50V. There is one MPPT with a maximum input of 15A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.6%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP65
• Export Limitation optional
• 10-year warranty

Viridian Clearline 3.0kW 1ph Inverter, 1 MPPT, With DC

The Clearline CSI3000 is a light and compact residential inverter. The maximum DC voltage is 600V, a start voltage of 50V. There is one MPPT with a maximum input of 15A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.6%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP65
• Export Limitation optional
• 10-year warranty

Viridian Clearline 3.6kW 1ph Inverter, 2 MPPT, With DC

The Clearline CSI3600 is a light and compact residential inverter. The maximum DC voltage is 600V, a start voltage of 50V. There are two MPPTs with a maximum input of 16A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.9%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP66
• Export Limitation optional
• 10-year warranty

Viridian Clearline 5.0kW 1ph Inverter, 2 MPPT, With DC

The Clearline CSI5000 is a light and compact residential inverter. The maximum DC voltage is 600V, a start voltage of 50V. There are two MPPTs with a maximum input of 16A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.9%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP66
• Export Limitation optional
• 10-year warranty

Viridian Clearline 6.0kW 1ph Inverter, 2 MPPT, With DC

The Clearline CSI6000 is a light and compact residential inverter. The maximum DC voltage is 600V, a start voltage of 50V. There are two MPPTs with a maximum input of 16A and features a DC switch, surge protection, and an option for AFCI.

Lastly, another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are fewer moving parts, which means less maintenance and less risk of malfunctions.

KEY FEATURES:

• With DC Connection
• Maximum efficiency of 97.9%
• Compact design
• Smart control
• AFCI optional
• Protection degree: IP66
• Export Limitation optional
• 10-year warranty
