Flat Roof Systems

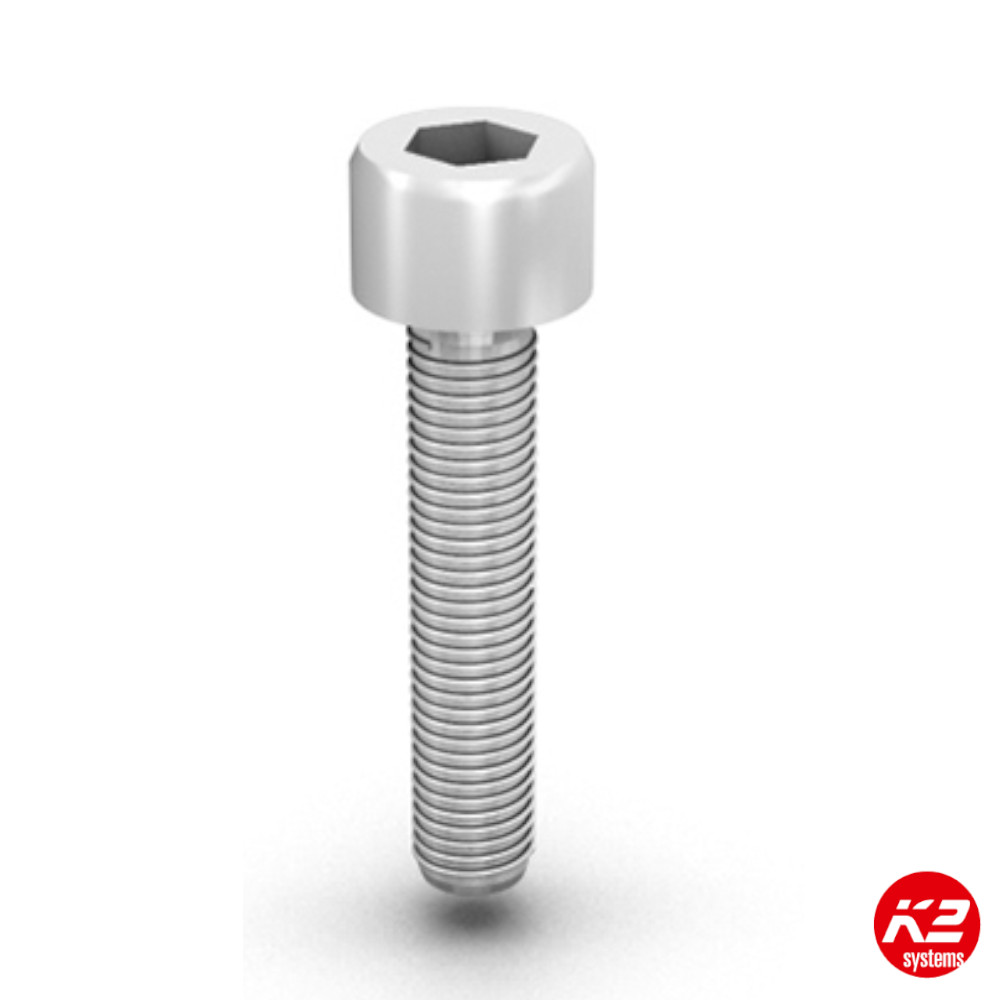

K2 Hexagonal socket head cap screw M8x60mm

Hexagon. socket head cap screw DIN 912EN ISO 4762

• Dimensions: M8x 60
• Drive: six lobe (Imbus) SW 6
• Material: Stainless steel

Also available in a box of 200 units.

K2 Locking Washer, M8 (Pack of 100)

FEATURES:

• Pack of 100 units
• Locking washer for bolted connections DIN EN 10151
• Dimensions: S8; 8.4 x 13 x 0.8 mm
• Stainless steel A2
• Warranty: 12 years
• Certificates: EN, CE

Also available in a box of 200 units.

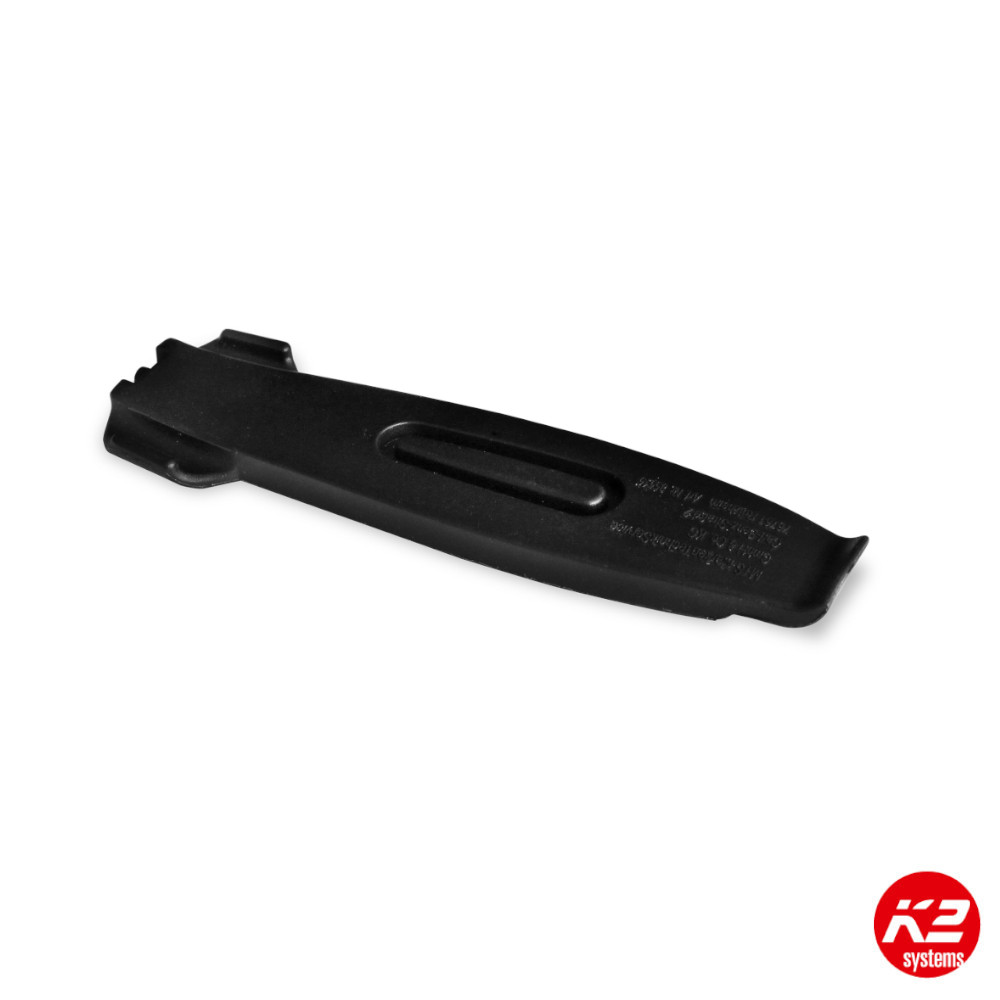

K2 Mat-S Tool

Mat-S Tool for mounting the Mat S on the SpeedRail.

Material: Polyamid

Also available: bags of 3, small boxes of 12 units.

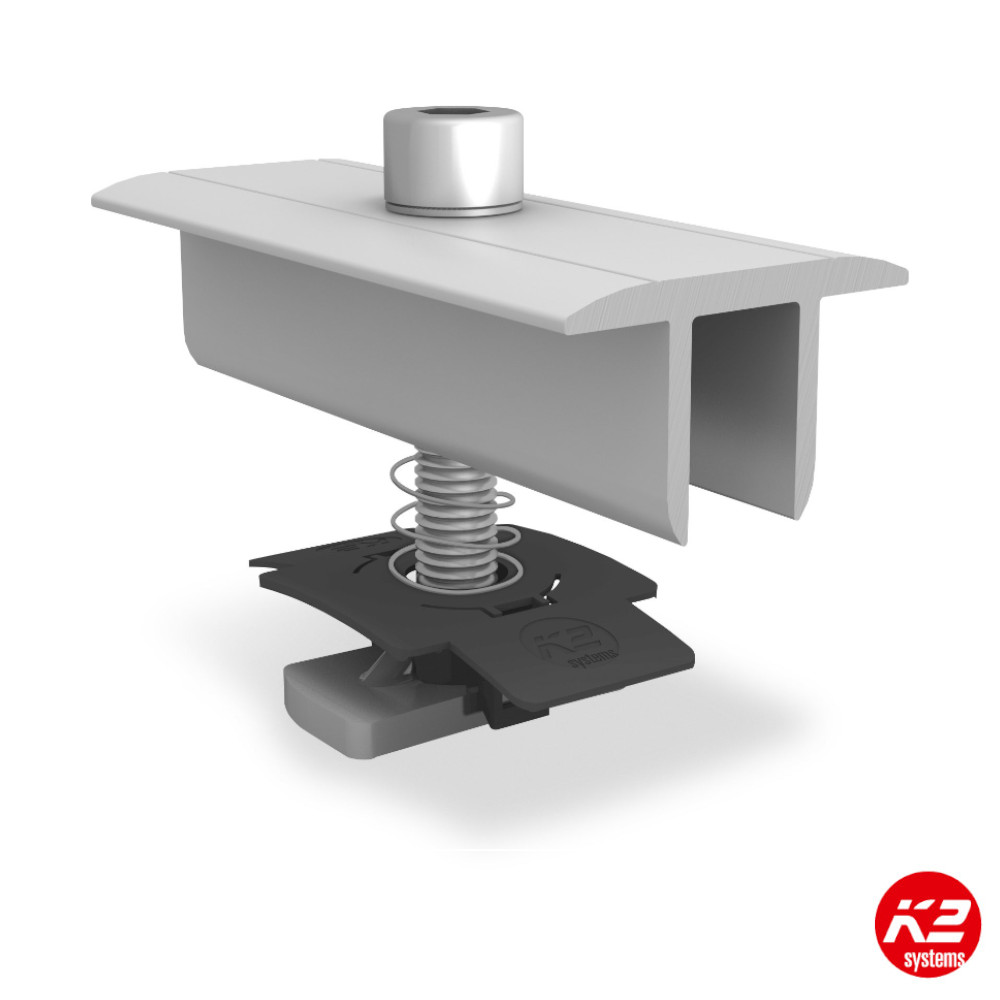

K2 Mid Clamp XS Set 30-33mm

For mounting of modules with module frame depths of 30 - 33 mmto be used with S-Dome 2.0 and D-Dome 2.0.

The set is preassembled and can be easily mounted with every K2 rail. M K2 insertnuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

Middle clamp XS set, consisting of:

• 1 aluminium middle clamp XS, cold pressed
• 1 stainless steel socket screw (M8x50)
• 1 M K2 insert nut M8, stainless steel
• 1 securing washer S8. stainless steel

Also available in a box of 200 units.

K2 Mid Clamp XS Set 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 30-33mm

For mounting of modules with module frame depths of 30 - 33 mmto be used with S-Dome 2.0 and D-Dome 2.0.

The set is preassembled and can be easily mounted with every K2 rail. M K2 insertnuts are self-locking and can be moved by applying light pressure to the stainless steel screw in the rail.

Middle clamp XS set, consisting of:

• 1 aluminium middle clamp XS, cold pressed
• 1 stainless steel socket screw (M8x50)
• 1 M K2 insert nut M8, stainless steel
• 1 securing washer S8. stainless steel

Also available in a box of 200 units.

K2 Mid Clamp XS Set Black 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black Anodised
• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Multi Monti fastener for concrete 7,5 x 60

Screw anchor, Multi MontiMulti Monti screw anchor (Heco) for fastening to concrete with combined washer.

The certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable.

Material: carbon steel bright zinc plated, A2K

• Packing unit: 1 piece
• Head shape: Hexagonal
• Length (mm): 60
• Screw system: External hexagon

K2 Multi Monti fastener for concrete, 10x70/5/20

Multi Monti plus (Heco) - screw anchor for concrete 10x70 hexagon head with combined washer. The certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable.

• Packing unit: 1
• Head shape: Hexagonal
• Length (mm): 70
• Minimum hole depth: 75mm
• Material: carbon steel bright zinc plated, A2K

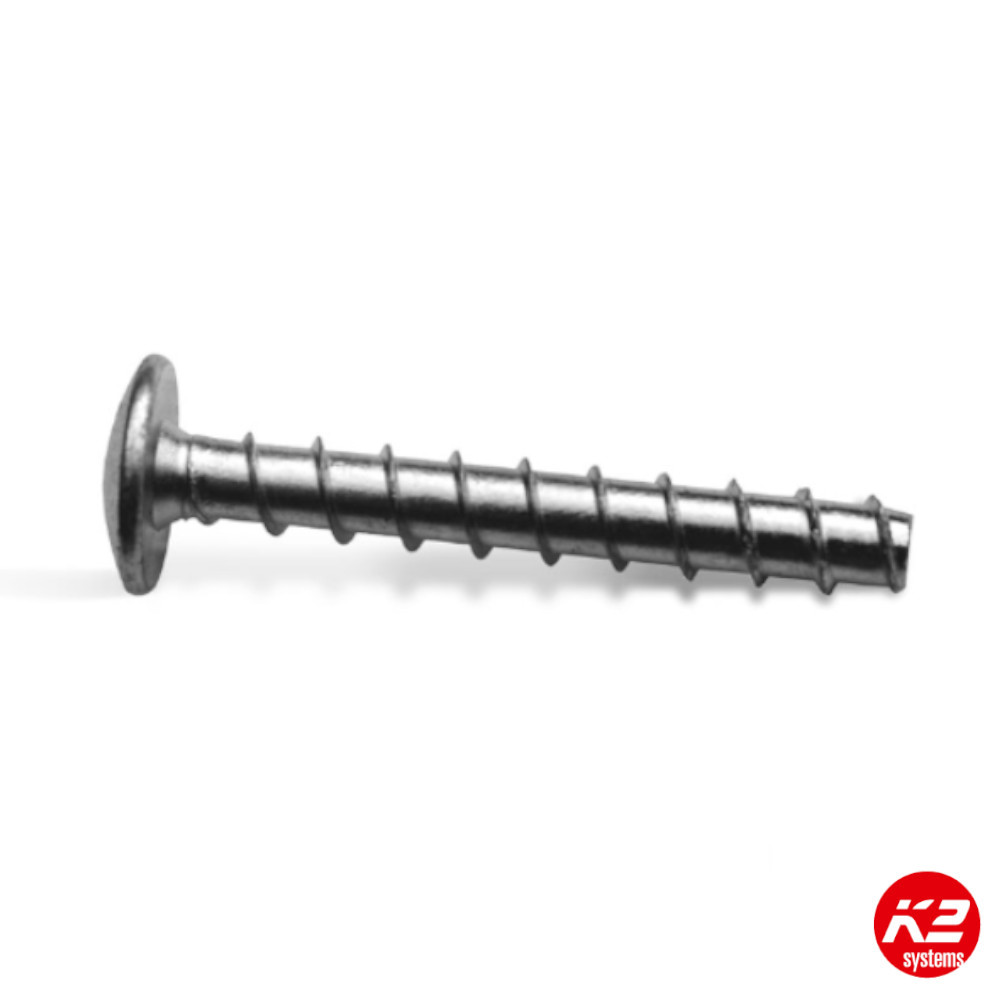

K2 Multi Monti fastener for concrete, 7.5 x 40/5

Concrete screw anchor MULTI-MONTI-plus MS 7,5x40 with flange head is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material.

• Head shape: Flat round head
• Packing Unit: 1 piece
• Length(mm): 40
• Material: carbon steel bright zinc plated, A2K
• Screw system: Socket TX 30

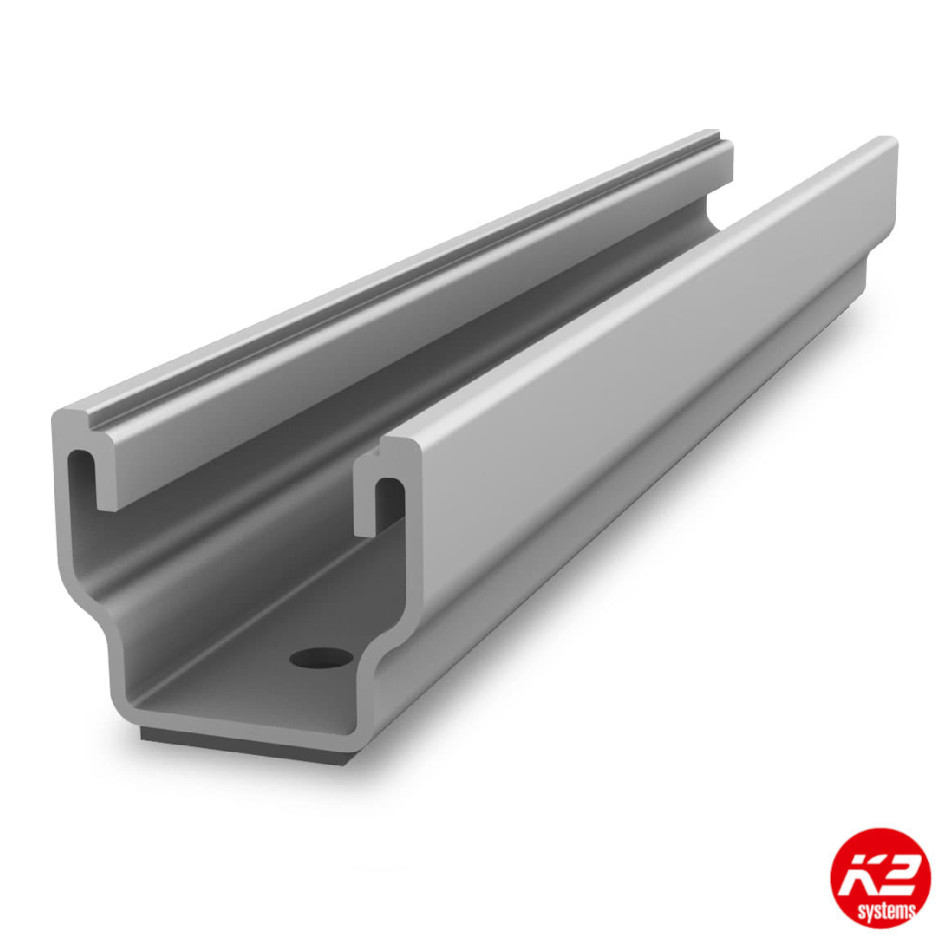

K2 MultiRail 25 4 x Boreholes

The MultiRail mounting system for photovoltaic assemblies was developed specifically for trapezoidal sheet metal. It blends roof connection with module railing in one single component.

FEATURES:

• Length: 250mm
• Height: 32mm
• Width: 39mm
• Material: Aluminium EN AW-6063 T66, EPDM
• Easy and proven – as a short rail or a flexible component in various lengths
• Quick planning with less material and greater effectiveness
• Solid base rail for S-Dome Small trapezoidal elevation
• K2 MultiRail with EPDM-backing, pre-drilled for 4 screws per MultiRail

Also available in a box of 50 units.

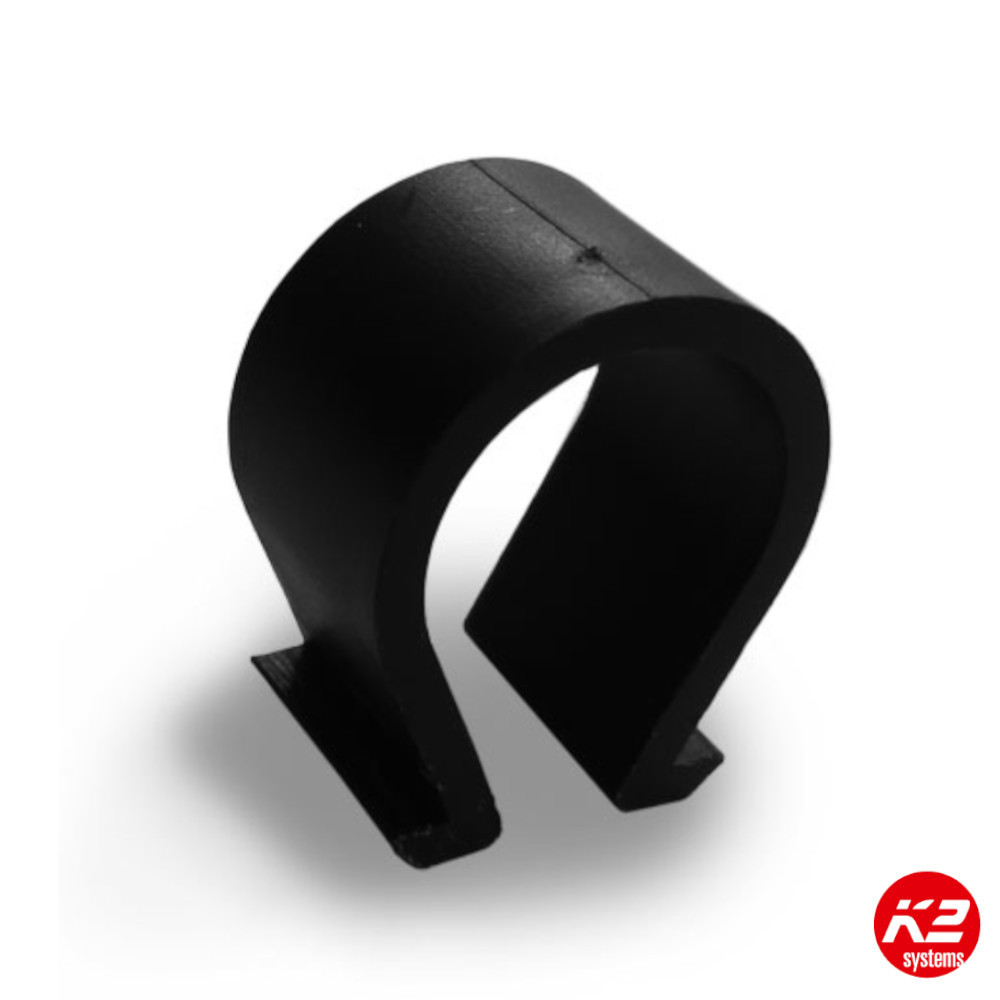

K2 Omega Clip

External cable clip of solar cables for cables extending beyond K2 rails.

Fixation in the C-chamber of the profile.

Material: Polypropylen with UV stabiliser, black

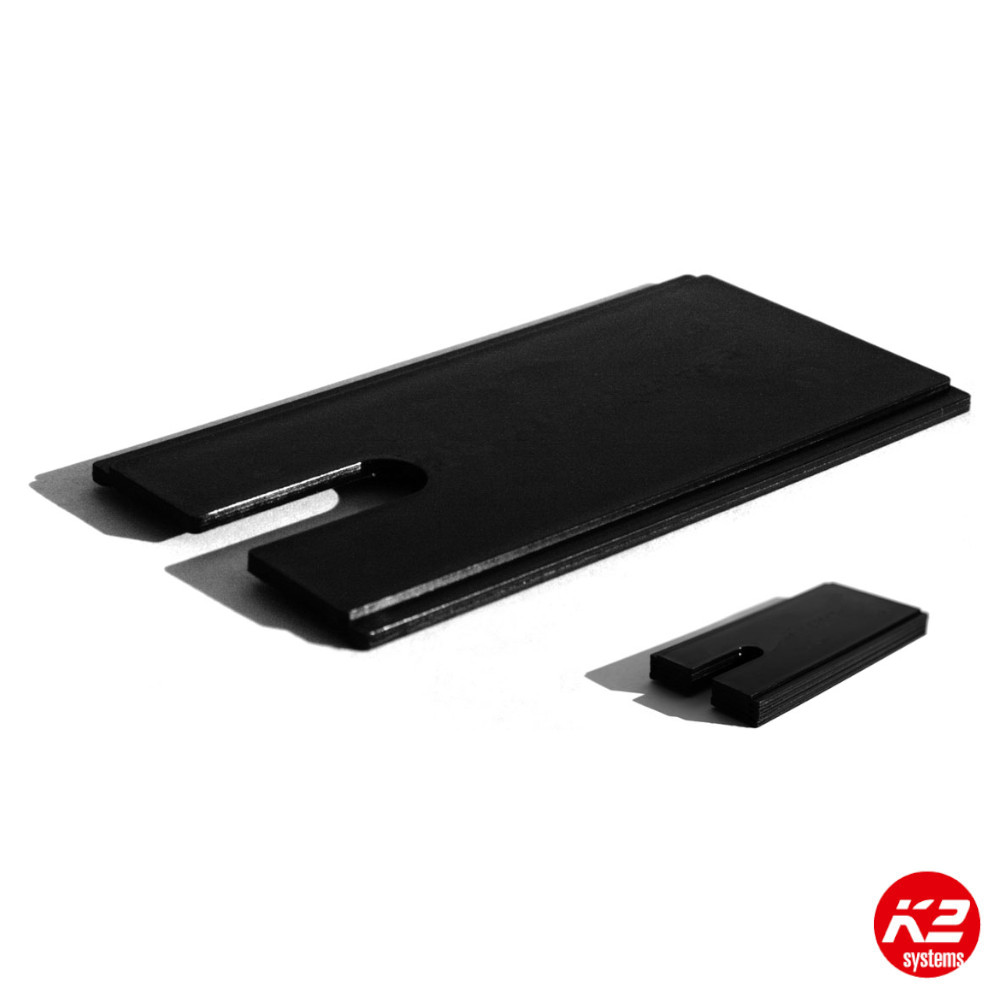

K2 Pad Spacer PA 2mm

Spacer compensates for height differences when installing the K2 threaded roof hooks and the K2 rails (except solid), any number of spacers can be stacked on top of each other for individual height compensation.

Material: glass fiber reinforced PA

Also available in a box of 1,000 units.

K2 S-Dome 6.10 Base Set

Pre-assembled base rail set for the S-Dome 6.10 system for module widths of 960-1170 mm. Including BasicRail 1.50 m, 1 x Dome 6.10 SD, 1 x Dome 6 EndPlate and 2 x Dome Mat S.

Material: aluminium, EPDM, stainless steel

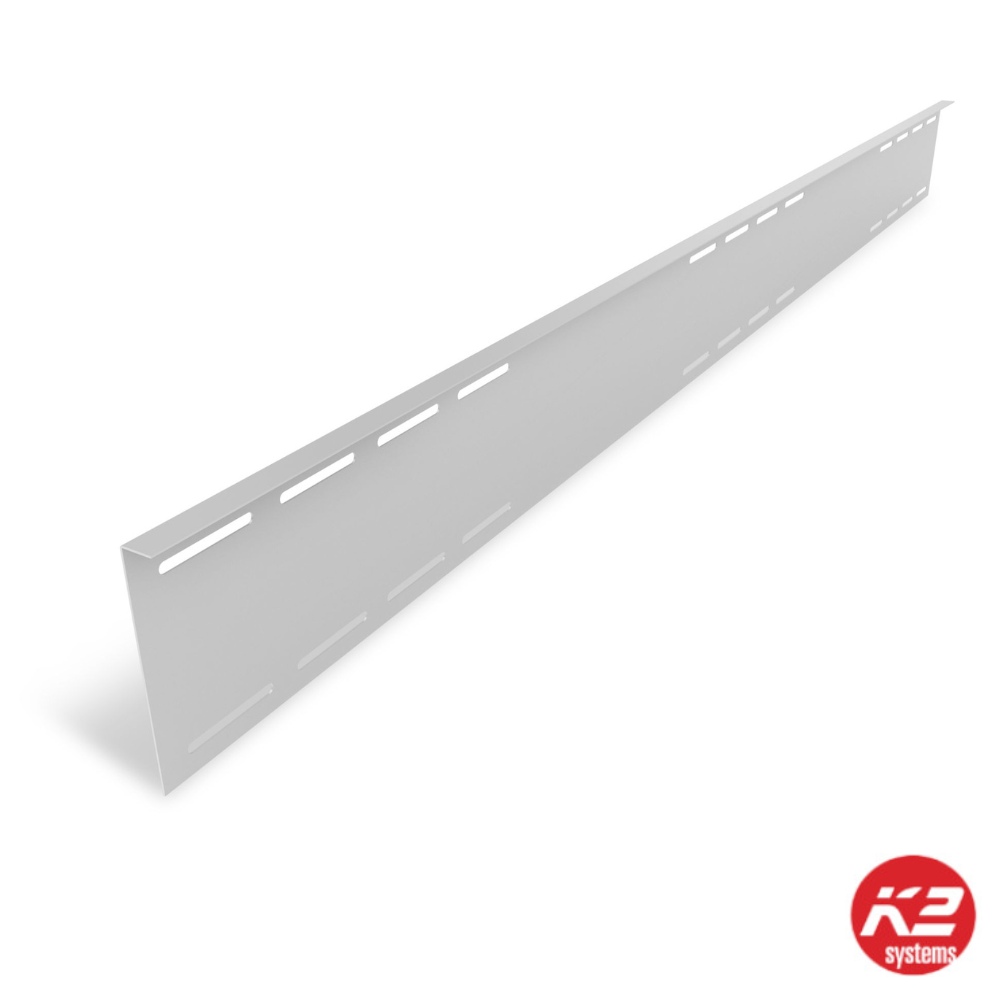

K2 S-Dome 6.10 Windbreaker LS

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System (increase downforce).

Suitable for module dimensions from 1562 - 2390 mm.

Material: Magnelis 1.0242 (S250GD+ZM310)

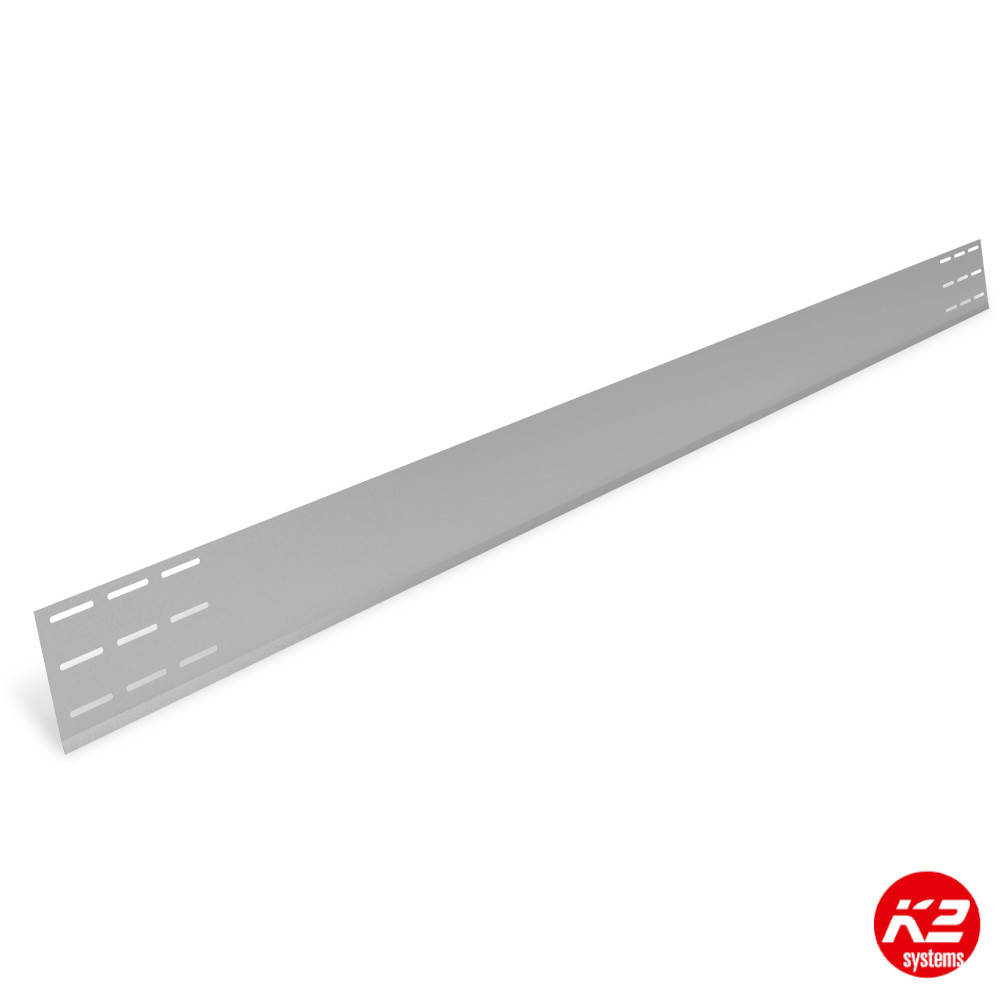

K2 S-Dome 6.10 Windbreaker Long

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System (increase downforce).

Suitable for module dimensions from 1799 mm - 2150 mm.

Material: Steel with Magnelis coating

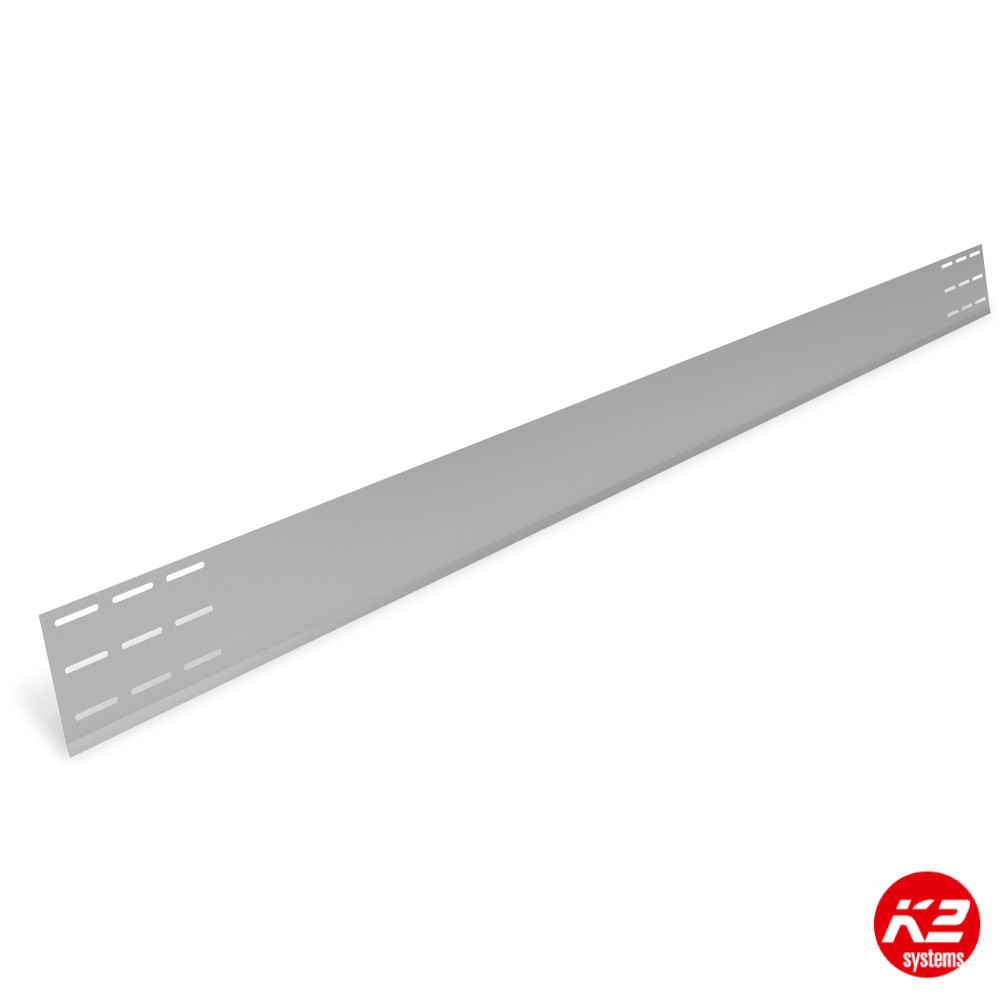

K2 S-Dome 6.10 Windbreaker Short

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10System (increase downforce).

Suitable for module dimensions from 1448 mm - 1799 mm.

Material: Steel with Magnelis coating

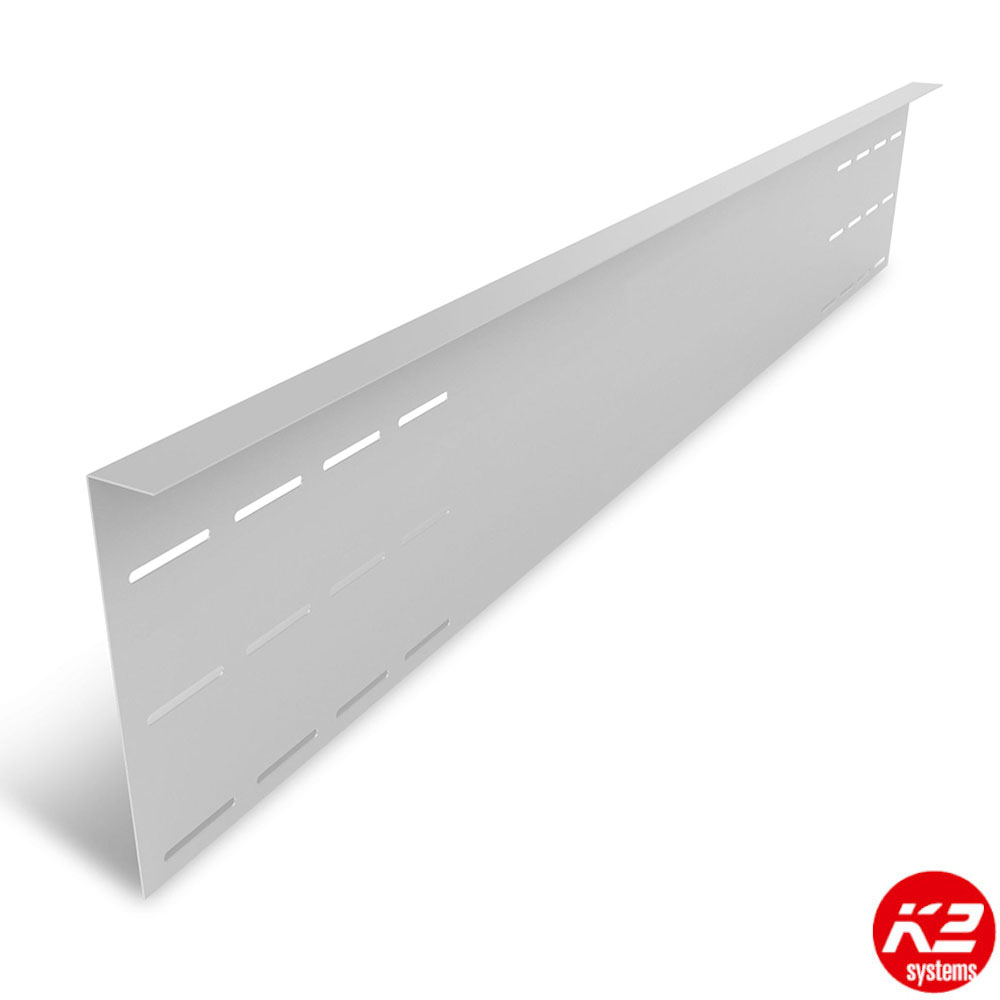

K2 S-Dome 6.15 Windbreaker Short

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome 6.10 System. Suitable for module lengths 1448 mm - 1799 mm.

Material: Steel with Magnelis ZM310 coating

K2 S-Dome Windbreaker Classic 60-cells

K2 Windbreaker (deflector) for wind deflection on the reverse side of the K2 S-Dome System (increase downforce). Material: Steel with Magnelis coating; 60 cells.

Also available in a box of 250 units.

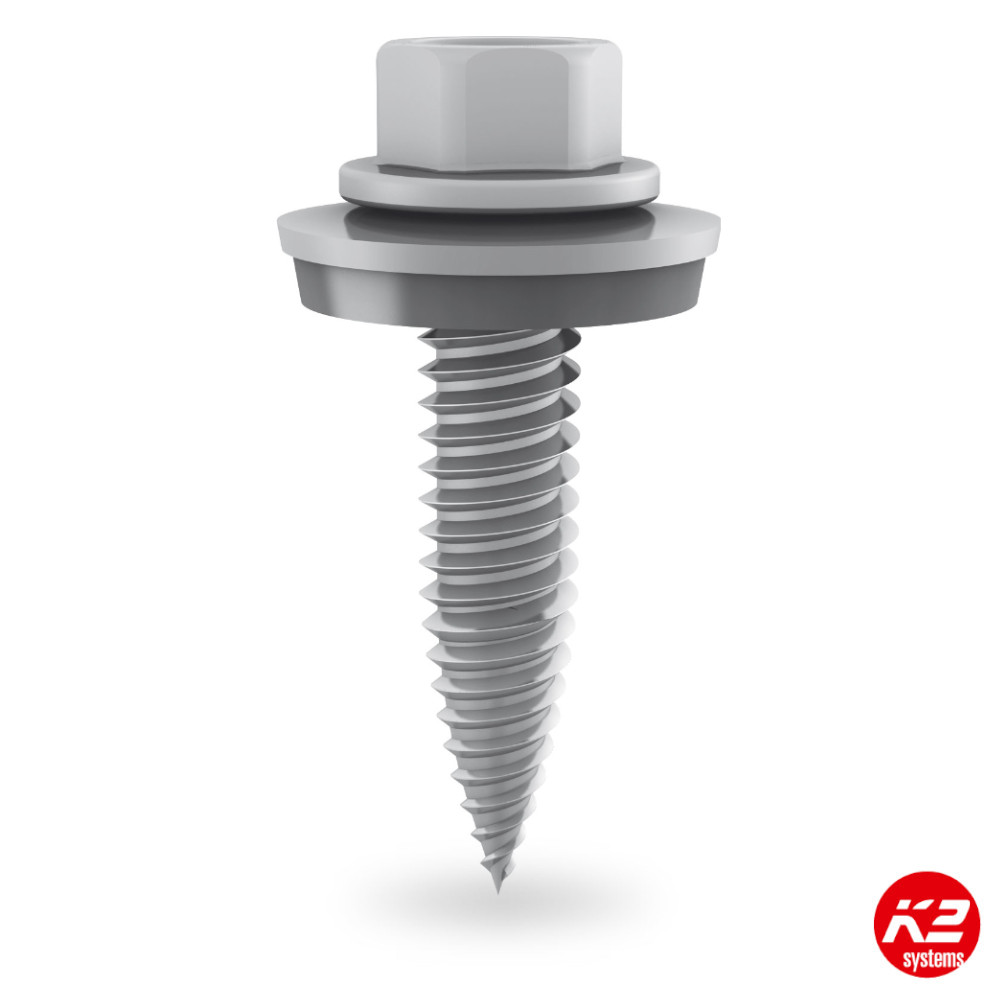

K2 Self-Tapping Moulded Screw 6x25mm

K2 Self-tapping screw with mounted EPDM supported washer.Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 6x25 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 160 units.

K2 Self-Tapping Moulded Screw 6x38mm

K2 Self-tapping screw with mounted EPDM supported washer.Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 6x38 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 200 units.

K2 Self-locking hexagon flange nut serration M8

Self-locking flange nuts with locking teeth M8, DIN 6926.

• Material: stainless steel A2

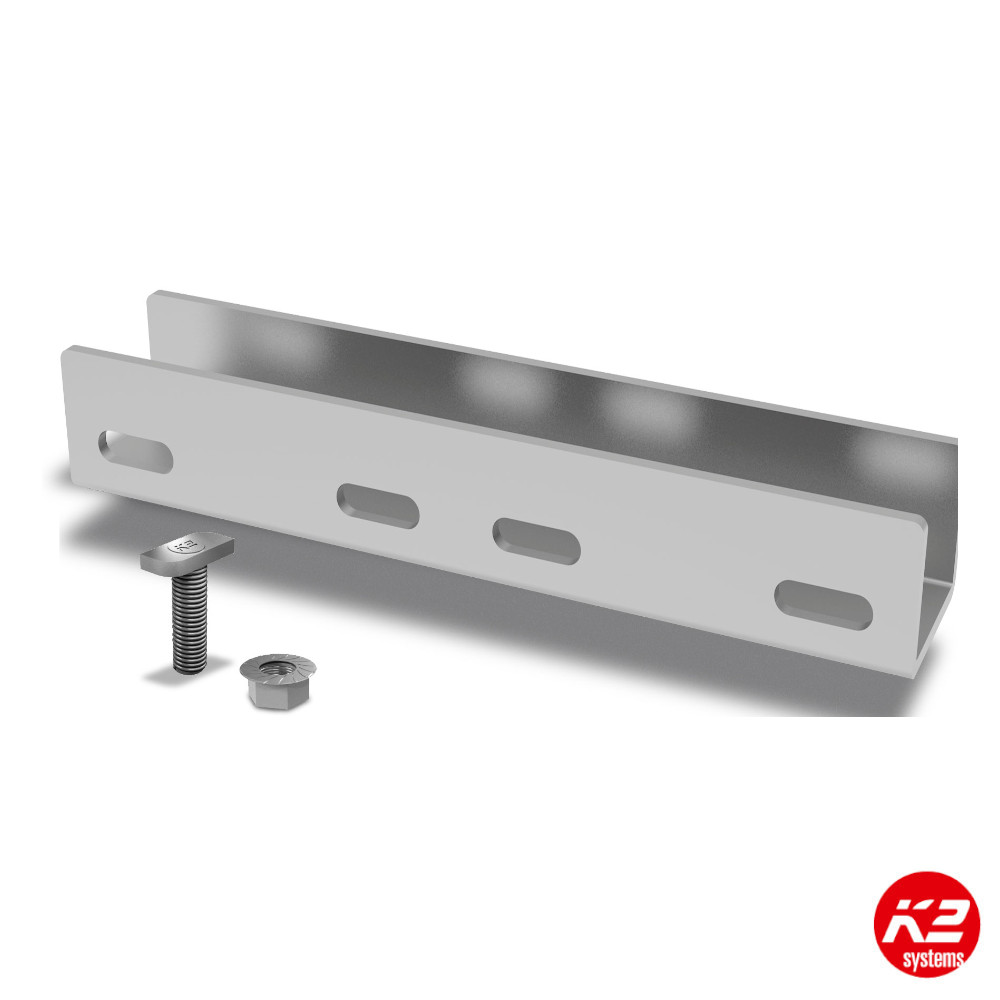

K2 SingleRail 50 - Rail Connector Set

K2 SingleRail 50 - Rail Connector Set Rail connector for K2 mounting rails, type "SingleRail 50". Material: Aluminium.

Set consists of:

• 1 x SingleRail connector 50, aluminium EN AW-6063 T66
• 4 x T-Bolts M8x20 Stainless Steel
• 4 x locking nut M8, Stainless Steel

Also available in a small box of 10 units and larger box of 50 units.

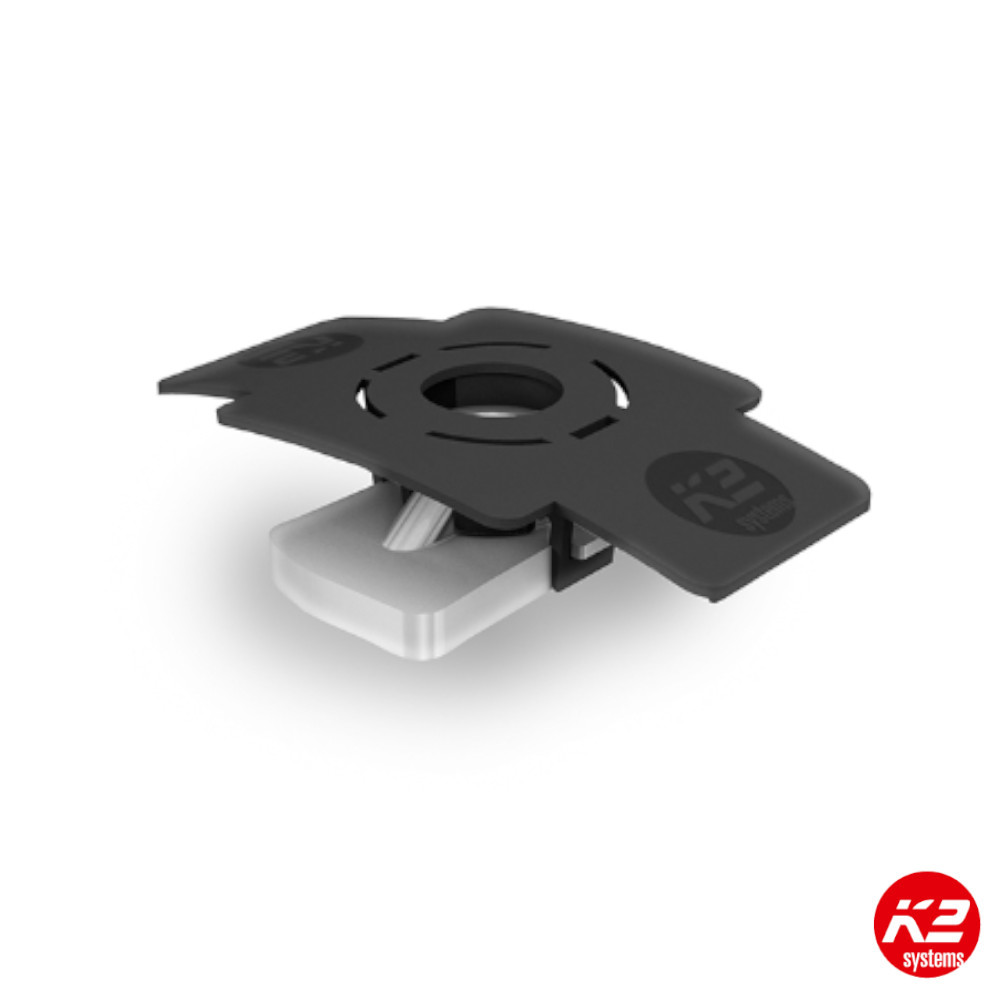

K2 Slot Nut M8 - Stainless Steel

The Fast-installation M K2 slot nut can be put into the K2 rail everywhere. The slotted nut will adjust itself in the rail and can be readjusted to every place of the rail.

• Material: Stainless steel
• Thread of screw: M8

Also available in a box of 250 units.

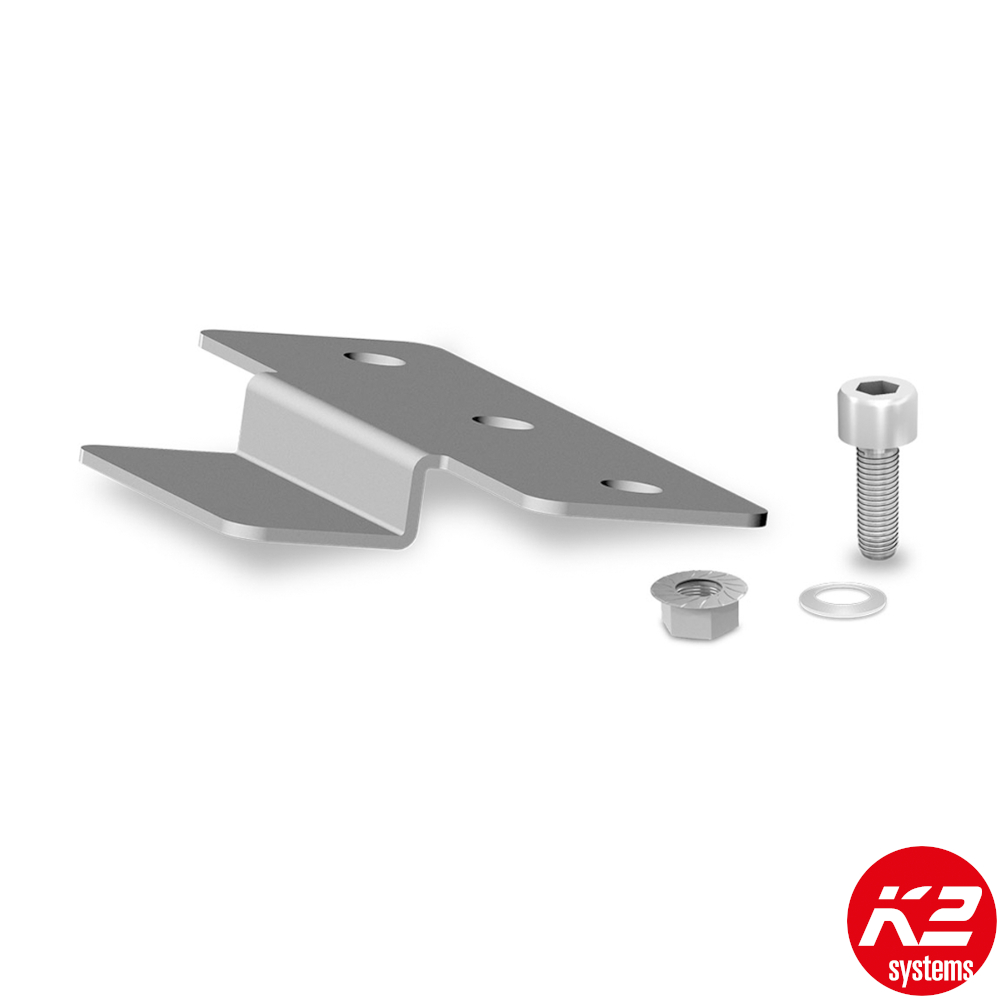

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

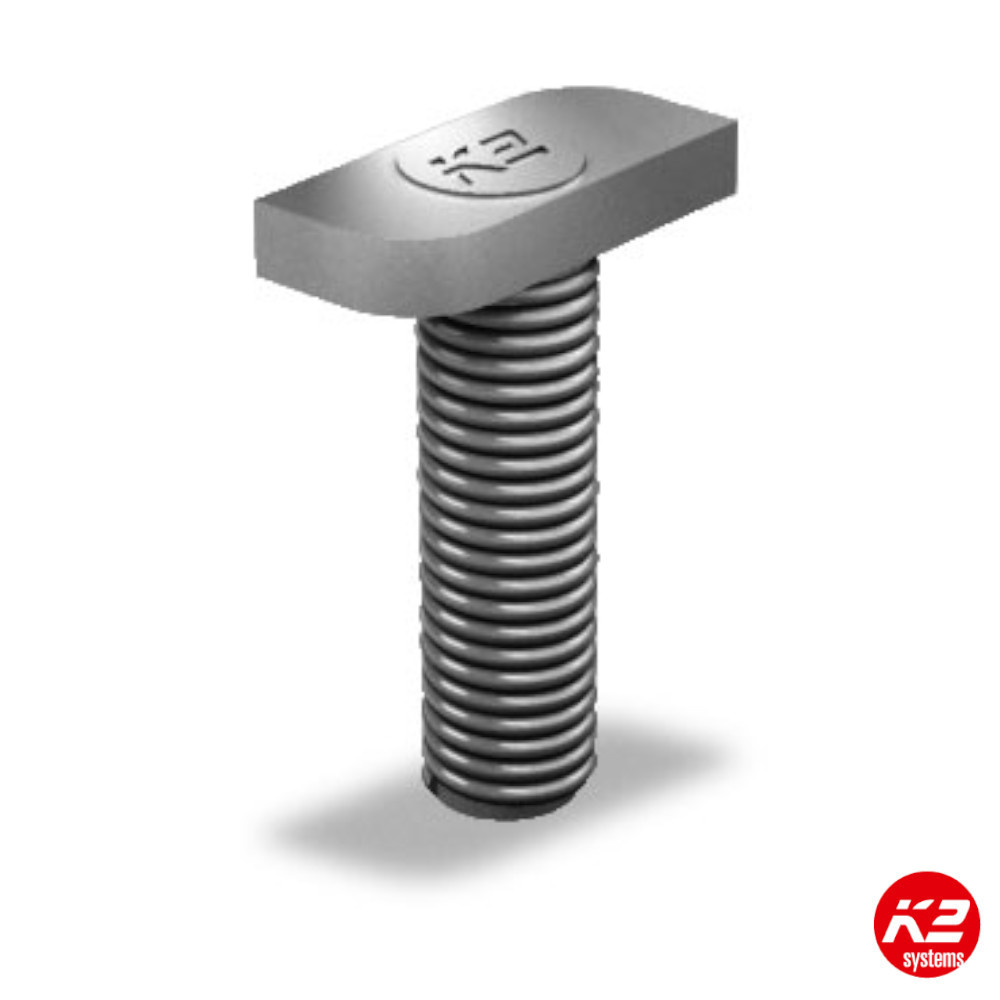

K2 T Bolt M8x30 20/12

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 20/12

Also available in a box of 100 units.

K2 T Bolt M10x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x20 mm

Also available in a box of 100 units.

K2 T Bolt M10x30

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M10x30 mm

Also available in a box of 100 units.

K2 T Bolt M8x20

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head shape: 20/12
• Head dimensions: 15.5 x 8.5 x 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x20 with Wider Head 28/15

T Bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head: 28/15 with four cornered shaft
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x20 mm

Also available in a box of 100 units.

K2 T Bolt M8x30

T bolt to be placed anywhere into the c-cell of the rail. It can be placed and readjusted to any place of the rail.

• Head form: 28/15
• Head dimensions: 22.5 × 10.5 × 4 mm
• Material: Stainless steel A2 (1.4301)
• Thread of screw: M8x30 mm

Also available in a box of 100 units.

K2 TerraGrif K2SZ

Mounting accessories for establishing equipotential bonding of the K2 mounting systems or for earthing the module frames.

** Incompatible systems: BasicRail (landscape mounting).

Material: stainless steel 301 TA

K2 Thread-Forming Metal Screw 4.8x20mm

K2 Self-tapping screw with mounted EPDM supported washer. Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 4.8x20 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 500 units.

K2 TiltUp Vento Beam 1.30m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.30m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Beam 1.60m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1.60m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Beam 2.36m

Top beam for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 2.36m
• Material: aluminium EN AW 6060 T66

Also available in a bundle of 75 units.

K2 TiltUp Vento Brace 679mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 679mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 856mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 856mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,320/Pallet.

K2 TiltUp Vento Brace 1,047mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 1,047mm
• Material: aluminium EN AW 6060 T6

Also available in a 858/Pallet.

K2 TiltUp Vento Brace 446mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 446mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Brace 558mm

Back brace for the TiltUp Vento system.

• Scope of application: flat roof
• Length: 558mm
• Material: aluminium EN AW 6060 T6

Also available in a 1,716/Pallet.

K2 TiltUp Vento Foot

For the connection between the concrete foundation and the TiliUp Vento Brace.

• Scope of application: flat roof
• Material: Aluminium EN AW 6063 T66

Also available in a 9600/Pallet and 400/Box.

K2 TiltUp Vento Spring Plug

Spring plug DIN 11024.

• Scope of application: flat roof
• Material: Stainless steel A2-AISI304

Also available in a 100/small box, 1,500/box, 6,000/Pallet.

K2 TiltUp Vento Pin

Pin for connecting the TiltUp Vento profiles.

• Scope of application: flat roof
• Length: 65mm
• Diameter: 8mm
• Material: Stainless steel, 1.4301 (X5CrNi18-10) TS520

K2 Universal End Clamp One SILVER 30-42mm

Universal clamp (end clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight(32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Domeand D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 33 x 66.8 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.

K2 Universal Mid Clamp One SILVER 30-42mm

Universal clamp (mid clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight (32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Dome and D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 37 x 65.6 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.
