K2 MultiRail System

K2 Clamp EC 25-40

Universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

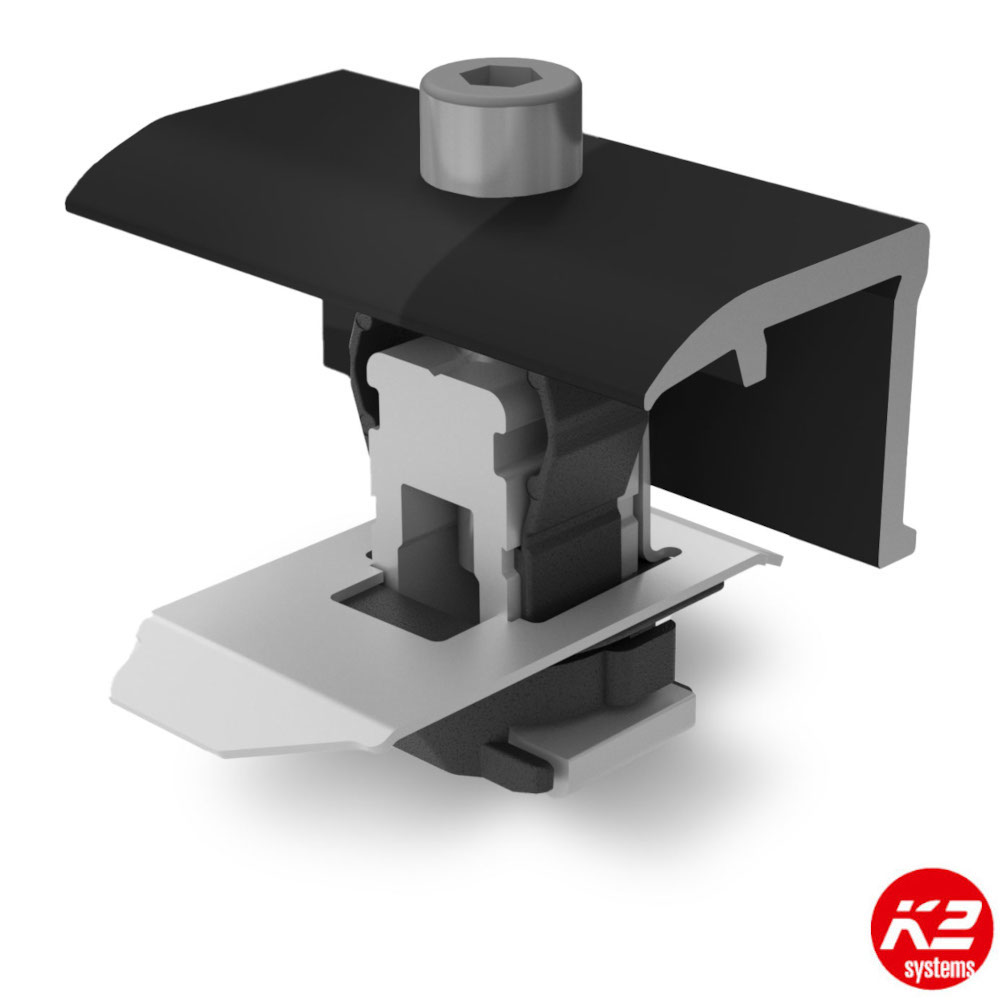

K2 Clamp EC 25-40 Black

Black anodised universal module end clamp for fixing solar modules with frame heights of 25-40 mm. Not compatible with the K2 Dome 6 system.

Features:

• Suitable for Flat Roof, Pitched Roof
• Black anodised
• Material: Aluminium EN AW 6063 T66, Badamid B70, stainless steel A2.

K2 Clamp MC 25-40

Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

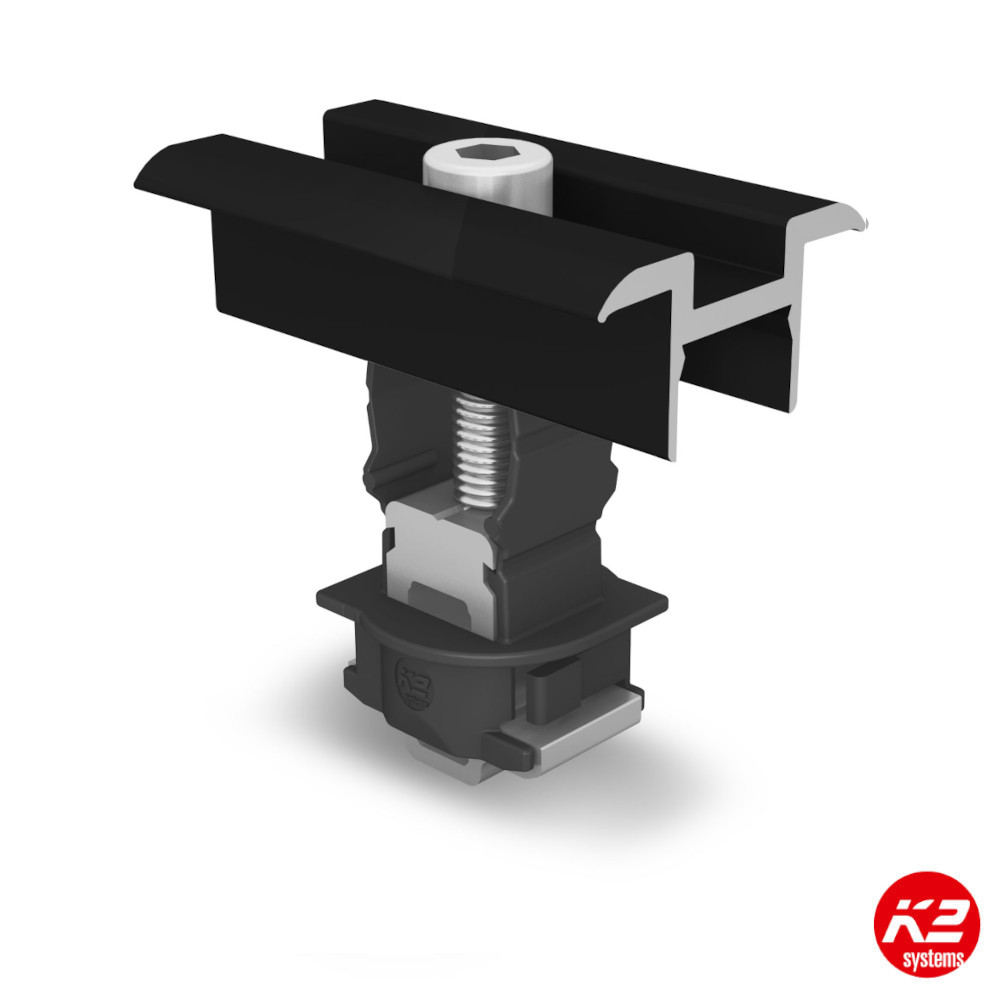

K2 Clamp MC 25-40 Black

Black anodized Module clamp for fastening modules to rails with MK2 rail channel. For module frame heights: 25-40 mm. Not compatible with the K2 Dome 6 system. Anodising may show slight signs of scratching due to packaging and transport.

Features:

• Black anodised
• For Flat Roof, Pitched Roof
• Material: Aluminium EN AW 6063 T66, stainless steel, Thermoplastic.

K2 End Clamp XS Set Black 30mm

Black anodised module end clamp set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 58mm
• Depth: 65mm

K2 End Clamp XS Set Black 35mm

Black anodised module end clamp set for fixing solar modules with frame heights of 35 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 33.7mm
• Height: 63mm
• Depth: 65mm

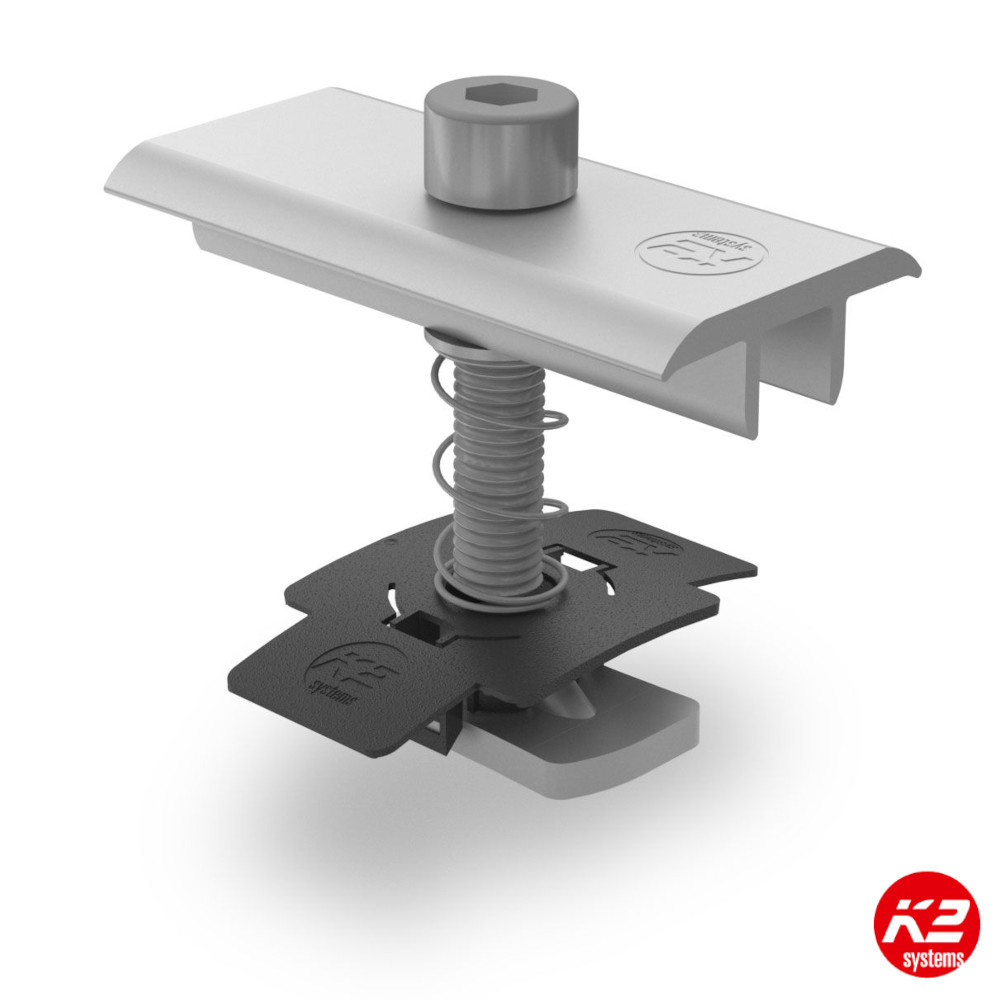

K2 Mid Clamp XS Set 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 30mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 30 mm. Not compatible with the K2 Dome 6 system.

Material: Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black anodised
• Width: 32.5mm
• Height: 58mm
• Depth: 65mm

K2 Mid Clamp XS Set Black 33-35mm

For Module centre clamps XS Set for fixing solar modules with frame heights of 33-35 mm. Not compatible with the K2 Dome 6 system.

Material: Aluminium EN AW 6063 T66, stainless steel, TPE/PA.

• Black Anodised
• Width: 32.5mm
• Height: 63mm
• Depth: 65mm

K2 MultiRail 10

The MultiRail mounting system for photovoltaic assemblies was developed specifically for trapezoidal sheet metal. It blends roof connection with module railing in one single component.

FEATURES:

• Length: 100mm
• Material: Aluminium EN AW-6063 T66, EPDM
• Easy and proven – as a short rail or a flexible component in various lengths
• Quick planning with less material and greater effectiveness
• Solid base rail for S-Dome Small trapezoidal elevation
• K2 MultiRail with EPDM-backing, pre-drilled for 2 screws per MultiRail

Also available in a box of 25 units.

K2 MultiRail 10 CSM

Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm.

FEATURES:

• Length: 100mm
• Height: 35mm
• Widh: 39mm
• Material: Aluminium EN AW-6063 T66, EPDM

Also available in a box of 30 units.

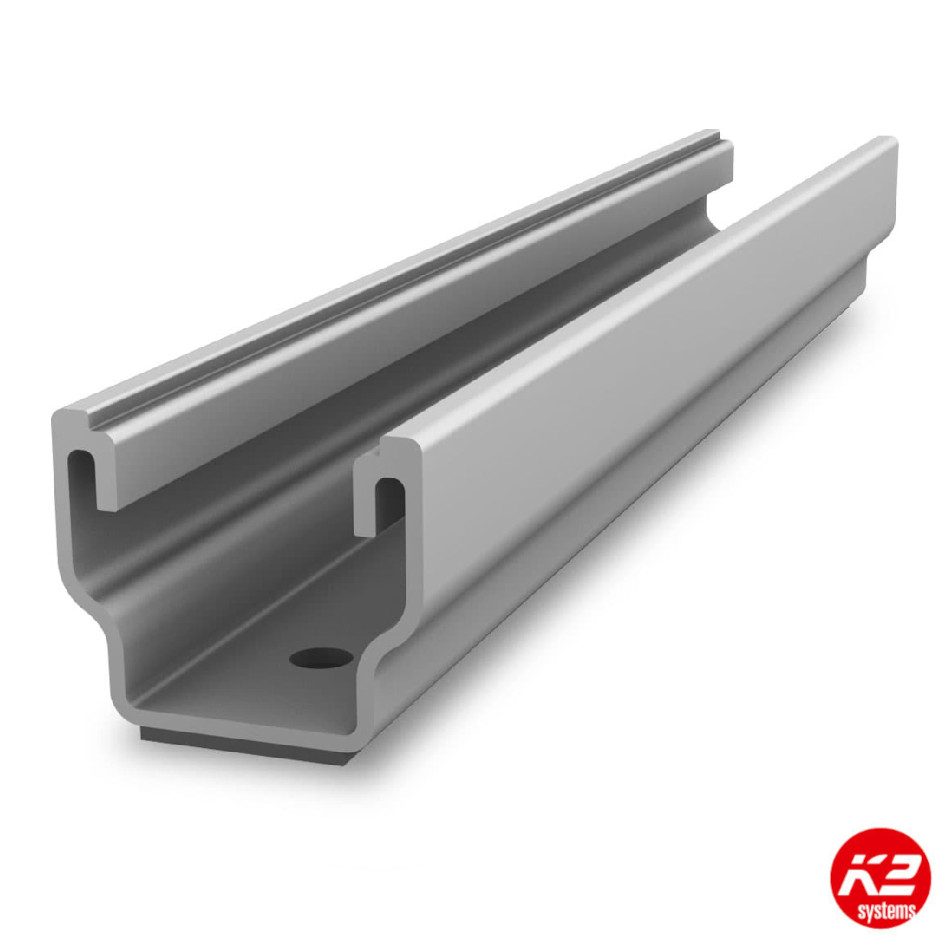

K2 MultiRail 25 4 x Boreholes

The MultiRail mounting system for photovoltaic assemblies was developed specifically for trapezoidal sheet metal. It blends roof connection with module railing in one single component.

FEATURES:

• Length: 250mm
• Height: 32mm
• Width: 39mm
• Material: Aluminium EN AW-6063 T66, EPDM
• Easy and proven – as a short rail or a flexible component in various lengths
• Quick planning with less material and greater effectiveness
• Solid base rail for S-Dome Small trapezoidal elevation
• K2 MultiRail with EPDM-backing, pre-drilled for 4 screws per MultiRail

Also available in a box of 50 units.

K2 MultiRail 25 CSM

Short rail with static confirmation in K2 Base. For direct mounting in landscape orientation on corrugated sheet metal covering with a radius of 22-45 mm.

FEATURES:

• Length: 250mm
• Height: 35mm
• Widh: 39mm
• Material: Aluminium EN AW-6063 T66, EPDM

Also available in a box of 50 units.

K2 RailUp Set

An optional addition to the K2 SpeedRail and MultiRail system, making the installation of power optimizers and microinverters easier. The RailUp Set allows the modules to be raised using a minimum of material and to optimise module ventilation on trapezoidal sheet metal roofs. The set includes all screws and nuts necessary for the installation. The RailUp set is mounted under each module clamp and is compatible with the universal K2 clamps OneMid/OneEnd as well as the K2 standard module clamps. It is not compatible with the K2 AddOn.

Material: Aluminium, stainless steel and TPC

Also available in a box of 54 units or in a pallet of 2160 units.

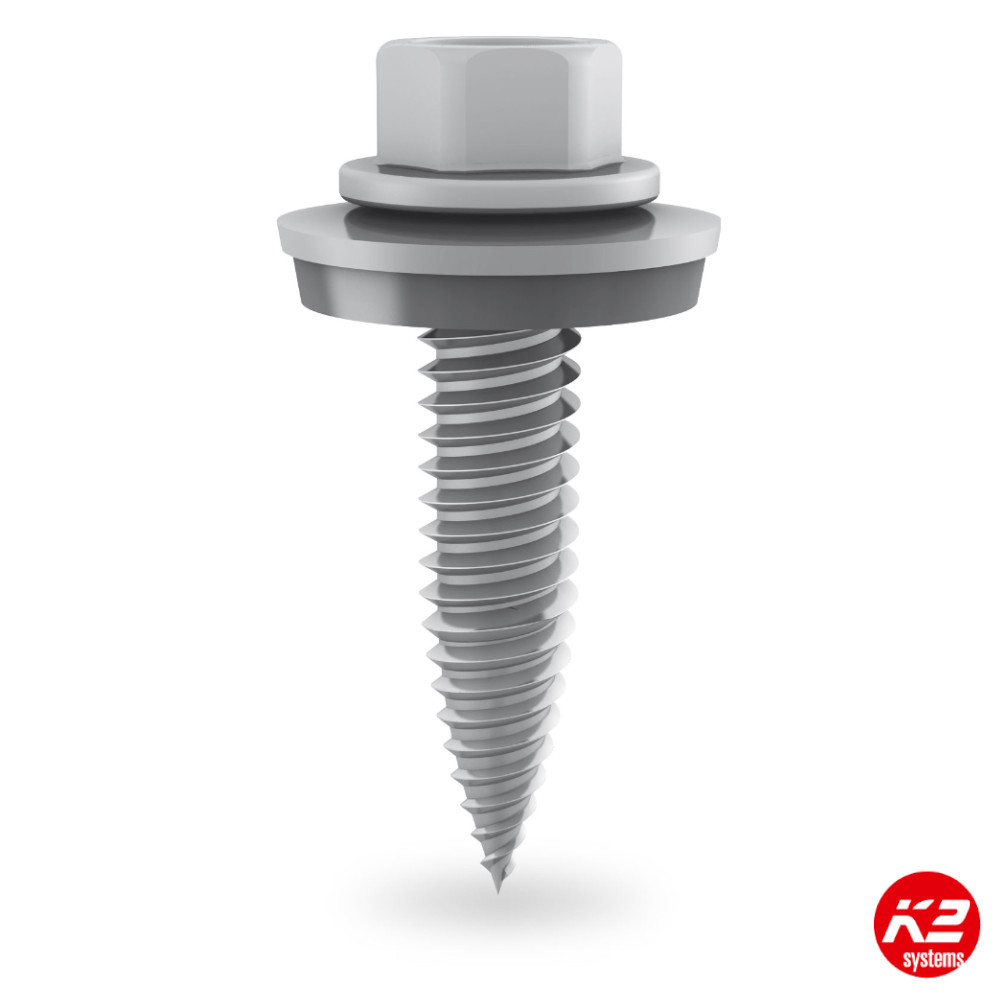

K2 Self-Tapping Moulded Screw 6x25mm

K2 Self-tapping screw with mounted EPDM supported washer.Hexagon screws for the connection of mounting rails and rail connectors, as well as for the SpeedClip assembly.

FEATURES:

• Dimension: 6x25 mm
• Material: Stainless steel A2, EPDM

Also available in a box of 160 units.

K2 Stairplate Set

Micro Inverter and Optimiser of the companies Solar Edge and Enphase can be hooked in all K2 rails (except MiniRail) with K2 StairPlate without screwing it directly on the roof. With the corresponding screws and nuts the tools can be connected with the K2 StairPlate in advance. The height of the modules and the tools to be used must be noted.

Material stainless-steel 1.4301

K2 Universal End Clamp One SILVER 30-42mm

Universal clamp (end clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight(32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Domeand D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 33 x 66.8 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.

K2 Universal Mid Clamp One SILVER 30-42mm

Universal clamp (mid clamp) with easy "click" function for the SingleRail (36,50,63), CrossRail (36,48,80), UltraLight (32), Light (37), SpeedRail (22), MultiRail, ClampRail and CoverRail pitched roof systems, as well as for the S-Dome and D-Dome flat roof systems.

FEATURES:

• Module frame heights: 30-42mm
• Dimensions: 65 x 37 x 65.6 mm
• Material: EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM

Also available in a box of 20 units.
