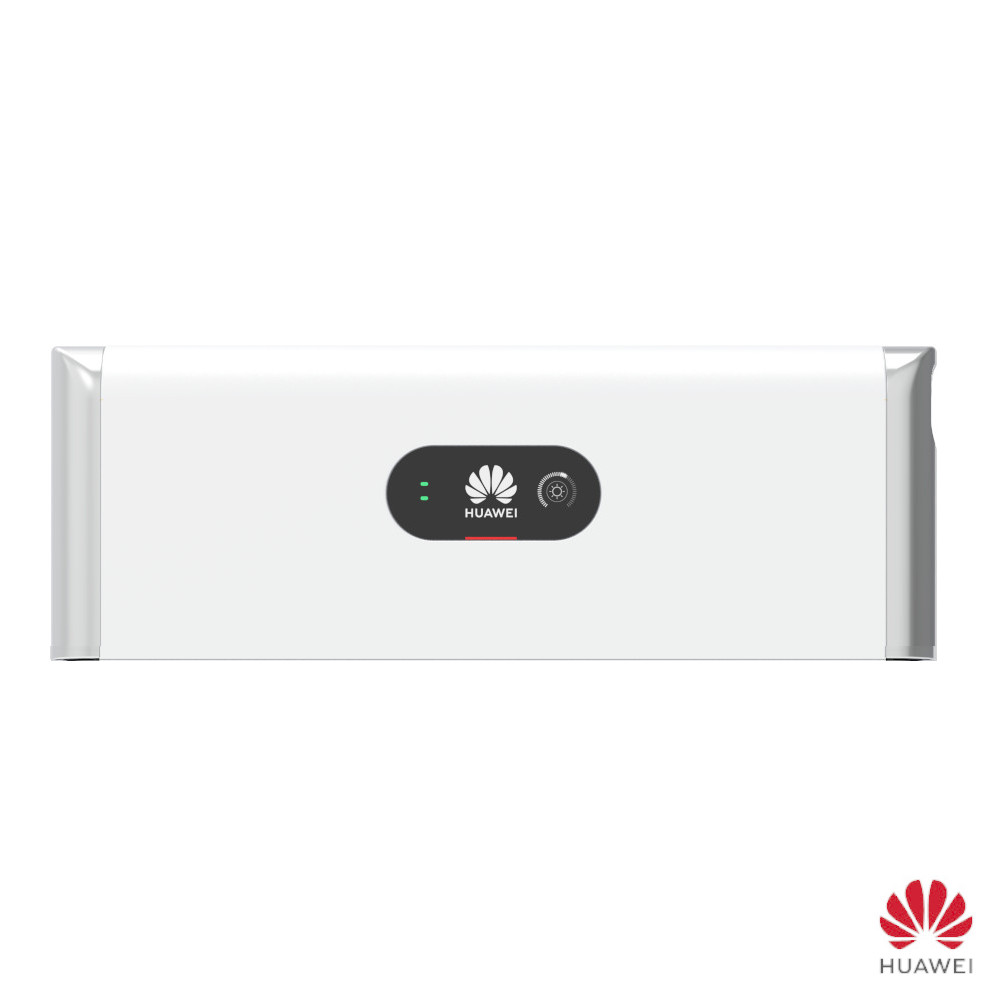

Huawei LUNA2000 S0 BMS (for 5kWh Battery)

This BMS unit (LUNA2000-5KW-C0) is only for use within a Huawei LUNA2000 system.

The modular Huawei LUNA2000 system is a high voltage battery solution which is compatible with a wide range of self-consumption inverters including single and three-phase inverters.

The system primarily targets the residential PV market but it can also be used in small commercial applications.

The modular system consists of a block containing the BMS and battery units which are stackable together offering 5, 10 and 15kWh storage options.This allows for easy, flexible and quick installation.

The LUNA2000 system also allows for parallel connection of up to 30kWh.

LUNA2000 FEATURES:

• Compact size and easy installation
• High energy density and efficiency
• Excellent safety of LiFePO4 battery
• Parallel connection: max 6 pack
• 10 Years warranty

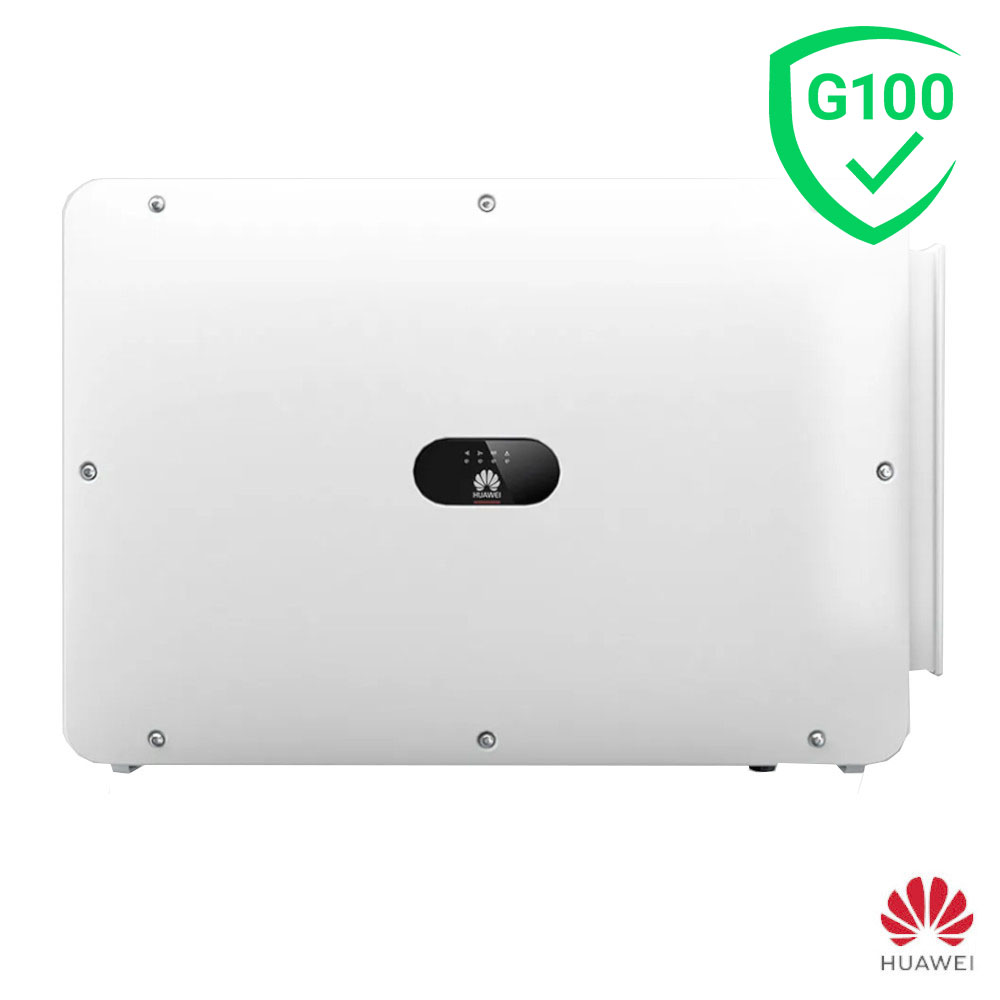

Huawei SUN2000 100KTL-M2 AFCI 3ph Inverter

Huawei integrates the latest digital and internet technology in the new FusionSolar Smart PV solution portfolio. The wide range of SUN2000 inverters helps you on any commercial rooftop for maximal efficiency.

Huawei SUN2000 100KTL-M2 three-phase inverter with 10 MPPTs ensures safe, efficient and reliable management of your photovoltaic system, which are combined with a series of technical features that make it among the smartest large size inverters on the market.

Smart:

• Smart I-V curve diagnosis: implements the I-V scan and integrity diagnosis for the PV strings. In this way, potential risks and failures can be detected in time
• Support AFCI & Smart String Level Disconnector
• 20V PV Strings

Safety:

• Integrated DC switch, safe and convenient component even during maintenance
• Residual current monitoring unit: immediately disconnects from the mains after detecting that the residual current exceeds the threshold
• Design without fuses

Reliable:

• Natural convection cooling technology
• IP66 protection degree: it can be installed both indoors and outdoors, away from flammable materials and not under direct sunlight
• Type II surge arresters for both DC and AC
• Standard 5 year manufacturer warranty can be extended

This inverter must be commissioned either by using the SUN2000 App on your phone or by connecting to the Smart Logger.

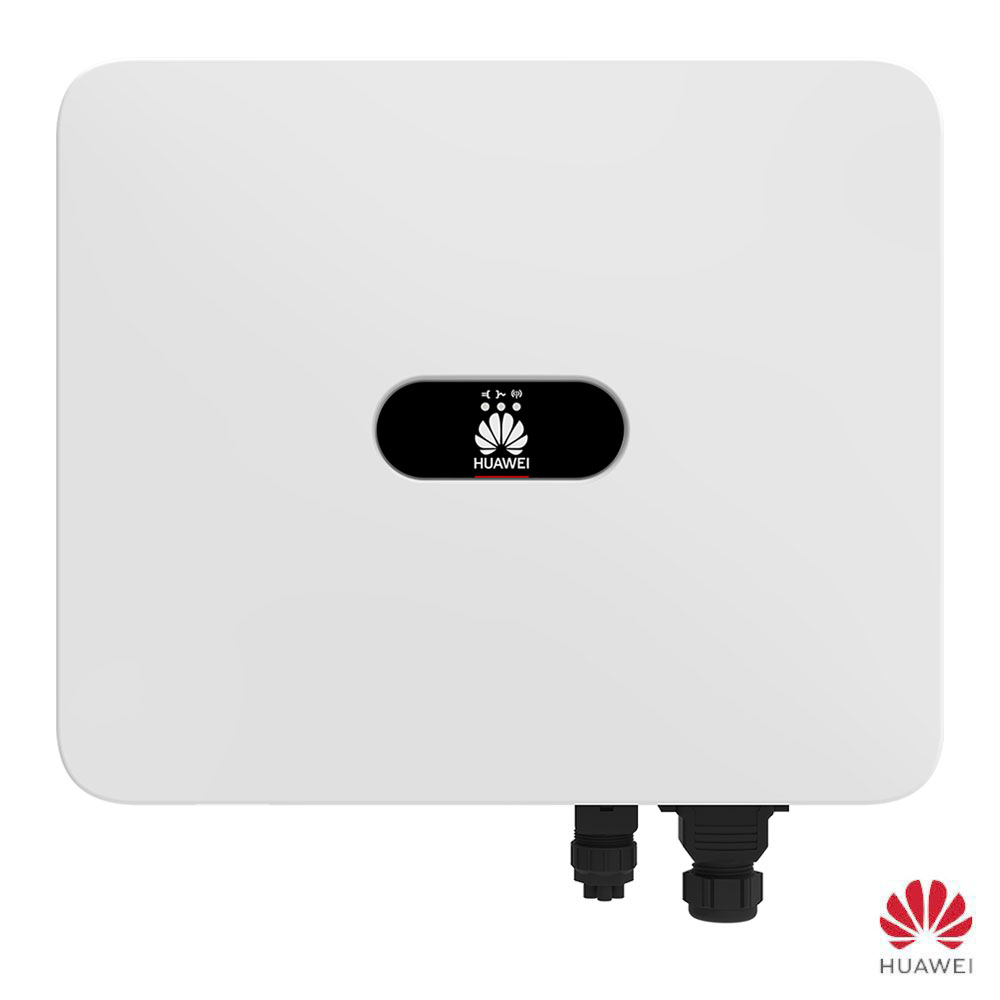

Huawei SUN2000 25K-MB0 3ph Hybrid Optimiser Inverter

The Huawei SUN2000-25K-MB0 is a battery ready three-phase inverter which is ideal for the integration with LUNA Smart String Power Storage System, Smart Optimiser, SmartGuard, and EMMA - Huawei's Energy Management Assistant.  The integration ensures an uninterrupted power supply during outages and emergencies.

In a three-phase backup solution, one inverter can control up to four ESS stacks (towers), with storage capacity dependent on the selected LUNA battery model.

KEY FEATURES:

• Light and compact 3ph inverter
• Power:  25,000 W
• 2 independent MPPTs
• Compatible with residential & MERCS PV Optimisers
• Compatible batteries: Huawei LUNA2000 S0 / S1
• Communication via RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional)
• Quick installation and easy commissioning with the FusionSolar App
• Integrated AFCI protection
• Type II AC and DC surge protection
• IP66 protection
• Product Warranty: 10 years

Huawei WLAN-FE Dongle, WLAN or Ethernet or Hotspot

The Huawei Smart Dongle A-05 (AP+STA) is a communication accessory designed for Huawei solar inverters. With plug-and-play installation via USB, it can connect to up to 10 inverters, ensuring efficient system monitoring. It supports both WLAN and Fast Ethernet connections.

KEY FEATURES:

• Plug & Play - Support max. 10 devices
• Supports WLAN & Fast Ethernet (FE) and 3rd-party monitoring system communication
• Support data encryption for transmission, ensuring data safety
• Operating temperature range :–30°C to +65°C
• Dimensions (W x H x D) : 146 mm x 48 mm x 33 mm
• IP rating: IP65
• 2 years warranty



Note: This item is also compatible with SUN2000-30/36/40KTL-M3 inverters.
