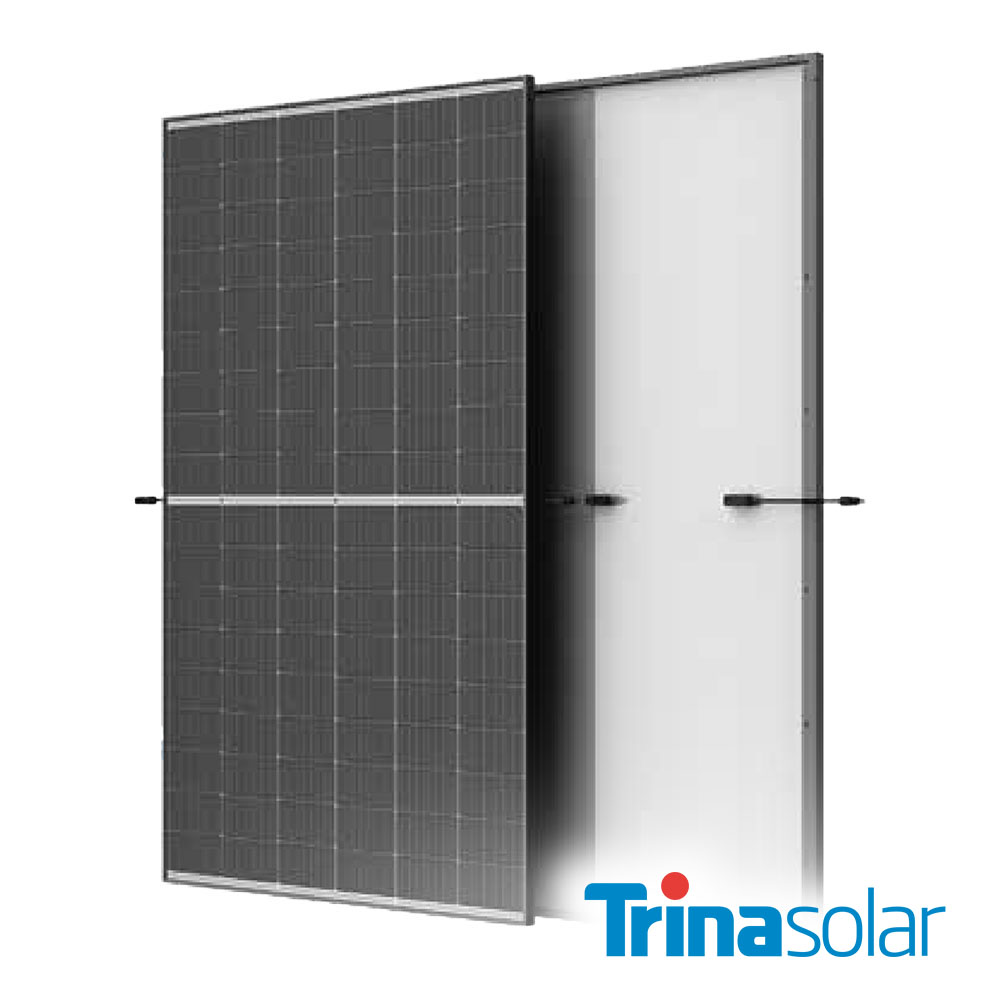

Trina Solar 520W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, Black Frame

Trina Solar 520W Vertex S+ N-Type TOPCon Monofacial, Dual Glass, Black Frame

The Trina Solar TSM-520-NEG18R.28 is a high-efficiency 520W Vertex S+ solar panel for commercial, industrial and larger rooftop PV installations. Its compact, sub-two-metre format delivers high power density while remaining easier to handle than many large-format commercial modules.

Built with 108 N-type i-TOPCon cells, the panel achieves 23.4% efficiency and a low −0.29%/°C temperature coefficient for reliable performance in low-light and warmer conditions.

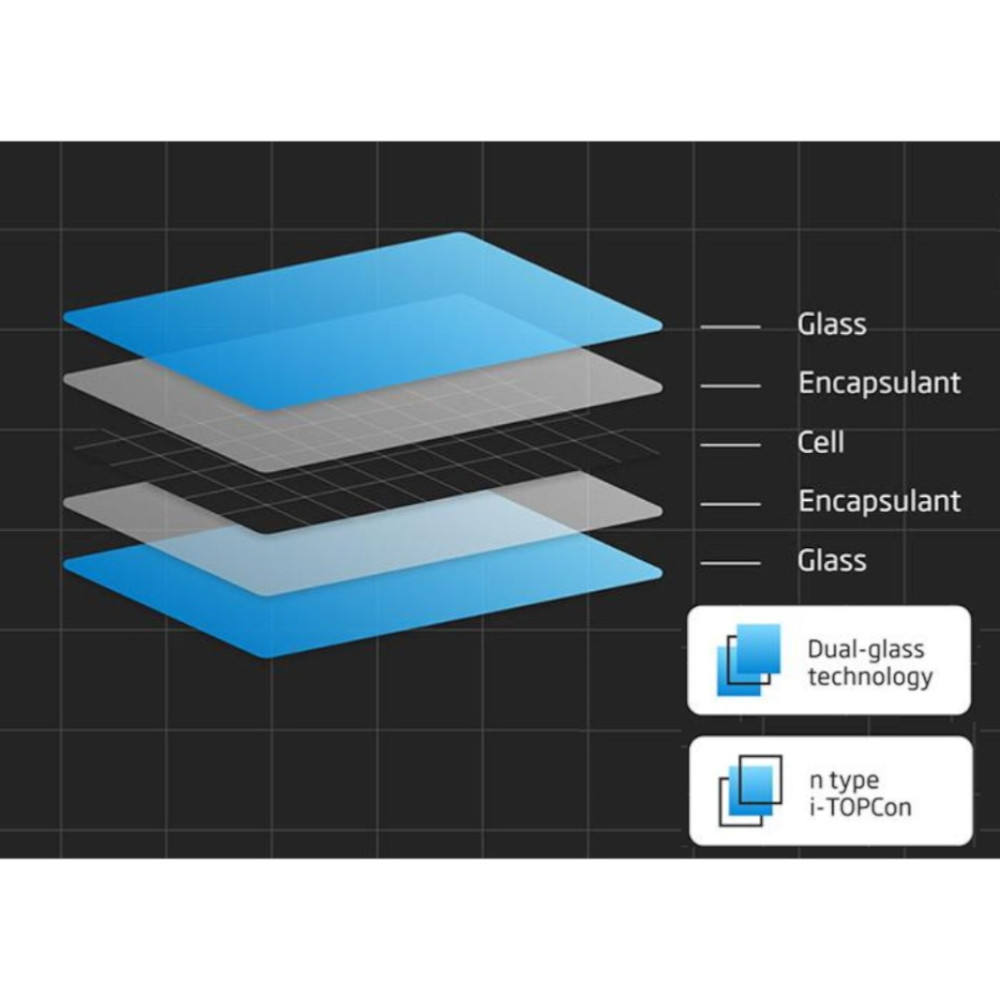

Its durable monofacial dual-glass construction helps protect the cells against moisture and microcracking. The low-voltage, high-current design supports efficient string layouts, while the black aluminium-alloy frame provides a clean finish.

KEY FEATURES:

• 520W maximum power output
• 23.4% module efficiency
• N-type i-TOPCon monocrystalline cell technology
• 108 half-cut solar cells
• Monofacial dual-glass construction
• 1.6mm heat-strengthened front and rear glass
• Black anodised aluminium-alloy frame
• Compact 1961 × 1134 × 30mm format for commercial and industrial rooftops
• Excellent low-light performance
• Low −0.29%/°C power temperature coefficient
• Maximum system voltage: 1,500V DC
• Mechanical load resistance: 5,400Pa snow and 2,400Pa wind
• IP68-rated junction box
• 25-year product warranty
• 30-year power warranty

Important: Trina Solar has recently stated that while fitting their modules one should follow Trina Solar’s own User Manual, as improper fitting can invalidate product warranty.
