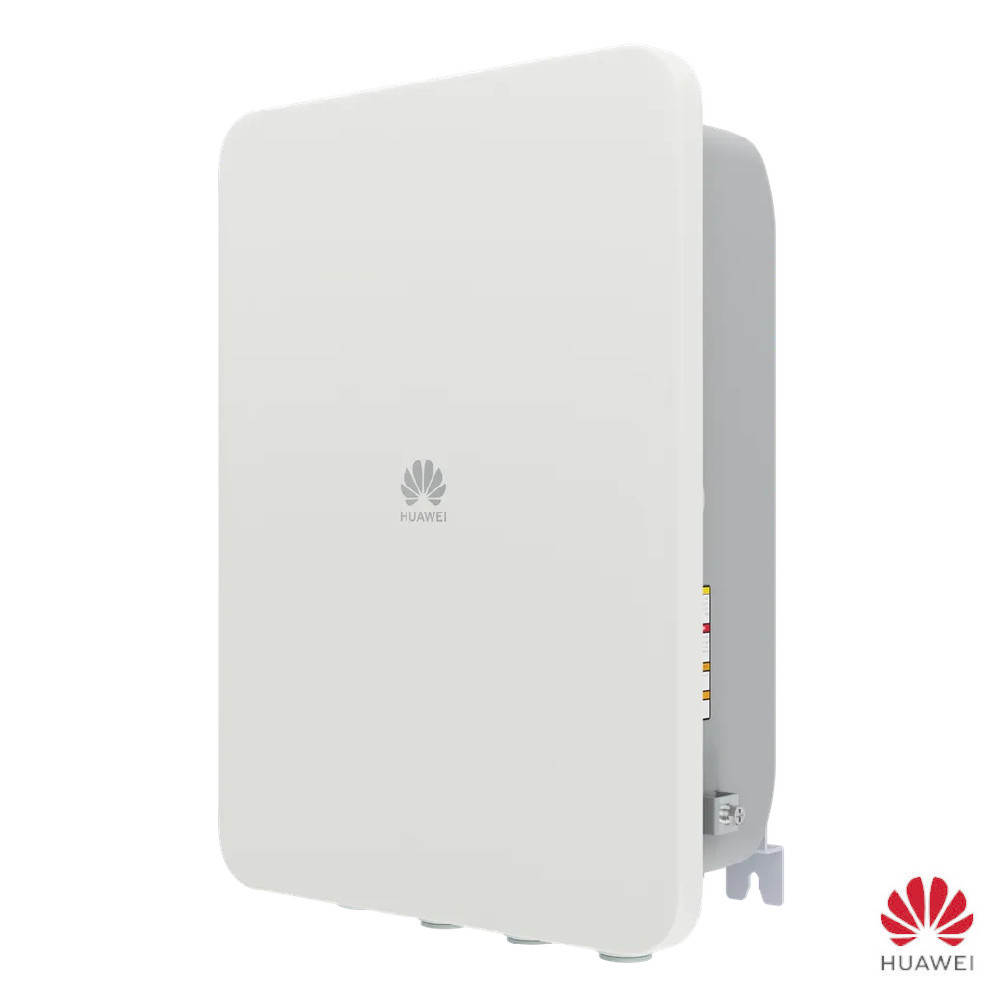

Huawei SmartGuard-63A-S0 Single Phase Backup Box
Huawei SmartGuard is a smart security solution for single phase systems, providing advanced protection and energy management. The system quickly switches to emergency power, which is essential for residential and small-scale commercial installations.
No additional switchboard is required to support the backup and non-backup loads, because the total current support of 63 A offers sufficient power supply.

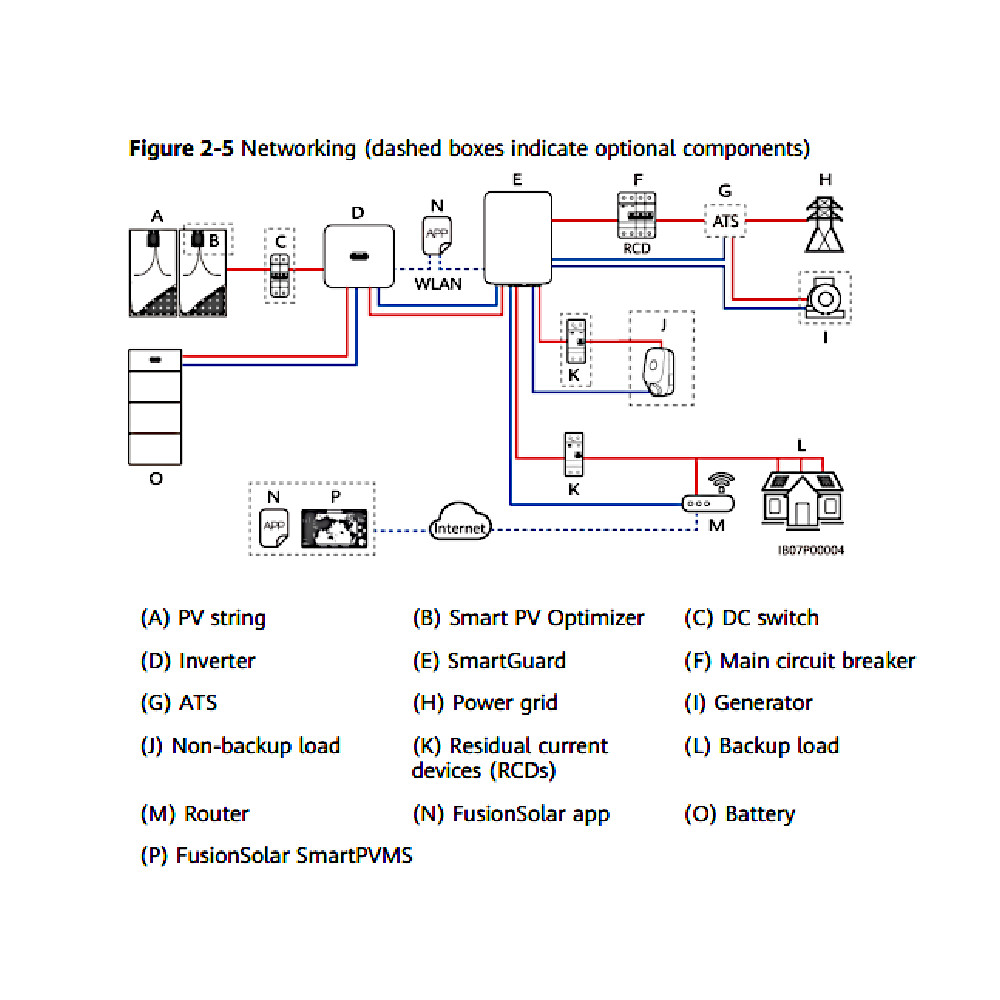

The backup system includes PV strings, Huawei Smart String ESS, Huawei single-phase inverters, SmartGuard, grid connections and primary loads. SmartGuard ensures smooth control of inverter on/off during unstable grid conditions and quickly provides backup power to primary loads in the event of a fault. Furthermore, the integrated EMMA Smart Meter allows electricity tariffs to be handled efficiently.
FEATURES:
✔ Easy installation: Single-phase home power supply without additional switchboard
✔ Whole house backup : From partial to full home support
✔ Ultra-fast response: ≤ 20ms Ultra fast switchover to power backup mode
✔ Intelligent Energy Security: With integrated EMMA technology for intelligent load management
✔ Natural operation: With integrated manual bypass when a fault occurs to avoid errors
- Total power support:63 A
- AC connection mains: 230V, 1-phase
- Max number of inverters: 1
- Self consumption: 10W
- LVRT support: enables continued operation under conditions of temporary decrease in mains voltage
- Power Output: 9.5 - 13.2V @100mA, ≤ 3m
- 2x DI ports (≤ 20m) ; 2x DO ports (≤ 20m)
- 2x RS485 ports: 9600 / 19200 / 115200bps, ≤ 50m
- Dimensions (H x W x D): 485x355x150 mm
- Installation position: house supply line
- Protection class: IP55
- Compatible devices: SUN2000-2-6KTL-L1 / SUN2000-8-10K-LC0 compatible with L1/LC0 single phase inverters
- 10-year warranty
| Accessory By Type | Backup Boxes or Battery Accessories or Energy Managers or Protection Solutions |
| Brand | Huawei |
| Accessory Phase | Single Phase |
