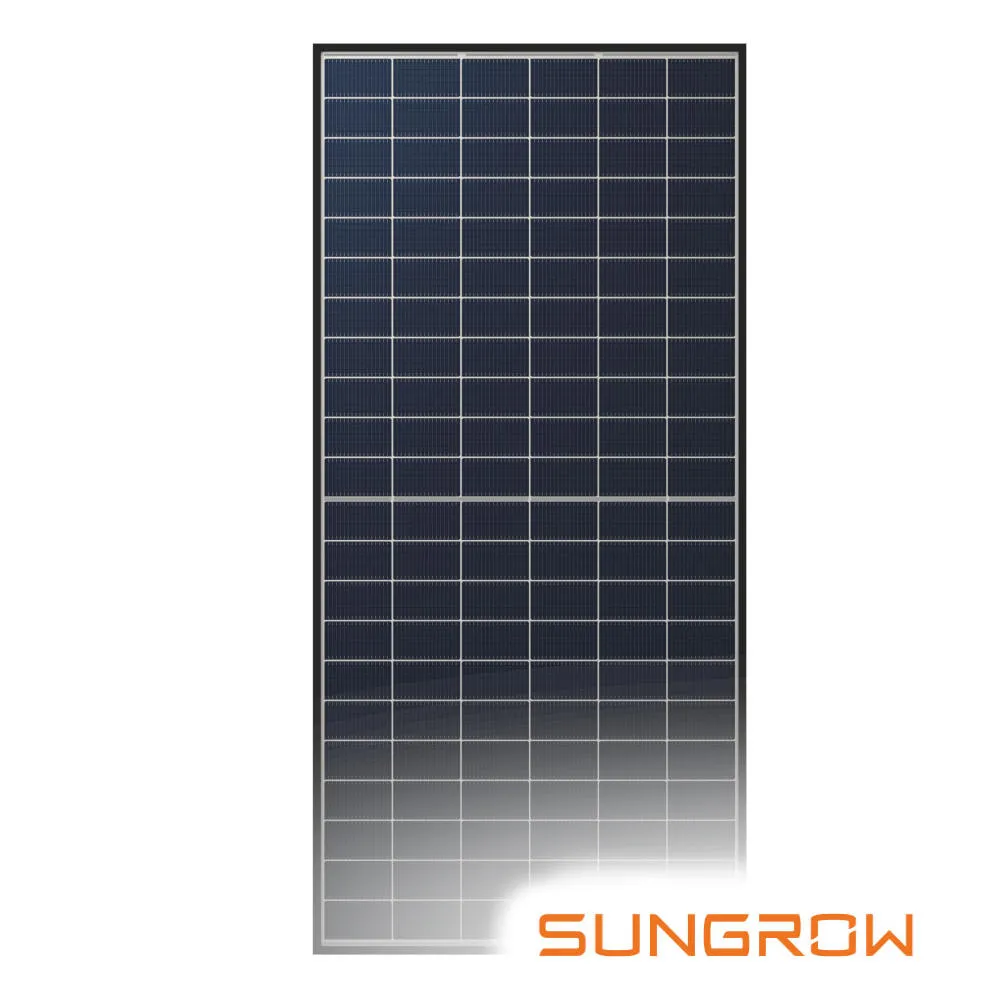

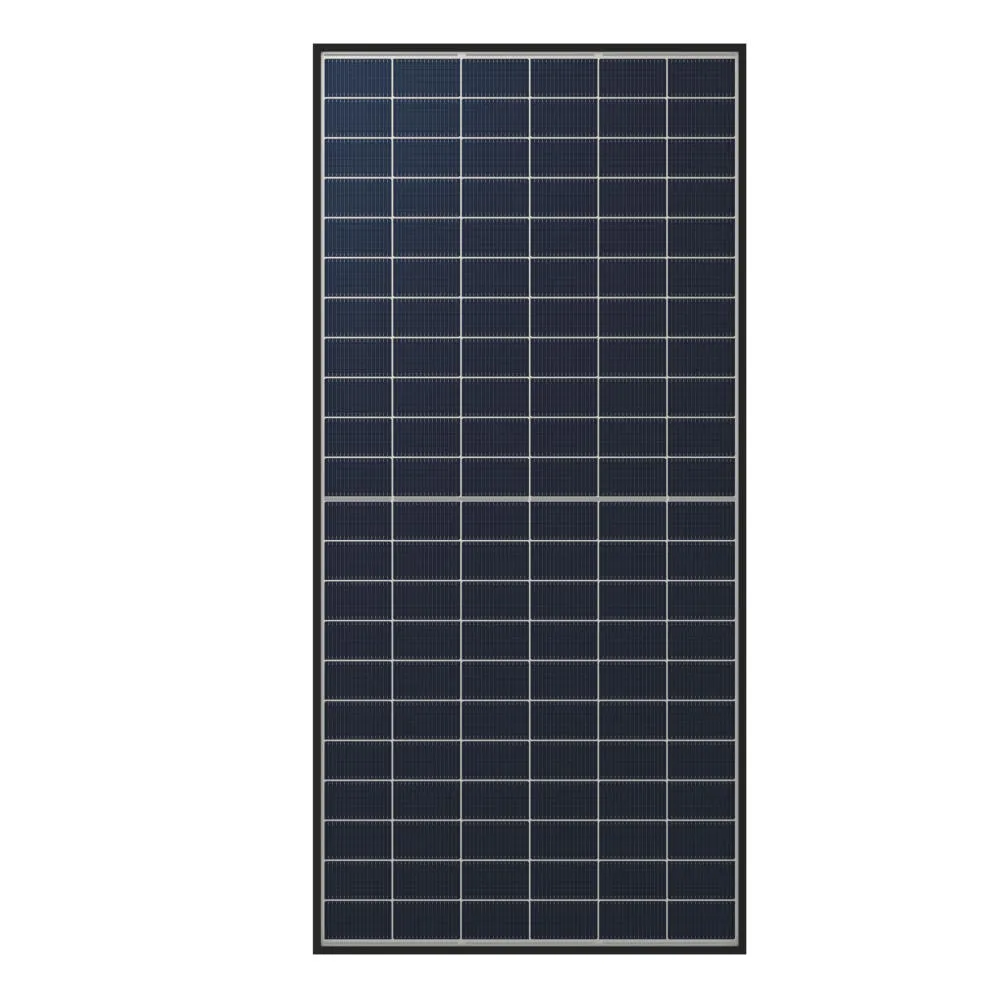

Sungrow 635W Smart Solar Panel, N-Type Bifacial Double Glass, Black Frame

Sungrow 635W Smart Solar Panel, N-Type Bifacial Double Glass, Black Frame

The Pulson Sungrow SG-66TG4D-X-635 is a high-output smart solar panel designed for commercial and utility-scale PV installations. It combines 635W rated power, 23.5% module efficiency and N-type bifacial technology to generate energy from both the front and rear surfaces.

Integrated smart functions provide module-level monitoring through iSolarCloud, anomaly detection, fault localisation, precision bypass, rapid shutdown and digital lifecycle records. Its durable double-glass construction, self-cleaning functionality and strong mechanical-load resistance support reliable long-term performance in large-scale solar projects.

KEY FEATURES:

• High module efficiency: 23.5%
• N-type bifacial smart solar module
• Aluminium-alloy frame, black frame finish
• Designed for commercial and utility-scale PV projects
• Cell layout: 132 cells, arranged 6 × 22
• Bifacial factor: 80% ±5%
• Glass structure: 2.0mm anti-reflective front glass and 2.0mm heat-strengthened rear glass
• Module-level monitoring through iSolarCloud
• Smart fault localisation and precision bypass
• System-level anomaly detection
• Integrated rapid shutdown time: ≤25 seconds
• Digital lifecycle records for full performance visibility
• Self-cleaning and self-cooling technology: Uses a dual-layer AR and AS anti-soiling coating to reduce dirt build-up and heat impact
• Power temperature coefficient: −0.29%/°C
• Maximum system voltage: 1,500V DC
• Connector: MC4-EVO2A or other approved connector
• IP68-rated junction box
• Maximum annual degradation from years 2–30: less than 0.4%
• 15-year product warranty
• 30-year linear performance warranty
