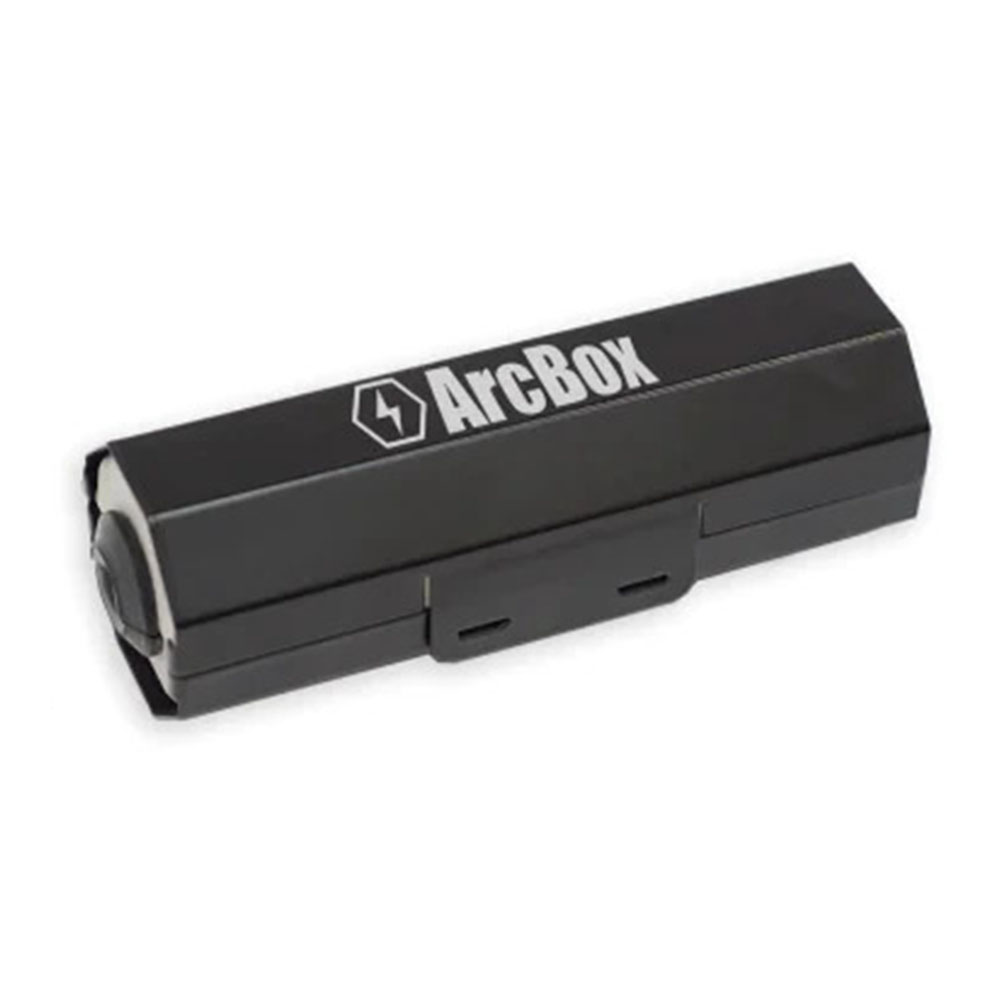

ArcBox Solar Connector Enclosure - Single Unit
The ArcBox - reducing fire risks in Solar PV
The number of solar installations is growing fast and with it the risk that mistakes assembling DC connectors lead to fires.
The ArcBox enclosure simply snaps around a DC connector to ensure that if an arc ever occurs it is safely contained and doesn't spread to combustible materials in or around the solar installation. The effectiveness of the product has been independently verified by the KIWA fire test laboratory and Loughborough University.
Ideally, use it on the manually crimped connector - two per string

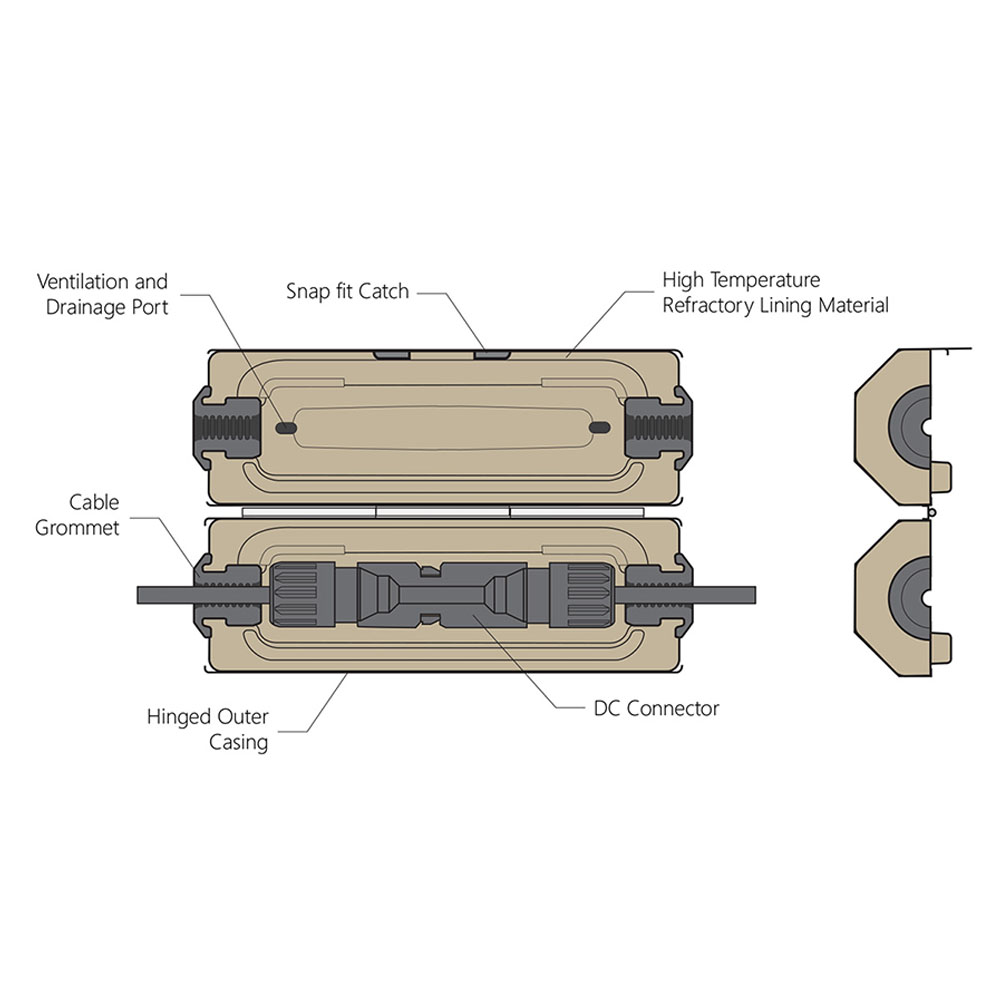

Specification:
- High Temperature Refractory Lining Material
- DC Connector
- Hinged Outer Casing
- Cable Grommet
- Ventilation and Drainage Port
- Snap fit Catch
- Dimension (L/W/H) : 150 / 50 / 48mm
- Ambient Temperature: -40 +85 ºC
- Conductor Size: 4 mm2
- Certification: Independently tested by KIWA in accordance with NEN 6063 and with >5 minutes arcing without spread of fire to surrounding roofing materials.
Independently confirmed by the University of Loughborough Department of Engineering that temperature under load remains within connector manufacturer's guidelines.
| Accessory By Type | Protection Solutions or Solar Connectors |
| Brand | Viridian |
| Solar Connector Type | Accessory |
