Staubli MC4-Evo 2 Male Branch Connector
World's first dual certified DC 1500 V branch connector.

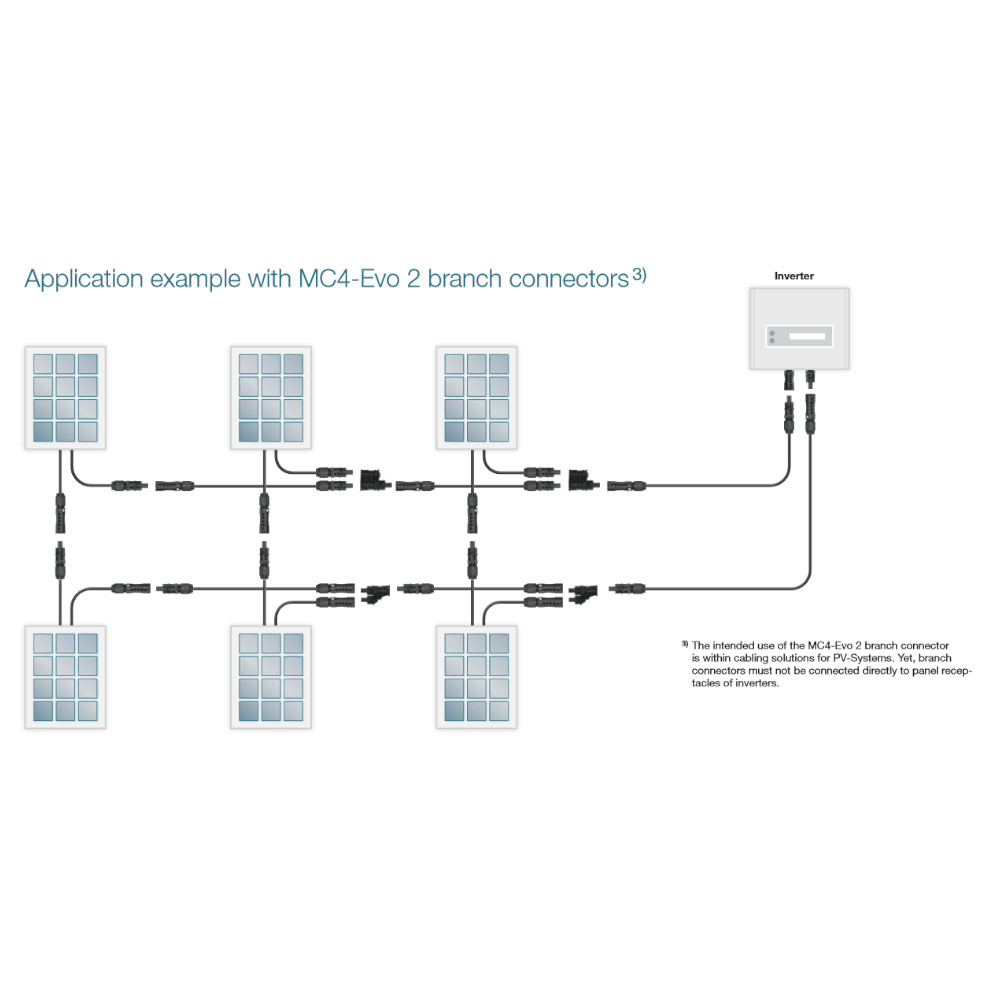

Stäubli MC4-Evo 2 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules.
Available in either 2 male to 1 female, or 2 female to 1 male, and pluggable with single-pole MC4 and MC4-Evo 2 connectors.
Staubli MC4s are often viewed as the standard connector in the solar energy industry.
FEATURES:
- Plug-and-play: no crimping or torqueing necessary
- Versatility and compact dimensions
- Mating compatibility with original MC4 and MC4-Evo 2 cable connectors
- DC 1500 V according to IEC 62852 and UL 6703
- Resistance to salt mist spray
- Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
- IP68 rating
Note: Branch connectors must not be connected directly to panel receptacles of inverters.
| Brand | Staubli |
| Solar Connector Type | Branch Connector |
| Accessory By Type | Solar Connectors |
