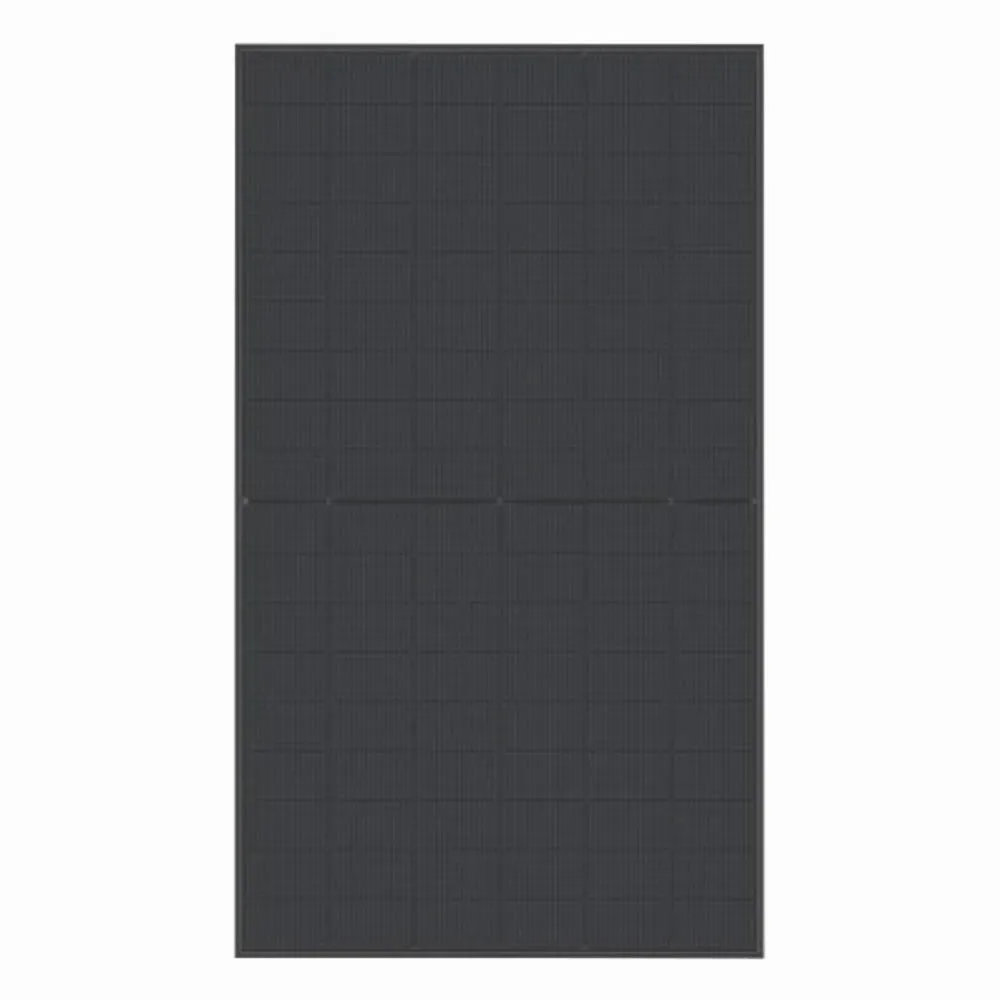

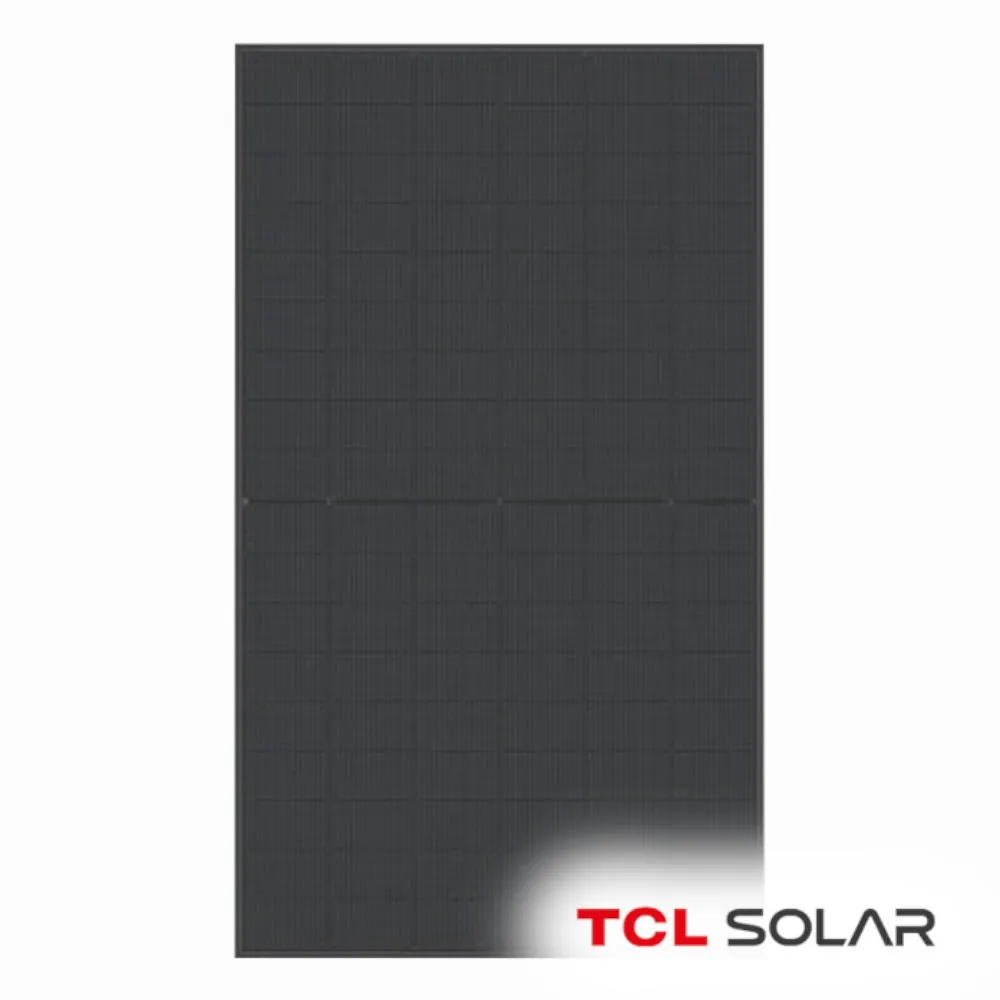

TCL Solar 505W T-Class TOPCon N-Type Bifacial, Dual Glass, Full Black
The TCL Solar HSM-ND54-DR 505W T-Class solar panel delivers high performance in a sleek, full black design. Built with N-Type TOPCon bifacial cell technology, it provides a module efficiency of 22.7% and is suitable for both residential and commercial installations.
Its framed dual-glass construction and bifacial energy generation support reliable long-term output, with additional rear-side energy gain possible on reflective surfaces. Backed by TCL SunPower Global, the module combines strong durability, elegant aesthetics, and comprehensive warranty coverage for premium solar projects.
KEY FEATURES:
- High module conversion efficiency: 22.7%
- Cell technology: N-Type TOPCon bifacial
- Bifacial energy generation for additional rear-side yield
- Design: Full black
- Black anodised aluminium alloy frame
- Glass thickness: 2.0mm + 2.0mm
- Maximum system voltage: 1,500V DC
- Connector: Stäubli MC4-EVO2
- Junction box: IP68, 3 bypass diodes
- Maximum load: 5400Pa snow / 2400Pa wind
- Modules per container: 864
- Modules per pallet: 36
- Dimensions (L × W × T): 1961 × 1134 × 30mm
- Standard 25-year product warranty and 30-year performance warranty
| Popular Features | N-Type or TOPCon or Glass-Glass/Dual Glass or Bifacial or All Black Panels |
| Panel Power Range | 505W - 570W |
| Brand | TCL Solar |
| Power Class | 505 W |
| Watts/ m² | 227 |
| Frame Colour | Black |
| Backsheet | Black |
| Cells | 108 Half Cells |
| Module Efficiency (%) | 22.7 |
| Open Circuit Voltage - Voc (V) | 40.14 |
| Short Circuit Current - Isc (A) | 15.88 |
| Connector Type | MC4-EVO2 Original |
| Panels per Pallet | 36 |
| Panels per Container | 864 |
| MCS No | MR 50669371 |
| Length (mm) | 1961 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Annual Degradation (%) | 0.40 |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Product Weight (Kg) | 27.0 |
