GoodWe 6kW All In One ESA 3ph Hybrid Inverter with Dual Tracker DC & AFCI
The GoodWe ESA Series is a three-phase All-in-One energy storage system, designed for residential and small commercial applications. It integrates the inverter, battery and intelligent energy management into one compact system.
​

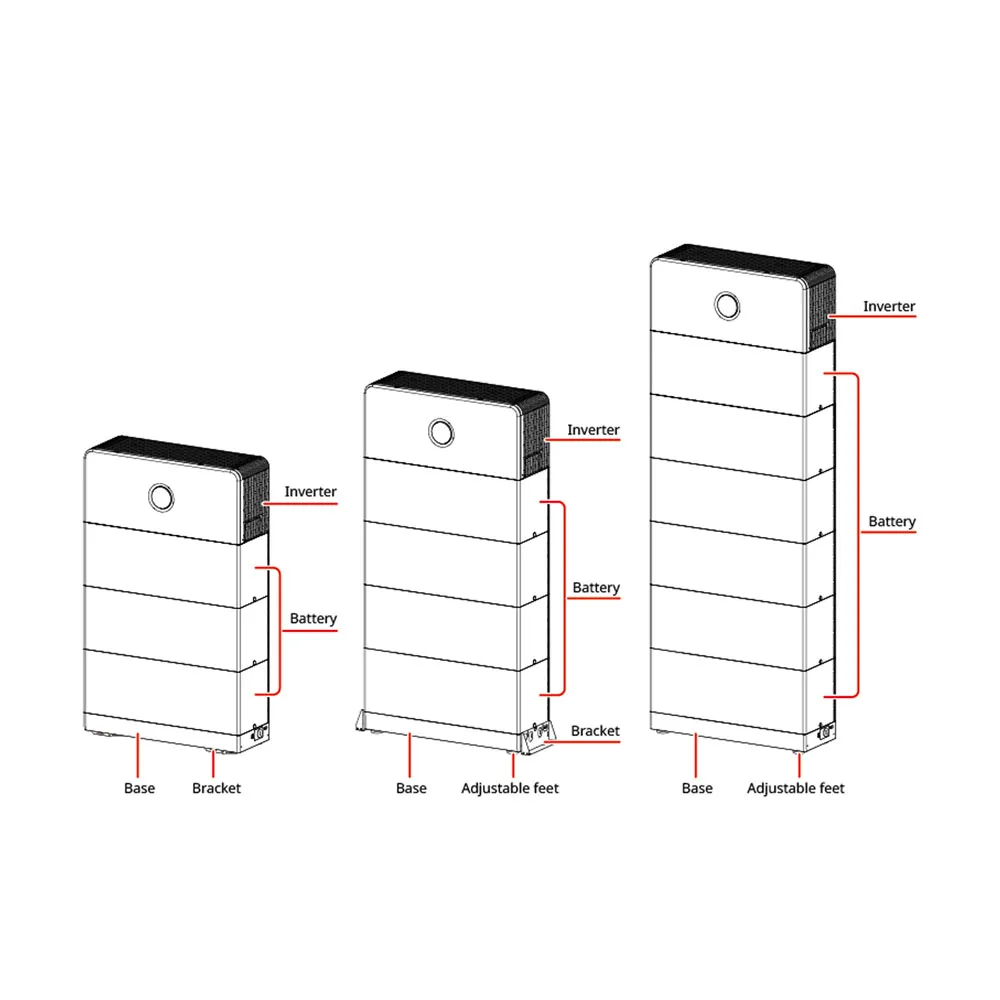

With a pre-wired, modular design, the ESA Series simplifies installation and speeds up commissioning. Available from 5–30kW, with expandable storage from 5–108kWh, it supports flexible battery configuration using 5, 6, 8 and 9kWh battery modules.
​
Featuring AI-driven energy management, dynamic tariff optimisation and smart control, the ESA Series delivers a flexible, efficient and future-ready solution for whole-home backup and on/off-grid operation.
KEY FEATURES:
- Three-phase All-in-One energy storage system
- Maximum efficiency of 98%
- Supports up to 12 battery modules
- 3 MPPTs
- AI-driven AFCI 3.0 & IP66 protection
- Integrated AC and DC surge protection
- AFCI protection
- Smart Fan Cooling
- One-click configuration and upgrade
| Grid Connection Standards (G98/G99/G100) | G98 , G99 |
| Inverter Power Range (kW) | 4.1kW - 10kW |
| Inverter Phase | 3 |
| Battery / System Model | GoodWe ESA 5-30K |
| Brand | GoodWe |
| Rated Power (W) | 6000 |
| Max DC Power (W) | 12000 |
| Total No. of Strings | 3 |
| No. of MPP Trackers | 3 |
| MPPT Voltage Range / Rated Input Voltage (V) | 120 - 950 / 750 |
| Start-up Input Voltage (V) | 150 |
| Max. Input Voltage (V) | 1000 |
| Max. input current per MPPT | 21 |
| European Efficiency (%) | 96.4 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 221 |
| Height (mm) | 460 |
| Width (mm) | 496 |
| Warranty Period | 10 Years |
| Product Weight (Kg) | 34 |
