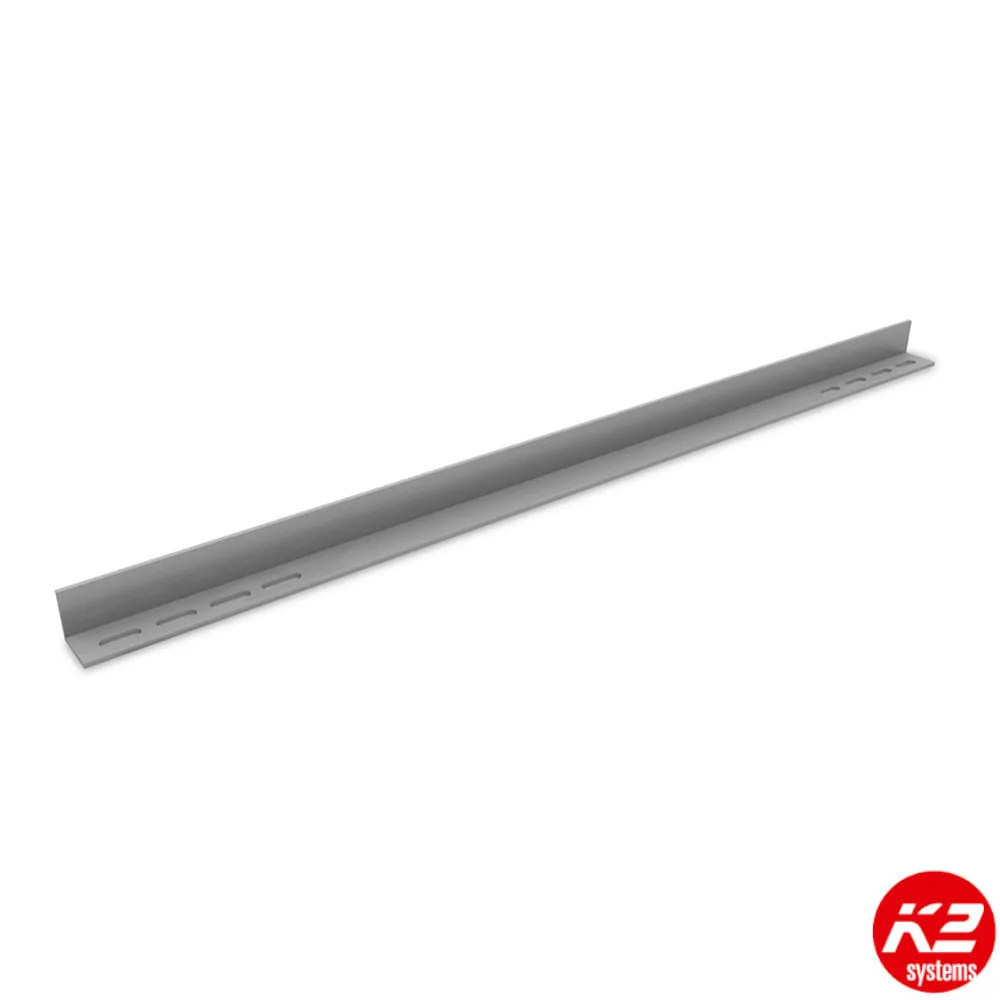

K2 Dome Porter Flex
The K2 Porter is for the quick and universal mounting of various ballast weights beneath the modules for the K2 Dome Zero System, K2 Dome 6.07 Classic Portrait and K2 Dome 6 LS System.
The Porter can be used for module widths up to 1320 mm for the Dome Zero & Dome 6.07 Classic Portrait systems – and for module lengths of 1562–2390 mm for the Dome 6 Classic LS and Xpress LS systems with 1/4 clamping.
Please check the correct position of the module’s clamping points on site.
Fasten using 2x MK2 and an M8x20 screw each. Maximum permissible load: 178 kg (distributed across 2 mounted Dome Porters).
Dimensions: 1377x40x40 mm.
Material: aluminum EN AW 6063 T66
| Brand | K2 |
| Warranty Period | 12 Years |
| Product Weight (Kg) | 2.346 |
