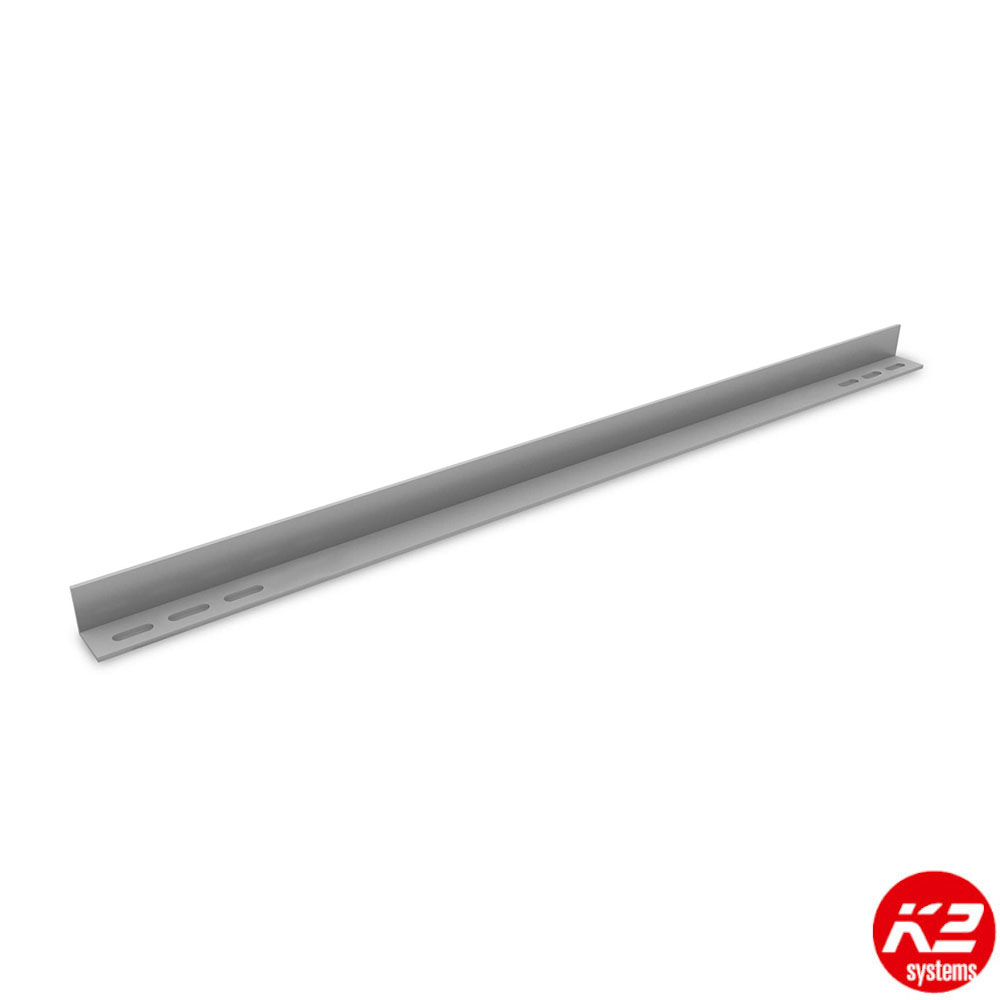

K2 Dome Porter Flex
The K2 Porter is suitable for a fast and universal bearing of different ballasts for the K2 Dome Zero System and K2 Dome 6 Classic LS System.
The Porter can be used for module widths up to 1320 mm for the Dome Zero System and for module lengths from 1562 to 2390 mm for the Dome 6 Classic LS System
Total length Porter: 1365 mm; Maximum permissible ballast: 178 kg.
Material: aluminum EN AW 6063 T66
| Brand | K2 |
| Warranty Period | 12 Years |
| Product Weight (Kg) | 1.073 |
