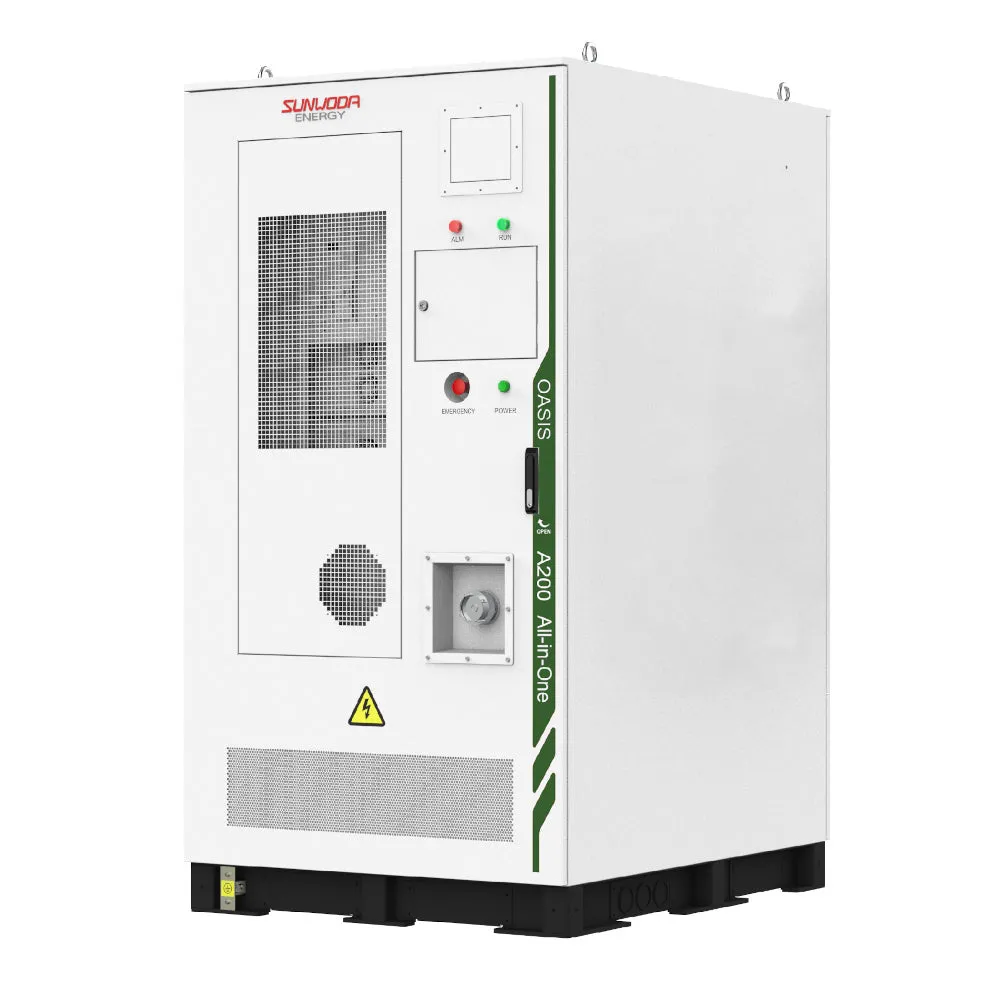

Sunwoda OASIS A200 All-in-One Energy Storage Cabinet
The Sunwoda OASIS A200 All-in-One is an air-cooled LFP battery energy storage cabinet designed for commercial and industrial energy storage projects. With 200 kWh rated capacity and 125 kW / 125 kVA AC rated output, it supports energy cost reduction, solar optimisation, backup power and wider C&I energy management applications.

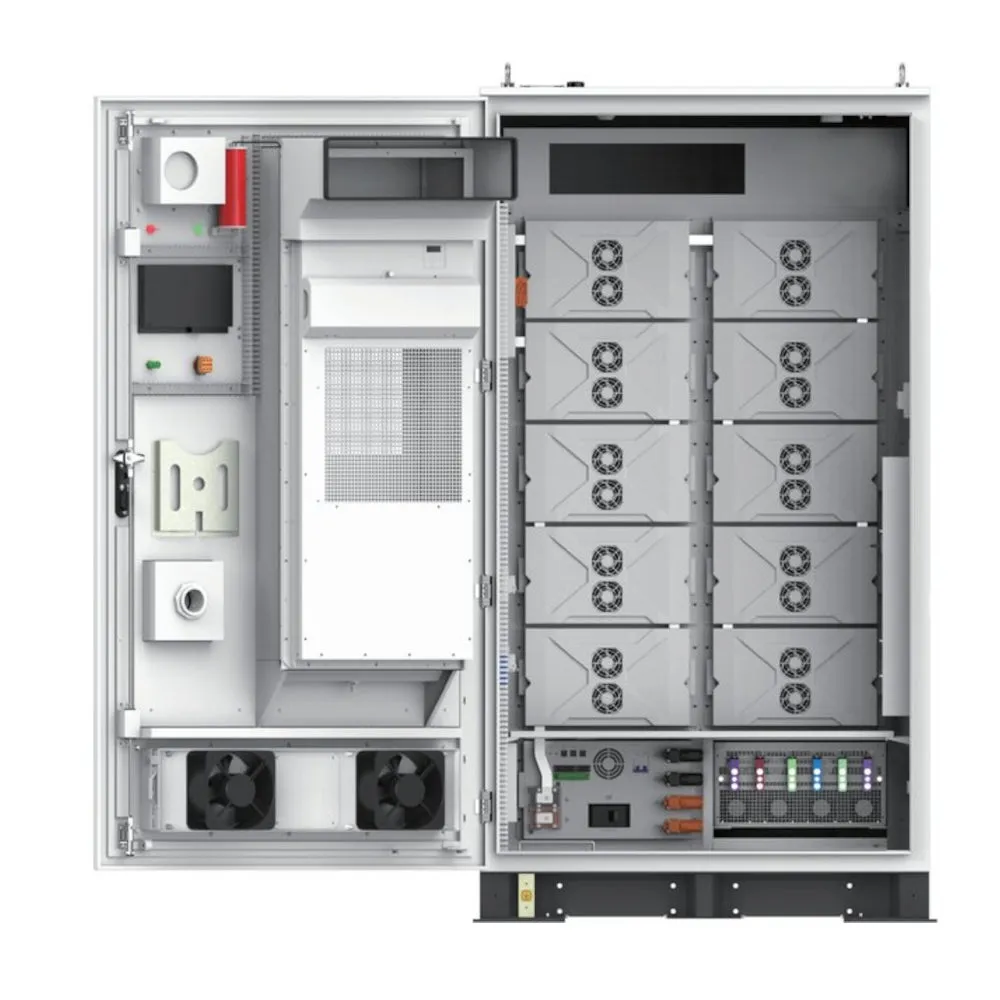

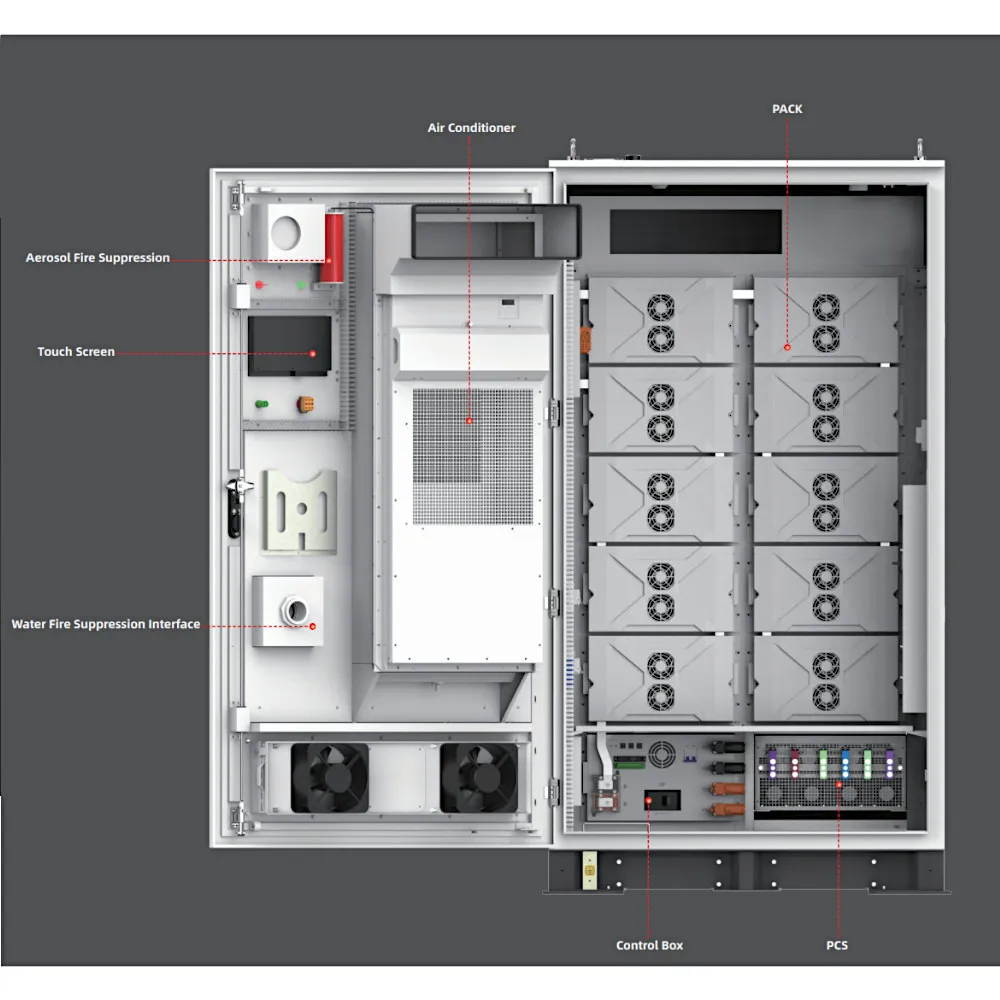

The cabinet integrates the battery packs, BMS, PCS, industrial air-conditioning, intelligent Local Control Unit (LCU), touchscreen interface, cloud-platform connectivity and fire-protection functions within one outdoor-ready enclosure. The included LCU provides local system monitoring and basic strategy management and, in this All-in-One configuration, works with the integrated PCS to support fixed-time charging and discharging schedules.
Its modular, plug-and-play design helps simplify installation and supports parallel expansion for larger projects, subject to final system design and site requirements.
Sunwoda Energy is a globally recognised BNEF Tier 1 Energy Storage Manufacturer with in-house battery cell production and extensive experience in lithium-ion batteries.
Why Choose the Sunwoda OASIS A200 All-in-One
- 125 kW / 200 kWh all-in-one C&I energy storage cabinet
- Integrated battery packs, BMS, PCS, industrial air-conditioning and Local Control Unit
- Intelligent LCU for real-time system monitoring, fault recording, fault warnings and fault location
- Supports fixed-time charging and discharging schedules through the LCU strategy-management functions
- Built with 3.2 V 314 Ah LFP cells
- Air-cooled design using industrial air-conditioning
- Built-in basic EMS with local touchscreen and cloud platform access
- Remote monitoring, fault recording and scheduling support
- Modular, plug-and-play architecture for simplified deployment
- Parallel expansion supported for larger C&I projects, subject to approved system design
- Suitable for solar self-consumption, peak shaving, load shifting, backup and microgrid applications
- The cabinet comes with a baseline 5-year product quality warranty covering workmanship and materials.
System Expansion and Parallel Configuration
- AC-side parallel connection (Power+Capacity Scale): Multiple A200 All-in-One cabinets can be connected in parallel using a compatible AC combiner. This configuration supports expansion of both system energy capacity and AC output power.
- DC-side parallel connection (Capacity Scale): An A200 All-in-One cabinet can be combined with an A200 battery-only cabinet using a compatible DC combiner.This DC-side capacity expansion configuration is supported by the A200 All-in-One because it has two positive and two negative DC connection terminals for parallel connection.
- A 125 kW Cap: When adding battery-only cabinets to a single All-in-One cabinet, the ultimate peak charge/discharge rate of that entire cluster remains hard-capped at 125 kW because it is still bottlenecked by the single integrated PCS.
The final number of cabinets, combiner selection, communications architecture and system limits must be confirmed by Sunwoda according to the project requirements.
Technical Information:
- Rated capacity: 200 kWh
- Cell type: 3.2 V 314 Ah LFP cells
- Pack capacity: 20 kWh per pack
- Number of battery packs: 10
- Battery pack configuration: 1P20S, 10 packs
- Rated voltage: 640 V
- Depth of discharge: Up to 100%, subject to warranty conditions
- Max charge/discharge rate: 0.5C
- AC rated output power: 125 kW / 125 kVA
- AC rated voltage: 400 V AC, 300-440 V range
- Communication interface: CAN, RS485, Ethernet
- Display: Touchscreen and cloud platform
- Cooling method: Industrial air-conditioning
- Protection grade: IP55
- Installation mode: Outdoor
- Cell cycle life: 9,000 cycles at 25°C, 0.5C/0.5C, 90% DOD
- Ambient temperature: -30°C to +55°C, with derating above 45°C
- Dimensions: 1150 × 1375 × 2200 mm
- Weight: <2,400 kg
- Certifications: UN38.3, IEC 62619, IEC 61000, IEC 62477, VDE4105/4110, G99, EN50549, NTS 631
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sunwoda Oasis |
| Brand | Sunwoda |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Commercial/Industrial |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 200 |
| Charge/Discharge Rate | 0.5C |
| Battery Usable Capacity (kWh) | 200 |
| Depth Of Discharge (%) | 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP55 |
| Dimensions (W x H x D) mm | 1150 x 2200 x 1375 |
| Product Weight (Kg) | 2400 |
