Sunwoda OASIS A200 Energy Storage Cabinet - No PCS
The Sunwoda OASIS A200 is a 200kWh air-cooled LFP battery cabinet for commercial and industrial energy storage projects. It supports solar optimisation, energy cost reduction and, when paired with a compatible external PCS, backup-power applications.

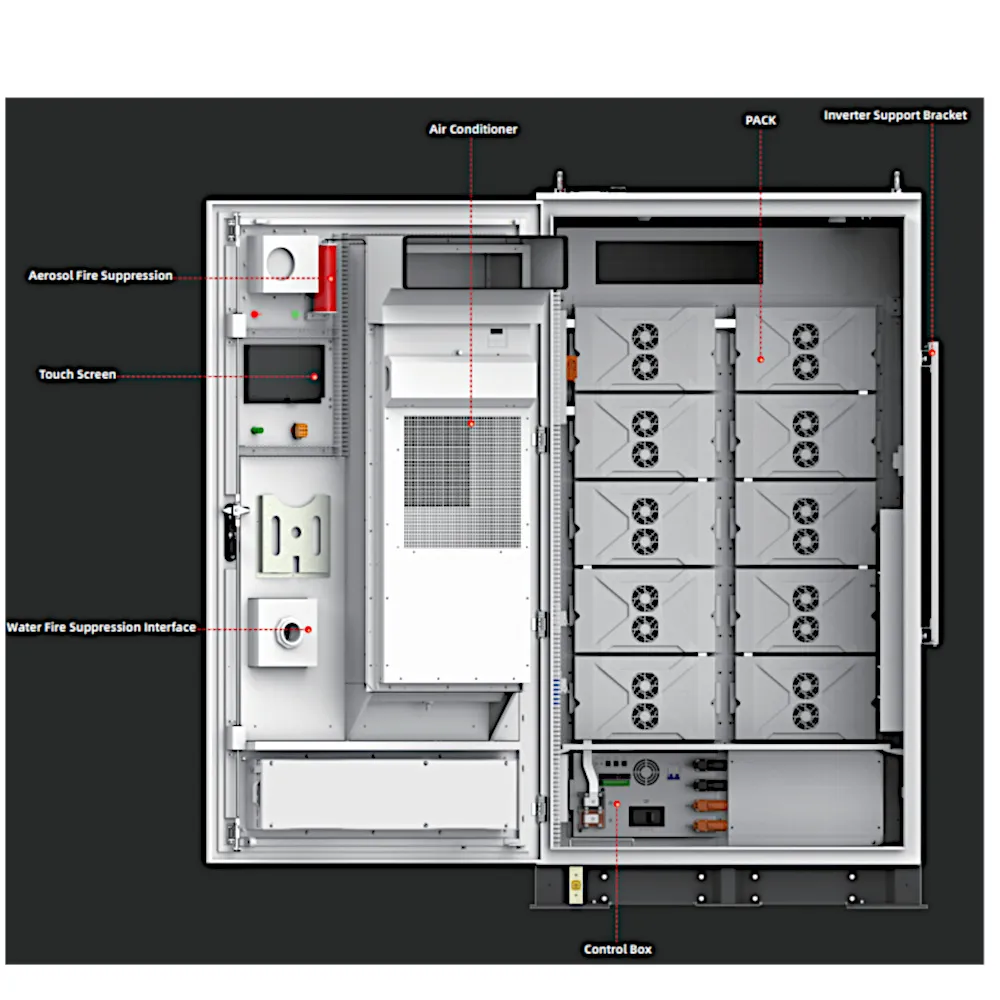

The cabinet integrates the battery packs, BMS, industrial air-conditioning, touchscreen control, cloud-platform access and fire-protection functions within an outdoor-rated enclosure. Its modular design helps simplify system integration and supports parallel expansion for larger projects, subject to final system design and site requirements. Sunwoda confirms touchscreen and cloud monitoring, industrial air-conditioning, IP55 protection and outdoor installation for the OASIS A200 range.
Sunwoda Energy is a BloombergNEF Tier 1 Energy Storage Manufacturer with in-house capabilities across battery cells and energy storage systems and extensive experience in lithium-ion battery technology. Sunwoda was included in BloombergNEF’s Tier 1 list for Q2 2026.
  Note: This is the battery-only model without an integrated PCS.
Why Choose the Sunwoda OASIS A200 (no PCS)
Â
- 200 kWh C&I energy storage cabinet
- Integrated battery, BMS, cooling and control system
- Built with 3.2 V 314 Ah LFP cells
- Air-cooled design using industrial air-conditioning
- Built-in EMS with local touchscreen and cloud platform access
- Remote monitoring, fault recording and scheduling support
- Modular, plug-and-play architecture for simplified deployment
- Parallel expansion supported for larger C&I projects
- Suitable for solar self-consumption, peak shaving, load shifting, backup and microgrid applications
- The cabinet comes with a baseline 5-year product quality warranty covering workmanship and materials.
Technical Information:Â
- Rated capacity: 200kWh
- Cell type: 3.2V 314Ah LFP cells
- Battery pack capacity: 20kWh per pack
- Number of battery packs: 10
- Battery pack configuration: 1P20S, 10 packs
- Rated voltage: 640V
- Operating voltage range: 580–720V
- Depth of discharge: Up to 100%, subject to warranty conditions
- Maximum charge/discharge rate: 0.7C
- Communication interfaces: CAN, RS485 and Ethernet
- Monitoring: Touchscreen and cloud platform
- Cooling method: Industrial air-conditioning
- Protection rating: IP55
- Installation: Outdoor
- Cell cycle life: 9,000 cycles at 25°C, 0.5C/0.5C and 90% DoD
- Ambient operating temperature: −25°C to +55°C, with derating above 45°C
- Dimensions (W × D × H): 1,150 × 1,375 × 2,200mm
- Product weight: 2,104kg
- Packaged weight: 2,204kg
- Certifications: UN38.3, IEC 62619, IEC 61000 and IEC 62477
Â
Please contact us for trade pricing and availability.
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sunwoda Oasis |
| Brand | Sunwoda |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Commercial/Industrial |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 200 |
| Charge/Discharge Rate | 0.7C |
| Battery Usable Capacity (kWh) | 200 |
| Depth Of Discharge (%) | 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP55 |
| Dimensions (W x H x D) mm | 1150 x 2200 x 1375 |
| Product Weight (Kg) | 2104 |
