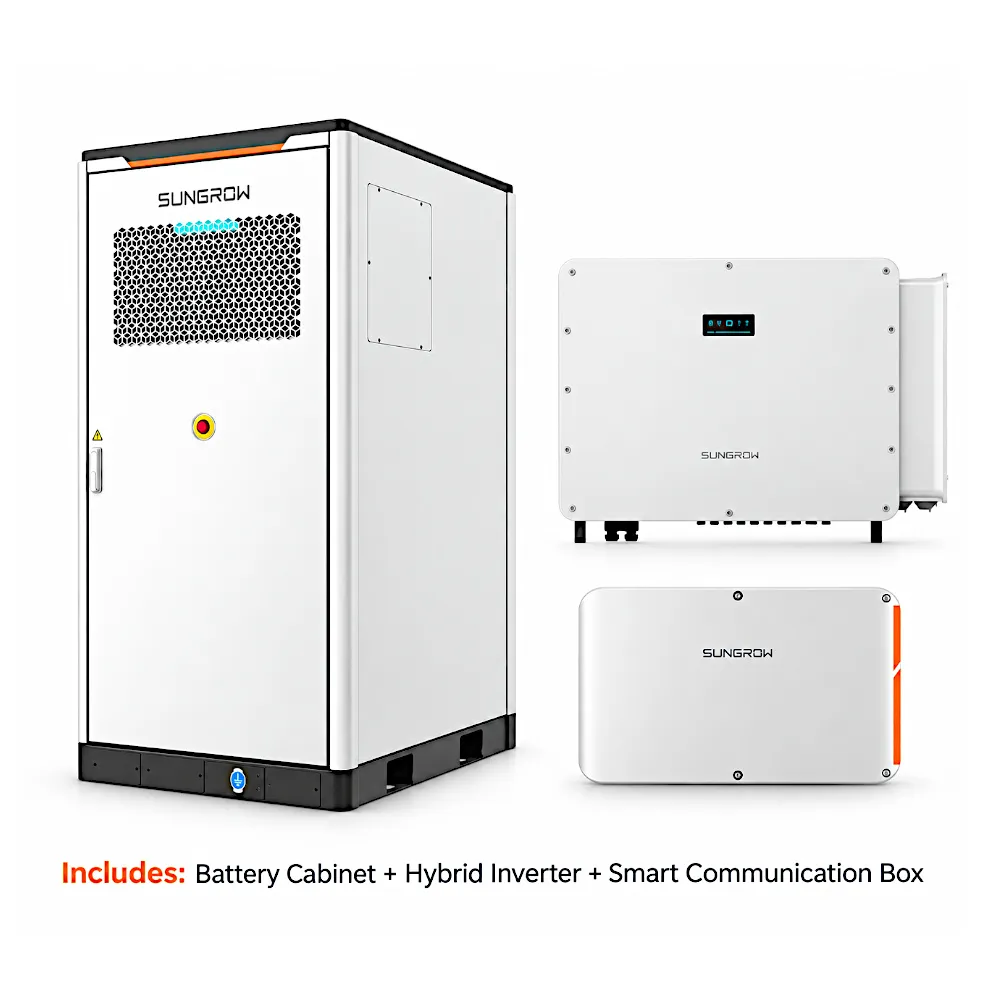

Sungrow PowerStack ST245CS-S-2H 125kW / 249kWh DC C&I Storage Bundle
Includes: 249kWh Battery Cabinet + 125kW Hybrid Inverter + COM100D-EU

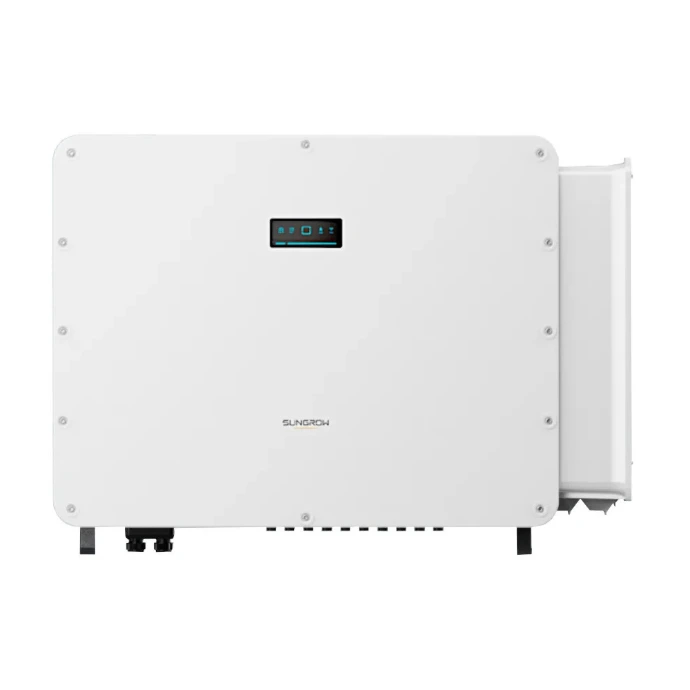

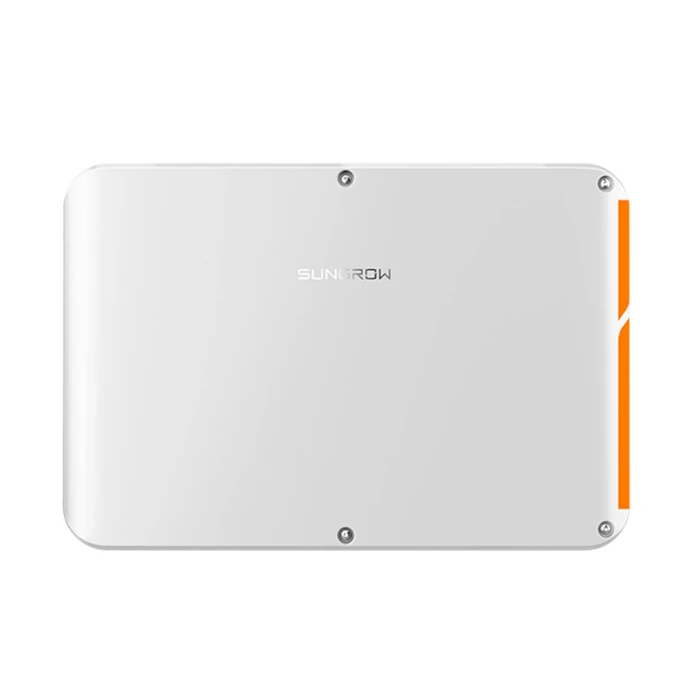

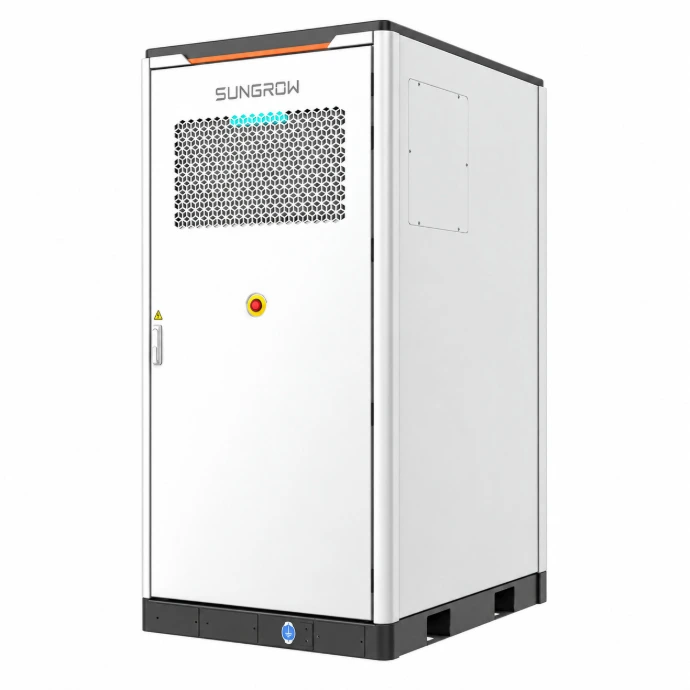

The Sungrow PowerStack ST245CS-S-2H 125kW / 249kWh Commercial and Industrial Storage Bundle combines a liquid-cooled LFP battery cabinet with the SH125CX 125kW hybrid inverter and COM100D-EU Smart Communication Box, providing a matched DC-coupled solar and battery storage solution for commercial and industrial projects.
Designed for approximately two-hour storage applications, the system supports solar self-consumption, peak shaving, load shifting and backup applications, with centralised monitoring and system communications through Sungrow's platform.
What’s included:
This pre-configured storage bundle includes:
Commissioning and shipping included.
For full technical specifications, datasheets, dimensions, compatibility details and installation requirements, please refer to the individual product pages for each component included in this bundle.
Technical Information Summary
- Battery capacity: 249kWh
- Battery chemistry: LFP / LiFePO₄
- Battery type: High voltage
- Operating voltage range: 669–880V
- Cooling system: Intelligent liquid cooling
- Protection rating: IP55
- Cabinet Dimensions (W × H × D): 1150 × 2450 × 1610mm
- Weight: ≤2,800kg
- Recommended max. PV input power: 250kWp
- Max. PV input voltage: 1100V
- MPPTs: 10
- Battery voltage range: 129–880V
- Max. charge / discharge power: 125kW / 125kW
- Max. efficiency: 98.6%
- Backup switchover time: ≤10ms
- Protection rating: IP66
- Supported devices: up to 30
- Ethernet: 1 × RJ45, 10/100/1000Mbps
- Communication: RS485, Ethernet, WLAN and 4G
- Protection rating: IP66
- Dimensions (W × H × D): 460 × 315 × 126mm
| Brand | Sungrow |
| Battery Bundle Application Type | C&I Medium |
| Battery Bundle Capacity | 100 – 250kWh |
| Inverter Phase | 3 |
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sungrow PowerStack (C&I) |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Commercial/Industrial |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 249 |
| Charge/Discharge Rate | 0.5C |
| Depth Of Discharge (%) | 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP55 |
| Dimensions (W x H x D) mm | 1150 x 2450 x 1610 |
| Product Weight (Kg) | 2935 |
