Viridian 405W PV16-M10 Clearline Fusion In-Roof PERC Monofacial, All Black

Viridian 405W PV16-M10 Clearline Fusion In-Roof PERC Monofacial, All Black

Viridian Solar Clearline Fusion is a roof integrated PV solution: sleek, low-profile integrated solar that replaces the roof covering for an improved aesthetic and for simple roof maintenance, now at similar cost to above-roof panels.

Clearline fusion PV16 solar panels can be installed in both portrait and landscape, which gives building designers and installers options to either maximise the power output of the available roof area, or to cost-effectively deliver a particular target power.

The panels, which use high power monocrystalline silicon solar cells, offer deep black colour and a very high degree of colour uniformity both across the panel and between different panels.

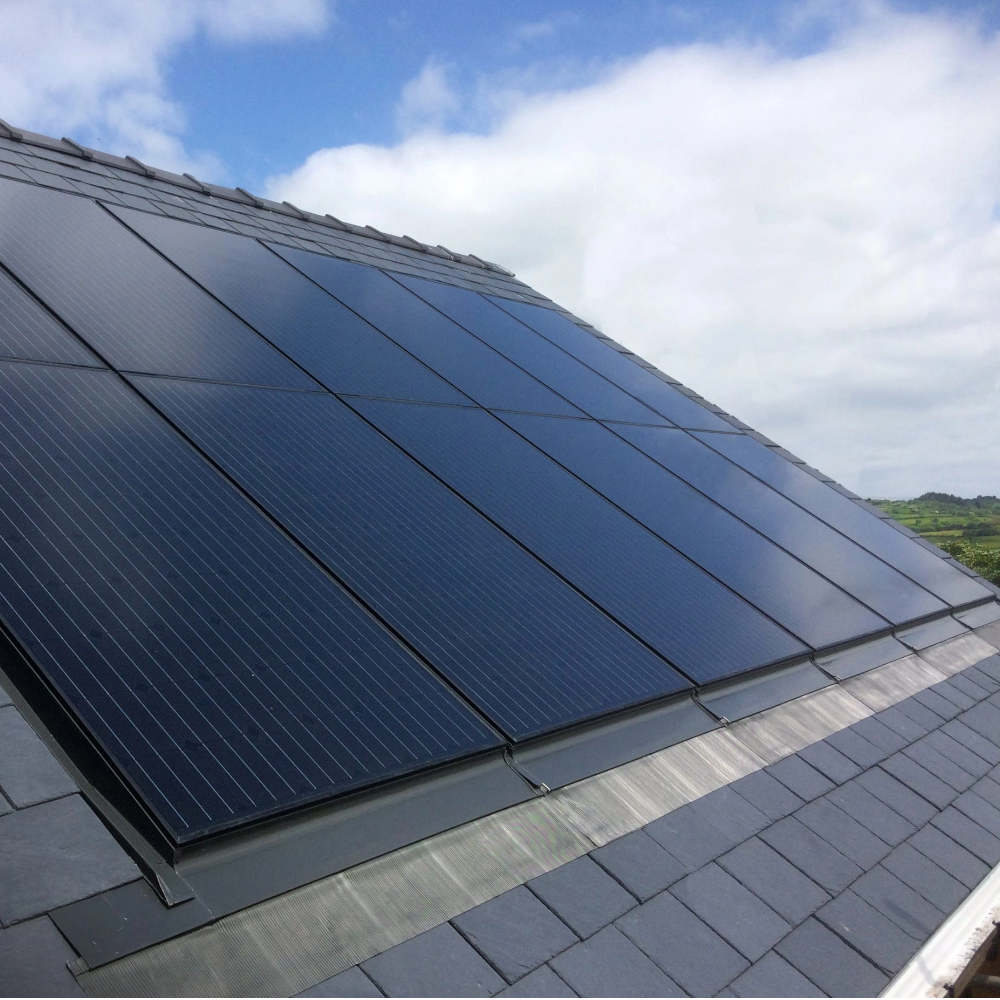

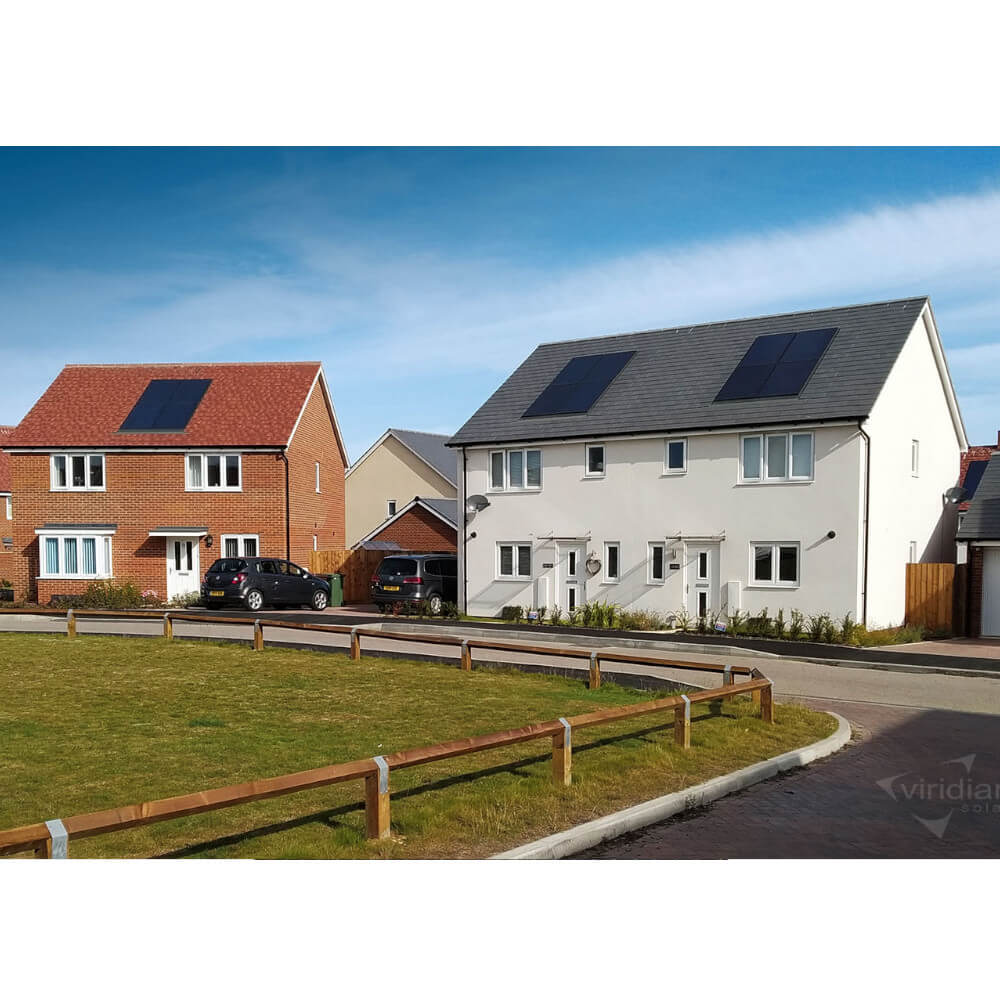

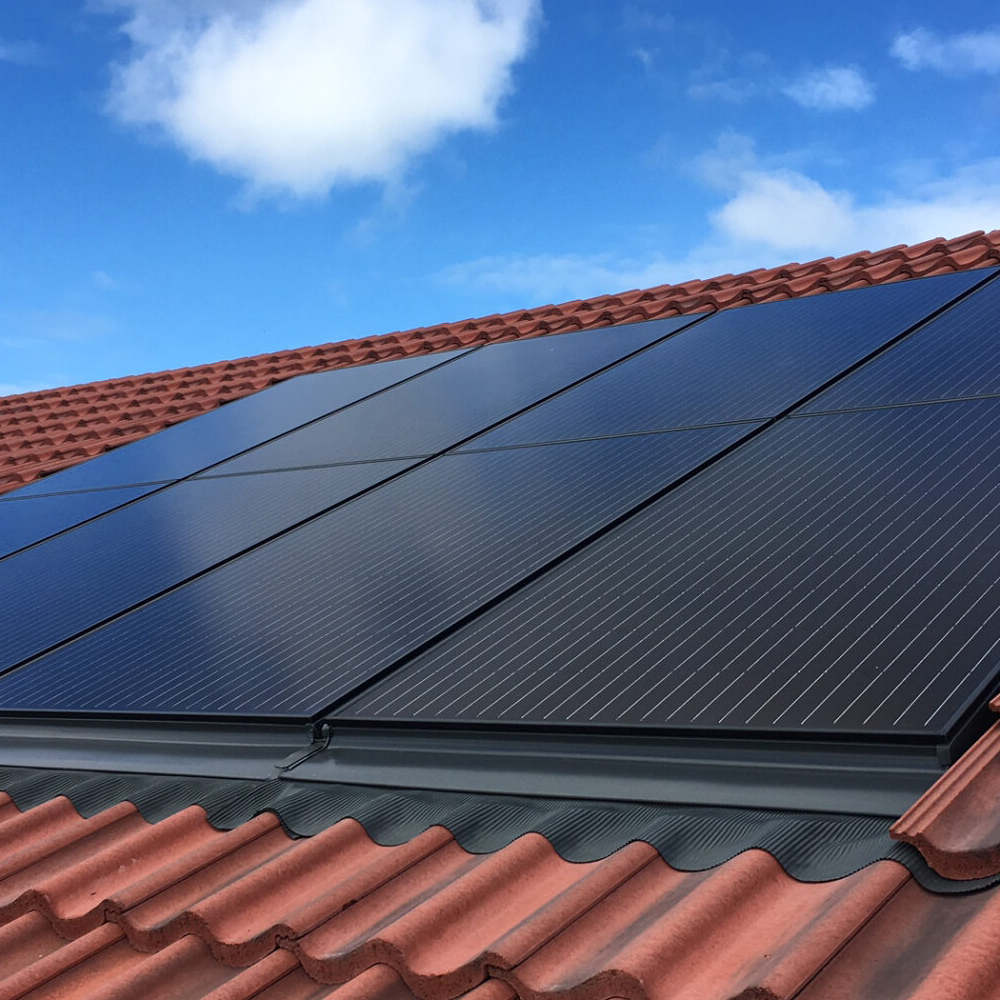

Clearline fusion system to suit every roof. Roof integrated solar PV replaces the tiles or slates on the roof so the panels sit lower down in the roofline to look more like an intended part of the house and less like a bolt-on afterthought than above-roof rack-mounted systems.

KEY FEATURES:

• All Black Panel
• Half-cut PERC cells
• Simple roof integration with clean, low-profile aesthetic for new build and retrofit
• The solar panel system seamlessly integrate with roof tiles or slates with no cables or brackets being visible.
• Rapid installation times of less than 45 min/kWp easily achieved
• Achieves highest fire rating and wind resistance without modifications to the roof
• Compatible with the widest range of slate and tile including special fixings for different batten thickness
• Module Efficiency : 21.5%
• Maximum System Voltage: 1,000V DC
• Genuine Staubli connectors
• Extended load tests - 5,40 kPa design load and 5,32 kPa wind load
• Fire rating: Broof T1, T2, T3, T4
• 10-Year Product Warranty; 25-year power warranty
