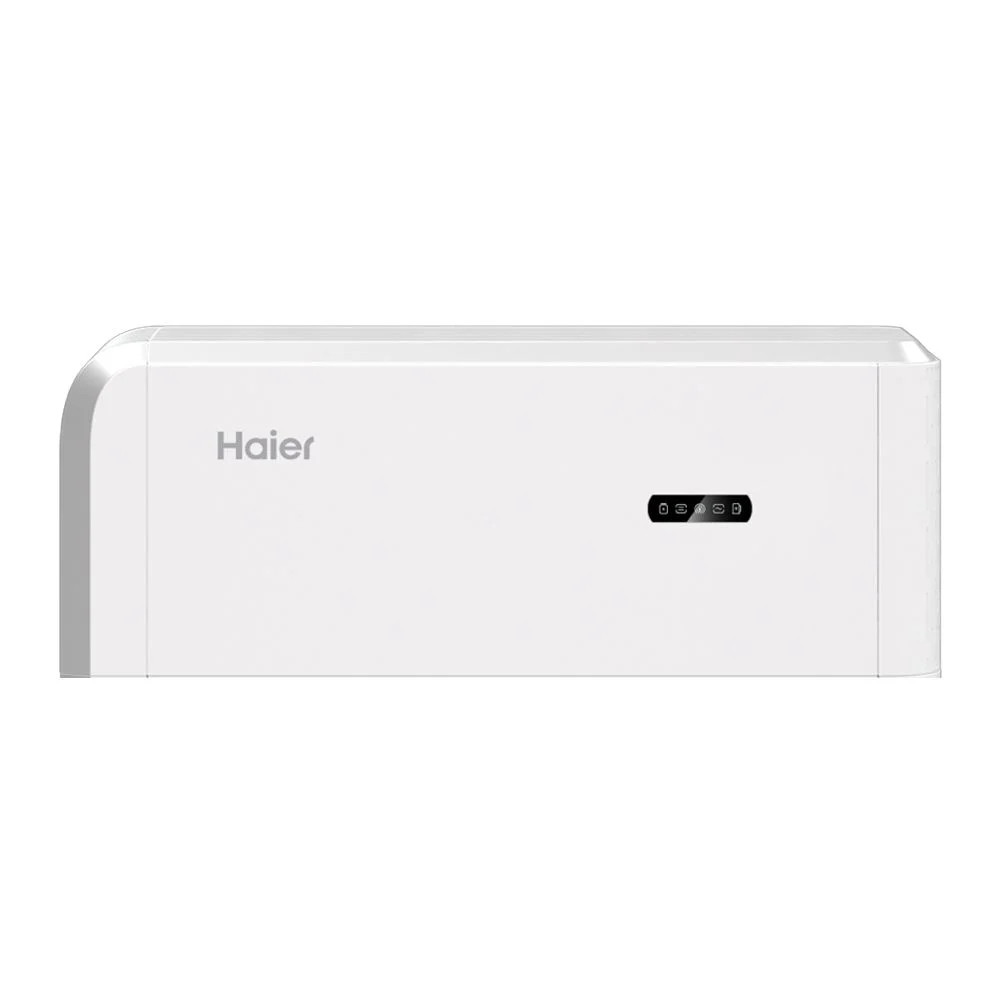

Haier Smart Cube HH1P-3K, 3.0kW, 1Ph, Hybrid Inverter
Battery Connection:
- Compatible Battery Models: HBP-5.0 (5kWh) and HBP-8.0 (8kWh)
- Number of Batteries per Inverter (controller): 1 ~ 6 – Max 48kWh per inverter
- Up to 20 systems in parallel
- Batteries can be mixed and matched

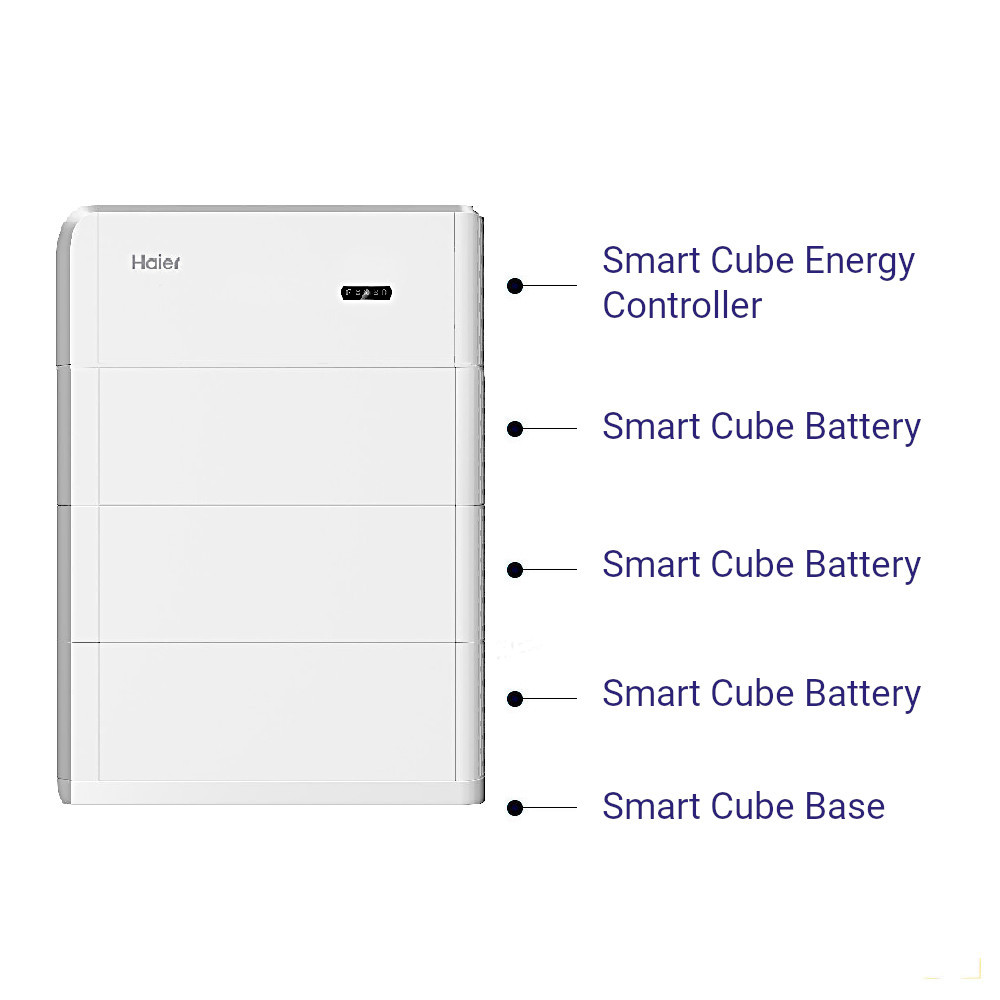

The Haier Smart Cube Energy Controller is a key part of the AI-optimised Smart Cube 6-in-1 Energy Storage System, combining a hybrid inverter, EV DC charger, heat pump, battery, and EMS into one powerful solution. It delivers a first-class, all-in-one way to harness solar energy in both residential and commercial buildings.
The Haier Smart Cube is optimised for on-grid and hybrid applications, including PV + ESS, battery-ready setups, retrofits, EV charging, heat pump integration, and backup power.
Read more
While its main strength is in grid-connected scenarios, limited off-grid operation may be possible depending on system design.
The unique design of the Haier Smart Cube ESS is accentuated by its elegant modern aesthetic, including a sleek front panel and ambient side lighting, allowing it to blend effortlessly into any environment. The system delivers energy independence with exceptional efficiency, cost savings, flexibility, and resilience.
The accompanying app gives customers a clear and stylish overview of energy consumption anytime, anywhere.
Haier appliance owners gain the added bonus of connecting their Haier home devices with the Smart Cube system for intelligent energy management. Otherwise, the Smart Cube functions as a complete standalone solution.
KEY FEATURES:
- Dual MPP trackers
- Integrated BMS
- DC ground-fault protection
- Maximum Input Current per MPPT: 16A
- DC/AC ratio up to 2.0
- Ingress protection: IP66
- Natural air cooling
- Display and LED light strip: side ambient lighting
- Communication: WLAN, Ethernet, RS485, Communication Module (4G/3G/2G)
- The Smart Cube controller needs at least one Battery HBP-5.0 or HBP-8.0 to work
- 10-year warranty
| Grid Connection Standards (G98/G99/G100) | G98 or G100-2 |
| Brand | Haier |
| Battery / System Model | Haier Smart Cube |
| Rated Power (W) | 3000 |
| Max DC Power (W) | 6000 |
| Inverter Phase | 1 |
| Total No. of Strings | 2 |
| No. of MPP Trackers | 2 |
| MPPT Voltage Range / Rated Input Voltage (V) | 50-550 |
| Max. Input Voltage (V) | 600 |
| Max. input current per MPPT | 16A |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 245 |
| Height (mm) | 300 |
| Width (mm) | 700 |
| Warranty Period | 10 Years |
