GoodWe 5kW All In One ESA Hybrid Inverter with Dual Tracker DC & AFCI
The ESA 3–10K Hybrid Inverters sit at the heart of GoodWe’s ESA all-in-one residential storage platform (3–10 kW inverter, 5–48 kWh usable).
Purpose-built for the ESA ecosystem, these single-phase units deliver 3–10 kW to suit typical household loads and operate only with GoodWe BAT5 or BAT8 battery modules.
About the Inverter
- 5 kW single-phase hybrid inverter, 2MPPT
- 200% PV oversizing
- Maximum Input Current per MPPT: 20A
- Low start input voltage: 50V
- Max European efficiency: 96.8%
- Inverter Standard Warranty: 10 years
- Commercial extension options: up to 20 years
Backup:
- Switching time to backup < 4ms
- 63A bypass to support for full backup loads
- Up to 2 times overload for 10s
Advanced control and communications:
- Micro-grid and AC-coupling operations possible
- Self-use, ToU, Peak-shaving, and up to 6 smart operation modes
- Firmware update with SolarGo App possible
- Ready for AI-EMS
Enhanced safety:
- AI-driven AFCI 3.0
- Inverter with SPD Type II (DC and AC)
- Storage 6-layer safety protection
- IP66 protection
Compatibility:
- GoodWe ESA 3–10K must be installed with GoodWe BAT5 or BAT8 batteries. Mixing 5 kWh and 8 kWh modules in one stack is supported.
- Battery-ready (no batteries) is not permitted. ESA inverter and batteries are interdependent and must be commissioned together.
About All-in-One ESA 3-10kW Residential Battery Storage System
Compact, elegantly designed, IP66-rated all-in-one energy storage system that integrates hybrid inverter, LFP battery stack, UPS-grade backup switching, and battery enclosure.
Operates reliably indoors or outdoors in any weather conditions. Pre-wired and modular for fast installation.
Ideal applications:
- New builds and retrofits seeking whole-home backup and bill reduction
- Homes targeting high self-consumption with large PV arrays
- Projects needing capacity growth over time
Power and capacity:
- Inverter sizes: 3, 3.6, 5, 6, 8, 10 kW single-phase
- Battery modules: 5 kWh or 8 kWh LFP

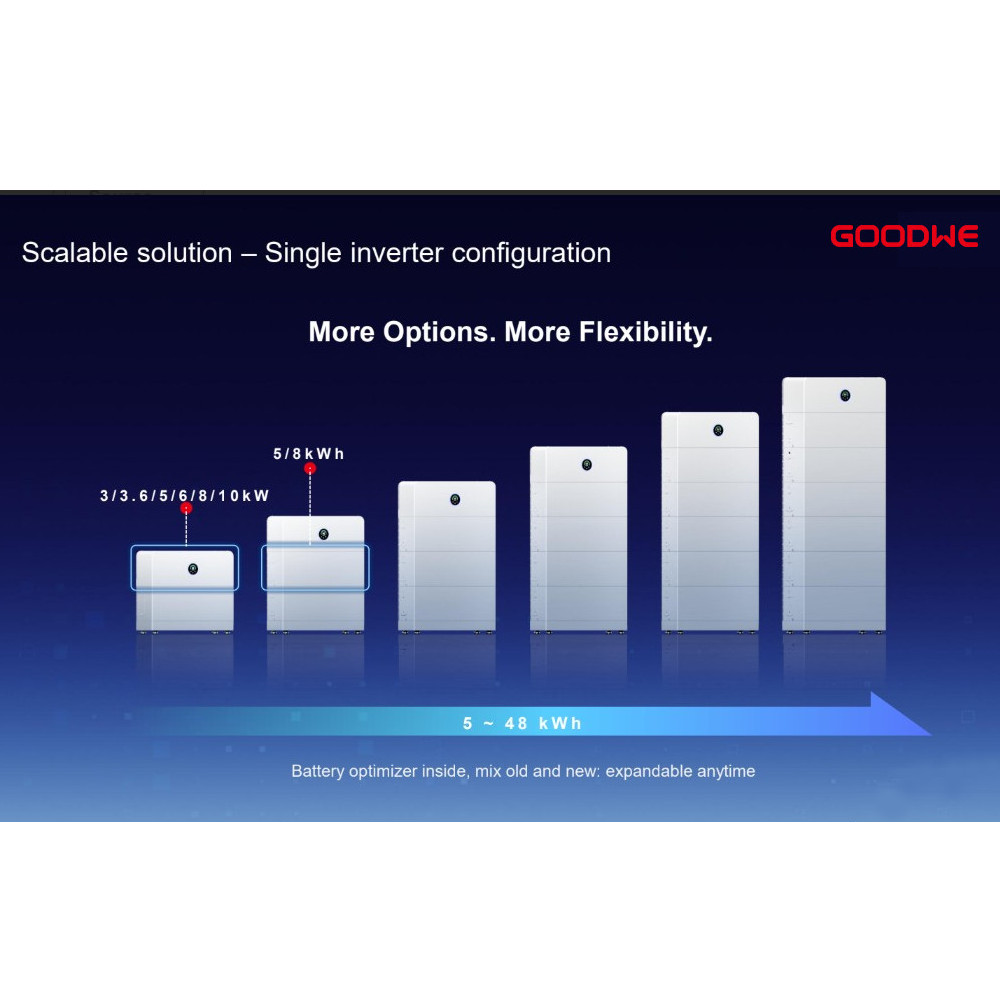

- Scalable storage: 5–48 kWh per system (up to 6 modules per stack)
- Mix-and-match old and new battery modules for expansions
Multiple inverter configuration:
- Up to 6 inverters (up to 288kWh total storage capacity)
- On-grid & Backup parallel possible; AC-coupling scenario supported
Backup and performance:
- <4 ms UPS-level switchover (built-in) for whole-home backup
- 1C charge and discharge for fast cycling
Safety and reliability:
- LFP chemistry with high cycle stability
- Six-layer safety architecture, including AI-driven arc fault interruption (AFCI 3.0)
- Cell- and module-level monitoring
Smart energy features:
- Smart home integration with multi-protocol comms
- On-grid, off-grid, microgrid and AC-coupled scenarios
Scope of delivery:
- Inverter Box: CT 120A/40mA and connection cable; Battery base; Smart dongle; Adjustable feet; Communication cable; Decorative covers; Handles; Anti-tip bracket; PV terminals, AC terminals, other miscellaneous parts.
- Battery Box: Battery; Plugs and screws
- Smart Meter
- “How to Install the ESA 3–10 kW from GoodWe Solar Academy”
| Brand | GoodWe |
| Battery / System Model | GoodWe ESA 3-10K |
| Rated Power (W) | 5000 |
| Max DC Power (W) | 10000 |
| Inverter Phase | 1 |
| Total No. of Strings | 2 |
| No. of MPP Trackers | 2 |
| MPPT Voltage Range / Rated Input Voltage (V) | 40-560 / 400 |
| Max. Input Voltage (V) | 600 |
| Max. input current per MPPT | 20A |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 270 |
| Height (mm) | 300 |
| Width (mm) | 800 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 10 Years |
