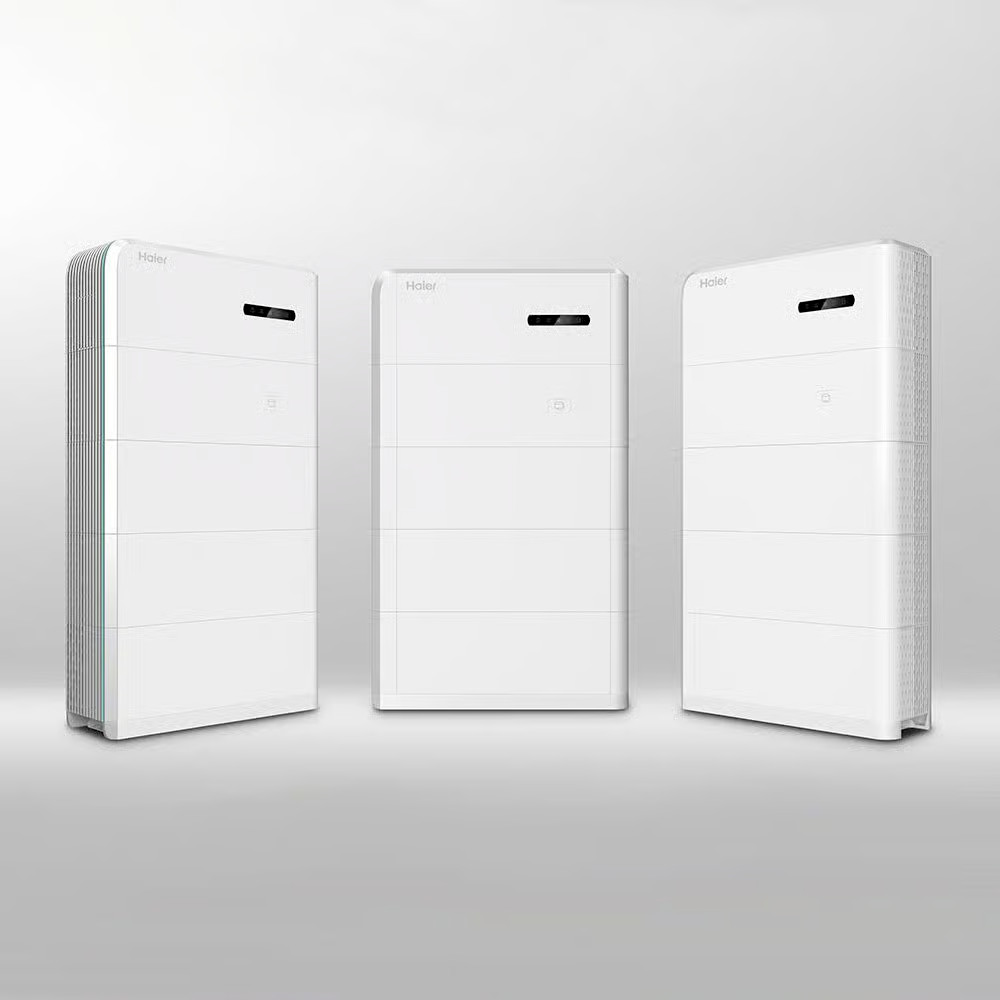

Haier Smart Cube 8kWh Battery With LED
The Haier Smart Cube Battery is a key component of the Haier Smart Cube 6-in-1 Energy Storage System. This all-in-one ESS seamlessly integrates a PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS).
The Haier Smart Cube battery system features a modular and stackable design, allowing for flexible capacity expansion to meet a wide range of energy storage needs. It is suitable for both residential and commercial applications and supports on-grid and off-grid scenarios, making it a versatile solution for different energy setups.

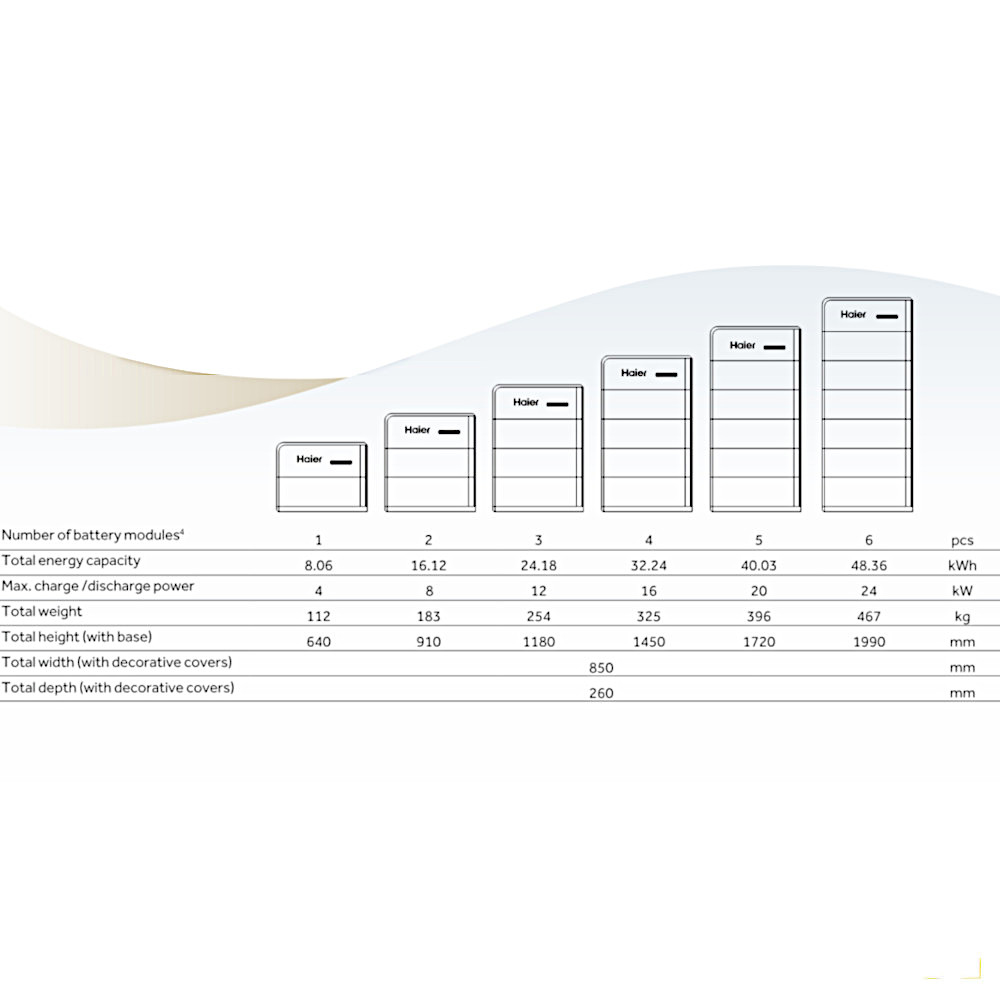

Each stack can hold up to six battery modules, with the option to mix 5kWh and compatible 8kWh units. For larger installations, up to 20 stacks - totalling 120 battery modules - can be connected in parallel, enabling a maximum system capacity of 960kWh.
KEY FEATURES:
- Available capacity: 7.8 kWh battery
- LiFePO4 technology (280Ah cell)
- 1 to 6 batteries per stack (max 30kWh)
- Max. 20 stacks in parallel
- Installation is quick and uncomplicated. Batteries are simply stacked on top of each other with no additional assembly is required
- DOD: 100% (under test conditions)
- Max. charging and discharging power: 4,000W
- Peak discharge / charge power of 6,000W
- Service life: > 7000 cycles
- Full temperature monitoring
- Multi-layer full battery safety protection
- 15 mins stackable installation
- 5 mins fast commissioning
- AI assisted energy planning, safety protection, VPP scheduling, and service support
- Instantaneous 0 ms backup switching
- Smart Cube app function
- IP66 protection rating
- The battery needs a Smart Cube Energy Controler to work
- Any combination of HBP-5.0 and HBP-8.0 battery modules can be used with the Haier Smart Cube EC.
- Mixing Smart Cube batteries with those from other manufacturers is not supported.
- 10-year product warranty and 10-year performance warranty
| Brand | Haier |
| Battery / System Model | Haier Smart Cube |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 8.06 |
| Battery Usable Capacity (kWh) | 7.8 |
| Protection Rating (IP) | Suitable for Outdoors |
| Grid Connection | Grid and Off Grid Capable |
| Dimensions (W x H x D) mm | 767 x 270 x 260 |
