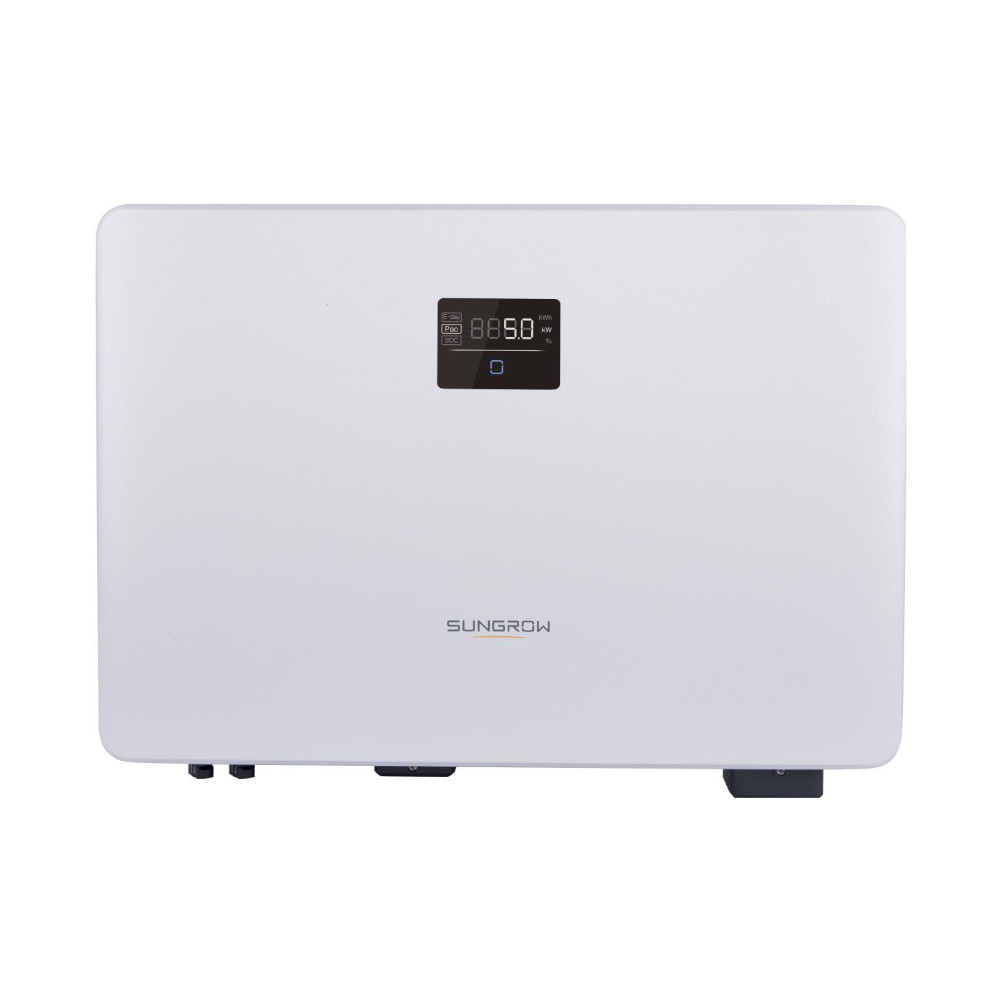

Sungrow 3kW Single-Phase Hybrid Inverter – V13 (Optimiser Compatible)
Sungrow Part No: ASH00115
Sungrow SHRS Hybrid Inverters range from 3.0kW to 6.0kW and are ideal for residential solar and battery storage systems. They are suitable for both retrofit projects and new installations.
Plug-and-play installation supports a user-friendly setup, while the lightweight, compact design helps simplify handling and provides effective heat dissipation. Compatible Sungrow optimisers can be added where module-level optimisation is required.
KEY FEATURES:
- Dual MPP trackers
- Maximum Input Current: 32A
- Battery Voltage Range: 80V - 460V
- European Efficiency: 97.0%
- Compatible Sungrow SP 600S Optimiser
- Built-in EMS with advanced customisation
- IP65 protection
- Built-in smart PID recovery function
- Natural cooling
- Communication: WLAN, Ethernet, RS485, CAN
- Weight: 18.5kg
- 10-year warranty
- G98 / G99 / 100-2 Certified
| Grid Connection Standards (G98/G99/G100) | G100-2 , G99 |
| Inverter Power Range (kW) | 2.1kW - 4kW |
| Inverter Phase | 1 |
| Battery / System Model | Sungrow SBS HV |
| Brand | Sungrow |
| Rated Power (W) | 3000 |
| Max DC Power (W) | 4500 |
| Total No. of Strings | 2 |
| No. of MPP Trackers | 2 |
| MPPT Voltage Range / Rated Input Voltage (V) | 40 - 560 |
| Start-up Input Voltage (V) | 50 |
| Max. Input Voltage (V) | 600 |
| Max. input current per MPPT | 16A |
| European Efficiency (%) | 97.0 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP65 |
| Depth (mm) | 170 |
| Height (mm) | 340 |
| Width (mm) | 490 |
| Warranty Period | 10 Years |
| Product Weight (Kg) | 18.5 |
