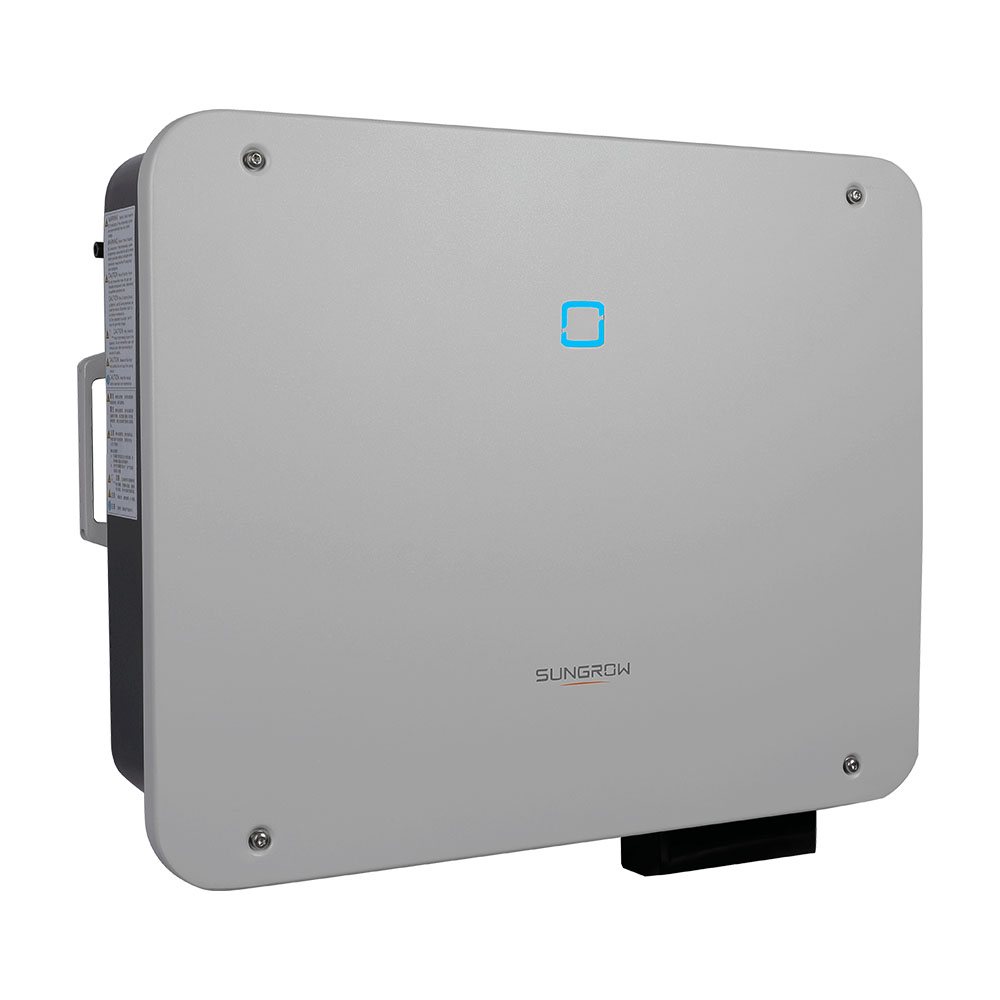

Sungrow 33kW P2 Optimised Inverter (ASG02267)
The Sungrow SG33CX-P2 is a three-phase optimised string inverter designed for commercial applications. It features multiple MPPTs for flexible system design and includes advanced built-in safety functions. Compatible with high-power modules, it also offers enhanced protection with AFCI 2.0 technology. Lightweight and compact, the inverter is easy for one person to install.
KEY FEATURES:
- Dynamic shading optimisation mode
- Built-in PID recovery function
- Key component diagnostics and protection
- Plug and Play with buckle design
- Compatible with over 500Wp+ PV module
- DC Type I+II SPD, AC Type II SPD
- IP66 protection and C5 anti-corrosion rating
- Supports AFCI 2.0 function
- Maximum efficiency of 98.5%
- Smart IV curve diagnosis
- G99 certified
- 5-year warranty
| Inverter Power Range (kW) | 30.1kW - 50kW |
| Inverter Phase | 3 |
| Brand | Sungrow |
| Rated Power (W) | 33000 |
| Max DC Power (W) | 46200 |
| Total No. of Strings | 6 |
| No. of MPP Trackers | 3 |
| MPPT Voltage Range / Rated Input Voltage (V) | 160 - 1000 |
| Start-up Input Voltage (V) | 200 |
| Max. Input Voltage (V) | 1100 |
| Max. input current per MPPT | 30A |
| European Efficiency (%) | 98.3 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 245 |
| Height (mm) | 575 |
| Width (mm) | 645 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 5 Years |
| Product Weight (Kg) | 38 |
Sungrow SG33-50CX-P2 Datasheet - 10 01 2023.pdf
Download
Sungrow SG25-50CX-P2 Quick Installation Guide - 20 10 2023.pdf
Download
Sungrow SG25-50CX-P2 User Manual - 09 08 2023.pdf
Download
Sungrow SG25-50CX-P2 G99 Certificate - 24 12 2021.pdf
Download
Sungrow SG25-50CX Declaration of Conformity - 01 08 2023.pdf
Download
Sungrow SG25-50CX-P2 IEC 6100 Certificate - 25 04 2022.pdf
Download
Sungrow SG25-50CX-P2 EN 50549-1 Certificate - 11 02 2022.pdf
Download
Sungrow SG25-50CX-P2 IEC 62920 Certificate - 18 07 2022.pdf
Download
Sungrow SG25-50CX-P2 IEC 62910 Certificate - 28 02 2022.pdf
Download
Sungrow SG25-50CX-P2 IEC 62116 61727 Certificate - 06 12 2021.pdf
Download
Sungrow SG25-50CX-P2 IEC 61683 60068 EN50530 Certificate - 29 04 2022.pdf
Download
Sungrow Sustainability Report - 2024.pdf
Download
Sungrow Forced Labour, Conflict Minerals Policy Statement - 25 01 2024.pdf
Download
Sungrow SA8000：2014 Social Accountability Declaration -22 04 2024.PDF
Download
Sungrow ISO14001：Environmental Management System -21 05 2024.pdf
Download
Sungrow Europe Code of Conduct - 22 04 2024.pdf
Download
Sungrow Brochure - 20 09 2023.pdf
Download
Sungrow Optimiser Commissioning Layout Template Instructions - 21 11 2024.pdf
Download
Sungrow Surge Protection Devices - 16 10 2024.pdf
Download
Sungrow Inverters&Batteries Compatibility List -11 09 2024.pdf
Download
Sungrow Manufacturer Warranty - 28 06 2023.pdf
Download
