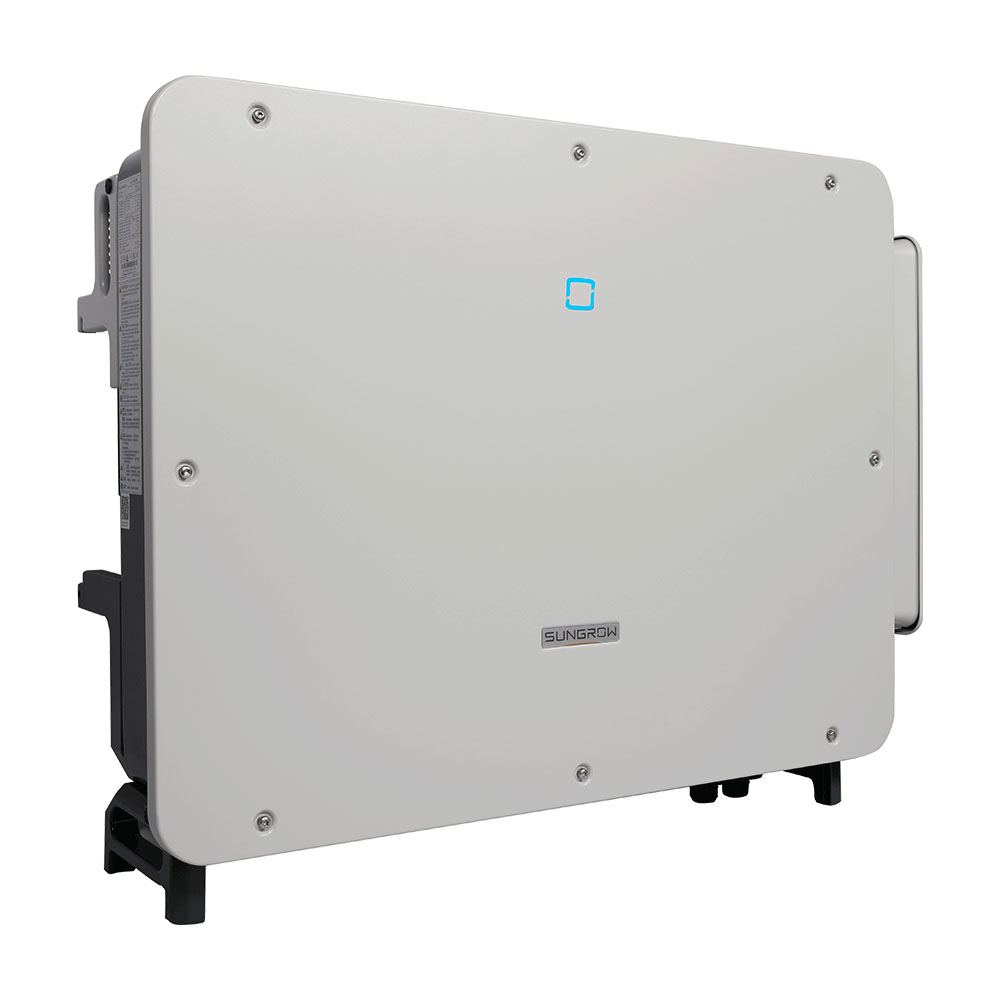

Sungrow 125kW SG125CX-P2 Three-Phase String Inverter – Optimiser Compatible
The Sungrow SG125CX-P2-V21 is a three-phase optimiser-compatible 125kW string inverter designed for commercial applications. Its 12 MPPTs support flexible solar array design, while compatibility with high-power modules and AFCI 2.0 technology helps improve system safety and performance. The durable enclosure and intelligent forced-air cooling system support reliable operation in demanding environments.
KEY FEATURES:
- Dynamic shading optimization mode
- 12 MPPTs with max. efficiency 98.5%Â
- Grid fault record function, easy for remote O&MÂ Â
- Key component diagnosis and protection
- Compatible max. 240mm² Al AC cablesÂ
- Compatible with over 500Wp+ PV module
- Drawer-style cable sealing plate support AC cable pre-assemblyÂ
- DC Type I+II SPD, AC Type II SPD
- IP66 protection and C5 Anti-corrosion
- Support AFCI 2.0 function
- Max efficiency 98.5%
- Smart IV Curve Diagnosis
- G99 Certified
- 5-year warranty
| Inverter Power Range (kW) | 75.1kW - 150kW |
| Inverter Phase | 3 |
| Brand | Sungrow |
| Rated Power (W) | 125000 |
| Max DC Power (W) | 175000 |
| Total No. of Strings | 24 |
| No. of MPP Trackers | 12 |
| MPPT Voltage Range / Rated Input Voltage (V) | 180 - 1000 |
| Start-up Input Voltage (V) | 200 |
| Max. Input Voltage (V) | 1100 |
| Max. input current per MPPT | 30A |
| European Efficiency (%) | 98.5 |
| Integrated DC Switch | Yes |
| Inverter IP Rating | IP66 |
| Depth (mm) | 360 |
| Height (mm) | 795 |
| Width (mm) | 1020 |
| Grid Connection Standards (G98/G99/G100) | G99 |
| Warranty Period | 5 Years |
| Product Weight (Kg) | 95 |
