Sungrow SBH 20kWh HV Storage System with SH25T 25kW 3-Phase Hybrid Inverter
This pre-configured Sungrow bundle combines the SH25T 25kW 3-phase hybrid inverter with a 20kWh SBH high-voltage battery stack, providing a complete storage solution for residential and small commercial installations.
The system is designed for solar self-consumption, backup power, and flexible energy management. Additional items may be required depending on the final project design, metering requirements, backup configuration, and local installation standards.
What’s included
This pre-configured Sungrow SBH 20kWh HV storage bundle includes:
- 1 x Sungrow 25kW Three-Phase Hybrid Inverter(reference: SH25T)

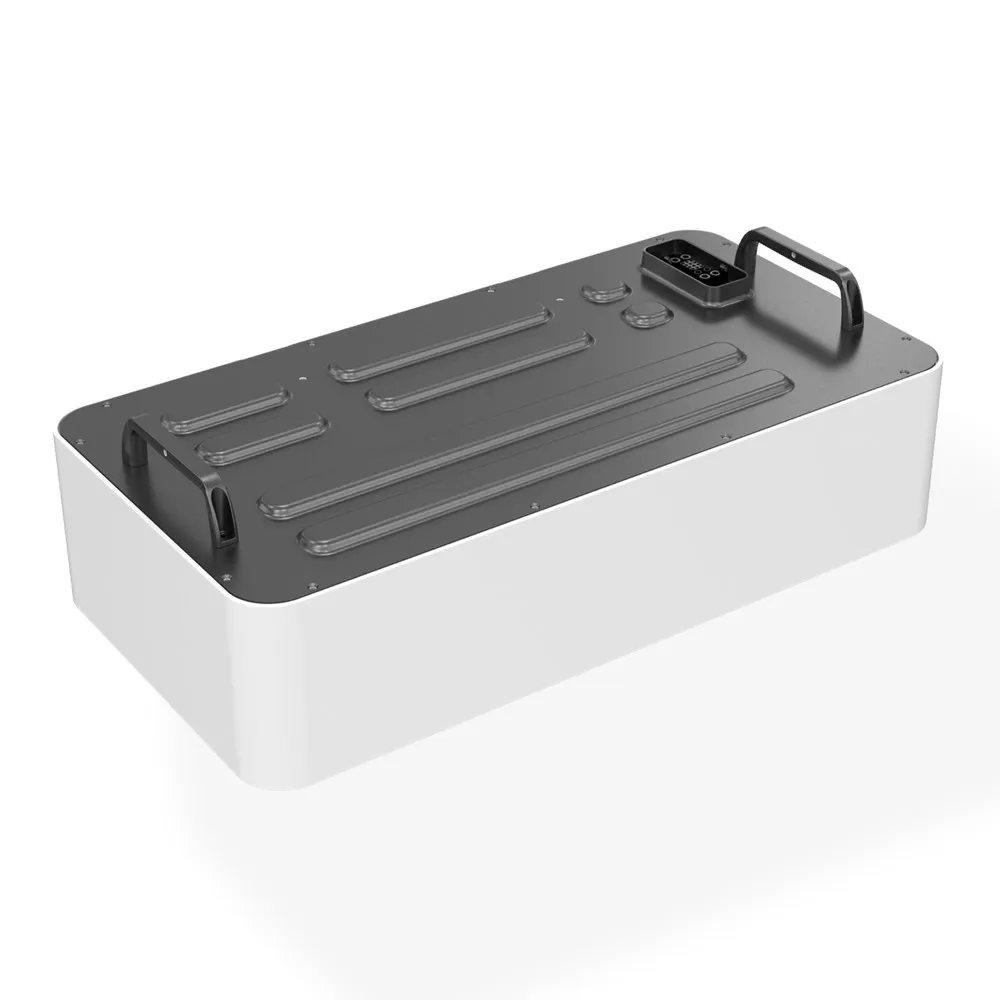

- 4 x Sungrow SBH 5.0kWh Battery Modules(reference: SBH-SMR050)

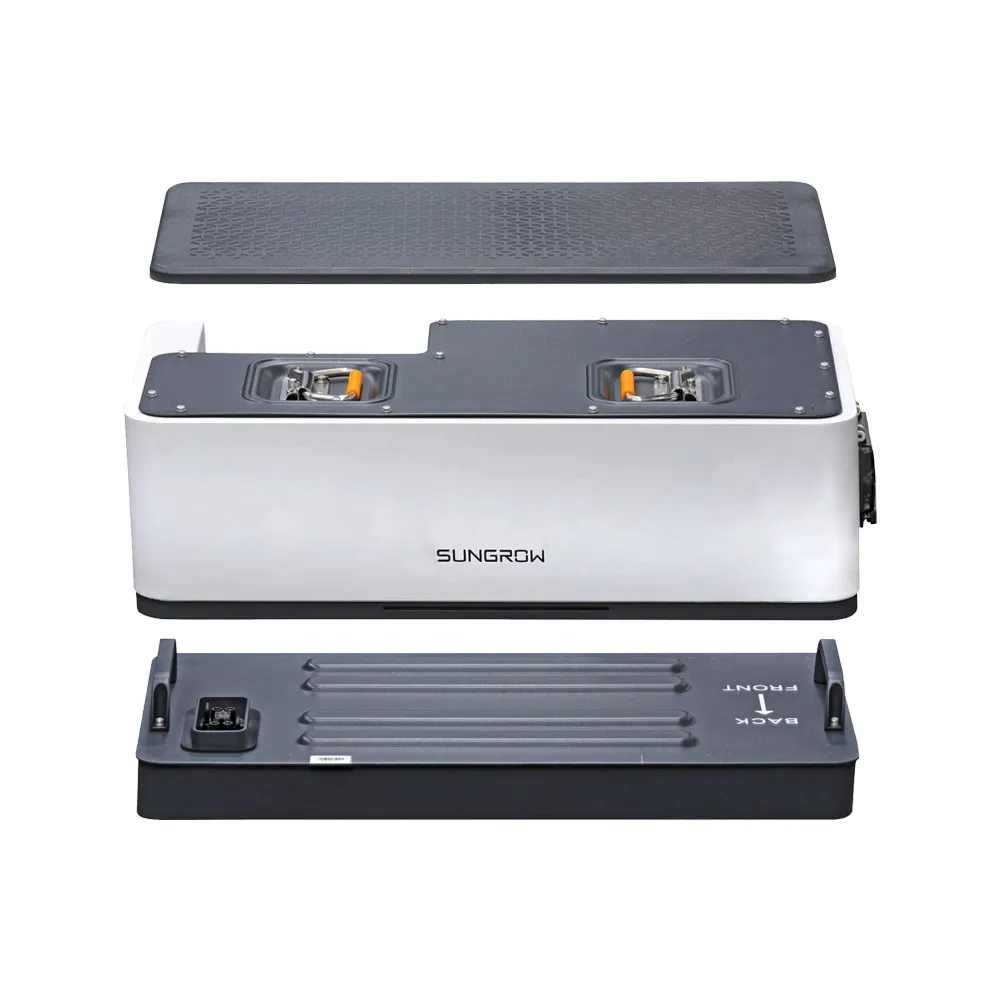

- 1 x Sungrow SBH Battery Accessory Kit(reference: SBH-BAT-ACC)
For full technical specifications, datasheets, dimensions, compatibility details, and installation requirements, please refer to the individual product pages for each component included in this bundle.

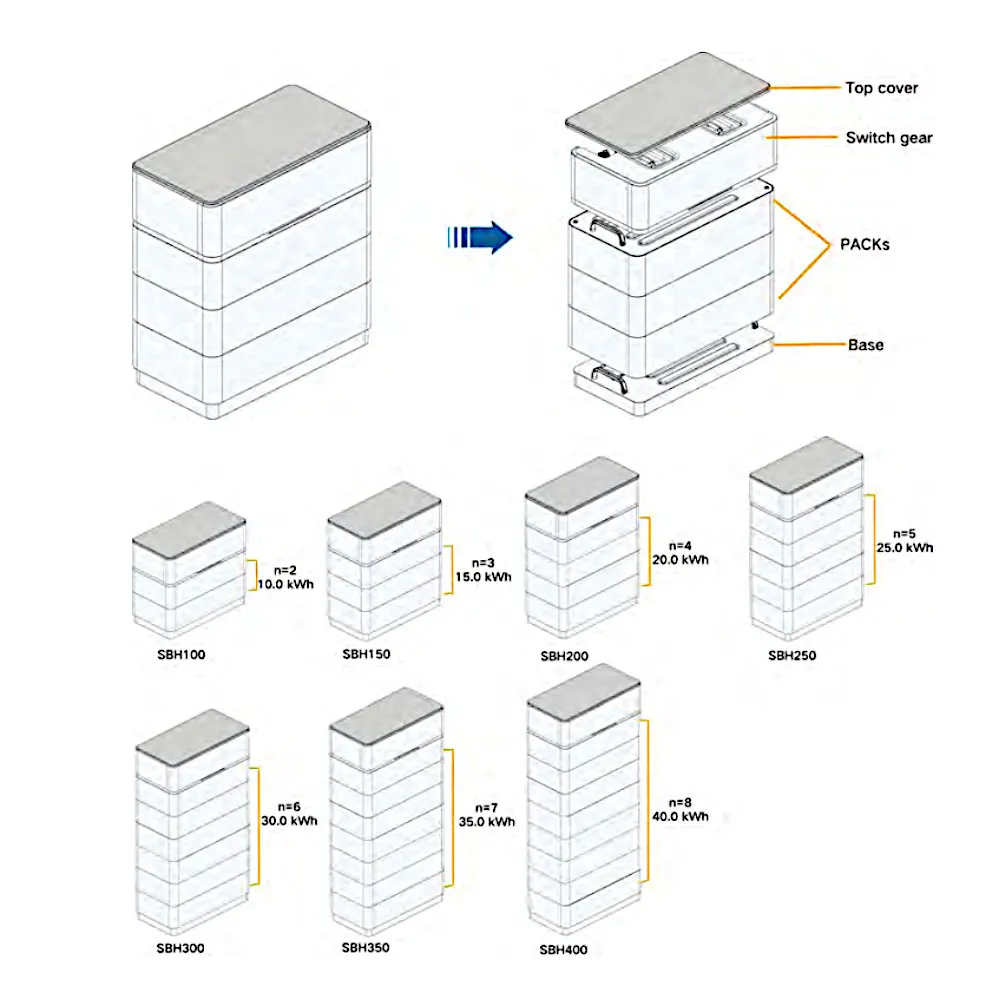

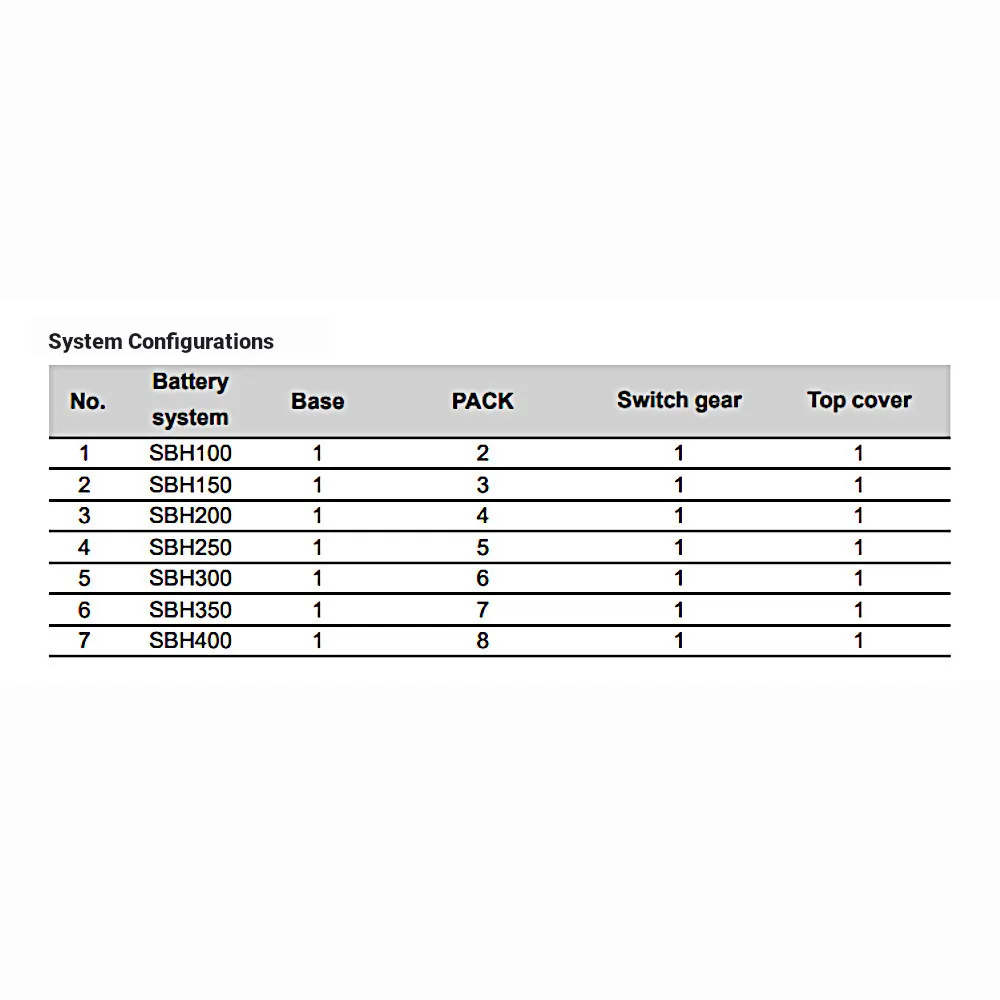

This system may be expanded with additional compatible SBH modules, subject to Sungrow compatibility limits, inverter configuration, and final project design.
Technical Information Summary
Sungrow SH25T 25kW 3-Phase Hybrid Inverter
- Recommended max. PV input power:Â 50kWp
- Max. PV input voltage: 1000V
- MPPT voltage range: 150–950V
- Battery voltage range: 100–700V
- Max. charge / discharge current: 50A / 50A
- Max. charge / discharge power: 30kW / 25kW
- Backup switchover time: <10ms
- Application: 3-phase residential and small commercial solar storage, backup, and energy managementÂ
Sungrow SBH 20kWh HV Battery Stack
- Capacity: 20.0kWh usable
- Battery modules: 4 × 5.0kWh
- Battery chemistry: LFP / LiFePOâ‚„ prismatic cells
- Battery type: High voltage
- Nominal voltage: 281.6V
- Operating voltage range: 237.6–321.2V
- Rated DC power: 14.08kW
- Max. charge / discharge current: 50A continuous
- Depth of discharge: up to 100%
- Protection rating: IP55
- Dimensions (W x H x D) : 675 × 900 × 350mm
| Bundle Classification | Residential / Small Commercial |
| Bundle Capacity | 20 - 40kWh |
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sungrow SBH HV |
| Brand | Sungrow |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Residential/Small Commercial |
| Battery Cell Type | LiFePO4 (LFP) |
| Charge/Discharge Rate | 0.7P |
| Battery Usable Capacity (kWh) | 20 |
| Depth Of Discharge (%) | 100 |
| Grid Connection | Grid and Off Grid Capable |
| Battery IP Rating | IP55 |
| Product Weight (Kg) | 251.5 |
