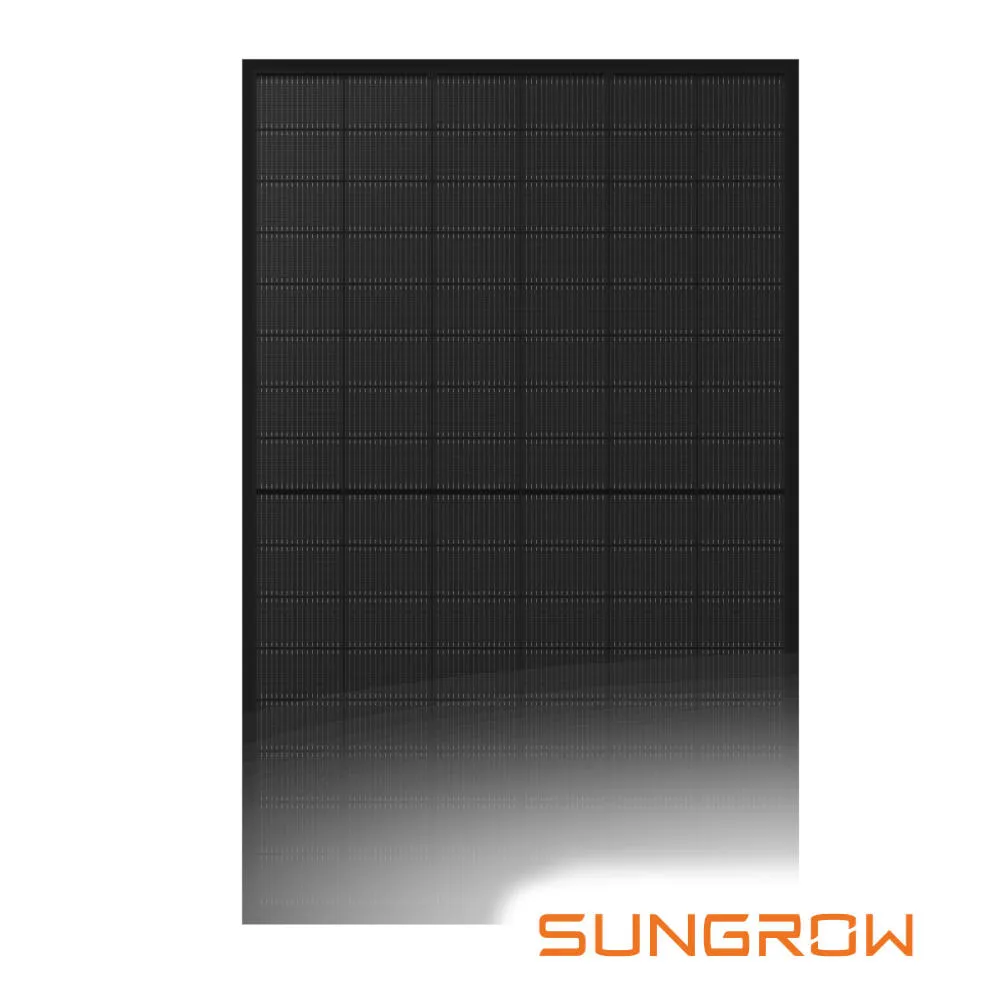

Waiting Sungrow 465W Smart Solar Panel, N-Type Bifacial Double Glass, Full Black
The Sungrow SG-48TG4D-BX-465 is a high-efficiency smart solar panel combining 465W output, 23.3% module efficiency and a premium full-black appearance. Its N-type bifacial design can generate energy from both sides of the module. At the same time, its compact format makes it suitable for both residential and commercial rooftop installations, where power density and appearance are key considerations.
Built around Sungrow’s 5S intelligent architecture, the module supports self-diagnosis, rapid shutdown, digital lifecycle records, self-cleaning and self-cooling functions. Module-level monitoring through iSolarCloud provides detailed performance visibility, fault localisation and anomaly detection.
Its durable double-glass construction, IP68-rated junction box and strong mechanical-load resistance make it suitable for residential rooftops, commercial PV projects and smart solar installations where performance, safety and long-term reliability are important.
KEY FEATURES:
- Module efficiency: 23.3%

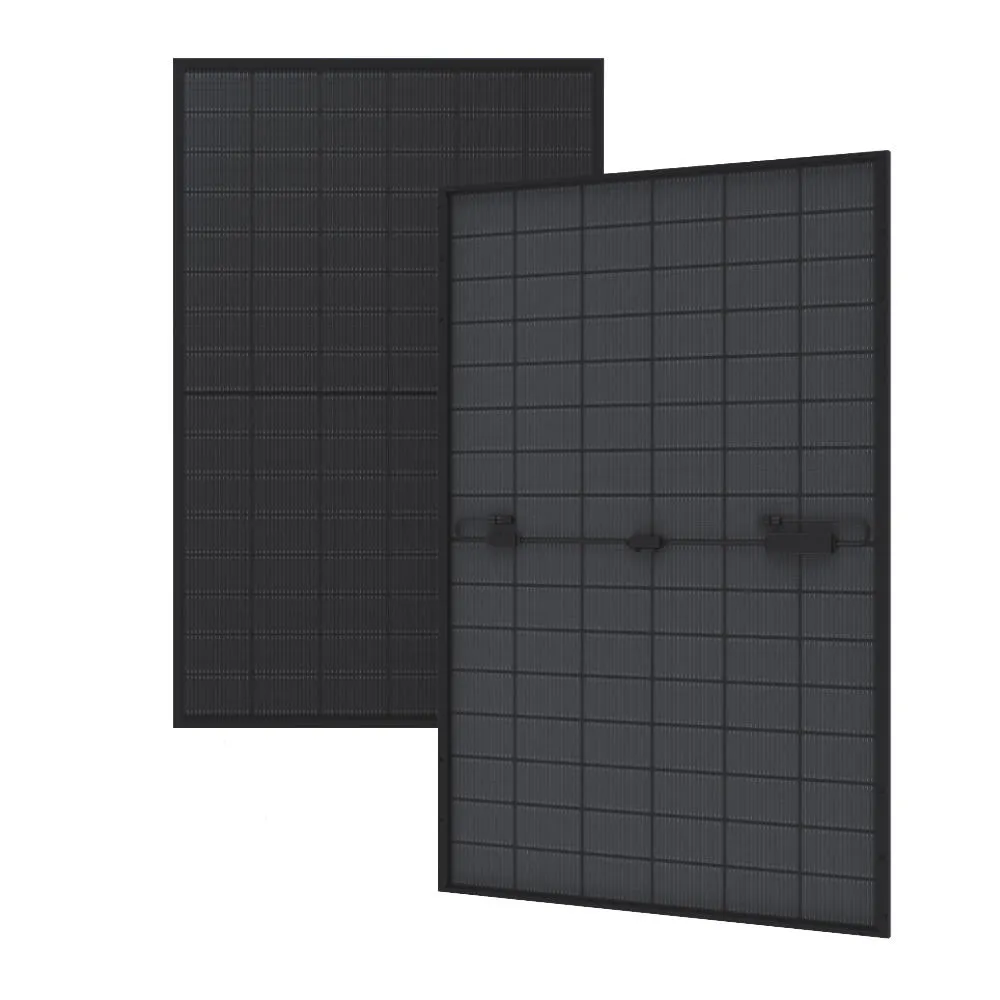

- Bifacial glass-glass smart solar module
- Premium full-black appearance
- Cell layout: 96 cells, arranged 2 × 48
- Glass structure: 2.0mm anti-reflective front glass + 2.0mm heat-strengthened rear glass
- Maximum System Voltage: 1,500V
- Bifacial factor: 80% ±5%
- Module-level monitoring with iSolarCloud data storage and visualisation
- Smart fault localisation and precision bypass
- System-level anomaly detection
- Integrated rapid shutdown: ≤25 seconds
- Anti-PID Guarantee: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control
- Power temperature coefficient: −0.29%/°C
- Superior Low Irradiation Performance: Higher power output in the morning and evening, cloudy days, haze and other low-light scenarios.
- Connector: MC4-EVO2A or other approved connector
- Extended load tests - Heavy snow load up to 5400 Pascal wind load up to 2400 Pascal
- IP68 Rating
- Standard 25 year product warranty; 30-year performance warranty
Our latest content
Check out what's new in our company !
| Popular Features | N-Type , TOPCon , Glass-Glass/Dual Glass , Bifacial , All Black Panels , Smart Panels |
| Brand | Sungrow |
| Panel Power Range | 455W - 500W |
| Power Class | 465 W |
| Watts/ m² | 233 |
| Frame Colour | Black |
| Cells | 96 Half Cells |
| Module Efficiency (%) | 23.3 |
| Open Circuit Voltage - Voc (V) | 36.32 |
| Short Circuit Current - Isc (A) | 15.93 |
| Connector Type | MC4-EVO2A |
| Panels per Pallet | 36 |
| Panels per Container | 936 |
| MCS No | BABT17008-1012 |
| Length (mm) | 1762 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Annual Degradation (%) | 0.40 |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Product Weight (Kg) | 24.0 |
