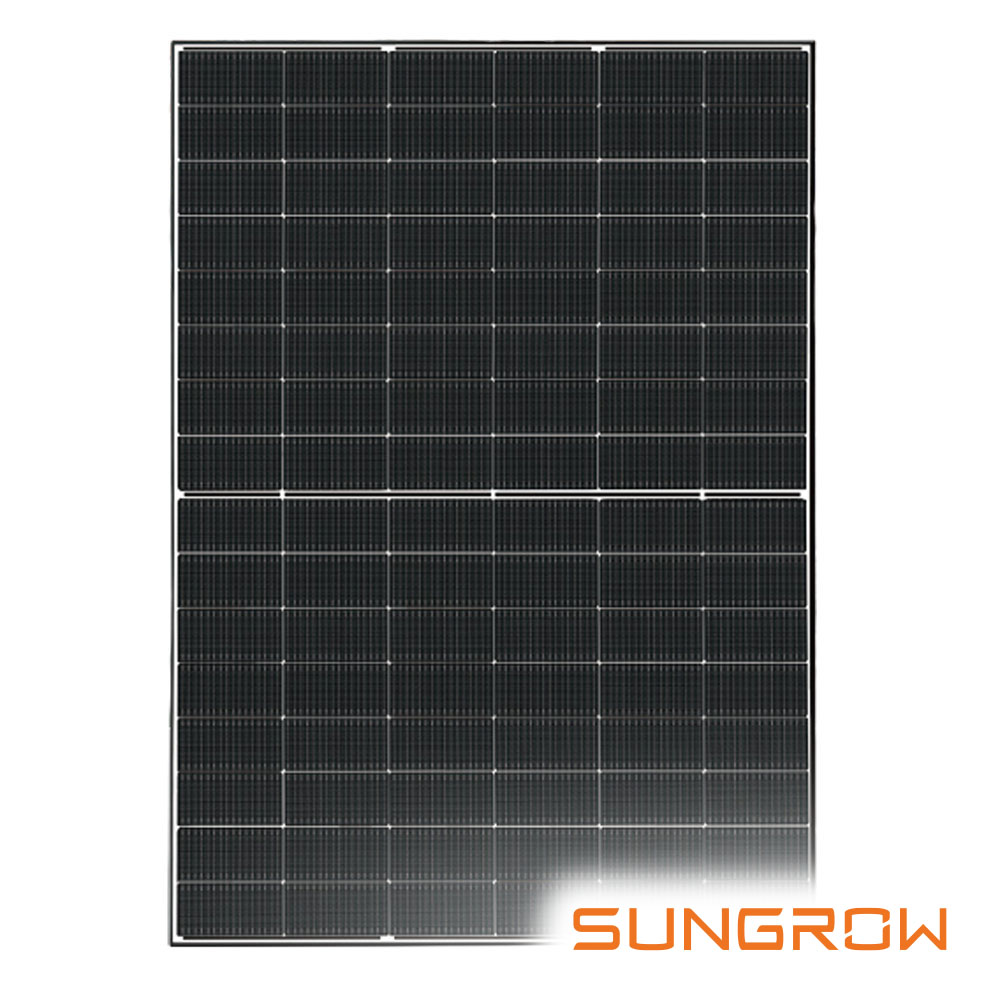

Sungrow Solar 455W N-Type TOPCon Bifacial, Double Glass, Black Frame
The Sungrow SG-48TG4D is a high-efficiency N-type TOPCon solar module designed for high performance and durability. With a maximum efficiency of 22.8%, it delivers high power output in a compact size, making it ideal for both residential and commercial installations.
Its dual-glass bifacial design captures sunlight from both the front and rear surfaces, increasing total energy yield.
KEY FEATURES:
- High module efficiency: 22.8%
- N-type TOPCon Bifacial Module
- Black-anodised Aluminium Alloy
- Cells: 96 cells
- Glass: Dual glass, 2.0mm + 2.0mm semi-tempered glass
- Maximum System Voltage: 1,500V
- Smaller Size: A lightweight design for convenient transportation and installation
- Anti-PID Guarantee: Minimises the chance of degradation caused by PID phenomena through optimisation of cell production technology and material control
- Heat Resilience: A low temperature coefficient of -0.29%/°C
- Extended load tests - Heavy snow load up to 5400 Pascal wind load up to 2400 Pascal
- IP68 rated junction box
- Standard 25-year product warranty; 30-year performance warranty
| Popular Features | N-Type or TOPCon or Glass-Glass/Dual Glass or Bifacial |
| Panel Power Range | 455W - 500W |
| Brand | Sungrow |
| Power Class | 455 W |
| Watts/ m² | 228 |
| Frame Colour | Black |
| Backsheet | Glass |
| Cells | 96 Half Cells |
| Module Efficiency (%) | 22.8 |
| Open Circuit Voltage - Voc (V) | 35.21 |
| Short Circuit Current - Isc (A) | 16.10 |
| Connector Type | MC4 Compatible |
| Panels per Pallet | 36 |
| Panels per Container | 936 |
| MCS No | BAT17008-1001 |
| Length (mm) | 1762 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Product Weight (Kg) | 24.3 |
Sungrow SG-48TG4D 435-455W Datasheet - 28 05 2025.pdf
Download
Sungrow Installation and Maintenance Manual of PV Modules - 31 07 2025.pdf
Download
Sungrow PV Modules MCS Certificate BABT 17008 R0 - 08 12 2025.pdf
Download
Sungrow Attestation of Conformity - 01 04 2025.pdf
Download
Sungrow IEC 61215 - 61730 Certificate - 07 07 2025.pdf
Download
Sungrow Warranty Terms and Conditions for PV Module - 27 03 2025.pdf
Download
