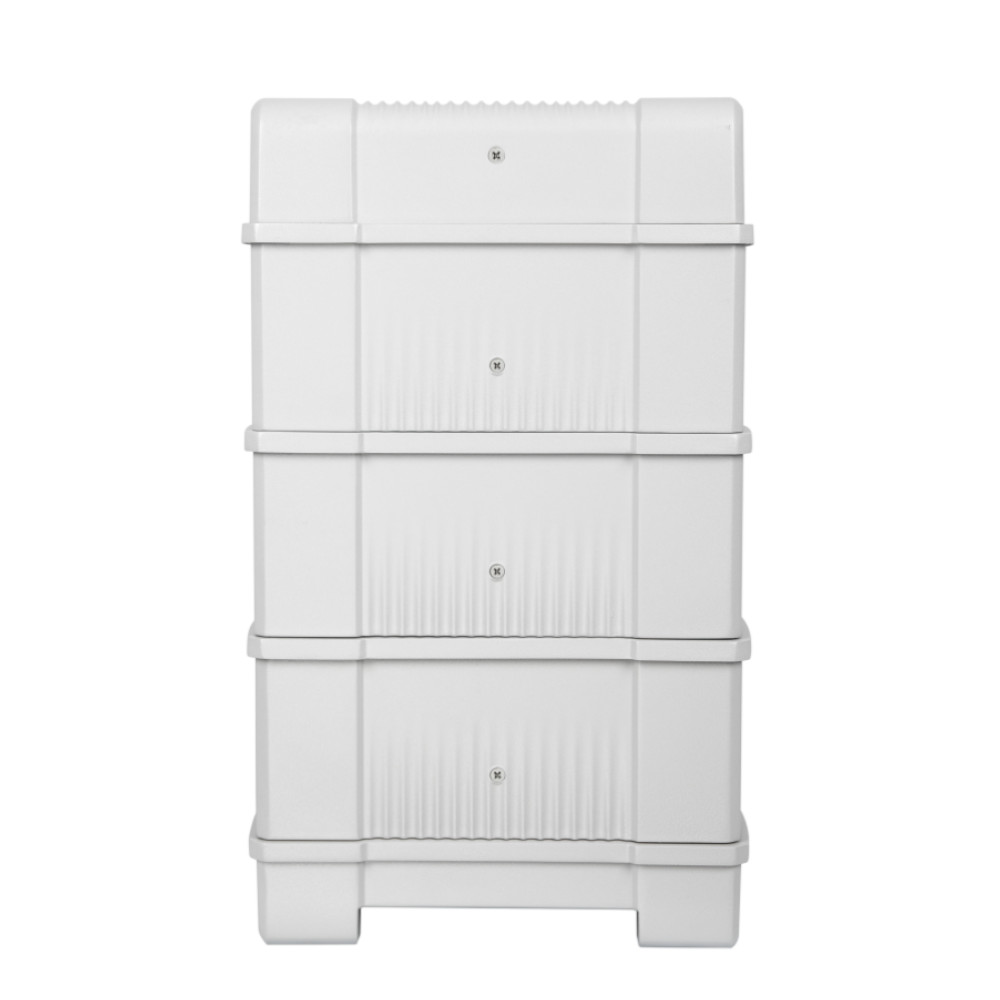

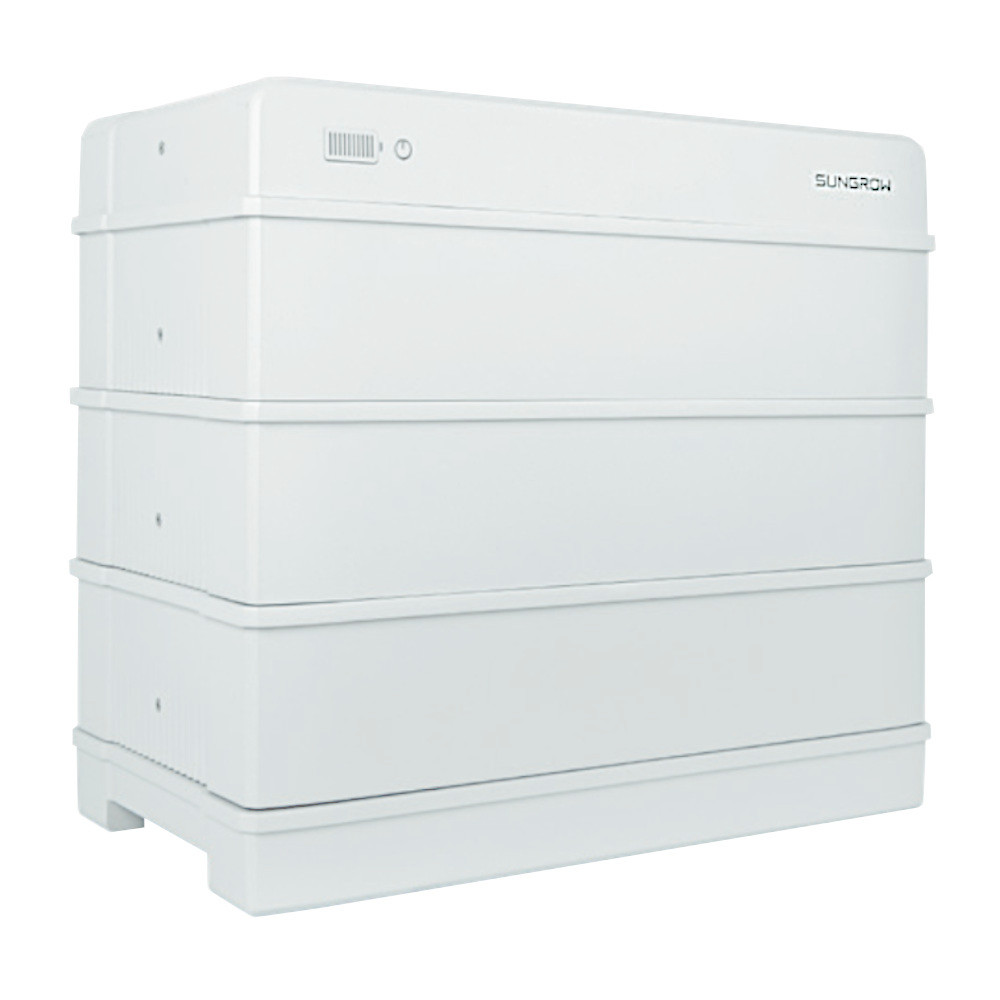

Sungrow SBR064 6.4kWh High Voltage Battery System Kit
The Sungrow SBR064 HV Battery Combo Kit is a compact, high-voltage 6.4kWh lithium iron phosphate battery system designed for residential energy storage applications.

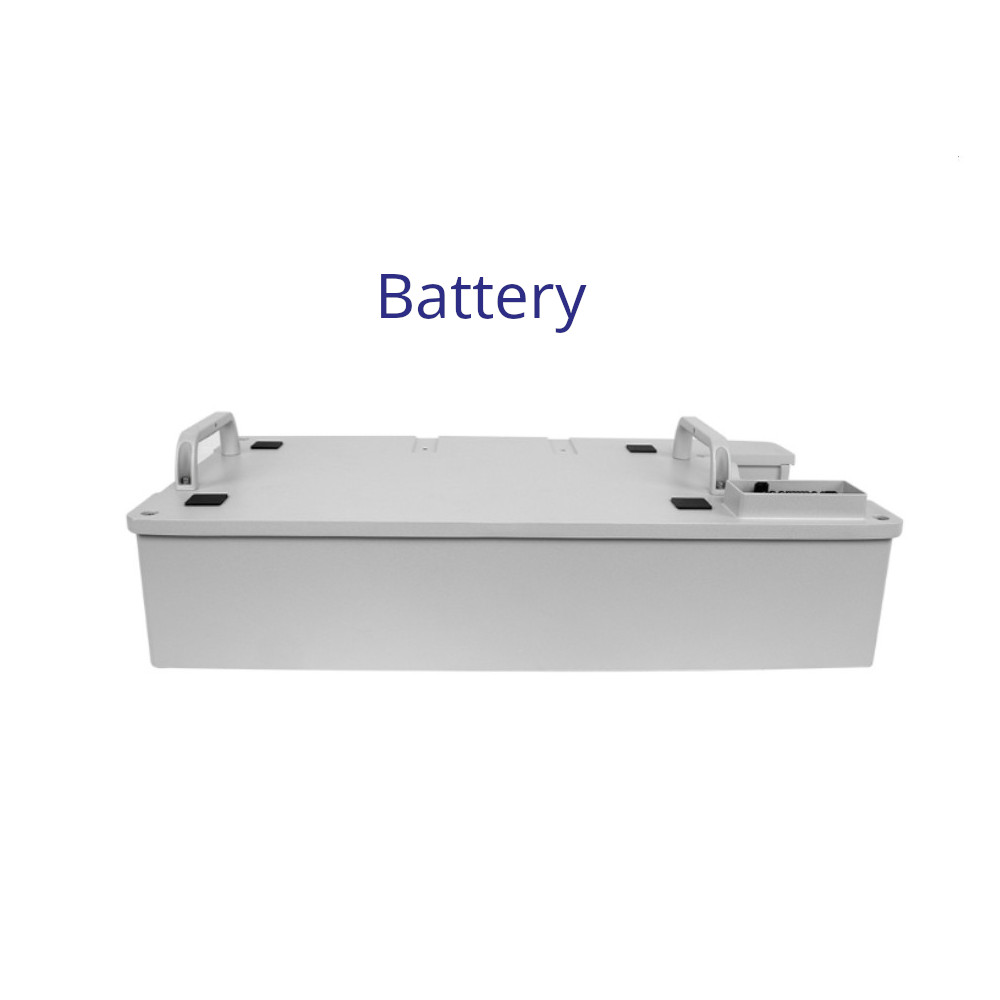

The system consists of two 3.2kWh stackable battery modules and one empty/dummy module, providing a reliable and flexible battery storage solution for compatible Sungrow hybrid inverter systems. It is ideal for increasing solar self-consumption and supporting backup power applications when paired with a suitable inverter.

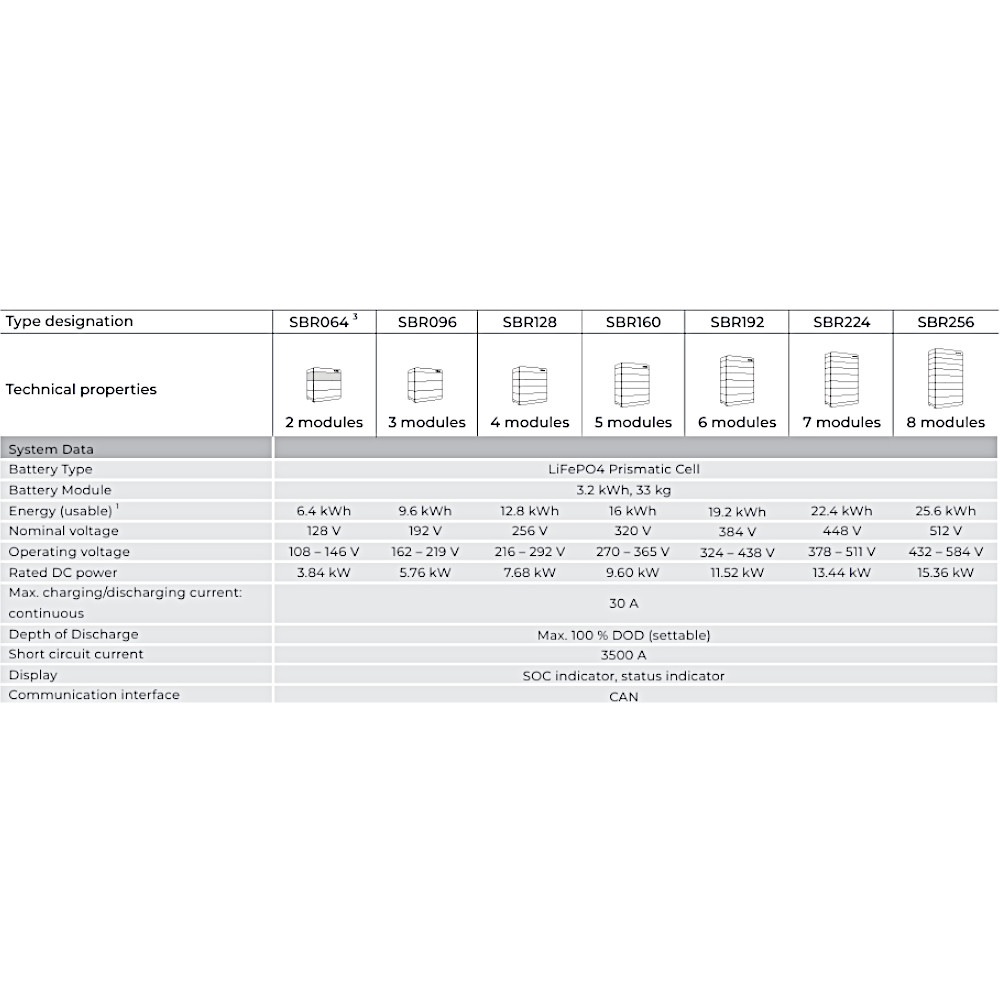

With its modular, plug-and-play design, the SBR064 is quick to install and can be expanded over time to meet changing energy storage requirements. The SBR storage system supports 2 to 8 battery modules per stack/tower, allowing expansion from 6.4kWh up to 25.6kWh.
Key Features
- Usable capacity: 6.4kWh
- Battery type: LiFePO4 prismatic cell
- Nominal voltage: 128V
- Operating voltage range: 108V – 146V
- Max. continuous charge/discharge current: up to 30A
- Depth of discharge: up to 100% DoD
- Communication interface: CAN
- Protection rating: IP55
- Installation location: Indoor or outdoor
- Mounting method: Floor stand
- Cooling method: Natural convection

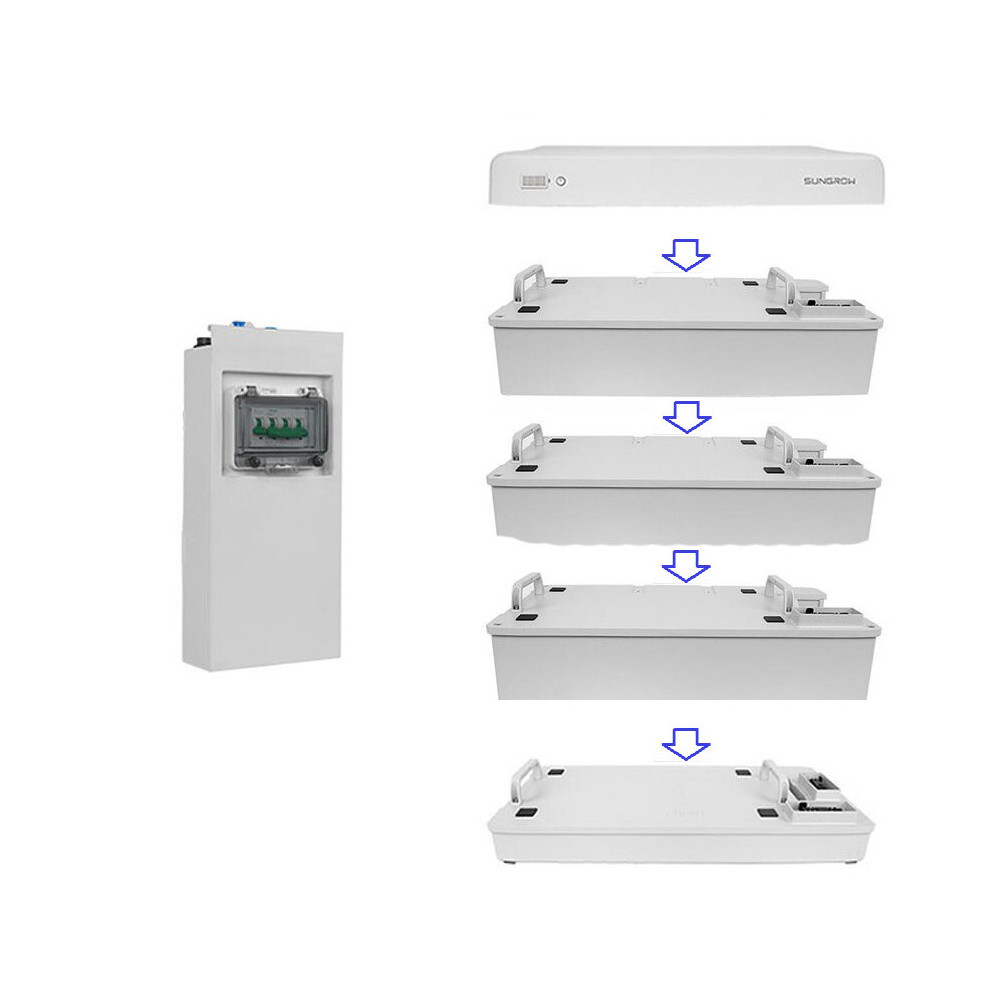

- Plug-and-play stackable design with no cables required between battery modules

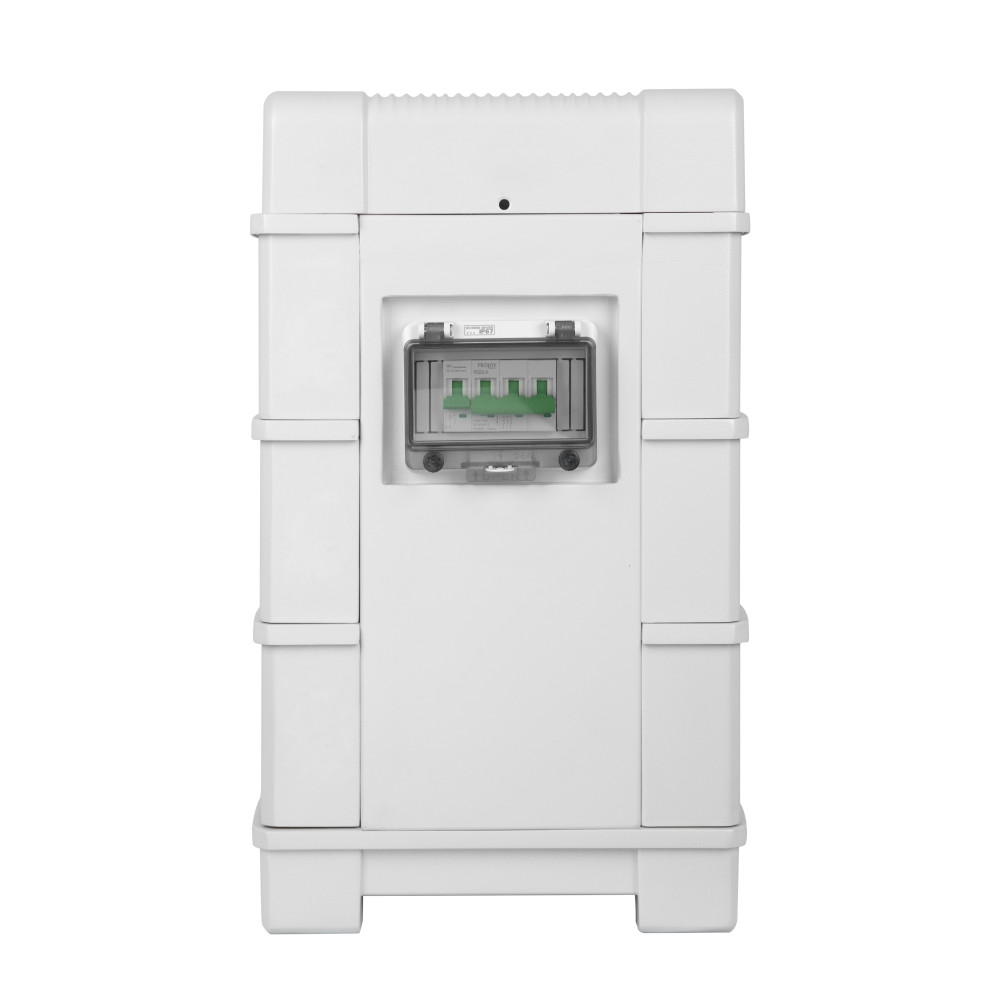

- Built-in protection: over/under voltage, overcurrent, over/under temperature protection and DC breaker
- SOC and status indicators for easy monitoring
- 10-year warranty, subject to Sungrow warranty terms
Kit Includes
   Compatibility Notes: The Sungrow SBR064 is designed for use with compatible Sungrow hybrid inverters and is not a standalone battery system. Please check inverter compatibility and installation requirements before purchase.  Â
Regarding monitoring, the combo includes the Winet-S communication dongle and the S100 meter. The Winet-S combines WiFi and Ethernet so you can install it the way you prefer. In addition, you can perform the commissioning either on-site or fully online and hybrid (start in the field and finish remotely). To visualise the data, Sungrow has the free iSolarCloud app for web and mobile.
| High / Low Voltage Battery | High Voltage |
| Battery / System Model | Sungrow SBR HV |
| Brand | Sungrow |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery End User | Residential |
| Battery Cell Type | LiFePO4 (LFP) |
| Depth Of Discharge (%) | up to 100% DoD |
| Battery IP Rating | IP55 |
| Dimensions (W x H x D) mm | 625 x 545 x 330 |
| Product Weight (Kg) | 90 |
