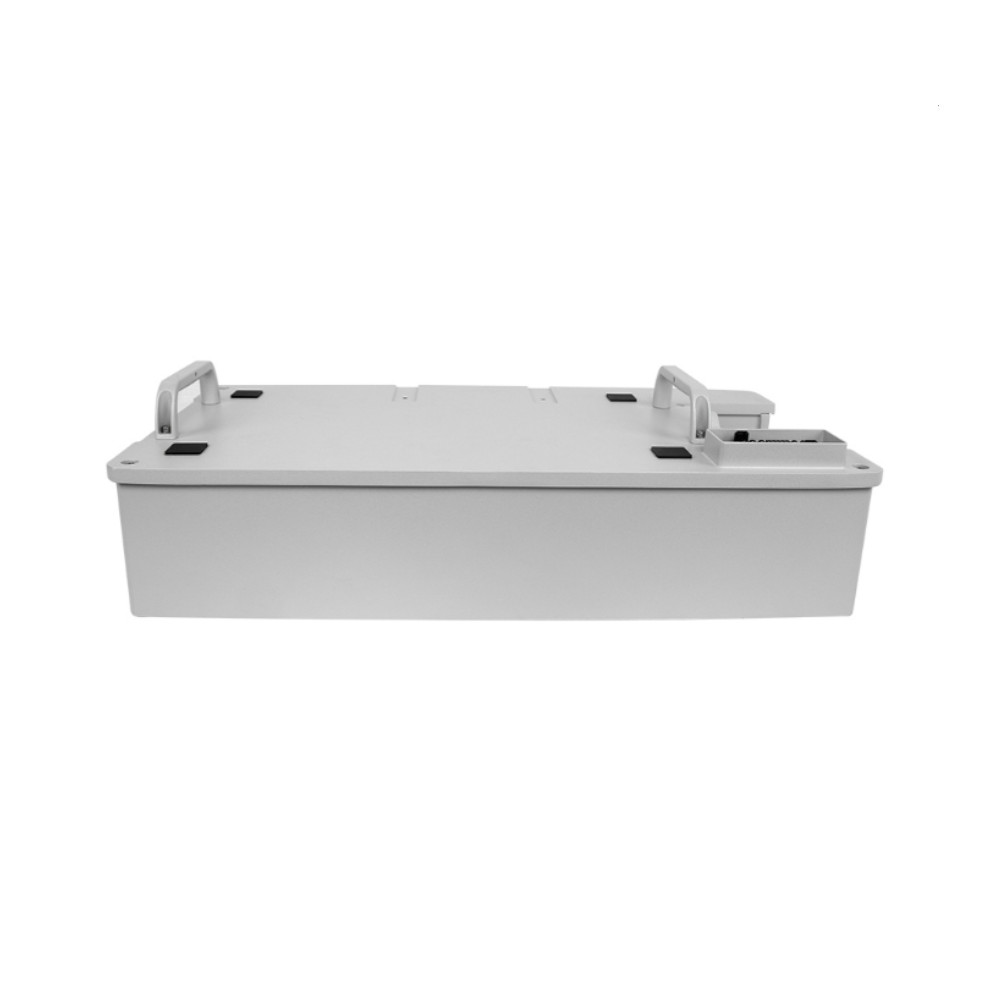

Sungrow SBR High Voltage Battery Module 3.2kWh
The Sungrow Battery Module 3.2kWh is part of the SBR Battery System. It's not a standalone product.
The system has a stackable modular design which allows for an easy install with no wiring involved.
It supports a minimum of 3 battery modules to a max of 8 battery modules in each stack; then wire together, in parallel a maximum of 4 stacks to offer up to 102.4kWh of usable storage capacity.
KEY FEATURES:
- Battery Type: LiFePO4 Prismatic Cell
- Usable Battery Capacity: 3.2 kWh
- Nominal Voltage: 64V
- Communication Interface: CAN
- Degree of Protection: IP55
- Dimensions (WxHxD): 625 x 130 x 330 mm
- Weight: 33 kg
- Warranty: 10 Years
Sungrow SBR 3.2kWh High Voltage Battery Installation (Duration 6.36)
| Brand | Sungrow |
| Battery End User | Residential |
| High / Low Voltage Battery | High Voltage |
| Battery Cell Type | LiFePO4 (LFP) |
| Battery Nominal Capacity (kWh) | 3.2 |
| Depth Of Discharge (%) | 100 |
| Dimensions (W x H x D) mm | 625 x 130 x 330 |
| Protection Rating (IP) | Suitable for Outdoors |
| Battery Usable Capacity (kWh) | 3.2 |
| Grid Connection | Grid Connected |
| Battery / System Model | Sungrow SBR HV |
