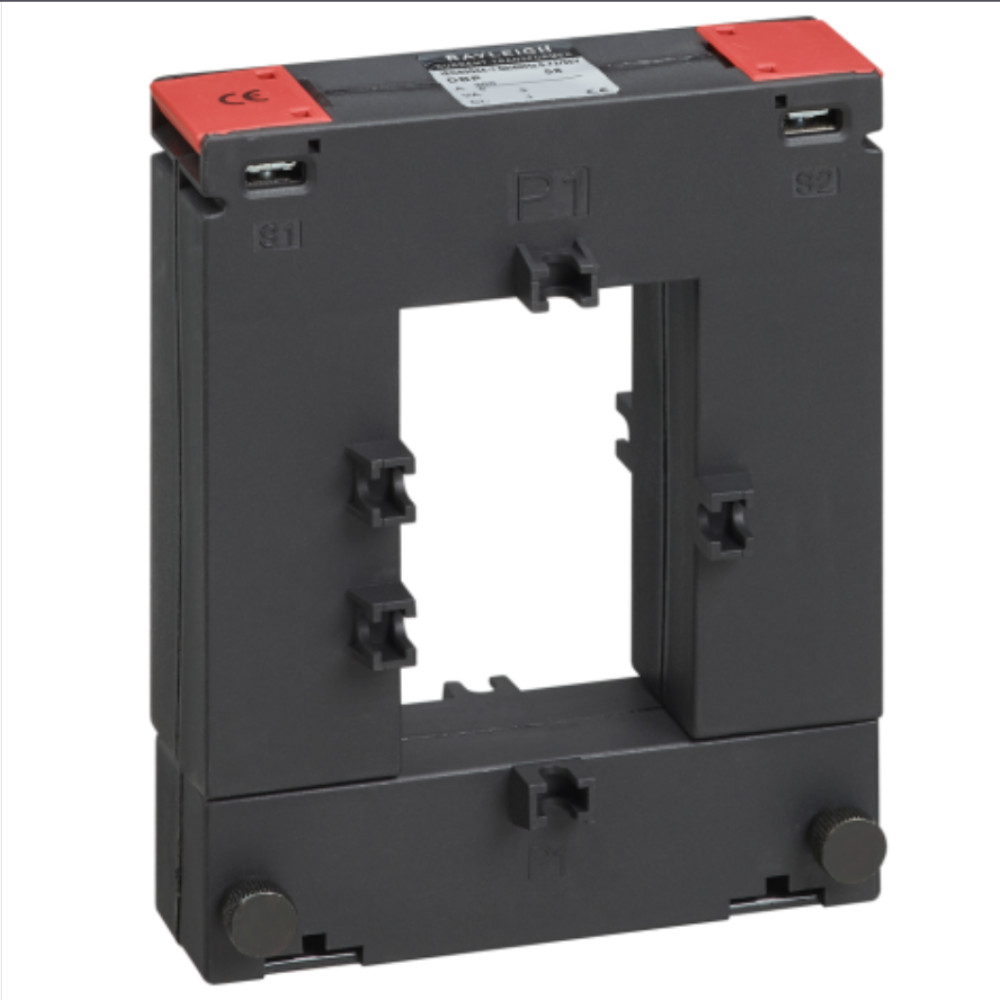

Rayleigh 600A Split Core Current Transformer, RI-DBP-58, Single Phase
The DBP58 is a split-core current transformer designed for installation retro-fit applications such as existing electrical installations where removal of busbars/cable lugs prevent installation of standard current transformers.
These transformers are safely and easily installed over existing electrical power lines without disconnecting lines or interrupting service. Split-core current transformers are an economical means to measure amperage over a broad range of services in a variety of applications.
The Rayleigh 1000A CT FEATURES:
- Ratio 600/5A
- Busbar window : 50 x 80mm
- Supplied with fixing feet and busbar mounting bracket
- Class 1/3, 10/20VA
- Secondary terminals : M4 Screws
- Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
| Brand | Rayleigh |
| Accessory Phase | Single Phase |
| CT Primary (A) | 350A - 1000A |
| Accessory By Type | CT Clamps |
