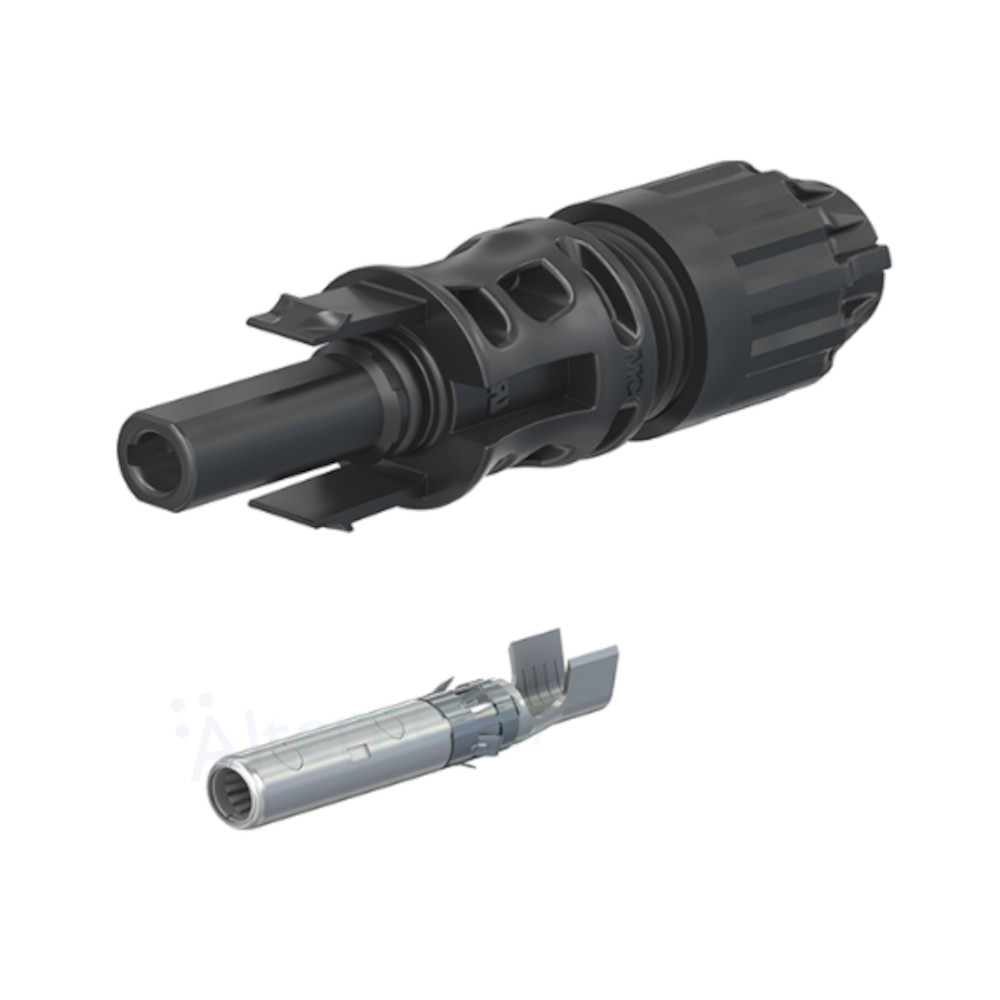

Staubli MC4 Evo 2A Female Connector (4-6mm², Cable Outer Diameter 6.4-8.4 mm)
The MC4-Evo 2 is the latest addition to the Multi-Contact Stäubli PV connector portfolio. Great for high voltage applications, these new connectors are internationally certified and are approved for 1500 V DC (IEC, JET), 1500 V DC (UL) unrestricted access.
MC4-Evo 2 connectors are suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray.
FEATURES:
- Snap-in lock
- MULTILAM technology
- Cable cross-section: 4-6 mm²
- Female cable coupler
- Cable outer diameter: 6.4-8.4 mm
- Rated current: 45A 4mm² cable ; 53A 6mm² cable
- Rated voltage: 1500V
- Termination type: Crimping
- IP Protection: IP68
- Flame class: UL94-V0
- TÜV-Rheinland certified
| Brand | Staubli |
| Solar Connector Type | EVO2 and EVO2 A |
| Accessory By Type | Solar Connectors |
