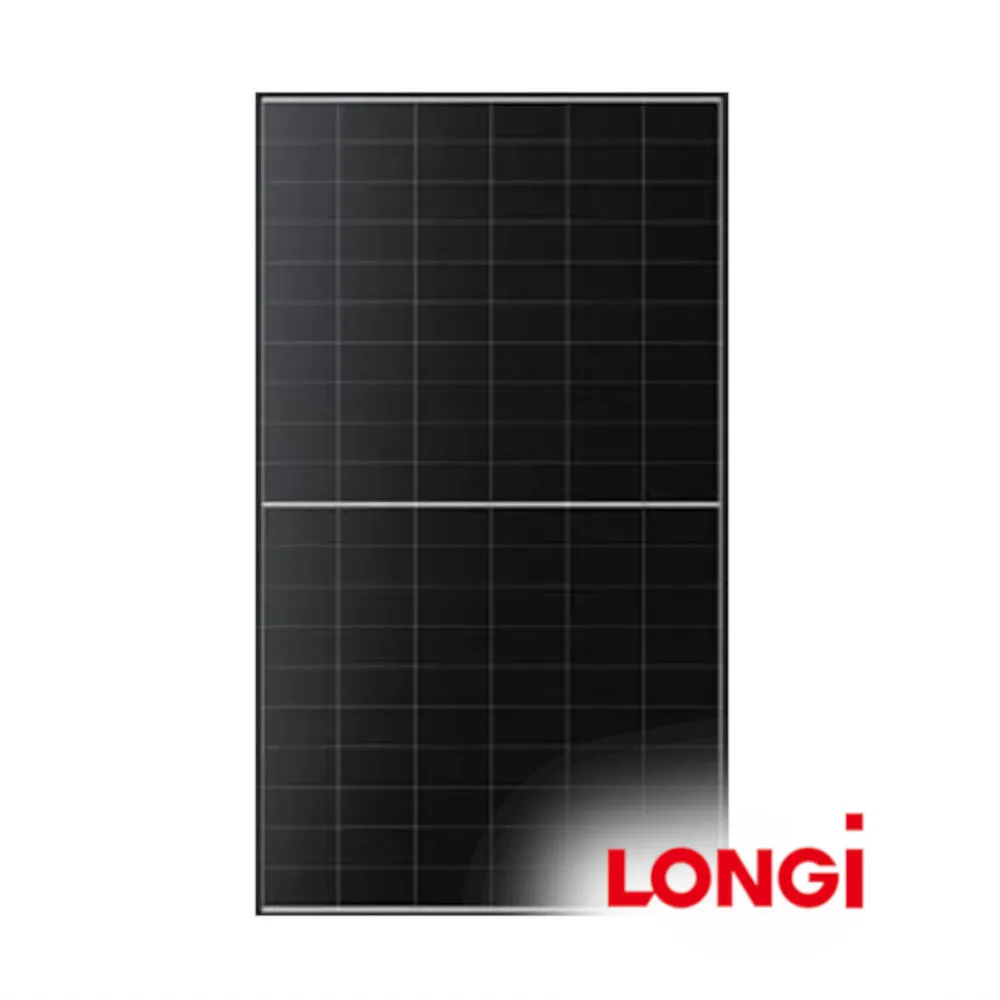

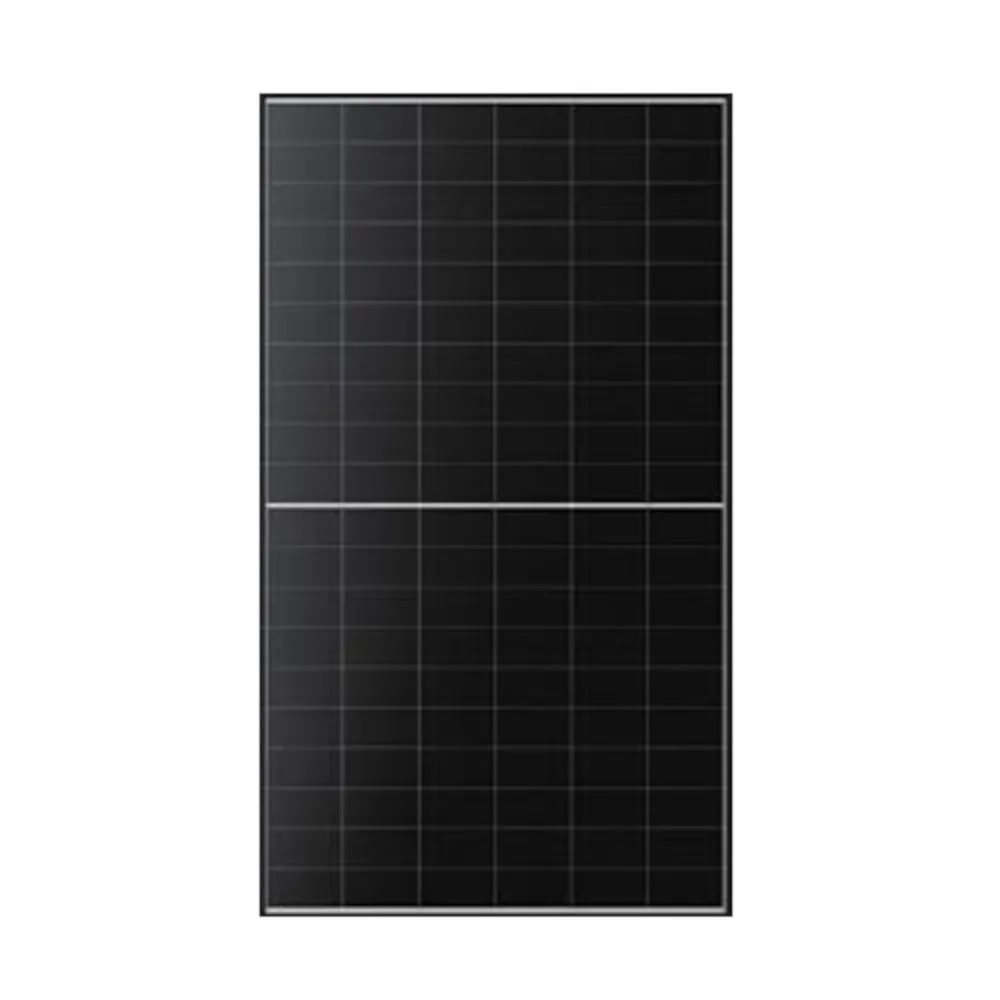

LONGi 535W LR7-60HVD Hi-MO X10 Bifacial Glass-Glass Back-Contact - Black Frame
The LONGi LR7-60HVD-535M is a 535W bifacial solar panel from the Hi-MO X10 series, combining HPBC 2.0 back-contact cell technology with 23.7% module efficiency for high-performance residential and commercial rooftop installations.
Its bifacial glass-glass construction enables additional energy generation from reflected light reaching the rear of the module. Advanced N-type TaiRay wafers, anti-shading technology and improved temperature performance help maximise energy yield across varying operating conditions.
The robust double-glass construction enhances durability and long-term reliability in demanding environmental conditions.
KEY FEATURES:
535W rated output with 23.7% module efficiency
HPBC 2.0 N-type back-contact technology with 120 half-cut cells
Bifacial glass-glass design with 70 ± 5% bifaciality
Dual-glass construction: 2.0mm front and rear glass
TaiRay wafers and anti-shading technology for improved reliability and energy yield
Excellent low-light performance and −0.26%/°C temperature coefficient
Maximum system voltage: 1,500V DC
Maximum static test loads: 5,400Pa front / 2,400Pa rear
IP68 junction box with three bypass diodes
Dimensions: 1,990 × 1,134 × 30mm; 28kg
IEC 61215 and IEC 61730 certified
25-year product warranty and 30-year performance warranty
| Solar Panel Features | Bifacial , Dual Glass / Double Glass , Back Contact , N-Type |
| Brand | LONGi |
| Panel Power Range | 505W - 570W |
| Power Class | 535 W |
| Watts/ m² | 237 |
| Frame Colour | Black |
| Backsheet Colour | Glass |
| Cells | 120 Half Cells (6x20 half cells) |
| Module Efficiency (%) | 23.7 |
| Open Circuit Voltage - Voc (V) | 45.05 |
| Short Circuit Current - Isc (A) | 15.00 |
| Connector Type | MC4-EVO2 Original |
| Panels per Pallet | 36 |
| Panels per Container | 792 |
| MCS No | BABT17012-1041-535W |
| Length (mm) | 1990 |
| Width (mm) | 1134 |
| Thickness (mm) | 30 |
| Annual Degradation (%) | 0.35 |
| Warranty Period | 25 Years |
| Performance Warranty | 30 Years |
| Product Weight (Kg) | 28.0 |
