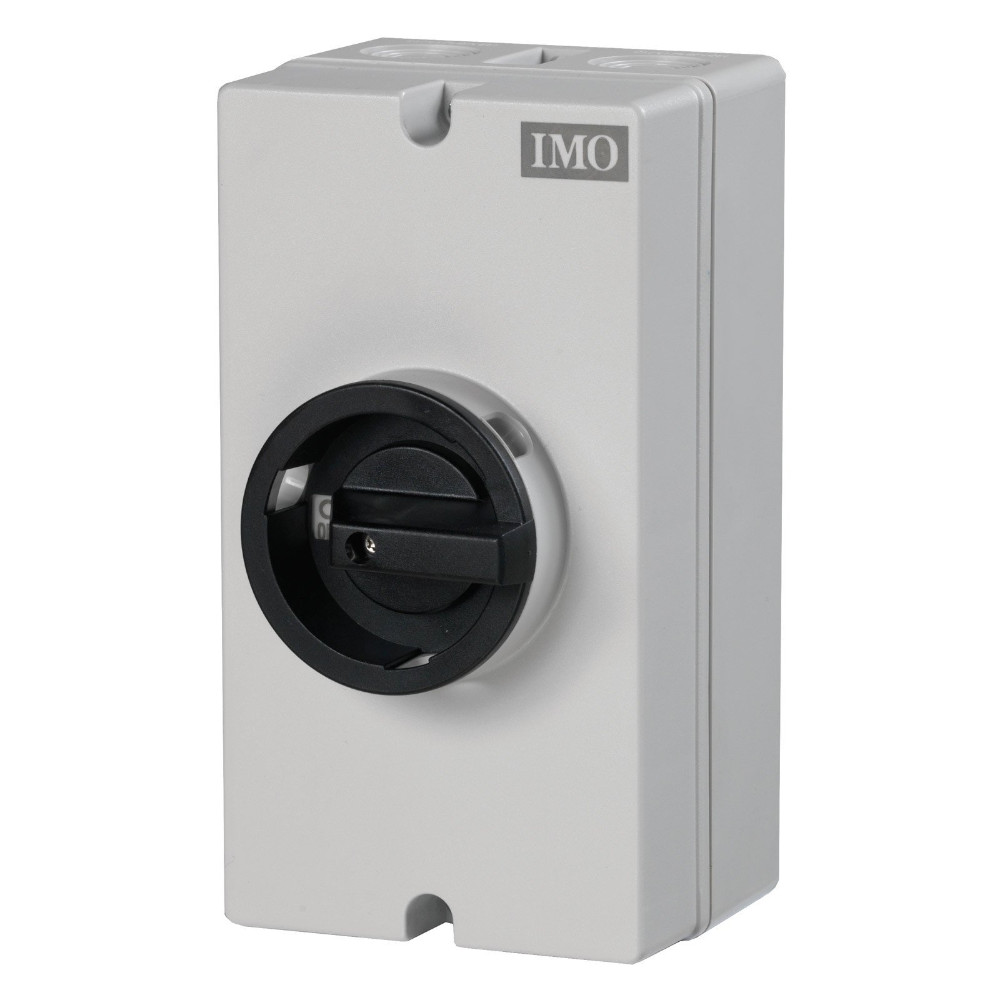

IMO 16A DC Isolator - 4 Pole (Two Strings) IP66 Enclosed, 800 VDC
FEATURES:
- 4 Pole (2 string)
- 16A 800VDC
- IP66 Enclosure
- Grey Body with Black switch
- Switching times of less than 5ms
- IMO patented "Safelock" function
- Dimensions (mm):180x98x107
IMO Solar Isolators (SI) are specifically designed to interrupt the DC/AC Inverter from the solar panel array. Photovoltaic installations have to be equipped with DC Isolators in accordance with IEC 60364-7-712.
| Accessory By Type | AC & DC Isolators or Protection Solutions |
| Brand | IMO |
| Number of Isolator Poles | 4 |
| Rated Current (A) | 16 |
