GoodWe 100kW 3Ph Hybrid Inverter with DC & AFCI

GoodWe 100kW 3Ph Hybrid Inverter with DC & AFCI

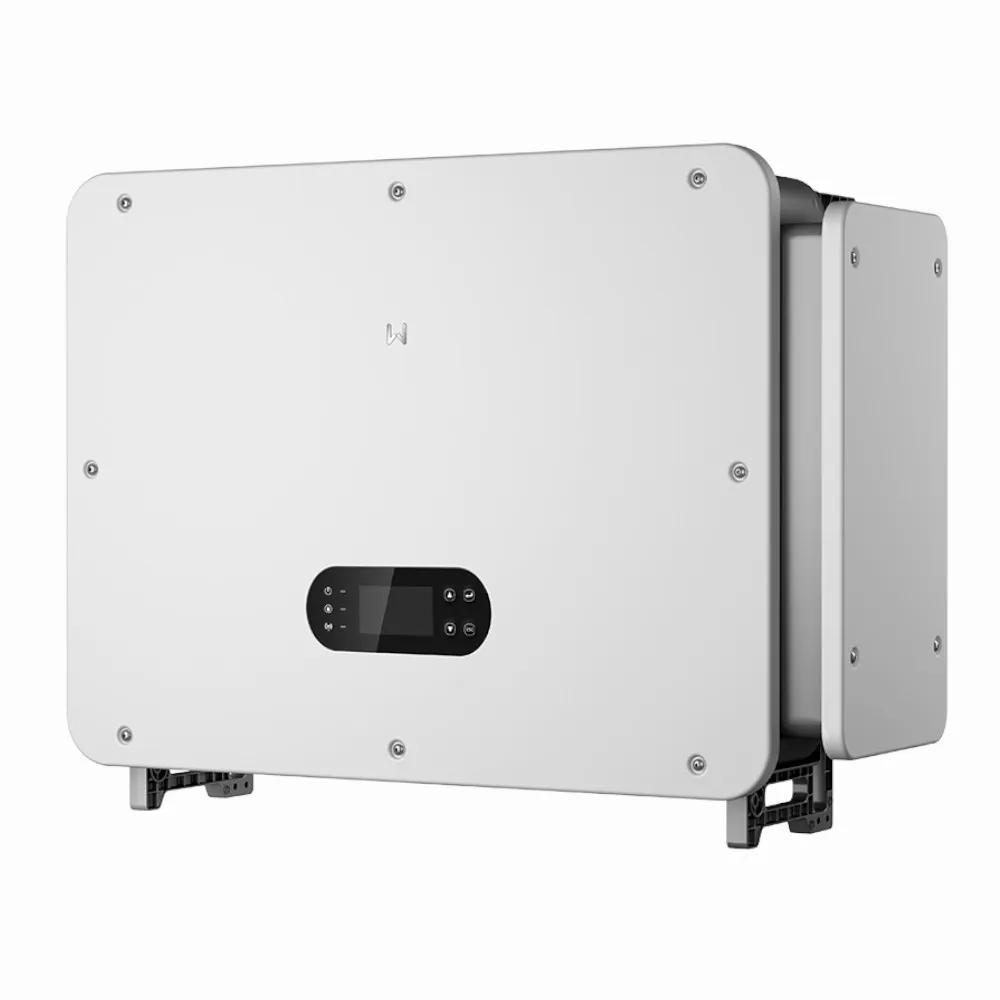

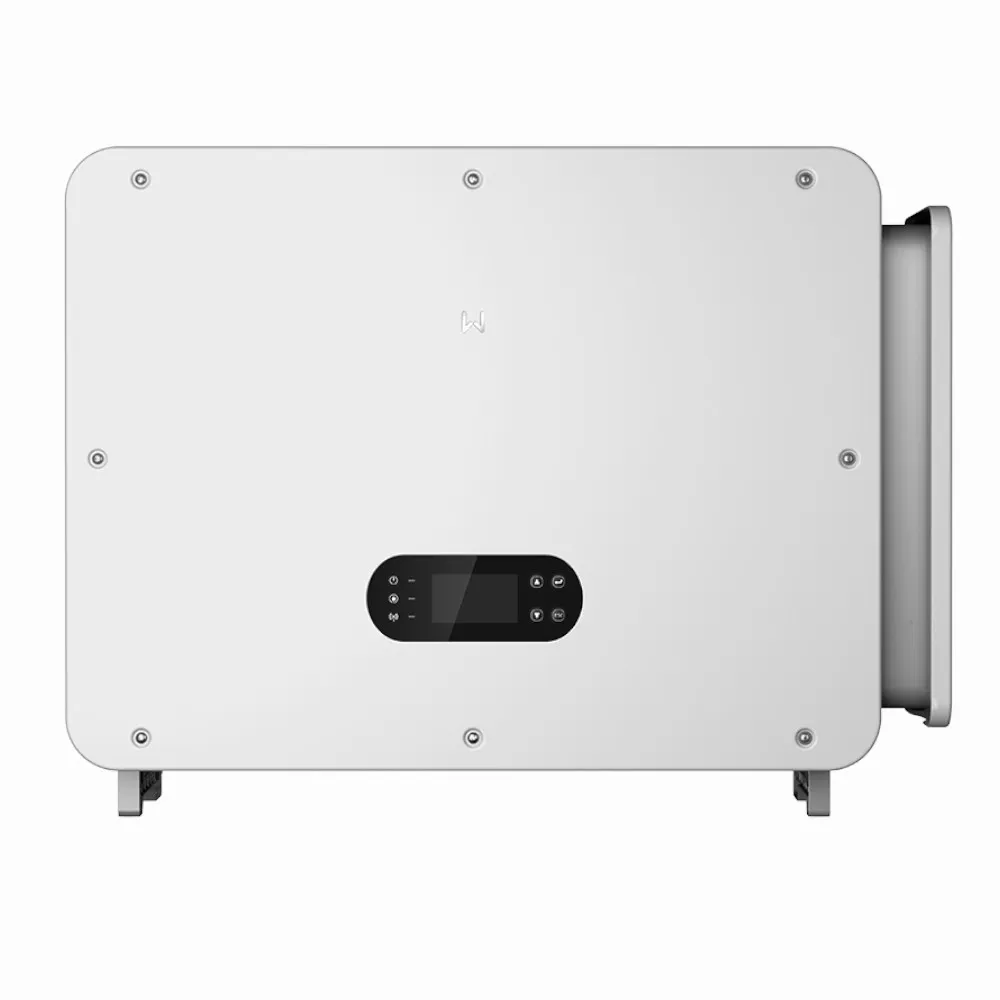

The GoodWe GW100K-ET-G10 is a powerful three-phase hybrid inverter designed for commercial and industrial energy storage systems. As part of the ET 75–100kW Series, it features an efficient DC-coupled architecture for solar-plus-storage applications, supporting high-voltage battery systems. This makes it suitable for self-consumption, peak shaving, time-of-use operation, grid support, and backup power.

Its parallel connection capability allows seamless expansion for both on-grid and off-grid setups. When used with the compatible GoodWe STS Box / Cabinet, the system supports UPS-level switching to backup mode, helping maintain reliable power continuity during grid outages.

KEY FEATURES:

• European Efficiency: 97.7%
• PV Oversizing: The unit supports up to 200% PV oversizing, allowing for a maximum DC input of 200kW
• Number of MPPTs: 8
• Max. Input Current per MPPT: 42A
• Max. DC input voltage: 1000 V
• DC surge protection: Type I + II
• AC surge protection: Type II
• AFCI arc fault detection: yes
• Battery connections: 2
• Back-up Capabilities: When used with the optional GoodWe STS Box, it supports UPS-level switching in less than 4 ms
• Battery Performance: Supports a maximum continuous charge/discharge current of 110A per input (220A total)
• Interfaces: Wi-Fi, LAN, RS485, Bluetooth + 4G (optional)
• WiFi-LAN dongle + GM330 smart meter included
• Protection class: IP66
• Dimensions (W x H x D mm): 995 x 758 x 358
• Weight: 97.0 kg
• Supports ET100 with BAT100, 1C Charge and Discharge. The inverter is also compatible with other models in the GoodWe BAT series, which includes various stackable configurations ranging from 61.4kWh up to 112.6kWh
