Seaward PV150 Solar Link Test Kit
The fast and simple PV tester with I-V curve tracing
This Seaward Solar testing kit has all the required equipment to measure the electrical safety and performance of a solar PV system, along with irradiance, roof pitch & orientation and temperature. This solar test kit offers the complete solution to PV installation testing, assessing and commissioning.
Carries out all electrical tests as required by MCS and IEC 62446. It also stores and downloads up to 200 complete test records into certification software via USB interface.
KEY FEATURES:
- All-in-one commissioning tests and I-V curve tracing
- Ground (earth) continuity measurement with test lead null for long test-leads
- PV string open circuit voltage measurement up to 1000V DC with polarity indication
- PV string short circuit current measurement up to 15A DC
- PV array insulation test at 250/500/1000V
- Tests individual PV modules or strings
- Memory for up to 200 records and USB download to PC (CSV file)
- High contrast display, visible in bright light

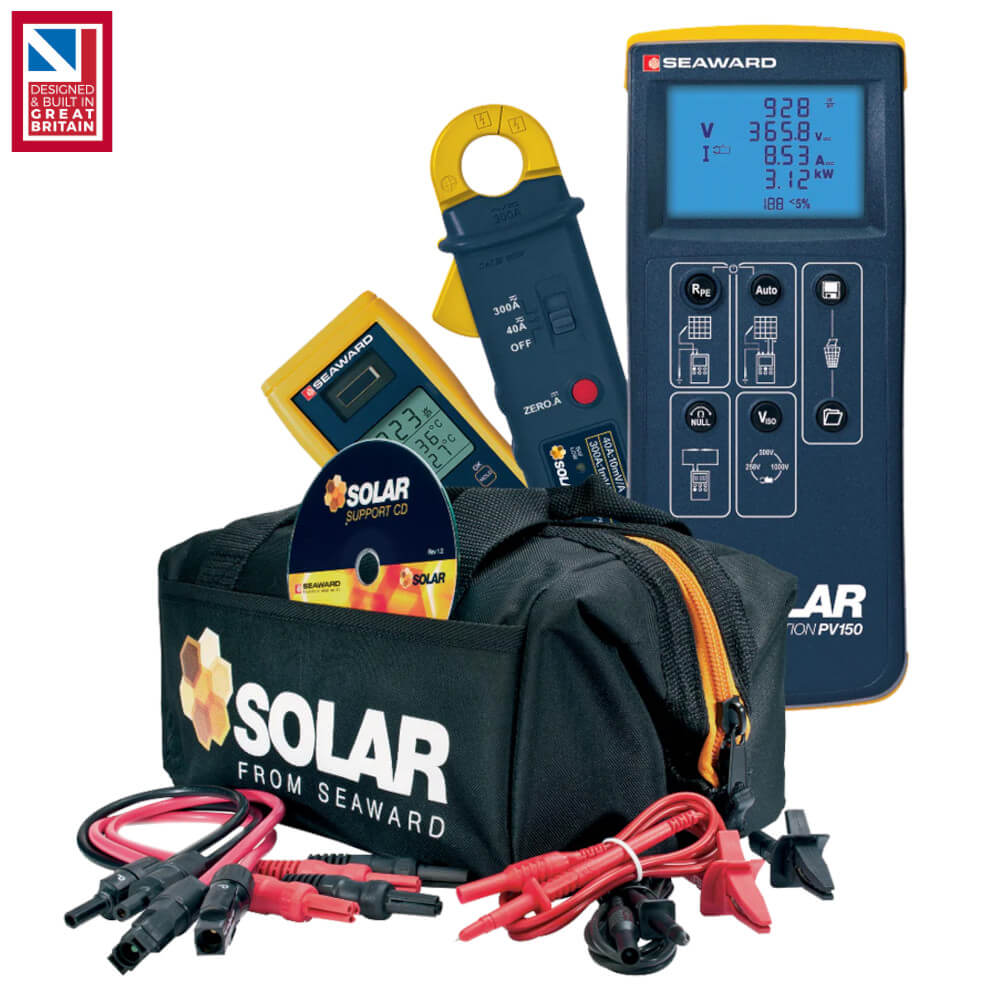

THE KIT INCLUDES:
- Seaward Solar Installation PV150 instrument
- 2 x MC4 test lead adaptors
- 2 x Combiner box test probes and detachable alligator clips (MC4)
- 2 x Test leads, with test probes and detachable alligator clips (4mm)
- AC/DC current clamp
- Solar Survey 200R irradiance meter and temperature probe
- Solar Survey 200R mounting bracket
- Rugged carry bag
- Quick Start Guide
- UKAS Calibration Certificate (PV150)
- SolarCert PC Software
- Free online product training and support
- 2 year warranty (register your product online)
