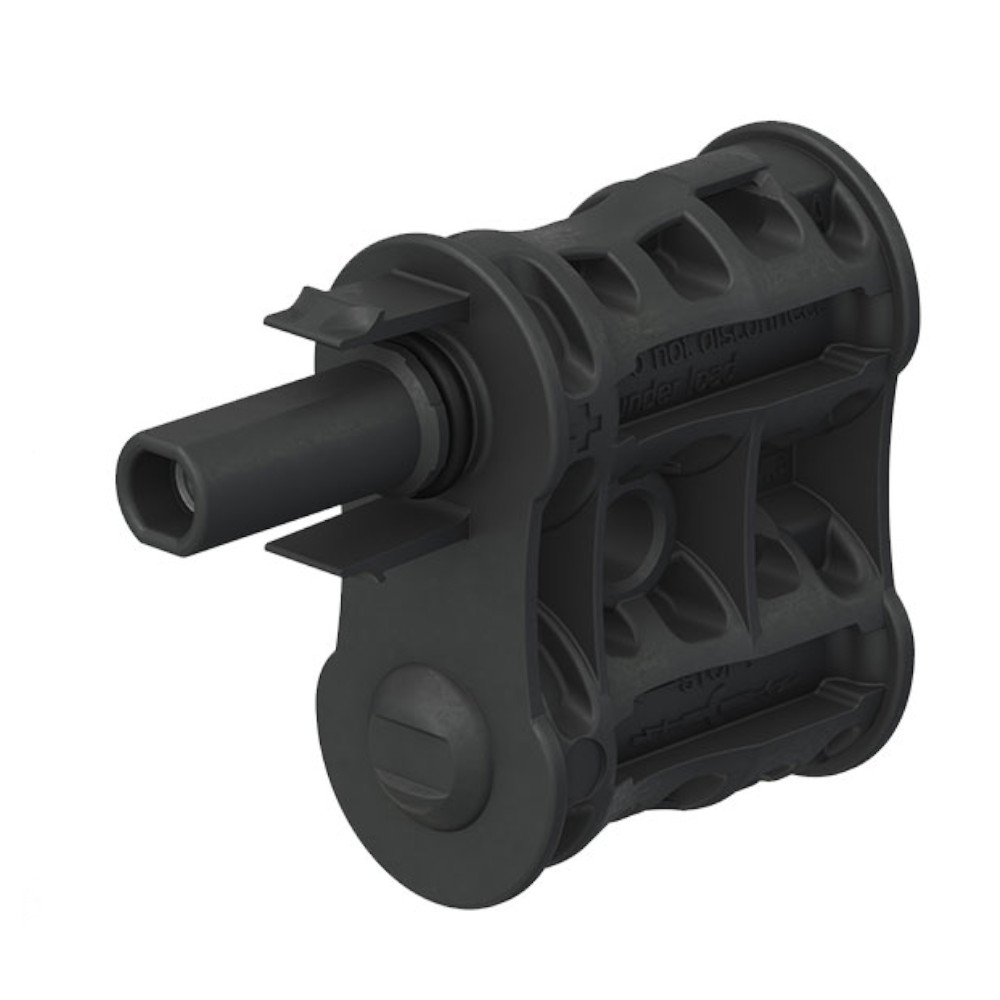

Staubli MC4-Evo 2 Male Branch Connector
World's first dual certified DC 1500 V branch connector.
Stäubli MC4-Evo 2 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules.
Available in either 2 male to 1 female, or 2 female to 1 male, and pluggable with single-pole MC4 and MC4-Evo 2 connectors.
Staubli MC4s are often viewed as the standard connector in the solar energy industry.
FEATURES:
- Plug-and-play: no crimping or torqueing necessary
- Versatility and compact dimensions
- Mating compatibility with original MC4 and MC4-Evo 2 cable connectors
- DC 1500 V according to IEC 62852 and UL 6703
- Resistance to salt mist spray
- Proven MULTILAM Technology with high long-term stability which ensures consistently low performance loss throughout the entire service life of the connector
- IP68 rating
Note: Branch connectors must not be connected directly to panel receptacles of inverters.
| Brand | Staubli |
| Solar Connector Type | Branch Connector |
| Product Weight (Kg) | 0.06 |
| Accessory By Type | Solar Connectors |
Staubli Branch Connector MC4-Evo 2 Datasheet - 07 06 2022.pdf
Download
Stäubli Electrical Connectors TUV Certificate MC4 - 07 02 2019.pdf
Download
Staubli MC4EVO2 IEC62852 Certificate - 16122021.pdf
Download
Staubli Original MC4-EVO2 Catalogue - 06 08 2024.pdf
Download
Staubli Electrical Connectors PV Catalogue - 18 05 2021.pdf
Download
Staubli MC4 & MC4-Evo 2 for Low Voltage DC Applications up to 100A - 22 02 2023.pdf
Download
Stäubli MC4 Compatibility Chart - 28 10 2024.pdf
Download
