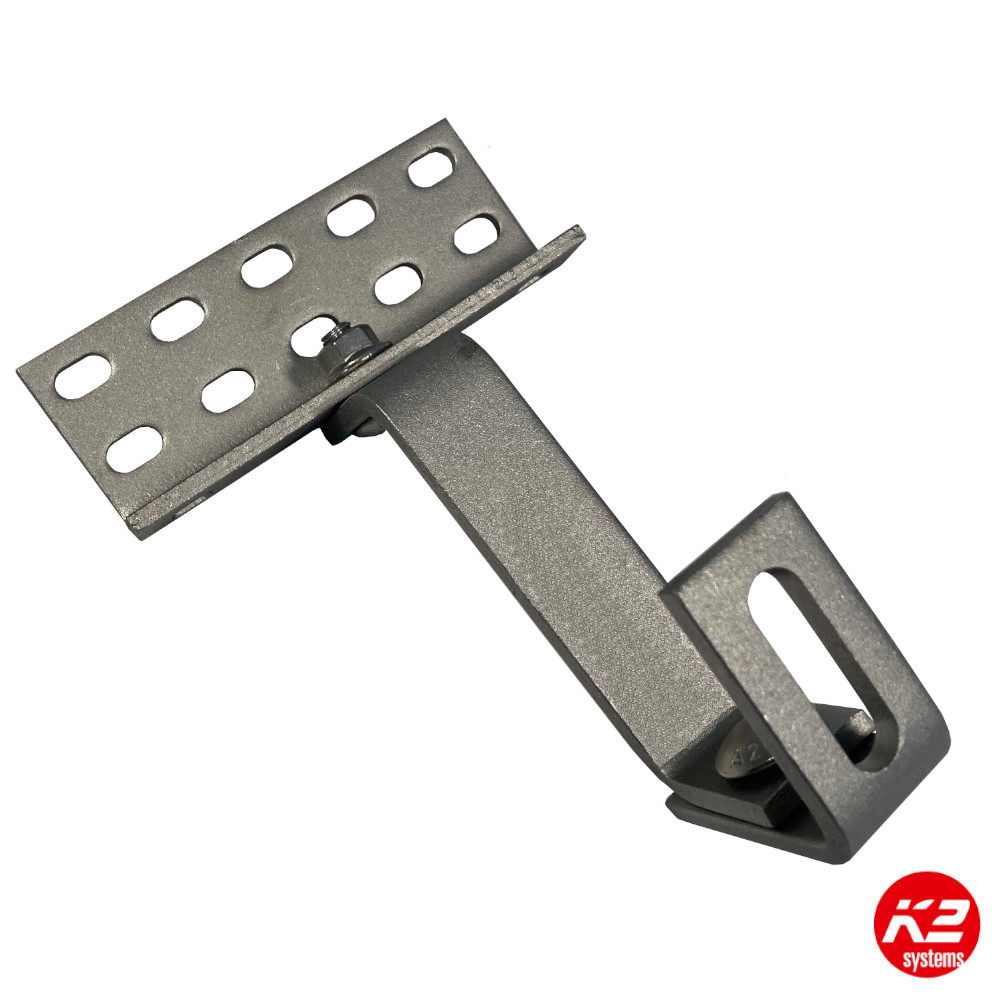

K2 SolidHook Vario 2 Narrow Rafters
Stainless steel roof hook for SolidRail and InsertionRail.
For fastening of K2 System parts on clay brick roofs with pan tile roofing. Bracket with elongated hole to fix the SolidRail with T-Bolt and nut M10.
Similar to the original Vario2 (1000107) but the borehole pattern in the base plate is different. With this new design (non-staggered) borehole, one can now also fix the hook to narrow rafters as woodscrews can be placed in line.
FEATURES:

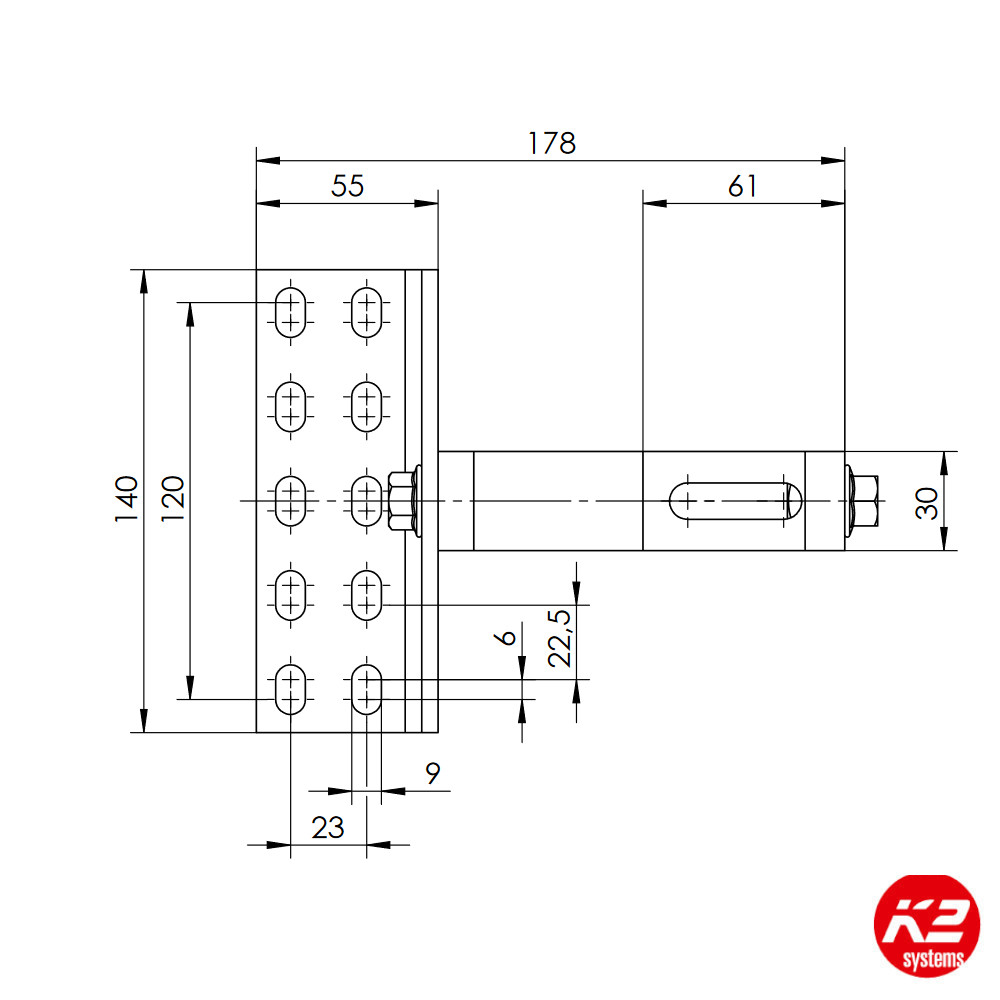

- Base plate: 140x55x5 mm
- Bracket: 30x6 mm
- Bracket height: 57-76 mm
- Height under bracket: 41-50 mm
- Total height: approx. 128-156 mm
| Brand | K2 |
| Components | Roof Hooks |
| Colour | Silver |
| Warranty Period | 12 Years |
